WIITHINK WTB-777 പോർട്ടബിൾ കാസറ്റ് പ്ലെയറും റെക്കോർഡർ ഉപയോക്തൃ മാനുവലും

ആമുഖം

വാങ്ങിയതിന് നന്ദി.asing the WIITHINK WTB-777 Portable Cassette Player and Recorder. This versatile device combines the classic charm of a cassette player and recorder with modern features such as Bluetooth connectivity, USB playback, and AM/FM radio. Designed for ease of use and portability, it allows you to enjoy your favorite audio content wherever you go. Please read this manual thoroughly before operating the device to ensure proper use and to maximize its lifespan.

Figure 1: WIITHINK WTB-777 Portable Cassette Player and Recorder

ഉൽപ്പന്നം കഴിഞ്ഞുview

The WIITHINK WTB-777 is an all-in-one audio solution, offering multiple playback and recording options. Its compact design and dual power capabilities make it ideal for both home and portable use.

• Classical Tape Radio Player: Enjoy music, radio, and cassette tapes with this all-in-one portable player featuring AM/FM radio, Bluetooth connectivity, USB port, and recording from radio to cassette.
• Retro Nostalgia: Relive the nostalgia of cassette tapes while enjoying modern features like Bluetooth. Built-in cassette player and recorder to record radio to blank tapes.
• AM/FM Radio Stereo: Equipped with a long antenna and upgraded chip for great reception of AM/FM stations. Features a big speaker for clear stereo sound. Frequency range: FM 87 - 108 MHz, AM 520 - 1710 kHz.
• ബ്ലൂടൂത്ത് സ്ട്രീമിംഗ്: Stream your favorite music wirelessly from your smartphone, tablet, or other Bluetooth-enabled devices.
• പോർട്ടബിൾ ഡിസൈൻ: Compact and lightweight for easy portability, perfect for on-the-go listening or use at home. Includes an earphone jack and DC/AC power options.

Figure 2: Key Features of the WTB-777

ബോക്സിൽ എന്താണുള്ളത്

അൺപാക്ക് ചെയ്യുമ്പോൾ, താഴെ പട്ടികപ്പെടുത്തിയിരിക്കുന്ന എല്ലാ ഇനങ്ങളും ഉണ്ടെന്നും നല്ല നിലയിലാണെന്നും ഉറപ്പാക്കുക:

• WTB-777 Cassette Player Boombox
• പവർ കോർഡ്
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

സജ്ജമാക്കുക

ഉപകരണം പവർ ചെയ്യുന്നു

The WIITHINK WTB-777 can be powered by either AC power or batteries.

• എസി പവർ: Connect the included power cord to the AC input jack on the back of the unit and plug the other end into a standard wall outlet (AC 120V/60Hz).
• ബാറ്ററി പവർ: For portable use, open the battery compartment on the bottom of the unit and insert 4 x 'C' size batteries (not included), ensuring correct polarity (+/-). Close the battery compartment securely.

കുറിപ്പ്: When using AC power, batteries are automatically disconnected. Remove batteries if the unit will not be used for an extended period to prevent leakage.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Familiarize yourself with the control panel before operation. Refer to Figure 3 for a detailed diagram of the controls.

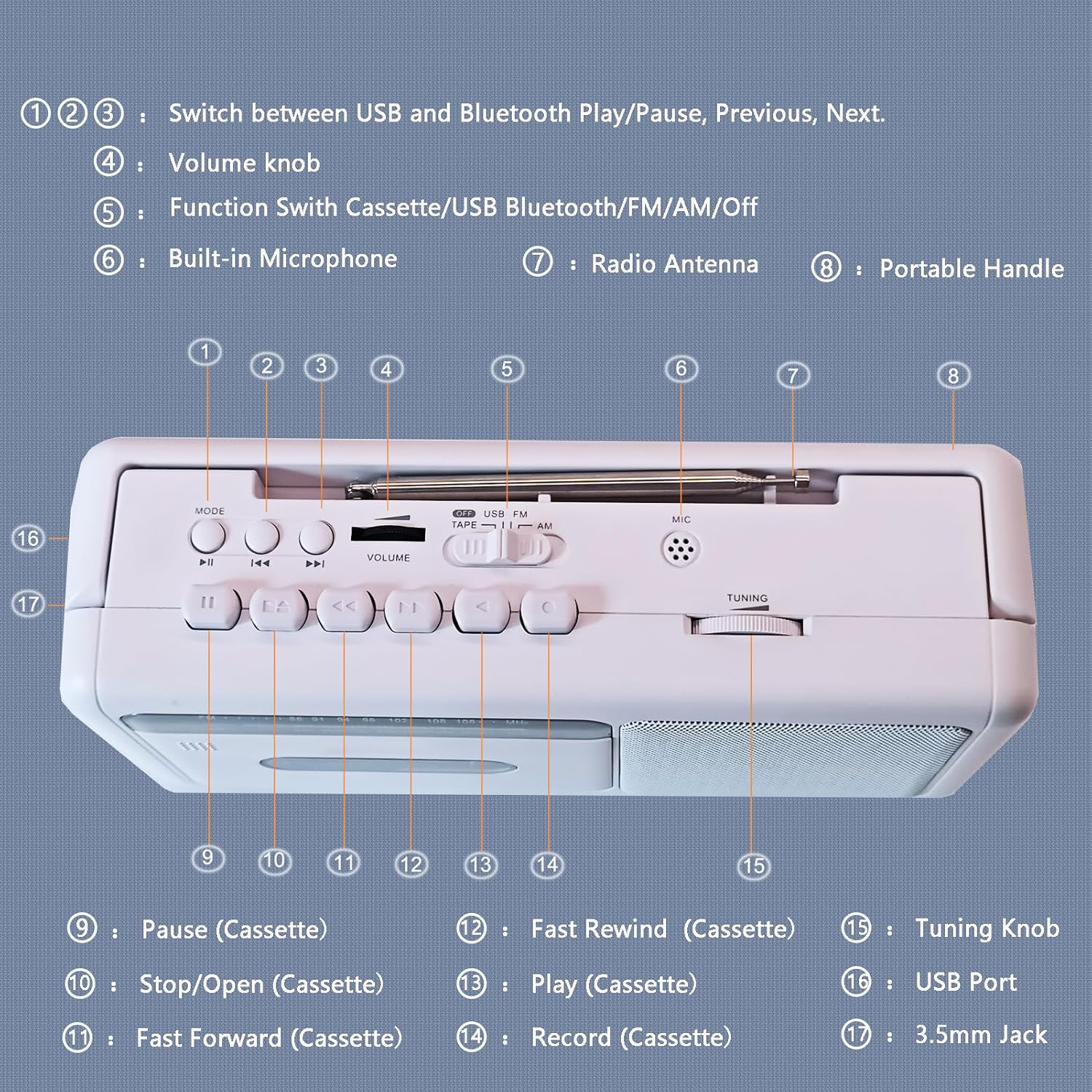

Figure 3: Control Panel Diagram

• 1, 2, 3: Mode/Playback Control Buttons (USB/Bluetooth Play/Pause, Previous, Next)
• 4: വോളിയം നോബ്
• 5: Function Switch (Cassette/USB/Bluetooth/FM/AM/Off)
• 6: ബിൽറ്റ്-ഇൻ മൈക്രോഫോൺ
• 7: റേഡിയോ ആന്റിന
• 8: പോർട്ടബിൾ ഹാൻഡിൽ
• 9: Pause (Cassette)
• 10: Stop/Open (Cassette)
• 11: Fast Forward (Cassette)
• 12: Fast Rewind (Cassette)
• 13: Play (Cassette)
• 14: Record (Cassette)
• 15: ട്യൂബ് നോബ്
• 16: USB പോർട്ട്
• 17: 3.5mm Jack (Earphone/Aux-in)

കാസറ്റ് പ്ലെയർ ഓപ്പറേഷൻ

1. Set the Function Switch (5) to "TAPE".
2. Press the Stop/Open button (10) to open the cassette compartment door.
3. Insert a cassette tape with the open edge facing upwards. Close the compartment door firmly.
4. Press the Play button (13) to begin playback.
5. Adjust the Volume Knob (4) to your desired listening level.
6. To pause playback, press the Pause button (9). Press again to resume.
7. To fast forward, press the Fast Forward button (11). To fast rewind, press the Fast Rewind button (12). Press Play (13) or Stop/Open (10) to stop winding.
8. To stop playback and eject the tape, press the Stop/Open button (10).

Figure 4: Inserting a Cassette Tape

AM/FM റേഡിയോ പ്രവർത്തനം

1. Set the Function Switch (5) to "FM" or "AM".
2. Extend the telescopic antenna (7) for optimal FM reception. For AM reception, rotate the unit for best signal.
3. Rotate the Tuning Knob (15) to select your desired radio station.
4. Adjust the Volume Knob (4) to your desired listening level.

Figure 5: Enjoying AM/FM Radio

ബ്ലൂടൂത്ത് സ്ട്രീമിംഗ്

1. Set the Function Switch (5) to "BT" (Bluetooth). The unit will enter pairing mode, indicated by an audible prompt.
2. നിങ്ങളുടെ Bluetooth പ്രാപ്തമാക്കിയ ഉപകരണത്തിൽ (ഉദാ: സ്മാർട്ട്ഫോൺ, ടാബ്‌ലെറ്റ്), Bluetooth പ്രാപ്തമാക്കി ലഭ്യമായ ഉപകരണങ്ങൾക്കായി തിരയുക.
3. Select "WTB-777" from the list of devices to pair. Once paired, you will hear a confirmation sound.
4. Begin playing audio on your connected device. The sound will be streamed wirelessly to the WTB-777.
5. Use the Volume Knob (4) on the unit or the volume controls on your connected device to adjust the volume.
6. Use buttons (1, 2, 3) to control playback (Play/Pause, Previous/Next track) directly from the unit.

ചിത്രം 6: ബ്ലൂടൂത്ത് കണക്റ്റിവിറ്റി

USB പ്ലേബാക്ക്

1. Set the Function Switch (5) to "USB".
2. MP3 ഓഡിയോ അടങ്ങിയ ഒരു USB ഫ്ലാഷ് ഡ്രൈവ് ഇടുക. files into the USB Port (16).
3. The unit will automatically begin playing the audio fileയുഎസ്ബി ഡ്രൈവിൽ നിന്നുള്ള ങ്ങൾ.
4. Use buttons (1, 2, 3) to control playback (Play/Pause, Previous/Next track).
5. Adjust the Volume Knob (4) to your desired listening level.

Figure 7: USB Playback and Earphone Jack

Recording to Cassette

The WTB-777 allows you to record audio from the radio onto a blank cassette tape.

1. Insert a blank cassette tape into the cassette compartment (refer to Cassette Player Operation).
2. Set the Function Switch (5) to "FM" or "AM" and tune to your desired radio station.
3. Press the Record button (14) and the Play button (13) simultaneously to begin recording. The unit will automatically start recording the radio broadcast onto the tape.
4. To stop recording, press the Stop/Open button (10).

കുറിപ്പ്: The built-in microphone (6) can also be used for voice recording directly to tape when the function switch is set to "TAPE" and the Record button (14) is pressed.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the exterior of the unit. Do not use abrasive cleaners or solvents. For the cassette head and pinch roller, use a specialized cassette head cleaner periodically to ensure optimal sound quality and prevent tape damage.
• സംഭരണം: When not in use for extended periods, store the unit in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for a long time.
• Tape Care: Store cassette tapes in their cases to protect them from dust and damage. Avoid exposing tapes to strong magnetic fields.

ട്രബിൾഷൂട്ടിംഗ്

If you experience issues with your WIITHINK WTB-777, please consult the following table before seeking professional service.

സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for the WIITHINK WTB-777.

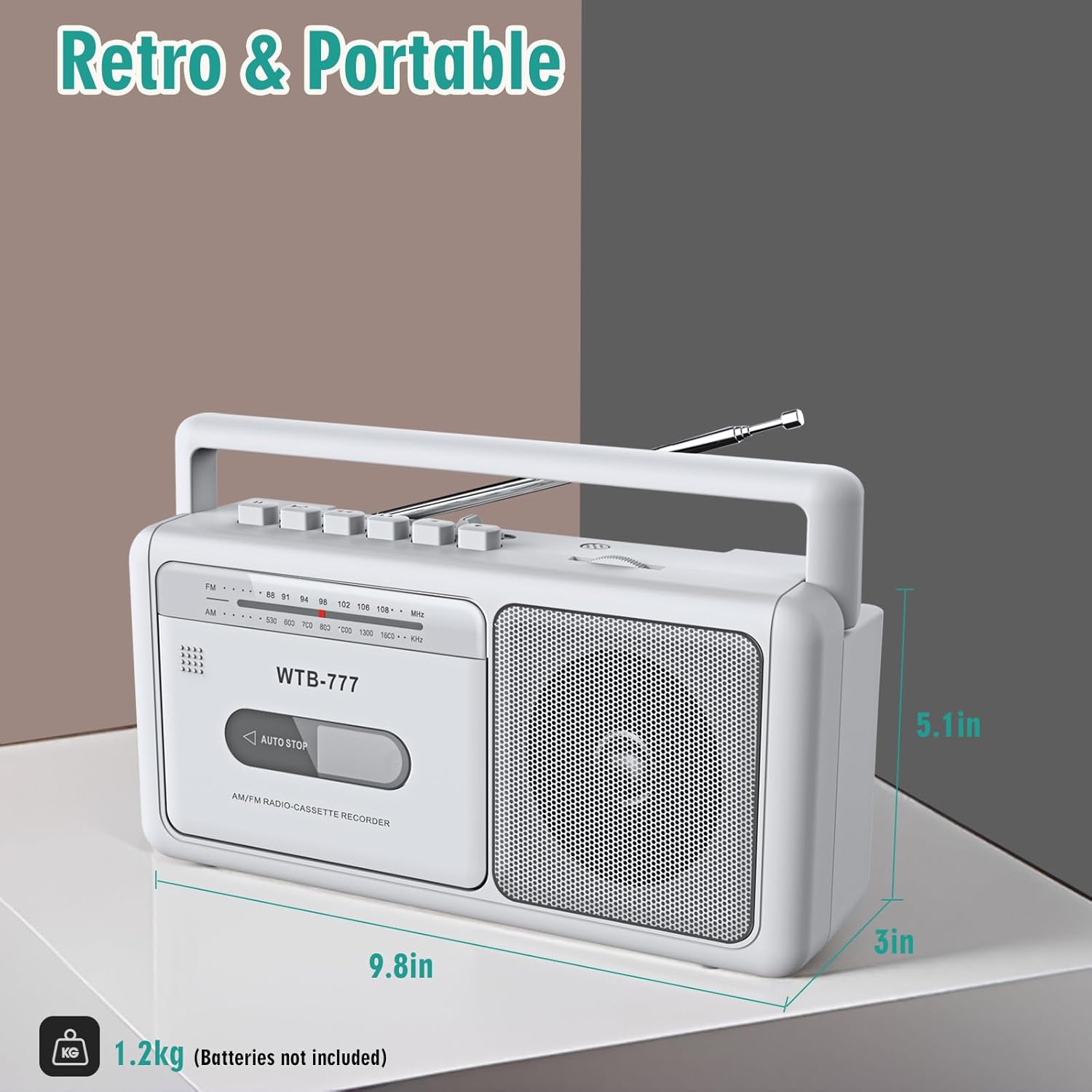

ചിത്രം 8: ഉൽപ്പന്ന അളവുകൾ

വാറൻ്റിയും പിന്തുണയും

Specific warranty information for the WIITHINK WTB-777 is typically provided with the product packaging or on the manufacturer's official website. Please refer to the documentation included with your purchase for detailed warranty terms and conditions.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding parts and service, please contact WIITHINK customer support through their official channels. Contact information can usually be found on the product packaging, the manufacturer's website, or the retailer's product page.
