Nextbase Piqo 2K Smart Dash Cam User Manual

1. ആമുഖം

The Nextbase Piqo 2K Smart Dash Cam is a compact and advanced device designed to record your journeys in high definition, providing crucial evidence in case of incidents and enhancing overall driving safety. It features 1440p Ultra-Wide Quad HD recording, built-in Wi-Fi, Bluetooth, and GPS for seamless connectivity and location tracking. Key functionalities include Smart Parking, Emergency SOS, and Voice Control, making it a reliable driving companion.

ചിത്രം 1: കോണാകൃതിയിലുള്ളത് view of the Nextbase Piqo 2K Smart Dash Cam.

ചിത്രം 2: മുൻഭാഗം view of the Nextbase Piqo 2K Smart Dash Cam.

2. ബോക്സിൽ എന്താണുള്ളത്?

Upon opening your Nextbase Piqo 2K Smart Dash Cam package, verify that all the following components are included:

• Nextbase Piqo 2K Dash Cam Unit
• Mount (with pre-applied 3M adhesive)
• Power Cable (USB-C to 12V car adapter)
• ഉപയോക്തൃ മാനുവൽ
• 32GB U3 microSD Card
• സ്പെയർ 3M പശ പാഡ്
• Cable Trim Tool
• Cleaning Wipes (Wet and Dry)
• ക്ലീനിംഗ് തുണി
• Nextbase Security Stickers

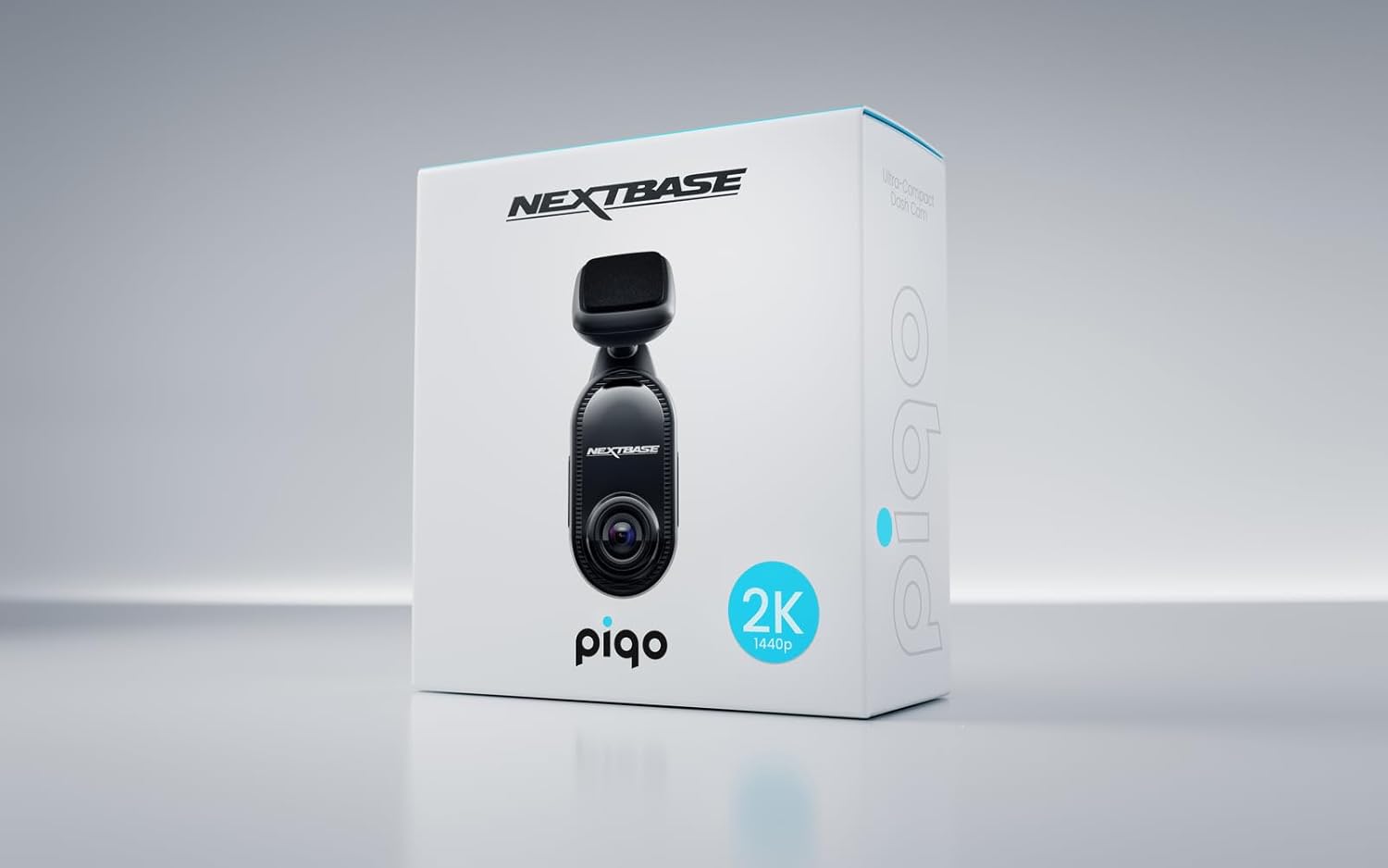

Figure 3: The retail packaging for the Nextbase Piqo 2K Smart Dash Cam.

Figure 4: All components included in the Nextbase Piqo 2K Smart Dash Cam package.

3. സജ്ജീകരണം

3.1 ഡാഷ് കാം മൌണ്ട് ചെയ്യുന്നു

1. ഒരു ലൊക്കേഷൻ തിരഞ്ഞെടുക്കുക: Select a discreet location on your windshield, ideally behind the rearview mirror, that does not obstruct your view റോഡിൻ്റെ.
2. വിൻഡ്ഷീൽഡ് വൃത്തിയാക്കുക: Use the provided wet and dry wipes to thoroughly clean the chosen area on your windshield. Ensure the surface is free of dust, grease, and moisture for optimal adhesive bonding.
3. മൗണ്ട് ഘടിപ്പിക്കുക: Remove the protective film from the 3M adhesive on the dash cam mount. Firmly press the mount onto the cleaned windshield area for at least 30 seconds. Allow the adhesive to cure for a few hours before attaching the dash cam unit.
4. ഡാഷ് ക്യാം അറ്റാച്ചുചെയ്യുക: Once the mount is securely attached, slide the Piqo 2K dash cam unit onto the mount until it clicks into place. The quick-release mechanism allows for easy removal if needed.

Figure 5: The dash cam discreetly mounted behind the rearview mirror inside a vehicle.

ചിത്രം 6: ബാഹ്യ view of the dash cam mounted on the windshield, showing its compact design.

3.2 പവർ കണക്ഷൻ

1. പവർ കേബിൾ ബന്ധിപ്പിക്കുക: Plug the USB-C end of the power cable into the dash cam unit.
2. വാഹന പവറുമായി ബന്ധിപ്പിക്കുക: Insert the 12V car adapter end of the power cable into your vehicle's 12V power socket (cigarette lighter socket).
3. കേബിൾ റൂട്ട് ചെയ്യുക: Carefully route the power cable around your windshield and dashboard, tucking it into the trim using the provided trim tool for a neat and secure installation.

3.3 മൈക്രോ എസ്ഡി കാർഡ് ചേർക്കുക

Insert the provided 32GB U3 microSD card into the designated slot on the side of the dash cam. Ensure it clicks into place. This card is essential for recording and storing footage.

3.4 Install Piqo App

Download and install the Nextbase Piqo app on your smartphone (available on iOS App Store and Google Play Store). This app allows you to view തത്സമയംtage, manage recordings, adjust settings, and access advanced features.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 അടിസ്ഥാന റെക്കോർഡിംഗ്

The Piqo 2K dash cam automatically begins recording when it receives power (e.g., when you start your vehicle). It records in a continuous loop, overwriting the oldest footage when the microSD card is full. Important footage can be protected from being overwritten.

4.2 Smart Parking

When your vehicle is parked, the Smart Parking feature automatically records any bumps or hits. It will alert you via the app when you return to your vehicle. This feature may require a separate Quick Connect or Pro Install Cable (sold separately) for continuous power.

4.3 എമർജൻസി എസ്ഒഎസ്

In the event of a serious accident, the Emergency SOS feature automatically contacts emergency services, sharing your GPS location and other vital details. This feature is available via a Piqo Protect+ subscription.

4.4 Witness Mode Lite

Activate Witness Mode Lite by saying "Nexy, Start Witness Mode." This sends an instant SOS notification to a pre-selected friend or loved one, providing immediate assistance when you need help.

4.5 Guardian Mode Lite

Set speed or location limits for other drivers using your car. Piqo saves evidence and alerts you if these limits are breached, offering peace of mind when your vehicle is used by others.

4.6 Connectivity (Wi-Fi, Bluetooth, GPS)

The dash cam features built-in Wi-Fi, Bluetooth, and GPS. Wi-Fi allows for quick footage transfer to your smartphone via the Piqo app. Bluetooth enables seamless pairing with your device, and GPS tracks your location data, which is embedded in the video footage.

Figure 7: The Piqo app displaying map and GPS data alongside recorded footage.

5. പരിപാലനം

5.1 വൃത്തിയാക്കൽ

Regularly clean the dash cam lens and the windshield area where the camera is mounted. Use the provided cleaning cloth and wipes to remove dust, fingerprints, and smudges that could affect video quality. Avoid using harsh chemicals or abrasive materials.

5.2 SD കാർഡ് മാനേജ്മെന്റ്

It is recommended to format the microSD card every 2-4 weeks to maintain optimal performance and prevent data corruption. This can usually be done through the dash cam's settings via the Piqo app. Replace the microSD card if you notice any issues with recording or data integrity.

5.3 ഫേംവെയർ അപ്ഡേറ്റുകൾ

Periodically check for firmware updates via the Piqo app or the Nextbase website. Keeping your dash cam's firmware up-to-date ensures you have the latest features, bug fixes, and performance improvements.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Nextbase Piqo 2K Smart Dash Cam, refer to the following common troubleshooting steps:

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

Nextbase products are designed for reliability and performance. For detailed warranty information, please refer to the warranty card included in your product packaging or visit the official Nextbase website. For technical support, FAQs, and additional resources, please visit the Nextbase support page or contact their customer service directly.

ഓൺലൈൻ പിന്തുണ: www.nextbase.com/support

Always ensure you are using genuine Nextbase accessories and following recommended guidelines to maintain your product's warranty and ensure optimal performance.
