Cuifati Smart Ring Health Tracker User Manual

1. ആമുഖം

The Cuifati Smart Ring is a health and fitness tracker designed to monitor various physiological data points. This device features a compact design, 50M water resistance, and Bluetooth Low Energy (BLE 5.1) connectivity. It is equipped with an 18mAh rechargeable lithium-ion battery, providing 5-7 days of operation on a single charge. The ring is constructed from 304 stainless steel, ensuring durability and hypoallergenic properties.

Key functionalities include sleep cycle analysis, comprehensive exercise monitoring (steps, distance, pace), and general health data analysis to support a balanced lifestyle. This manual provides instructions for setup, operation, and maintenance of your smart ring.

Image: The Cuifati Smart Ring, silver in color, highlighting its sleek design and internal sensor components.

2. സജ്ജീകരണം

2.1 പാക്കേജ് ഉള്ളടക്കം

• 1 x Cuifati Smart Ring
• 1 x USB ചാർജിംഗ് കേബിൾ
• 1 x ഇൻസ്ട്രക്ഷൻ മാനുവൽ (ഈ ഡോക്യുമെന്റ്)

2.2 പ്രാരംഭ ചാർജിംഗ്

Before first use, fully charge the smart ring. Connect the provided USB cable to a compatible power source and attach the charging end to the ring's charging contacts. A full charge typically takes approximately 1-2 hours.

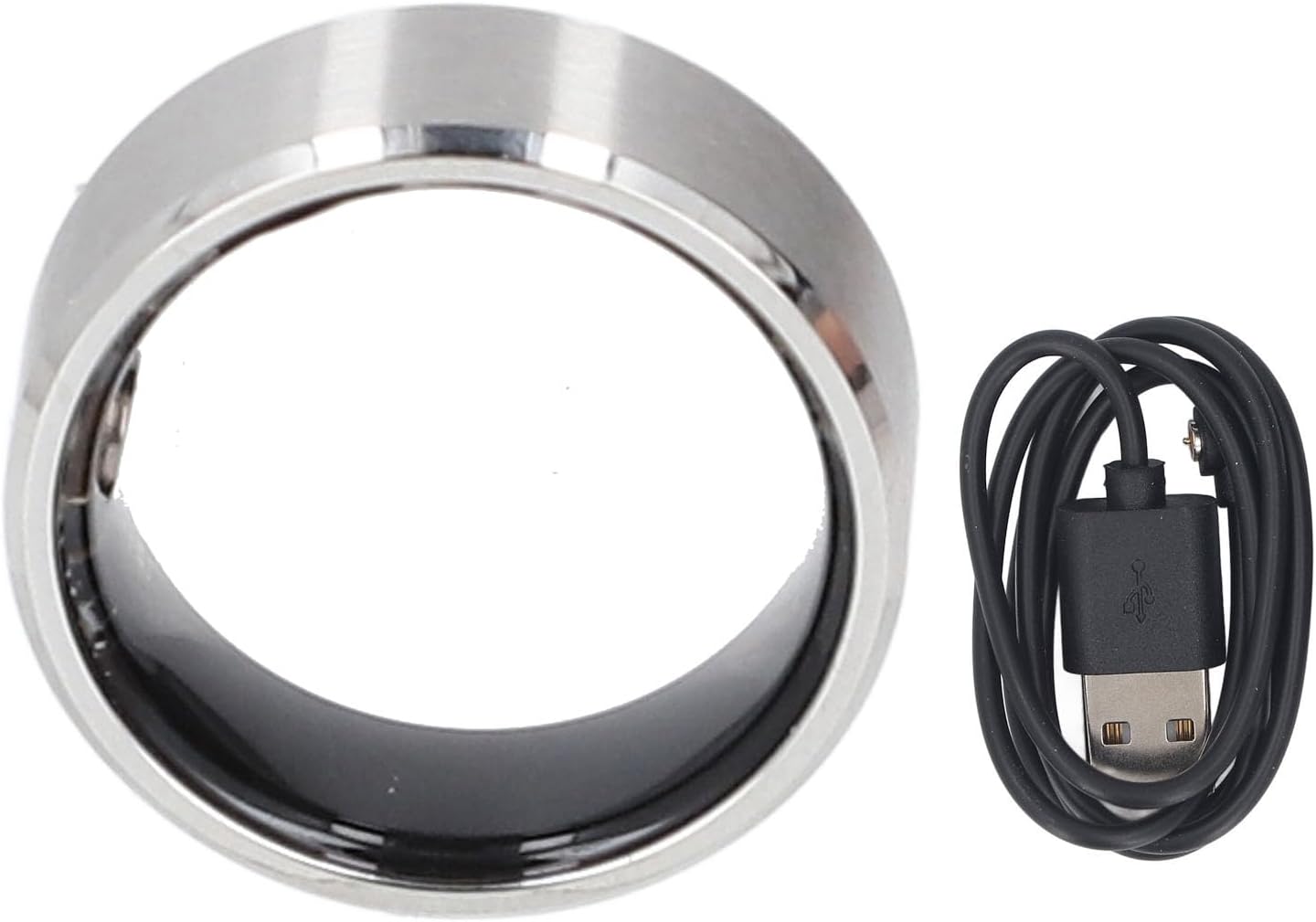

Image: The Cuifati Smart Ring shown with its accompanying USB charging cable.

2.3 അപ്ലിക്കേഷൻ ഇൻസ്റ്റാളേഷൻ

To utilize all features of the smart ring, download the 'CyFit' application. The app is available for both iOS and Android devices. You can find it in the respective app stores (for iOS Store or Google Play Store) or by scanning the QR code provided in the physical instruction manual.

1. ഇതിനായി തിരയുക 'CyFit' in your device's app store.
2. ആപ്ലിക്കേഷൻ ഡൗൺലോഡ് ചെയ്ത് ഇൻസ്റ്റാൾ ചെയ്യുക.
3. Follow the on-screen instructions within the app to pair your smart ring via Bluetooth. Ensure Bluetooth is enabled on your smartphone.

3. ധരിക്കുന്നതിനുള്ള നിർദ്ദേശങ്ങൾ

Proper fit is crucial for accurate data monitoring. Follow these steps to determine your correct ring size:

1. ഘട്ടം 1: When measuring, use a non-elastic thin line or strip of paper to wrap around your finger.
2. ഘട്ടം 2: After straightening the thin line, measure its length with a ruler. Compare this measurement to the perimeter in the specifications table below to find your appropriate ring size.

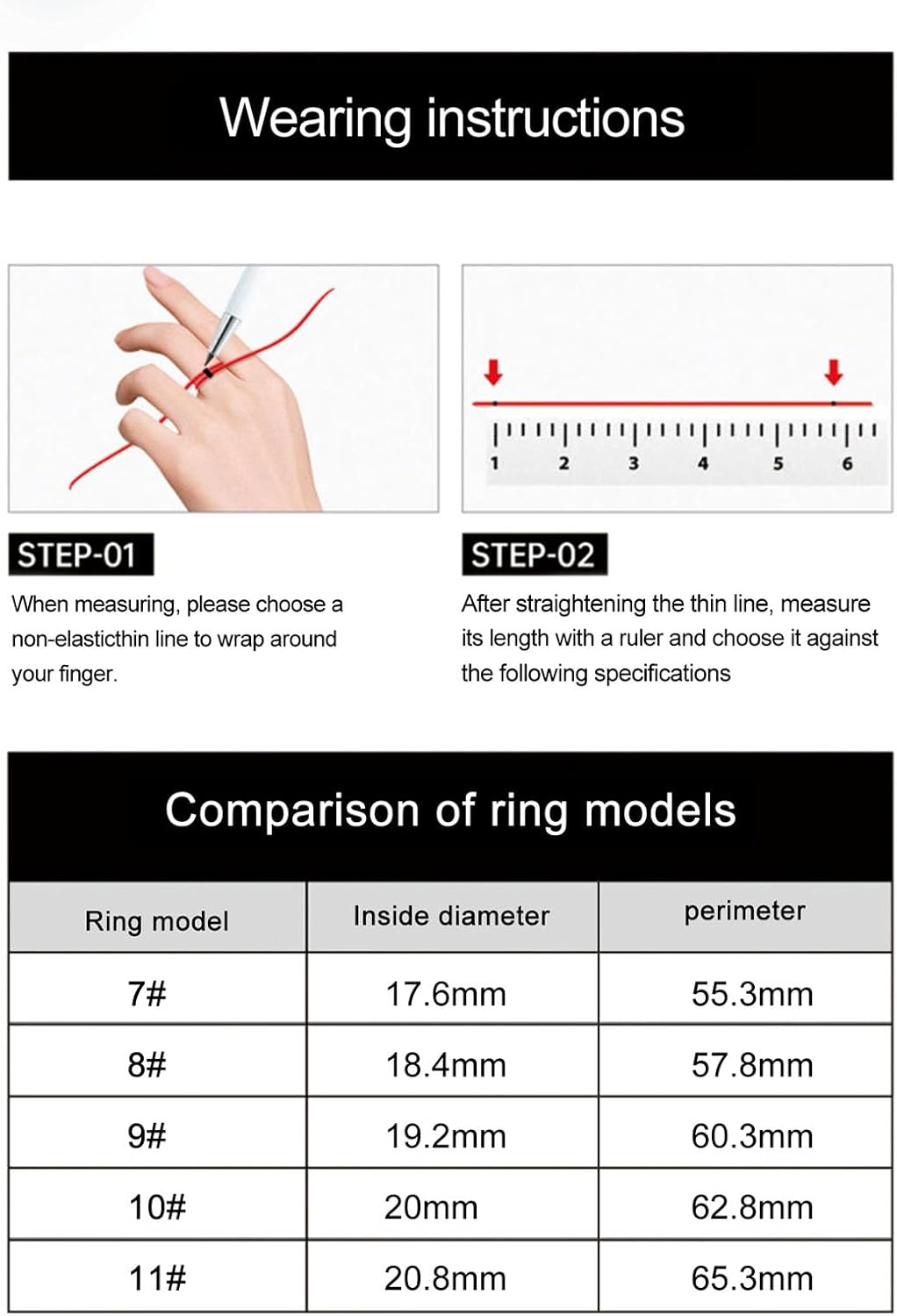

Image: Visual guide for measuring finger size and a comparison table for ring models.

Ring Size Comparison

Image: The Cuifati Smart Ring worn on a finger, demonstrating its discreet profile.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once paired with the CyFit app, your smart ring continuously monitors various health and fitness metrics. Data is synchronized with the app for detailed analysis.

Image: Two smart rings illustrating their multi-dimensional health monitoring capabilities, comfortable wear, exercise tracking, and water resistance.

4.1 ഉറക്ക വിശകലനം

The ring tracks your sleep patterns, identifying different sleep stages such as deep sleep, light sleep, and wakefulness. This data helps in understanding your body's restorative processes and can inform adjustments for improved sleep quality.

4.2 എക്സർസൈസ് മോണിറ്ററിംഗ്

Track your physical activity with the smart ring. It monitors steps taken, distance covered, and pace for various indoor and outdoor exercises. Detailed workout data is available in the CyFit app, allowing you to review performance and set new goals.

4.3 General Health Monitoring

Beyond sleep and exercise, the smart ring collects other health-related data. By analyzing this information, the device aims to provide insights that can assist in making informed choices for a balanced and healthy lifestyle.

Image: A display of the smart ring in various colors, highlighting its design and internal technology for data processing.

5 സ്പെസിഫിക്കേഷനുകൾ

6. പരിപാലനം

6.1 ജല പ്രതിരോധം

The Cuifati Smart Ring has a 50M (5ATM) water resistance rating. This means it is suitable for activities such as walking in the rain, bathing, and swimming. It is not recommended for high-pressure water activities or diving beyond specified depths.

Image: Illustration of the smart ring's 50M water resistance, suitable for various water-related activities.

6.2 മെറ്റീരിയൽ പരിചരണം

The ring is made of 304 stainless steel, which is designed to resist wear and rust. To maintain its appearance, clean the ring periodically with a soft, damp cloth. Avoid contact with harsh chemicals or abrasive materials that could scratch the surface.

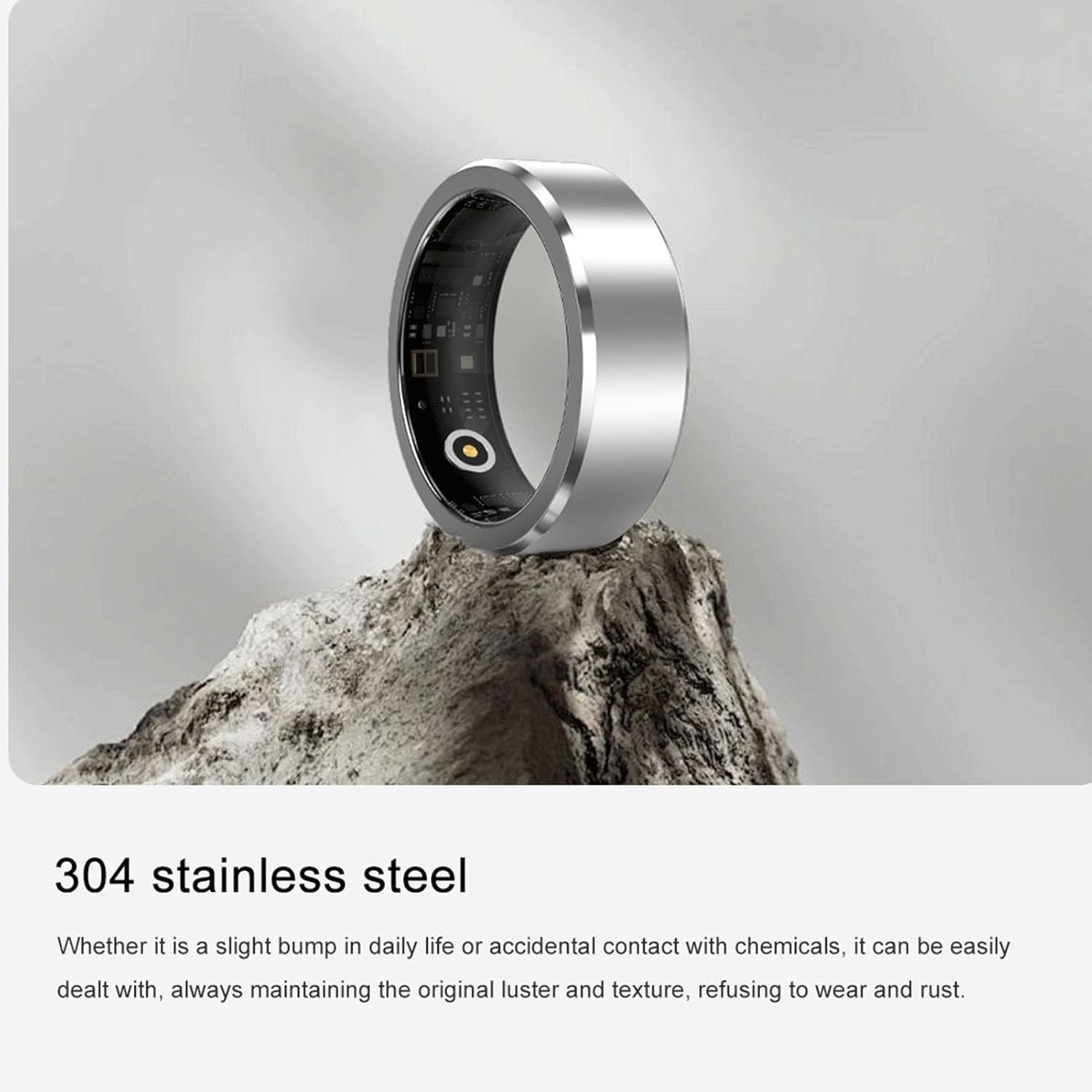

Image: The smart ring made from 304 stainless steel, emphasizing its durable and resistant properties.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Cuifati Smart Ring, consider the following general troubleshooting steps:

• കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure Bluetooth is enabled on your smartphone and the ring is within range. Try restarting both the ring (if applicable) and your smartphone.
• ഡാറ്റ സമന്വയ പ്രശ്നങ്ങൾ: Verify that the CyFit app is updated to the latest version. Ensure a stable internet connection for data synchronization.
• ബാറ്ററി ലൈഫ്: If battery life is shorter than expected, ensure the ring is fully charged. Excessive background app usage or frequent data synchronization may affect battery performance.
• കൃത്യമല്ലാത്ത വായനകൾ: Confirm the ring is worn correctly and fits snugly. Ensure the sensors are clean and free from debris.

For persistent issues, refer to the 'Help' section within the CyFit app or contact customer support.

8. വാറൻ്റിയും പിന്തുണയും

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty duration and coverage details.

For technical support, product inquiries, or warranty claims, please contact Cuifati customer service through the contact information provided in your product documentation or via the official Cuifati webസൈറ്റ്.
