Kenmore 5.6 cu. ft. Front Control Gas Range Oven (Model 2276833) User Manual

1. ആമുഖം

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Kenmore 5.6 cu. ft. Front Control Gas Range Oven, Model 2276833. Please read all instructions carefully before using the appliance.

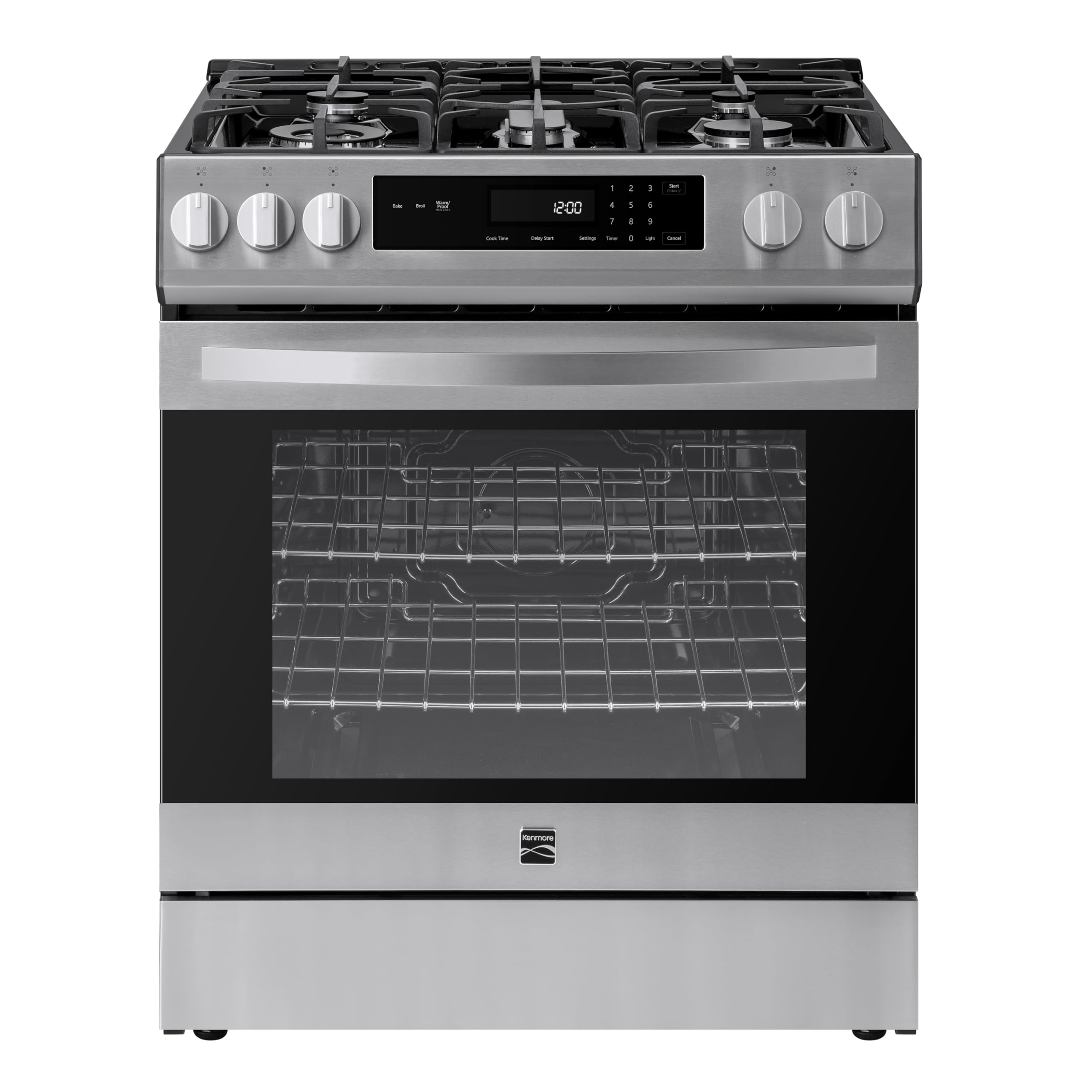

Figure 1.1: Kenmore 5.6 cu. ft. Front Control Gas Range Oven (Model 2276833).

2 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

ഈ ഉപകരണം ഉപയോഗിക്കുമ്പോൾ തീ, വൈദ്യുതാഘാതം അല്ലെങ്കിൽ പരിക്കുകൾ എന്നിവ കുറയ്ക്കുന്നതിന് എല്ലായ്പ്പോഴും അടിസ്ഥാന സുരക്ഷാ മുൻകരുതലുകൾ പാലിക്കുക.

• വാതക ചോർച്ച: If you smell gas, immediately shut off the gas supply to the appliance and evacuate the area. Do not operate any electrical switches or phones. Contact your gas supplier.
• ടിപ്പ്-ഓവർ അപകടം: The range must be secured by an anti-tip device. Failure to do so can result in serious injury or death.
• കത്തുന്ന വസ്തുക്കൾ: Keep flammable materials away from the range. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• കുട്ടികളുടെ സുരക്ഷ: Do not leave children unattended near the range. Do not allow them to climb, stand, or hang on any part of the range.
• ശരിയായ ഇൻസ്റ്റാളേഷൻ: Ensure the range is properly installed and grounded by a qualified installer in accordance with the installation instructions.
• വെൻ്റിലേഷൻ: അടുക്കള ഭാഗത്ത് ആവശ്യത്തിന് വായുസഞ്ചാരം ഉറപ്പാക്കുക.

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

3.1 ഉൽപ്പന്ന അളവുകൾ

Figure 3.1: Kenmore Gas Range Dimensions.

• ഉയരം: 36 ഇഞ്ച്
• വീതി: 29.9 ഇഞ്ച്
• ആഴം: 25 ഇഞ്ച്
• ശേഷി: 5.6 ക്യുബിക് അടി

3.2 ഇൻസ്റ്റലേഷനു് ആവശ്യമായ ഉപകരണങ്ങളും ഭാഗങ്ങളും

Figure 3.2: Required Tools and Included Parts for Installation.

ആവശ്യമായ ഉപകരണങ്ങൾ: Phillips screwdriver, 3/4 inch nut driver, adjustable wrench, pliers, drill, level.

ഉൾപ്പെടുന്ന ഭാഗങ്ങൾ: Anti-tip device, backsplash with screws, 2 oven racks, gas pipe adaptor with washers, gas pressure regulator, user guide, and an LP Conversion Kit for areas without natural gas.

3.3 Electrical and Gas Requirements

For gas cooking ranges, ensure a 110-volt, 3-prong grounded electrical outlet is available within 3 feet of the unit. A gas shut-off valve must also be located within 3 feet of the appliance for safety regulations.

Refer to the video above for detailed guidance on measuring your kitchen space and ensuring proper clearances for installation. This includes checking the path from delivery to the final location, measuring narrow points like gates and doorways, and accounting for necessary clearances around the appliance for proper door and drawer operation.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 കൺട്രോൾ പാനൽ ഓവർview

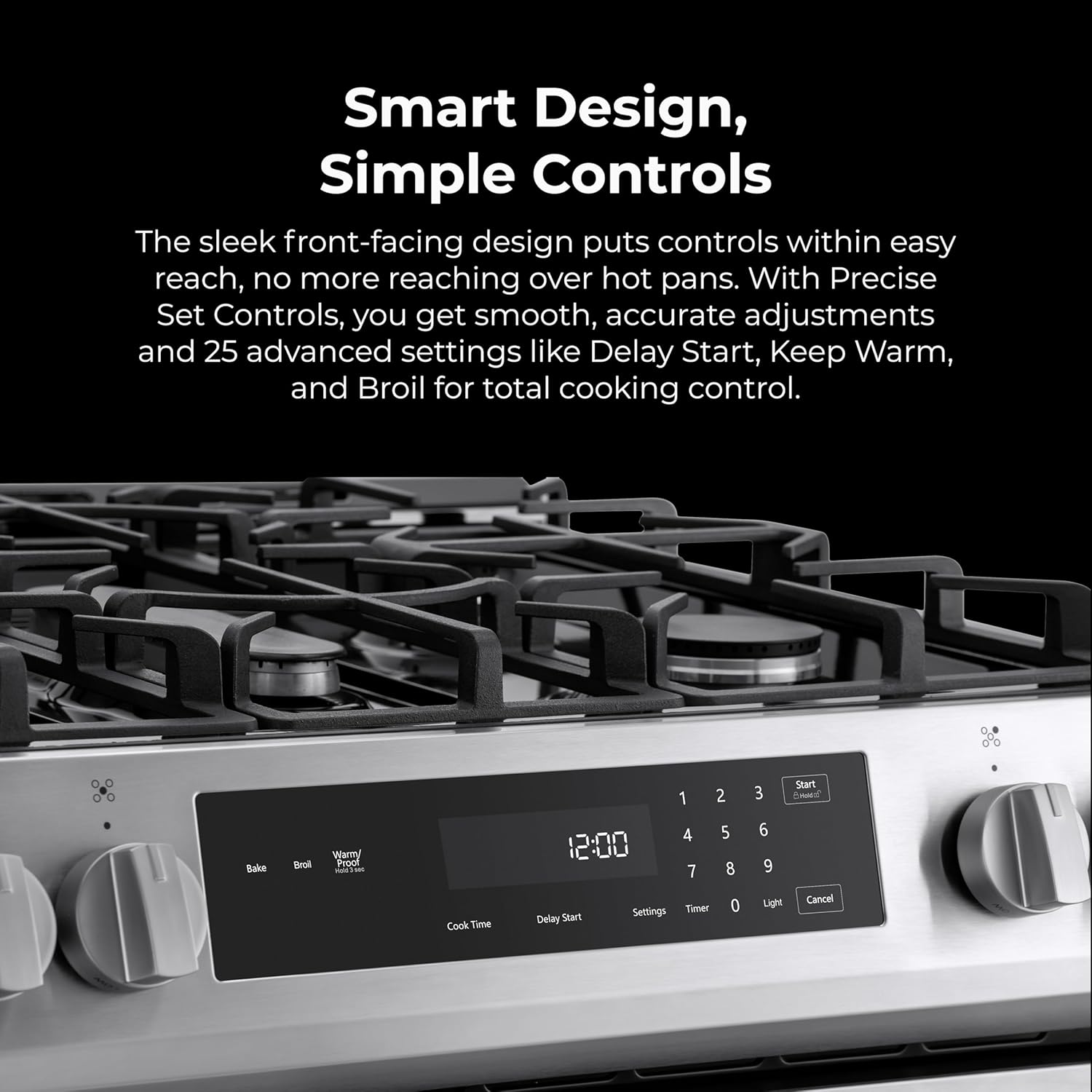

Figure 4.1: Front Control Panel and Cooktop.

The front-mounted precision controls offer direct and intuitive adjustments for both the cooktop and oven functions. The digital display shows time and settings, while dedicated buttons allow selection of various cooking modes.

4.2 കുക്ക്ടോപ്പ് ബർണറുകൾ

The range features five flexible cooktop burners designed for versatile cooking.

• Turbo Boil Burner: Provides rapid heat for fast boiling and intense searing, with up to 17,000 BTUs.
• Simmer Burner: Delivers gentle, consistent heat for delicate sauces or slow cooking, operating as low as 900 BTUs.
• All-Purpose Burners: Three additional burners offer a range of heat outputs for everyday cooking tasks like sautéing and frying.

4.3 ഓവൻ പ്രവർത്തനങ്ങൾ

The spacious 5.6 cu. ft. oven offers multiple cooking modes:

• ചുടേണം: Standard baking for various dishes.
• ബ്രോയിൽ: For perfect browning and searing.
• യഥാർത്ഥ സംവഹനം: Circulates heated air for quick and even cooking results on every rack.
• എയർ ഫ്രൈ: Utilizes hot air circulation to make food crispy on the outside and tender on the inside.
• മറച്ച ബേക്ക് എലമെന്റ്: Located beneath the oven floor, this element provides a smooth, easy-to-clean surface and maximizes usable oven space.
• ഹാലൊജൻ ലൈറ്റിംഗ്: Bright halogen lights illuminate the oven interior, allowing you to monitor cooking progress through the large oven window without opening the door.
• സംഭരണ ​​ഡ്രോയർ: A convenient drawer located beneath the oven provides space for storing baking sheets, pans, and other cookware.

Figure 4.3: Oven Interior with Halogen Lighting and Racks.

5. പരിപാലനവും ശുചീകരണവും

Regular cleaning and maintenance ensure the longevity and optimal performance of your Kenmore gas range.

• Cooktop Grates: The cast iron grates are dishwasher-safe for easy cleanup.
• ഓവൻ ഇന്റീരിയർ: The hidden bake element creates a smooth oven floor, making it simple to wipe clean.
• Self-Clean Feature: For deeper cleaning, utilize the self-clean cycle. Refer to the oven's control panel for specific instructions on activating and using this feature.
• Chrome Racks: The ultra-durable chrome racks can be cleaned with warm soapy water or by using the self-clean cycle if recommended in the full user manual.

Figure 5.1: Hidden Bake Element for Easy Cleaning.

6. പ്രശ്‌നപരിഹാരം

ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുന്നതിന് മുമ്പ്, ഇനിപ്പറയുന്ന പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും പരിശോധിക്കുക:

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, product registration, parts, and service, please refer to the official Kenmore website or your product's included Use & Care Guide.

ഉപഭോക്തൃ പിന്തുണ: If you have questions or require assistance, you can contact Kenmore customer support.

• ഫോൺ: 1-844-553-6667
• ഇമെയിൽ: customersupport@kenmore.com
• ഓൺലൈൻ: ഔദ്യോഗിക കെൻമോർ സന്ദർശിക്കുക website for product manuals and FAQs.
