1. ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your GreenYi 95760-B8650 OE Backup Camera. This camera is designed as a direct replacement for Hyundai Santa Fe models from 2017 to 2019, replacing OE part numbers 95760-B8650, 95760-B8641, and 95760-B8640. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. ഉൽപ്പന്ന സവിശേഷതകൾ
- Direct OE Replacement: Engineered for seamless integration with Hyundai Santa Fe 2017-2019 models, supporting coding with original features.
- Star Night Vision: Provides superior visual clarity in low-light conditions for enhanced safety.
- IP68 വാട്ടർപ്രൂഫ് റേറ്റിംഗ്: Built with a robust metal housing to withstand diverse weather conditions, including heavy rain and car washes.
- വൈഡ് ആംഗിൾ ലെൻസ്: Features a 130-degree real angle of view for comprehensive rear coverage.
- പ്ലഗ്-ആൻഡ്-പ്ലേ ഇൻസ്റ്റാളേഷൻ: Simplifies the installation process without complex wiring.
Image: Comparison showing enhanced clarity of GreenYi's Starlight Full Color Night Vision compared to standard night vision.
Image: The backup camera shown under water, demonstrating its IP68 waterproof capability, suitable for various weather conditions.
3. പാക്കേജ് ഉള്ളടക്കം
- GreenYi 95760-B8650 Rear View ബാക്കപ്പ് ക്യാമറ
- Thanks Card (Informational)
4. ഇൻസ്റ്റാളേഷൻ ഗൈഡ്
4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധന
Before beginning installation, ensure your vehicle is turned off and the parking brake is engaged. Verify that the camera is the correct model for your Hyundai Santa Fe (2017-2019) and matches the OE part numbers 95760-B8650, 95760-B8641, or 95760-B8640.
4.2 ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ
- Locate Original Camera: Identify the location of the existing backup camera on your Hyundai Santa Fe. This is typically near the license plate or tailgate handle.
- Remove Original Camera: Carefully disconnect the wiring harness and unmount the original camera. Refer to your vehicle's service manual or online resources for specific removal procedures.
- Install New Camera: Position the GreenYi backup camera in the original mounting location. Ensure it is securely fastened.
- വയറിംഗ് ബന്ധിപ്പിക്കുക: Connect the camera's wiring harness to the vehicle's existing connector. This is a plug-and-play connection, requiring no complex wiring modifications.
- ടെസ്റ്റ് പ്രവർത്തനം: After installation, turn on your vehicle and engage reverse gear to test the camera's display on your infotainment screen.
- Coding (if necessary): The camera is designed to support coding with original features. If the camera does not function immediately or displays an error, consult a qualified automotive technician for coding or system integration.
For visual guidance, numerous step-by-step installation videos for Hyundai Santa Fe backup cameras are available on platforms like YouTube. ഇതിനായി തിരയുക your specific vehicle model and year.
Image: The GreenYi backup camera, showing its integrated design and connector for direct replacement.
ചിത്രം: വിശദമായത് views of the camera from various angles, highlighting its compact design and connector.
5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Once installed and properly connected, the GreenYi backup camera operates automatically when the vehicle is shifted into reverse gear. The camera feed will display on your vehicle's infotainment screen, providing a clear view നിങ്ങളുടെ വാഹനത്തിന് പിന്നിലെ പ്രദേശം.
- യാന്ത്രിക സജീവമാക്കൽ: The camera activates automatically when reverse gear is selected.
- ഡിസ്പ്ലേ: The video feed will appear on your vehicle's central display screen.
- രാത്രി കാഴ്ച: The Starlight Full Color Night Vision feature enhances visibility in low-light conditions, providing a clearer image than standard cameras.
- പാർക്കിംഗ് മാർഗ്ഗനിർദ്ദേശങ്ങൾ: The camera is designed to integrate with the vehicle's original features, which may include dynamic or static parking guidelines on the display.
ചിത്രം: ഒരു വൈഡ്-ആംഗിൾ view from the backup camera displayed on a car's screen, including parking guidelines.
6. പരിപാലനം
The GreenYi backup camera is designed for durability and minimal maintenance. Its IP68 waterproof rating ensures protection against dust and water ingress.
- വൃത്തിയാക്കൽ: ക്യാമറ ലെൻസ് ഇടയ്ക്കിടെ മൃദുവായ, ഡി-ടച്ച് ഉപയോഗിച്ച് വൃത്തിയാക്കുക.amp cloth to remove dirt, dust, or debris that may obstruct the view. അബ്രാസീവ് ക്ലീനറുകൾ ഒഴിവാക്കുക.
- പരിശോധന: Regularly inspect the camera and its wiring for any signs of damage or loose connections.
- കാലാവസ്ഥ പ്രതിരോധം: The IP68 rating means the camera is protected against immersion in water up to 1.5 meters for 30 minutes. It is designed to withstand car washes and heavy rain without compromise.
7. പ്രശ്നപരിഹാരം
If you encounter issues with your GreenYi backup camera, refer to the following troubleshooting steps:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| No Image on Display | Loose connection, power issue, incorrect coding. | Check all connections. Ensure vehicle is in reverse. If problem persists, consult a technician for coding verification. |
| Image is Reversed/Backwards | Incorrect camera orientation or internal camera setting (less common for OE replacements). | Verify the camera is installed in the correct orientation. If the issue persists, contact GreenYi support or a qualified technician, as this may indicate a faulty unit or specific vehicle coding requirement. |
| No Parking Guidelines | Vehicle system not recognizing guidelines, or camera not designed to output them independently. | Ensure your vehicle's infotainment system is configured to display parking guidelines. If the original camera had guidelines and this replacement does not, consult a technician for system coding or contact GreenYi support. |
| മോശം ഇമേജ് ക്വാളിറ്റി | Dirty lens, damaged camera, or display issue. | Clean the camera lens. Check for physical damage to the camera. Test with another display if possible to rule out vehicle display issues. |
8 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | GreenYi-318 |
| അനുയോജ്യമായ വാഹനങ്ങൾ | Hyundai Santa Fe 2017, 2018, 2019 |
| Replaces OE Part Numbers | 95760-B8650, 95760B8650, 95760-B8641, 95760B8641, 95760-B8640, 95760B8640 |
| ഉൽപ്പന്ന അളവുകൾ | 2.05"L x 1.18"W x 1.18"H (5.2cm L x 3.0cm W x 3.0cm H) |
| ഇനത്തിൻ്റെ ഭാരം | 1.12 ഔൺസ് (31.75 ഗ്രാം) |
| ഇൻസ്റ്റലേഷൻ തരം | Original Mounting, Plug and Play |
| വാല്യംtage | 12 വോൾട്ട് (DC) |
| ഒപ്റ്റിക്കൽ സെൻസർ ടെക്നോളജി | CMOS |
| ലെൻസ് തരം | വൈഡ് ആംഗിൾ |
| യഥാർത്ഥ ആംഗിൾ View | 130 ഡിഗ്രി |
| കണക്റ്റർ തരം | Original Connector Compatible with Vehicle |
| ഒപ്റ്റിക്കൽ സെൻസർ വലുപ്പം | 1/3 ഇഞ്ച് |
| വാട്ടർപ്രൂഫ് റേറ്റിംഗ് | IP68 |
| നിറം | കറുപ്പ് |

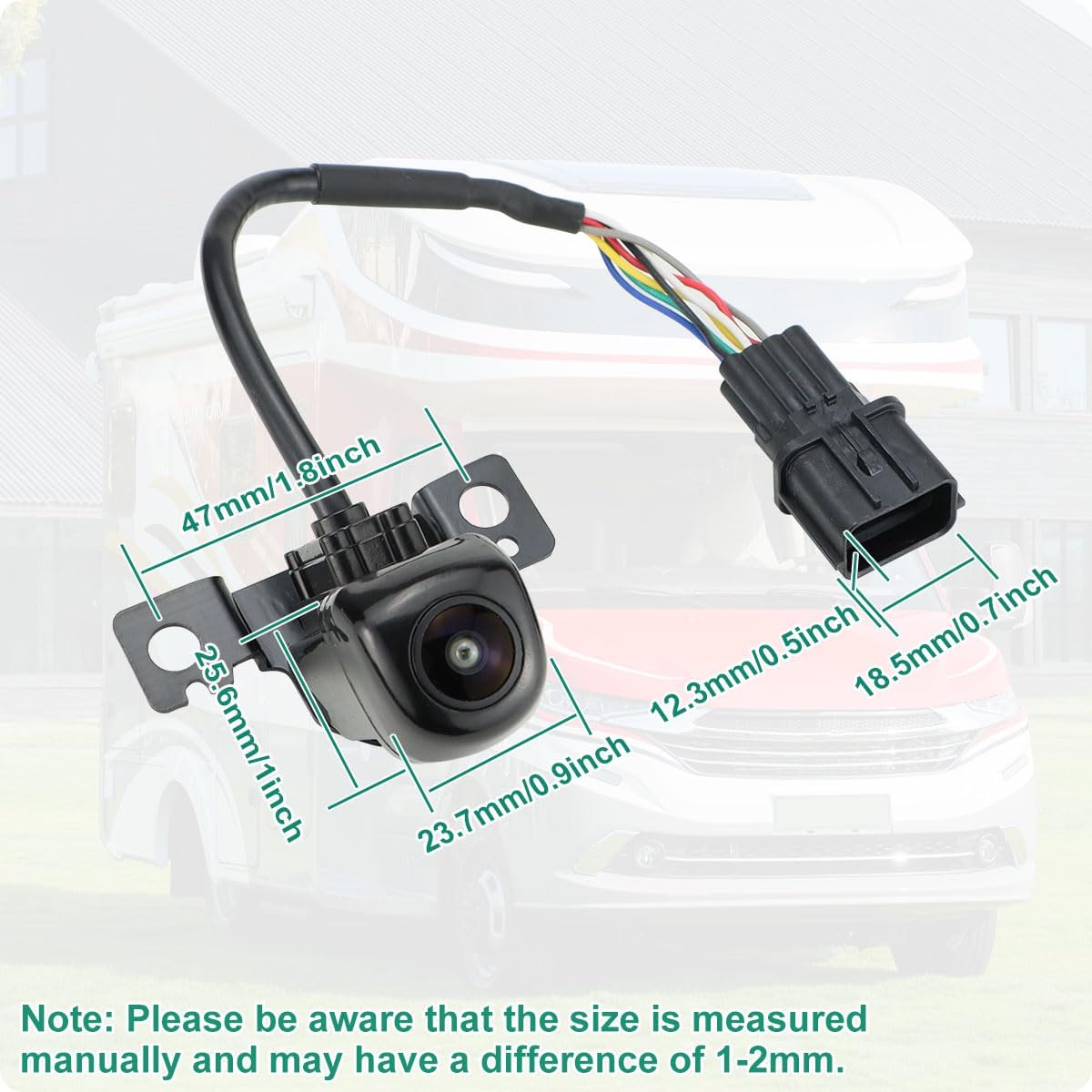

Image: Dimensional drawing of the camera, indicating measurements in both millimeters and inches.
9. വാറൻ്റിയും പിന്തുണയും
For warranty information or technical support, please contact GreenYi customer service. Refer to the contact information provided with your product packaging or visit the official GreenYi webസൈറ്റ്.
നിർമ്മാതാവ്: പച്ചയി
