1. ആമുഖം
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your ENGWE Engine Pro 2.0 Electric Bike. Please read this manual thoroughly before your first ride and keep it for future reference.
The ENGWE Engine Pro 2.0 is a folding fat tire electric bike designed for adults, featuring a powerful 1200W peak motor, 75N.m torque sensor, and a 52V 16AH battery for extended range. It is equipped with full suspension and hydraulic brakes, making it suitable for various terrains including urban roads, gravel, snow, and trails.
Image: The ENGWE Engine Pro 2.0 Electric Bike in black, showcasing its folding design and fat tires.
ഉൽപ്പന്നം കഴിഞ്ഞുview വീഡിയോ
വീഡിയോ: ഒരു ഓവർview of the ENGWE Engine Pro 2.0 ebike, highlighting its features and what is included with the product.
2. സജ്ജീകരണവും അസംബ്ലിയും
Your ENGWE Engine Pro 2.0 Electric Bike requires some assembly upon arrival. The assembly process is designed to be straightforward. Please refer to the detailed assembly instructions provided in the separate quick start guide or included documentation for step-by-step procedures.
പ്രാരംഭ ബാറ്ററി ചാർജ്
Before your first ride, ensure the battery is fully charged. Connect the charger to the bike's charging port and then to a power outlet. The indicator light on the charger will change to green when fully charged. This typically takes several hours.

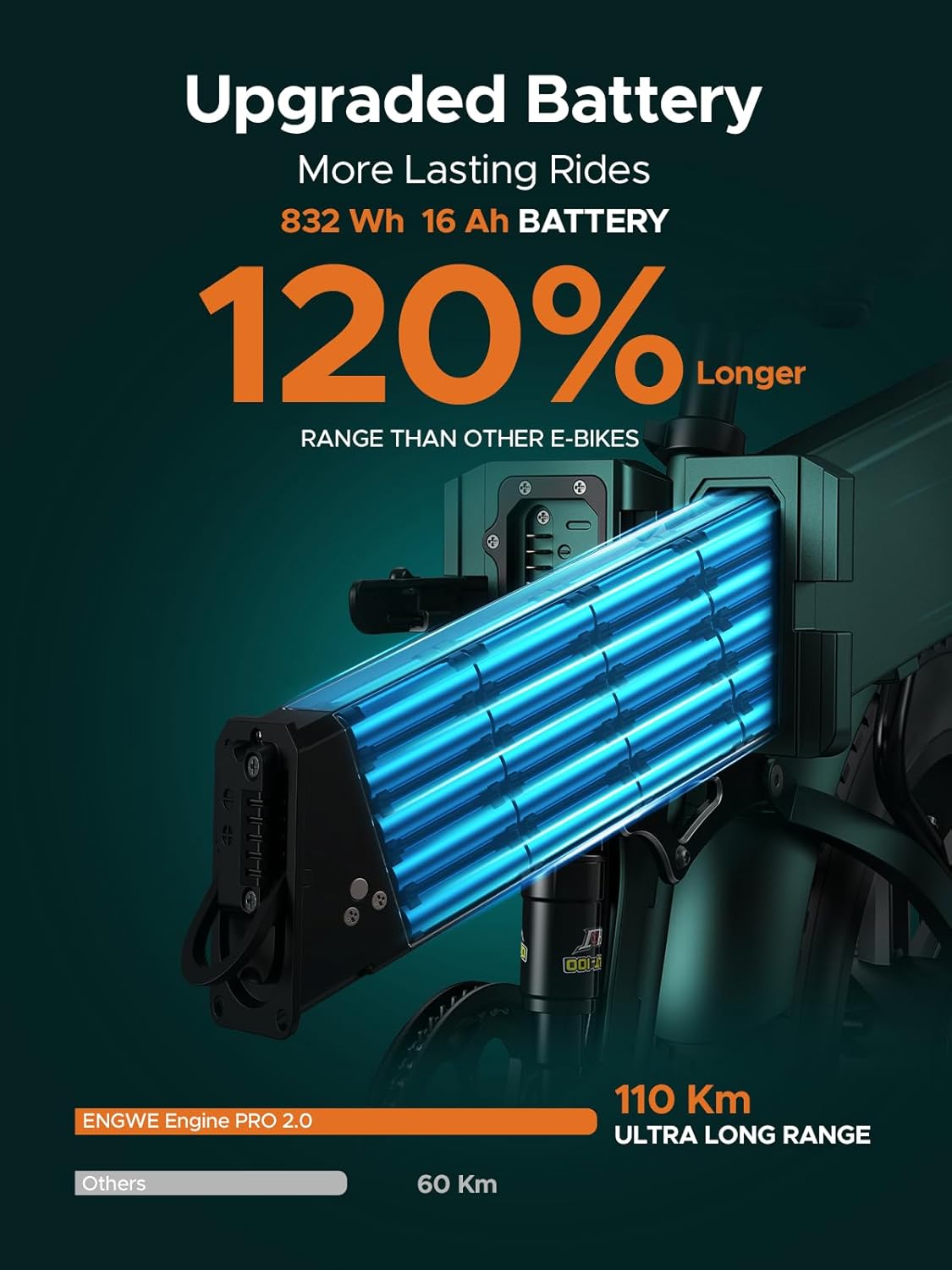

Image: Illustration of the 52V 16AH battery integrated into the ENGWE Engine Pro 2.0 frame, highlighting its long-lasting capacity.
3. നിങ്ങളുടെ ഇ-ബൈക്ക് പ്രവർത്തിപ്പിക്കുക
The Engine Pro 2.0 offers multiple riding modes and features for a versatile experience.
ശക്തിയും പ്രകടനവും
Equipped with a 1200W peak motor and a 75N.m torque sensor, the bike provides smooth and responsive power delivery, allowing for speeds up to 28 MPH. The torque sensor ensures that power assistance is proportional to your pedaling effort.
Image: Diagram illustrating the powerful 75 Nm torque motor of the ENGWE Engine Pro 2.0, indicating its enhanced climbing capabilities.
ഡിസ്പ്ലേയും നിയന്ത്രണങ്ങളും
The high-brightness LCD display provides real-time information such as speed, battery level, and riding mode. Controls for lighting, 8-speed shifting, and throttle are conveniently located on the handlebars.
ചിത്രം: ക്ലോസ്-അപ്പ് view of the high-brightness LCD display and handlebar controls, including lighting control, 8-speed shifter, and thumb throttle.
Adjusting Speed Units (KM to Mile)
Video: Instructions on how to switch the speed display units from kilometers to miles on the ENGWE Engine Pro 2.0.
Speed Limit Operation (25km)
Video: Guide on operating the speed limit function to 25km/h on the ENGWE EGP 2.0.
Throttle Activation and Deactivation
The throttle can be activated or deactivated via the display settings. Refer to the videos below for detailed steps.
Video: Instructions on how to activate the throttle function on your ENGWE Engine Pro 2.0.
Video: Guide on how to disable the throttle function via the display on the Engwe EGP 2.0.
Riding Comfort and Safety
The full suspension system reduces bumps by 87%, providing a comfortable ride across various terrains. Upgraded hydraulic brakes offer superior stopping power for enhanced safety.
Image: The ENGWE Engine Pro 2.0 showcasing its full suspension system, designed for smoother rides on urban roads, steep slopes, gravel, and light off-road terrains.
Image: A rider on the ENGWE Engine Pro 2.0 demonstrating the effectiveness of its upgraded hydraulic brakes on a challenging terrain.
ഫോൾഡിംഗ് മെക്കാനിസം
The bike features a convenient foldable design, allowing for easy storage and transport in approximately 10 seconds. This makes it ideal for travel and urban environments.
Image: A person easily carrying the folded ENGWE Engine Pro 2.0, demonstrating its compact size for transport in vehicles like RVs or SUVs.
4. പരിപാലനം
Regular maintenance is crucial for the longevity and optimal performance of your e-bike. Always ensure the bike is powered off before performing any maintenance.
- വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിക്കുകamp cloth to wipe down the frame and components. Avoid direct water spray on electrical parts.
- ടയറുകൾ: Check tire pressure regularly. The 4.0*20” fat tires are puncture-resistant but proper inflation is key for performance and safety.
- ബ്രേക്കുകൾ: Inspect hydraulic brakes for wear and proper function. Ensure brake levers provide firm and consistent stopping power.
- ചെയിൻ: Keep the chain clean and lubricated for smooth gear changes.
- ഫാസ്റ്റനറുകൾ: എല്ലാ ബോൾട്ടുകളുടെയും ഫാസ്റ്റനറുകളുടെയും ഇറുകിയത ഇടയ്ക്കിടെ പരിശോധിക്കുക.
Display and Wiring Replacement
Video: A guide on replacing the display and its extension wire on the Engwe EGP 2.0.
5. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter with your ENGWE Engine Pro 2.0 Electric Bike.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ബൈക്ക് പവർ ഓൺ ആയില്ല. | Battery not charged or not connected; power button not pressed correctly. | Ensure battery is fully charged and securely connected. Press and hold the power button. |
| മോട്ടോർ സഹായിക്കുന്നില്ല | Pedal Assist System (PAS) level too low; throttle deactivated; sensor issue. | Increase PAS level. Check throttle activation settings on display. Inspect sensor connections. |
| യാത്രയ്ക്കിടെ അസാധാരണമായ ശബ്ദങ്ങൾ | Loose components; dry chain; brake rub. | Check all bolts and fasteners. Lubricate chain. Adjust brake calipers. |
ഫാക്ടറി റീസെറ്റ് പ്രവർത്തനം
Video: Instructions on how to perform a factory reset on the Engine Pro 2.0.
6 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബൈക്ക് തരം | ഫോൾഡിംഗ് ഫാറ്റ് ടയർ ഇലക്ട്രിക് ബൈക്ക് |
| മോട്ടോർ | 1200W പീക്ക് പവർ |
| ടോർക്ക് | 75N.m Torque Sensor |
| ബാറ്ററി | 52V 16AH (832 Wh) |
| പരമാവധി വേഗത | 28 MPH വരെ |
| പരമാവധി ശ്രേണി | 68 മൈൽ വരെ (PAS മോഡ്) |
| ടയറുകൾ | 4.0 x 20” Fat Tires (Puncture-resistant) |
| സസ്പെൻഷൻ | Dual (Full Suspension) |
| ബ്രേക്കുകൾ | Upgraded Hydraulic Disc Brakes |
| ഗിയറുകൾ | 8-Speed (Shimano) |
| ഫ്രെയിം മെറ്റീരിയൽ | അലുമിനിയം |
| ഇനത്തിൻ്റെ ഭാരം | 69.6 പൗണ്ട് |
| പരമാവധി ഭാരം ശുപാർശ | 330.6 പൗണ്ട് |
| കുറഞ്ഞ ഉപയോക്തൃ ഉയരം | 5.4 അടി |
| സർട്ടിഫിക്കേഷനുകൾ | UL 2849 സർട്ടിഫൈഡ്/GCC/GCC-CPSC-16CFR1512 |
7. വാറൻ്റിയും പിന്തുണയും
വാറൻ്റി വിവരങ്ങൾ
The ENGWE Engine Pro 2.0 Electric Bike comes with a 1-year manufacturer's limited warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
ഉപഭോക്തൃ പിന്തുണ
ENGWE is committed to providing seamless support. If you encounter any issues or have questions regarding your e-bike, please contact our customer service team. We aim to provide a prompt response and resolution within 24 hours to ensure your satisfaction.
For support, please visit the official ENGWE webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ ഡോക്യുമെന്റേഷനോടൊപ്പം നൽകിയിരിക്കുന്ന കോൺടാക്റ്റ് വിവരങ്ങൾ റഫർ ചെയ്യുക.
