WALI CS202NW 2-Tier Floating Wall Mount Shelf Instruction Manual

ആമുഖം

This manual provides comprehensive instructions for the assembly, installation, operation, and maintenance of your WALI CS202NW 2-Tier Floating Wall Mount Shelf. Designed to organize your media devices and accessories, this shelf offers a space-saving solution for various rooms. Please read this manual thoroughly before installation and use to ensure safe and optimal performance.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

• Please adjust the shelf height carefully to ensure stability.
• Do not exceed the maximum weight limit of 22 lbs (10 kg) per shelf. Overloading can cause damage or injury.
• Always manage cables properly to prevent tripping hazards and ensure a tidy setup.
• Ensure the wall surface is suitable for mounting. This shelf is designed for use on Drywall, Brick Wall, Concrete Wall, and Wood Studs.
• ശ്വാസംമുട്ടൽ ഉണ്ടാകുന്നത് തടയാൻ ചെറിയ ഭാഗങ്ങൾ കുട്ടികളിൽ നിന്ന് അകറ്റി നിർത്തുക.

പാക്കേജ് ഉള്ളടക്കം

അസംബ്ലി ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക.

• 1 WALI Floating Shelf System (Wooden)
• 2 Reinforced Wooden Shelves
• ഇൻസ്റ്റലേഷൻ ഹാർഡ്‌വെയർ കിറ്റ്
• 1 ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)

Image: All components included in the WALI CS202NW 2-Tier Floating Wall Mount Shelf package.

സ്പെസിഫിക്കേഷനുകൾ

Image: Detailed dimensions of the WALI CS202NW 2-Tier Floating Wall Mount Shelf.

സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Follow these steps for proper assembly and secure wall mounting.

1. Assemble the Shelf Unit

1. Insert the wooden pegs into the designated holes on the central wall plate.
2. Align the two wooden shelves with the pegs and the screw holes on the central wall plate.
3. Secure the shelves to the central wall plate using the provided screws and metal pieces (hammer nuts/washers) to ensure a tight and solid connection.

Image: Visual guide for assembly and wall mounting.

2. Prepare the Wall for Mounting

• Choose a suitable location on your wall, ensuring it can support the weight of the shelf and its contents.
• Hold the assembled shelf unit against the wall at the desired height and use a pencil to mark the positions for drilling the mounting holes.
• Drill pilot holes at the marked locations. The type of drill bit and anchor will depend on your wall material (brick, concrete, wood stud, or drywall).
• Insert the appropriate wall anchors into the drilled holes if required for your wall type.

Image: Wall types and corresponding hardware for installation.

3. Mount the Shelf to the Wall

• Align the screw holes on the central wall plate with the drilled holes/anchors on the wall.
• Use the provided bolts and an Allen key to securely fasten the shelf unit to the wall. Ensure it is level and stable before placing any items on it.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Your WALI floating shelf is designed to hold various media devices and accessories, helping to keep your space organized and clutter-free.

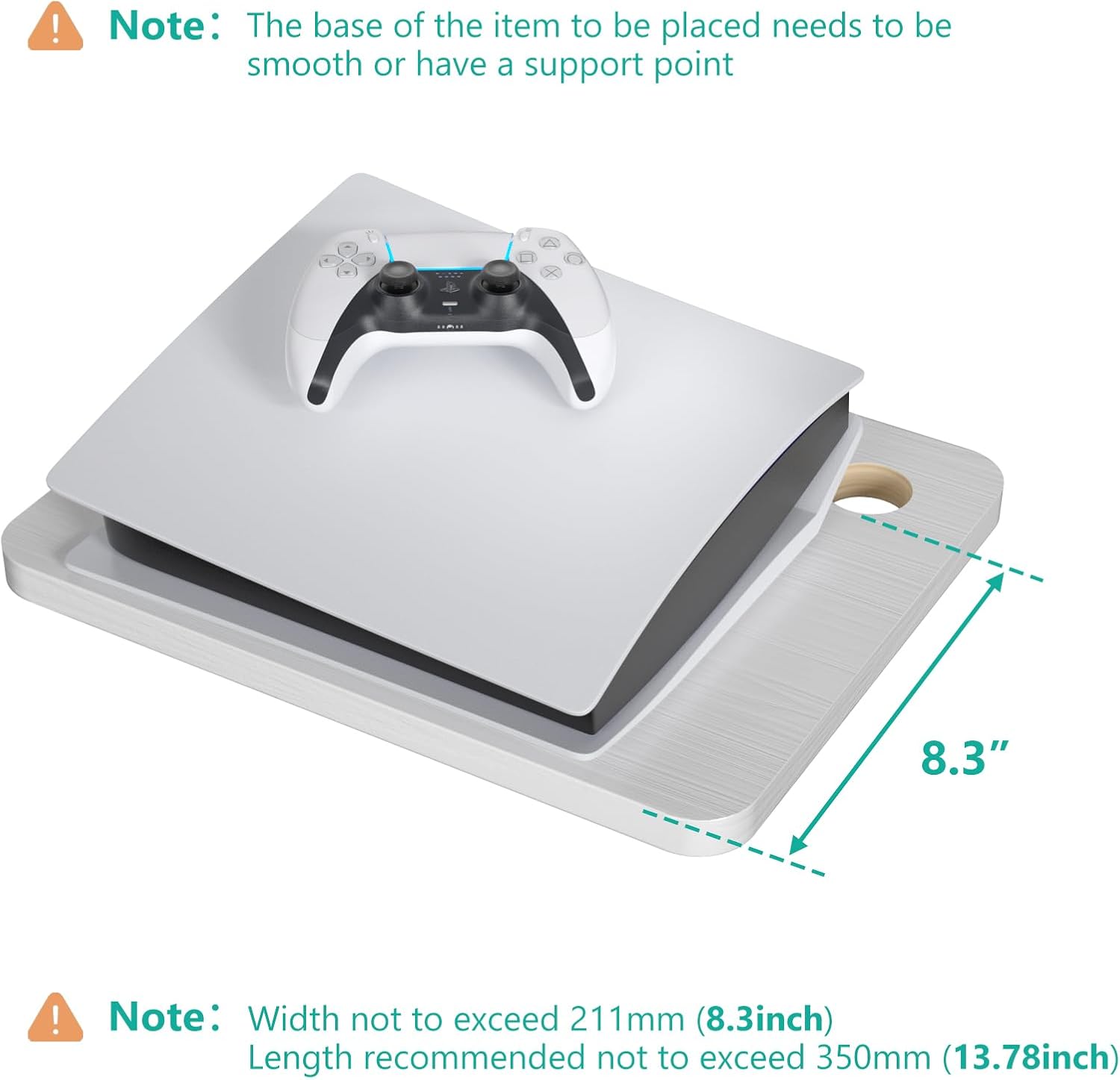

• പ്ലേസ്മെൻ്റ്: Place your DVD/Blu-ray players, satellite/cable boxes, game consoles, routers, Hi-Fi speakers, projectors, or other audio-video accessories on the shelves. Ensure the weight is evenly distributed and does not exceed 22 lbs (10 kg) per shelf.
• കേബിൾ മാനേജുമെന്റ്: Utilize the two round holes on each shelf to route device cables neatly. This helps to conceal wires, reduce clutter, and maintain a clean aesthetic.
• ബഹുമുഖ ഉപയോഗം: The shelf can be used in various rooms such as the living room, bedroom, playroom, kitchen, bathroom, or study for storage and organization.

ചിത്രം: ഉദാamples of devices compatible with the WALI floating shelf.

Image: Router and projector on the shelf, demonstrating cable management.

മെയിൻ്റനൻസ്

• Clean the shelf surfaces with a soft, damp തുണി. ഫിനിഷിന് കേടുവരുത്തുന്ന ഉരച്ചിലുകൾ നിറഞ്ഞ ക്ലീനറുകളോ കഠിനമായ രാസവസ്തുക്കളോ ഒഴിവാക്കുക.
• Periodically check all mounting screws and connections to ensure they remain tight and secure.
• Avoid exposing the shelf to excessive moisture or direct sunlight for prolonged periods to prevent warping or discoloration.

ട്രബിൾഷൂട്ടിംഗ്

• Shelf feels unstable after installation:
  • Ensure all screws connecting the shelves to the central wall plate are fully tightened.
  • Verify that the wall mounting screws are securely fastened into appropriate wall studs or anchors.
  • Check that the weight on the shelves does not exceed the 22 lbs (10 kg) limit.
• Cables are visible and messy:
  • Utilize the integrated cable management holes on each shelf to route wires behind the central wall plate and down to your power source.
  • Consider using cable ties or clips (not included) to further secure and organize cables along the wall.
• Shelf does not sit level:
  • During installation, use a level to ensure the central wall plate is perfectly horizontal before marking and drilling holes.
  • Adjust the tightness of the mounting screws if minor leveling adjustments are needed.

വാറൻ്റിയും പിന്തുണയും

WALI is committed to providing quality products and excellent customer service. For any questions, concerns, or assistance with your product, please contact our professional support team.

• പിന്തുണയുമായി ബന്ധപ്പെടുക: Refer to the contact information provided with your purchase or visit the official WALI webപിന്തുണാ ഓപ്ഷനുകൾക്കായുള്ള സൈറ്റ്.
• സംരക്ഷണ പദ്ധതികൾ: Extended protection plans may be available for your product. Please check with your retailer for details on 2-Year or 3-Year protection plans.
