iDOO ഇലക്ട്രിക് കമ്പോസ്റ്റർ ഉപയോക്തൃ മാനുവൽ

ആമുഖം

The iDOO Electric Composter is designed to efficiently process kitchen food waste into a reduced, odorless material suitable for disposal or further composting. This manual provides comprehensive instructions for the safe and effective operation and maintenance of your composter.

Figure 1: iDOO Electric Composter with its lid open, showing food scraps being added to the internal bucket.

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

Please read and understand all safety warnings before operating the iDOO Electric Composter. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• വൃത്തിയാക്കുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും മെഷീൻ അൺപ്ലഗ് ചെയ്യുക.
• Do not put in food that is too hard or large, as this may cause damage or excessive noise.
• Allow the machine to cool down completely before handling any internal components.
• Replace the carbon filter every 3 months to maintain optimal odor absorption.
• Do not compost meat, dairy, or oily foods, as these are not suitable for this type of composting process and can cause issues.
• താപ സ്രോതസ്സുകളിൽ നിന്നും നേരിട്ട് സൂര്യപ്രകാശത്തിൽ നിന്നും യന്ത്രം അകറ്റി നിർത്തുക.
• Always use the machine on a stable, level surface to prevent tipping.
• The product has a timer function that allows the machine to run at a time you need, potentially during off-peak electricity hours.
• The child lock design prevents accidental operation by children.

ഉൽപ്പന്നം കഴിഞ്ഞുview ഘടകങ്ങളും

The iDOO Electric Composter (Model I-E-02) features a compact design with a wooden top, making it suitable for kitchen counters. Key components include:

• പ്രധാന യൂണിറ്റ്: Houses the motor, heating elements, and control panel.
• Inner Bucket: A removable 3L capacity bucket for food waste.
• ലിഡ്: Features a child lock mechanism and a heating element for drying.
• Carbon Filter Compartment: Located on the side, for odor absorption.
• നിയന്ത്രണ പാനൽ: Power button, cycle indicator, and timer settings.

Figure 2: Visual representation of the iDOO Composter's ability to reduce food waste volume by 90% within 6-10 hours.

സജ്ജമാക്കുക

1. അൺപാക്ക്: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. പ്ലേസ്മെൻ്റ്: Place the composter on a stable, level surface away from heat sources and direct sunlight. Ensure there is adequate space around the unit for ventilation, especially where steam may be released.
3. Install Carbon Filter: Open the carbon filter compartment on the side of the unit. Pour all three colors of activated carbon particles into the box. Close the compartment securely.
4. Insert Inner Bucket: Place the 3L inner bucket into the main unit, aligning it correctly.
5. പവർ ബന്ധിപ്പിക്കുക: അനുയോജ്യമായ ഒരു ഇലക്ട്രിക്കൽ ഔട്ട്ലെറ്റിലേക്ക് പവർ കോർഡ് പ്ലഗ് ചെയ്യുക.

Figure 3: Step 1 - Unlock the Child Lock and press the Push Button to open the lid.

Figure 4: Step 2 - Put food waste into the bucket.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. Add Food Waste: Open the lid by unlocking the child lock and pressing the push button. Place suitable food scraps into the 3L inner bucket. Do not overfill.
2. അടച്ച് പൂട്ടുക: Close the lid firmly and engage the child lock by turning the knob to the locked position.
3. സൈക്കിൾ ആരംഭിക്കുക: Press the On/Off button to begin the composting process. The unit will automatically go through drying, grinding, and cooling phases. The cycle typically takes 6-10 hours.
4. ടൈമർ പ്രവർത്തനം: Utilize the timer function to customize the start time, allowing you to run the composter during off-peak electricity hours to save energy costs.
5. സൈക്കിൾ പൂർത്തിയാക്കൽ: Once the cycle is complete, the indicator light will change. Unlock the lid and remove the processed material.

What Can Be Composted?

The iDOO Electric Composter is designed for a variety of organic waste. Suitable items include:

• പഴം, പച്ചക്കറി അവശിഷ്ടങ്ങൾ
• Fruit pits
• Soft bones (e.g., fish bones)
• Soft shells (e.g., eggshells)
• Starches (e.g., bread, pasta)
• Coffee grounds & Nuts
• വീട്ടുചെടികൾ

Note: Avoid excessively hard or large food items to prevent damage and noise during grinding.

Composting Process Overview

The iDOO Smart Kitchen Composter transforms food scraps into dry compost fertilizer through a three-stagഇ പ്രക്രിയ:

1. Dry On High Heat: Food waste is heated to remove moisture.
2. Grind With Sharp Blade: Thick aluminum blades grind the dried waste into a fine powder.
3. Cooling Rapidly: The processed material is cooled down.

Figure 5: The three-step process of the iDOO Electric Composter: drying, grinding, and cooling.

Figure 6: Step 4 - Press the On/Off button to start processing.

മെയിൻ്റനൻസ്

• വൃത്തിയാക്കൽ: The inner bucket is independently usable and can be removed for cleaning. The unit also features a one-touch self-cleaning function. Always unplug the machine before manual cleaning.
• കാർബൺ ഫിൽട്ടർ മാറ്റിസ്ഥാപിക്കൽ: The upgraded carbon filter has a higher odor-absorbing capacity. Replace the carbon filter every 3 months or after approximately 720 hours of use to maintain effective odor control.

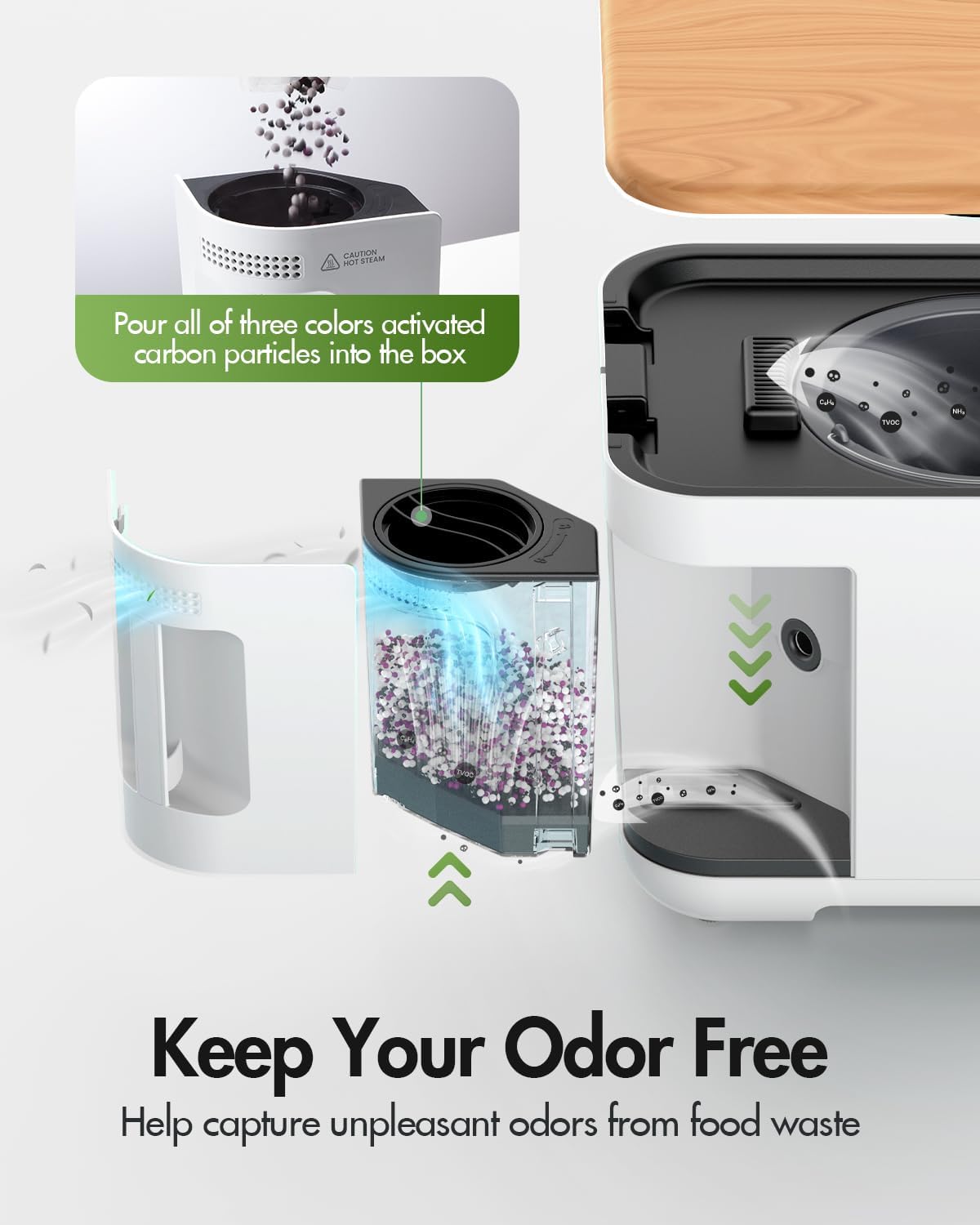

Figure 7: Instructions for pouring activated carbon particles into the filter box to maintain odor control.

Figure 8: The auto-cleaning mode simplifies maintenance of the inner bucket.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your iDOO Electric Composter, consider the following common points:

• അസാധാരണമായ ശബ്ദം: Ensure that no excessively hard or large food items have been placed in the composter. Remove any such items if present.
• ദുർഗന്ധം നിലനിൽക്കുന്നത്: Check if the carbon filter needs replacement. Filters should be changed every 3 months or after 720 hours of use. Ensure the filter compartment is properly sealed.
• Composting Incomplete: Verify that the lid is securely closed and the child lock is engaged. Ensure the inner bucket is correctly seated. Avoid adding items not recommended for composting (e.g., meat, dairy, oily foods).
• യൂണിറ്റ് ആരംഭിക്കുന്നില്ല: Check if the unit is properly plugged into a working power outlet. Ensure the lid is fully closed and locked.

For issues not covered here, please refer to the manufacturer's official support channels.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information, product registration, or technical support, please visit the official iDOO webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി ബന്ധപ്പെടുക. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

സന്ദർശിക്കുന്നതിലൂടെ നിങ്ങൾക്ക് കൂടുതൽ വിവരങ്ങളും പിന്തുണയും കണ്ടെത്താൻ കഴിയും iDOO Store on Amazon.
