dé Electric Car Charger 3.7kW (7m) User Manual

ആമുഖം

Thank you for choosing the dé 3.7kW Electric Car Charger. This portable Type 2 charging cable is designed to provide efficient and reliable charging for your electric vehicle. This manual provides essential information on the product's features, setup, operation, maintenance, and troubleshooting to ensure safe and optimal use.

ചിത്രം: കഴിഞ്ഞുview banner of the dé Electric Car Charger, highlighting its 3.7kW power and 7m cable length, along with current ratings and scheduled charging duration.

സുരക്ഷാ നിർദ്ദേശങ്ങൾ

ചാർജർ ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ സുരക്ഷാ നിർദ്ദേശങ്ങളും വായിച്ച് മനസ്സിലാക്കുക. ഈ നിർദ്ദേശങ്ങൾ പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് വൈദ്യുതാഘാതം, തീപിടുത്തം അല്ലെങ്കിൽ ഗുരുതരമായ പരിക്കിന് കാരണമായേക്കാം.

• Ensure the charging cable and connectors are free from damage before each use. Do not use if any part is damaged.
• Connect the charger only to a properly grounded Schuko socket that meets local electrical standards.
• Do not immerse the control box or connectors in water or other liquids.
• Avoid placing the control box in direct sunlight or near heat sources during charging to prevent overheating.
• Do not attempt to open, disassemble, or modify the charger. Refer all servicing to qualified personnel.
• Keep children and pets away from the charging area during operation.
• Always disconnect the charger from the vehicle and power outlet when not in use.
• Verify the current capacity of your electrical outlet before setting the charging current. For non-dedicated outlets, select 6A/8A/10A (max 2.3kW). For dedicated outlets, select 13A/16A (max 3.7kW).

Image: Diagram illustrating safety considerations for electrical outlets, showing that a dedicated outlet supports up to 16A (3.7kW) while a non-dedicated outlet supports up to 10A (2.3kW).

പാക്കേജ് ഉള്ളടക്കം

അൺപാക്ക് ചെയ്യുമ്പോൾ, താഴെ ലിസ്റ്റ് ചെയ്തിരിക്കുന്ന എല്ലാ ഇനങ്ങളും ഉണ്ടെന്നും കേടുപാടുകൾ സംഭവിച്ചിട്ടില്ലെന്നും ഉറപ്പാക്കുക:

• 1 x dé 3.7 kW Electric Vehicle Charger (Mode 2)
• 1 x വാട്ടർപ്രൂഫ് കവർ
• 1 x Carrying Handle
• 1 x മൈക്രോഫൈബർ തുണി
• 1 x ചുമക്കുന്ന കേസ്
• 1 x Plug Holder (Wall Mount)

Image: Visual representation of the package contents, including the EV charger, plug holder, waterproof cover, carrying handle, microfiber cloth, and carrying case.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The dé 3.7kW Electric Car Charger features a robust design for portable use, offering adjustable current settings and a digital LCD for real-time charging information.

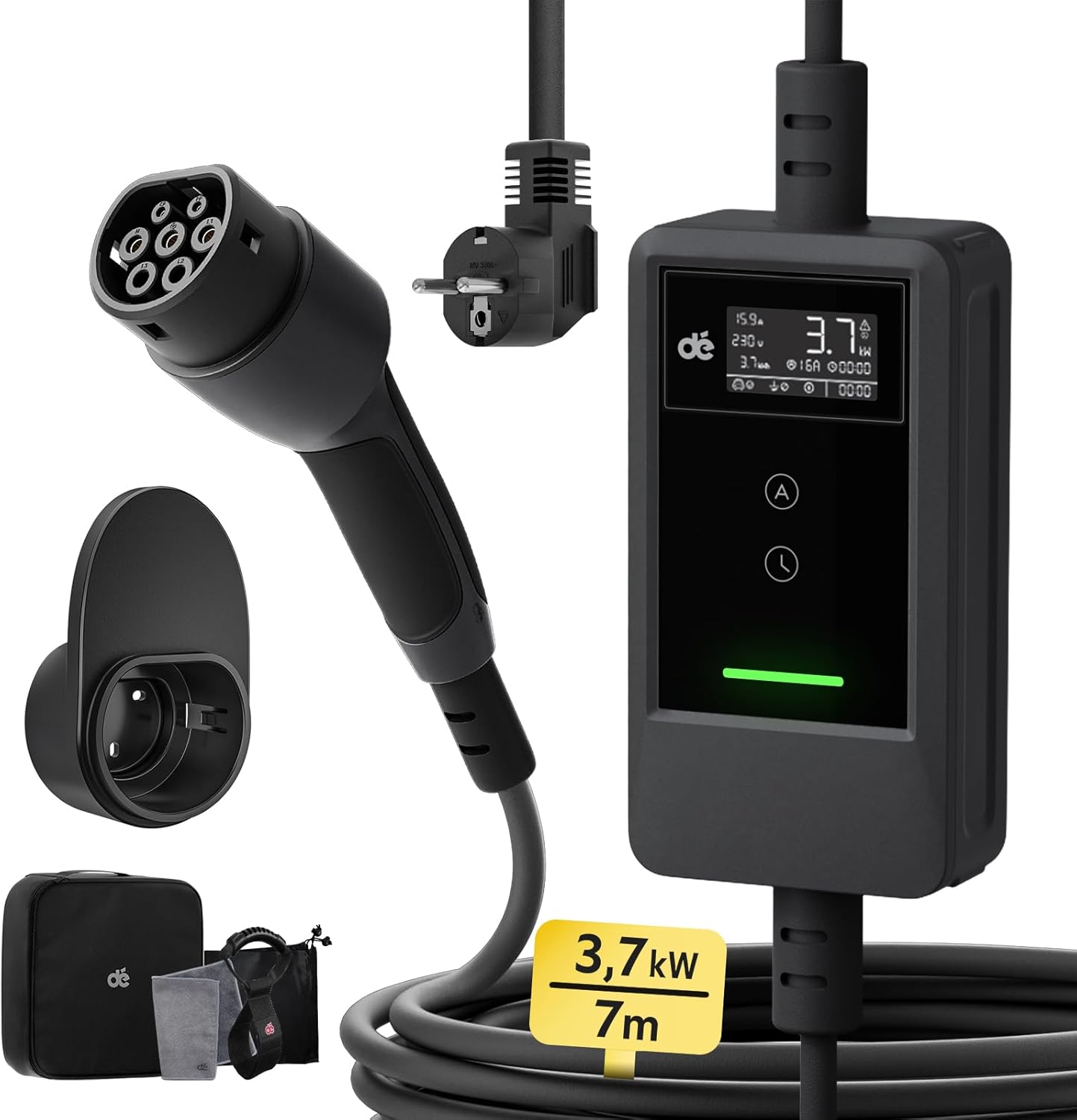

Image: The dé Electric Car Charger, showing the Type 2 connector, Schuko plug, control box with LCD, and included accessories like the wall mount and carrying bag.

ചിത്രം: വിശദമായ ഒരു ചിത്രം view of the charger's control box, highlighting the LCD screen displaying charging status, current, voltage, and power, along with the two control buttons for current adjustment and delayed charging.

പ്രധാന ഘടകങ്ങൾ:

• കൺട്രോൾ ബോക്സ്: Houses the intelligent charging circuitry, LCD display, and control buttons.
• ടൈപ്പ് 2 കണക്റ്റർ: Connects to your electric vehicle's charging port.
• Schuko Plug: Connects to a standard household electrical outlet.
• LCD ഡിസ്പ്ലേ: Shows real-time charging data, including current, voltage, power, and charging duration.
• നിയന്ത്രണ ബട്ടണുകൾ: Two buttons for adjusting charging current and setting delayed charging.

സജ്ജമാക്കുക

1. വാൾ മൗണ്ട് ഇൻസ്റ്റലേഷൻ (ഓപ്ഷണൽ)

The included plug holder can be mounted on a wall for convenient storage of the Type 2 connector and cable when not in use.

• Choose a suitable location near your charging spot, ensuring it's protected from direct weather exposure.
• Use appropriate screws and wall plugs (not included) to securely fasten the plug holder to the wall.

Image: An electric car charging in a driveway, with the dé charger's control box mounted on the wall next to a Schuko outlet, demonstrating a typical home setup.

2. പവർ സോഴ്‌സിലേക്ക് ബന്ധിപ്പിക്കുന്നു

The charger is designed for use with a standard 16A Schuko socket. Ensure the socket is in good condition and properly grounded.

• Insert the Schuko plug firmly into a reinforced electrical outlet.
• Position the control box on a stable surface or hang it securely. The cable length from the plug to the control box is 1.5m, offering flexibility.

Image: Comparison showing the advantage of a 1.5m cable from the Schuko plug to the control box, allowing for more flexible and safer placement of the control box compared to shorter cables.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. അടിസ്ഥാന ചാർജിംഗ് ഘട്ടങ്ങൾ

1. Insert the Schuko Plug: Connect the charger's Schuko plug into a suitable electrical outlet. The LCD screen will illuminate.
2. Adjust Current and Delay (Optional): Before connecting to the vehicle, use the control buttons on the charger to set your desired charging current (6A/8A/10A/13A/16A) or to program a delayed start time (0.5 to 8 hours).
3. വാഹനവുമായി ബന്ധിപ്പിക്കുക: Insert the Type 2 connector firmly into your electric vehicle's charging port. Ensure a secure connection.

Note: All parameters cannot be modified after connecting the Type 2 connector to the vehicle's charging port.

Image: A three-step visual guide demonstrating how to use the charger: Step 1, insert the Schuko plug; Step 2, adjust current and delay on the control box; Step 3, insert the Type 2 plug into the car's charging port.

2. Adjusting Charging Current

The charger allows you to select from multiple current settings to match your power supply and charging needs.

• Press the 'A' button (Current Adjustment) on the control box to cycle through available current options: 6A, 8A, 10A, 13A, 16A.
• The charger has a memory function and will retain the last selected current setting for future use.

Image: A hand pressing the current adjustment button on the charger's control box, illustrating how to select between 6A, 8A, 10A, 13A, and 16A settings, with a note about the memory function.

3. Setting Delayed Charging

Utilize the delayed charging feature to charge during off-peak hours, potentially saving on electricity costs.

• Press the 'L' button (Delay Timer) on the control box to set a delay from 0.5 to 8 hours in 30-minute increments.
• The charging process will automatically begin after the set delay period.

Image: A graphic illustrating smart charging reservation, showing how to schedule charging during less expensive off-peak hours (e.g., starting at 22:00) to optimize electricity costs.

4. LCD ഡിസ്പ്ലേ വിവരങ്ങൾ

The LCD screen provides comprehensive real-time information about the charging process.

Image: A detailed diagram explaining each indicator on the LCD screen, including real-time current, voltage, charged capacity, real-time power, error indication, current setting, programmed charging duration, vehicle connection status, grounding status, pause, and charging timer.

• നിലവിലെ (എ): Real-time charging current.
• വാല്യംtagഇ (വി): തത്സമയ വോളിയംtage.
• പവർ (kW): Real-time charging power.
• Charged Capacity (kWh): Total energy delivered during the current session.
• ചാർജിംഗ് ദൈർഘ്യം: Elapsed charging time or programmed delay.
• നില സൂചകങ്ങൾ: Icons for vehicle connection, grounding, and error messages.

അനുയോജ്യത

The dé Electric Car Charger is universally compatible with most electric vehicles (BEV) and plug-in hybrid vehicles (PHEV) equipped with a Type 2 charging port, conforming to IEC 62196-2 standards.

അനുയോജ്യമായ മോഡലുകളിൽ ഇവ ഉൾപ്പെടുന്നു:

• Tesla (Model Y/3/X/S)
• ഓഡി (Q3/Q4/Q5/E-Tron/...)
• വോൾവോ (XC40/XC60/XC90/...)
• റെനോ (ട്വിംഗോ/കാംഗൂ/...)
• ഫിയറ്റ് (500e/...)
• എംജി (എംജി4/എംജി5/...)
• ഫോക്സ്‌വാഗൺ (ID.3/ID.4/ID.5/...)
• ബിഎംഡബ്ല്യു (X1/X3/iX/i4)
• And other BEV/PHEV models.

Note: This product is NOT compatible with Renault Zoe, Smart EQ, Dacia Spring, and BMW i3.

Image: A visual chart displaying various compatible electric vehicle brands and models (Tesla, Audi, Volvo, Renault, Fiat, MG, Volkswagen, BMW) that use a Type 2 connector, along with a list of incompatible models.

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and safe operation of your dé Electric Car Charger.

1. വൃത്തിയാക്കൽ

• Always disconnect the charger from the power source and vehicle before cleaning.
• Use the provided microfiber cloth or a soft, dry cloth to wipe down the control box and cables.
• കഠിനമായ അഴുക്കിന്, അല്പം ഡിamp cloth can be used, but ensure no moisture enters the connectors or control box.
• കഠിനമായ രാസവസ്തുക്കളോ, ലായകങ്ങളോ, അബ്രസീവ് ക്ലീനറുകളോ ഉപയോഗിക്കരുത്.

2. സംഭരണം

• നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും തീവ്രമായ താപനിലയിൽ നിന്നും മാറി തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് ചാർജർ സൂക്ഷിക്കുക.
• Use the included carrying case and plug holder to keep the cable neatly coiled and protected.
• Avoid bending or kinking the cable sharply, especially near the connectors.

3. Durability and Protection Features

The charger is built with durable TPU material and incorporates multiple safety protections:

• ഓവർകറൻ്റ് സംരക്ഷണം
• ഓവർ വോൾtagഇ/അണ്ടർവോൾtagഇ സംരക്ഷണം
• ചോർച്ച സംരക്ഷണം
• ഗ്രൗണ്ടിംഗ് സംരക്ഷണം
• Overheating Protection (Pause at 77°C, Resume at 67°C)
• ഷോർട്ട് സർക്യൂട്ട് സംരക്ഷണം

Image: The charger's control box displaying icons representing various safety features, including protection against overcurrent, over/undervoltage, leakage, grounding faults, overheating, and short-circuits.

Image: A graphic illustrating the charger's operational temperature range (-25°C to 50°C) and its resistance to rain (IP66 for control box, IP54 for Type 2 plug), snow, dust, and heat.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your dé Electric Car Charger, refer to the following common problems and solutions:

ഈ പരിഹാരങ്ങൾ പരീക്ഷിച്ചതിനുശേഷവും പ്രശ്നം നിലനിൽക്കുകയാണെങ്കിൽ, കൂടുതൽ സഹായത്തിനായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

സ്പെസിഫിക്കേഷനുകൾ

Technical specifications for the dé 3.7kW Electric Car Charger (Model: deM2D03B7).

വാറൻ്റിയും പിന്തുണയും

The dé Electric Car Charger comes with a 2 വർഷത്തെ വാറൻ്റി വാങ്ങിയ തീയതി മുതൽ.

If you require assistance, have questions about the product, or need to claim warranty service, please do not hesitate to contact our customer support team. We are committed to providing you with the best possible solution.

നിങ്ങളുടെ വാങ്ങൽ ഡോക്യുമെന്റേഷൻ അല്ലെങ്കിൽ റീട്ടെയിലറുടെ webനിർദ്ദിഷ്ട കോൺടാക്റ്റ് വിശദാംശങ്ങൾക്കായി സൈറ്റ്.
