1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
Please read all instructions carefully before using your TECASA electric cooktop. Retain this manual for future reference. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- ഇലക്ട്രിക്കൽ കണക്ഷൻ: This appliance requires a hardwired 208-240V, 50-60Hz electrical supply. It does not come with a plug. Installation must be performed by a qualified electrician in accordance with all local codes and ordinances.
- കുട്ടികളുടെ സുരക്ഷാ ലോക്ക്: Activate the child safety lock to prevent accidental operation, especially when children are present.
- ശേഷിക്കുന്ന താപ സൂചകങ്ങൾ: The cooktop surface remains hot after use. Residual heat indicators will illuminate to warn you when a cooking zone is still hot. Do not touch the surface until the indicator light turns off.
- അമിത ചൂടാക്കൽ സംരക്ഷണം: The cooktop is equipped with an overheat protection system that will automatically shut down a cooking zone if it detects excessive temperatures.
- യാന്ത്രിക ഷട്ട്ഡൗൺ: For safety, the cooktop will automatically shut down after a prolonged period of inactivity.
- കുക്ക്വെയർ: Use only cookware with flat bottoms that are appropriate for electric radiant cooktops. Ensure the cookware size matches the cooking zone to maximize efficiency and prevent spills.
- വെൻ്റിലേഷൻ: Ensure adequate ventilation around the cooktop as specified in the installation instructions.
2. ഉൽപ്പന്നം കഴിഞ്ഞുview
The TECASA 30-inch electric cooktop features a sleek glass ceramic surface with four radiant heating zones, designed for efficient and versatile cooking. It includes intuitive sensor touch controls and multiple safety features.
ചിത്രം: മുകളിൽ നിന്ന് താഴേക്ക് view of the TECASA 30-inch electric cooktop, highlighting the four cooking zones and touch control panel.
പ്രധാന സവിശേഷതകൾ:
- Four Radiant Burners: Provides a total output of 7300W for powerful and fast heating.
- Flexible Cooking Zones: Includes a triple-zone burner that adapts to various cookware sizes and a rectangular zone for larger or elongated pans.
- സെൻസർ ടച്ച് നിയന്ത്രണങ്ങൾ: Easy-to-use touch interface for precise temperature adjustments.
- 9 ചൂടാക്കൽ നിലകൾ: Offers fine control over cooking temperatures for diverse culinary needs.
- സംയോജിത സുരക്ഷാ സവിശേഷതകൾ: Child lock, timer, residual heat indicators, overheat protection, and automatic shutdown.
- ഈടുനിൽക്കുന്ന ഗ്ലാസ് സെറാമിക് പ്രതലം: High-performance 8.5GPa microcrystalline panel resistant to impact, scratches, and wear, and easy to clean.

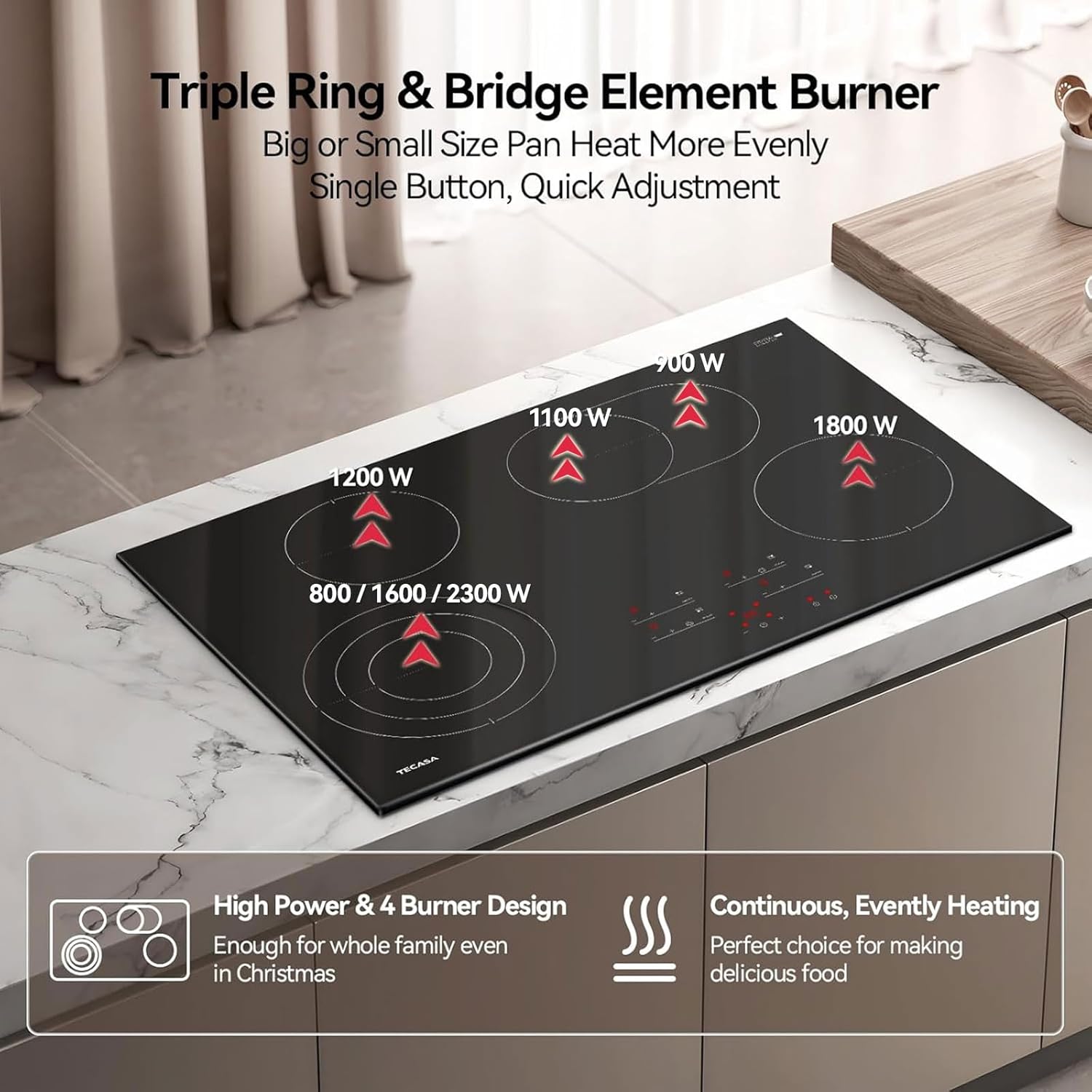

Image: The cooktop's flexible cooking zones, including a triple-ring burner and a rectangular bridge element, designed for various cookware sizes.
3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The TECASA electric cooktop is designed for built-in installation and requires a hardwired electrical connection. Professional installation is strongly recommended to ensure safety and proper functionality.
3.1 പ്രീ-ഇൻസ്റ്റാളേഷൻ ചെക്ക്ലിസ്റ്റ്:
- ഓപ്പറേറ്റിംഗ് വോള്യം എന്ന് പരിശോധിക്കുകtage in your home is 208-240V, with a rated voltage of 240V, 50-60Hz.
- Ensure the countertop cutout dimensions match the cooktop specifications.
- Confirm that the electrical circuit has appropriate amperage and a dedicated circuit breaker.
- Gather necessary tools and materials for installation (e.g., wire connectors, conduit connector).
3.2 Dimensions and Cutout:
The cooktop dimensions are 30.31 inches (W) x 20.47 inches (D) x 2.28 inches (H). Refer to the diagram below for precise cutout measurements and clearances.
Image: Installation diagram with cooktop dimensions and electrical wiring instructions for 208-240V connection.
3.3 ഇലക്ട്രിക്കൽ കണക്ഷൻ:
This cooktop requires a hardwired connection to a suitable electrical supply. The wiring diagram provided in the image above illustrates the connection of the 4-wire cable from the power supply to the cooktop's 3-wire cable within a junction box, using UL listed wire connectors and a UL listed or CSA approved conduit connector. Always consult a qualified electrician for installation.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
Your TECASA electric cooktop features intuitive touch controls for easy operation. Familiarize yourself with the control panel before cooking.
Image: The cooktop's touch control panel, illustrating 9 power levels, 7300W total power, and hot surface indicators.
4.1 പവർ ഓൺ/ഓഫ്:
- To turn on the cooktop, press the main power button.
- To turn off the cooktop, press the main power button again.
4.2 Selecting a Cooking Zone and Adjusting Heat:
- Touch the corresponding cooking zone selection button.
- Use the '+' and '-' buttons to adjust the heating level from 1 (low) to 9 (high).
- For the triple-zone burner, the system automatically adjusts to the cookware size. For the rectangular zone, ensure your cookware covers the heating area for optimal results.
4.3 Child Safety Lock:
- To activate the child lock, press and hold the lock button for a few seconds until the indicator light illuminates. This will disable the control panel.
- To deactivate, press and hold the lock button again until the indicator light turns off.
4.4 ടൈമർ ഫംഗ്ഷൻ:
- ആവശ്യമുള്ള പാചക മേഖല തിരഞ്ഞെടുക്കുക.
- Press the timer button and use the '+' and '-' buttons to set the desired cooking duration.
- The cooktop will automatically shut off the selected zone once the timer expires.
4.5 Cookware Compatibility:
This electric cooktop is compatible with all types of flat-bottomed cookware, including aluminum, copper, cast iron, and non-magnetic stainless steel pots. Ensure the cookware has a smooth, flat base for efficient heat transfer.
ചിത്രം: ഉദാamples of cookware materials compatible with the TECASA electric cooktop, emphasizing the need for flat bottoms.
5. പരിപാലനവും ശുചീകരണവും
Regular cleaning and maintenance will ensure the longevity and optimal performance of your TECASA electric cooktop.
5.1 ദിവസേനയുള്ള വൃത്തിയാക്കൽ:
- Always ensure the cooktop is cool and the residual heat indicators are off before cleaning.
- ഗ്ലാസ് സെറാമിക് പ്രതലം മൃദുവായ, ഡി-ടച്ച് ഉപയോഗിച്ച് തുടയ്ക്കുക.amp cloth and mild dish soap to remove light spills and food residue.
- Dry thoroughly with a clean cloth to prevent water spots.
5.2 Deep Cleaning:
- For stubborn stains or burnt-on food, use a specialized glass/ceramic stovetop cleaner. Follow the product instructions carefully.
- Avoid abrasive cleaners, scouring pads, or sharp objects that can scratch the glass surface.
- Do not use oven cleaners or harsh chemicals on the cooktop.
Image: Demonstrating the ease of cleaning the durable glass ceramic surface of the TECASA cooktop.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your TECASA electric cooktop, refer to the following common troubleshooting steps. For problems not listed here, contact customer support.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| കുക്ക്ടോപ്പ് ഓണാകുന്നില്ല. | No power supply; Child lock activated; Circuit breaker tripped. | Check power connection; Deactivate child lock; Reset circuit breaker. |
| പാചക മേഖല ചൂടാക്കുന്നില്ല. | Incorrect heat setting; Cookware not suitable; Overheat protection activated. | Increase heat level; Use flat-bottomed, compatible cookware; Allow cooktop to cool. |
| നിയന്ത്രണ പാനൽ പ്രതികരിക്കുന്നില്ല. | Child lock activated; Moisture on panel. | Deactivate child lock; Wipe control panel dry. |
| ഡിസ്പ്ലേ ഒരു പിശക് കോഡ് കാണിക്കുന്നു. | ആന്തരിക തെറ്റ്. | Turn off and on again. If error persists, contact customer support. |
7 സ്പെസിഫിക്കേഷനുകൾ
Detailed technical specifications for the TECASA 30-inch Electric Cooktop, Model MT-T47364RT.
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | TECASA |
| മോഡൽ നമ്പർ | MT-T47364RT |
| ഇൻസ്റ്റലേഷൻ തരം | ബിൽറ്റ്-ഇൻ |
| ഉൽപ്പന്ന അളവുകൾ (W x D x H) | 30.31 x 20.47 x 2.28 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 24.9 പൗണ്ട് |
| ചൂടാക്കൽ ഘടകങ്ങൾ | 4 |
| ബർണർ തരം | Radiant Coil |
| വാല്യംtage | 240 Volts (Operating 208-240V) |
| വാട്ട്tage | 7300 വാട്ട്സ് |
| ഇന്ധന തരം | ഇലക്ട്രിക് |
| മെറ്റീരിയൽ തരം | Glass Ceramic (8.5GPa microcrystalline panel) |
| പ്രത്യേക സവിശേഷതകൾ | Adjustable Temperature, Automatic Shut-Off, Hot Surface Indicator, Safety Lock, Timer |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | 1 electric ceramic cooktop |
8. വാറൻ്റിയും പിന്തുണയും
Your TECASA electric cooktop comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures reliable operation under normal use.
For technical support, warranty claims, or any questions regarding your product, please contact TECASA customer service. You can find contact information on the official TECASA webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ റീട്ടെയിലർ വഴി.
