IKIER K1 Pro Max 70W Laser Engraving Machine User Manual

1. ആമുഖം

Welcome to the user manual for your IKIER K1 Pro Max 70W Laser Engraving Machine. This powerful and versatile machine is designed for high-precision engraving and cutting across a wide range of materials, including wood, acrylic, metal, and leather. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure you get the most out of your device.

Please read this manual thoroughly before operating the machine and keep it for future reference.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Laser radiation can cause eye damage and skin burns. Always wear appropriate laser safety goggles when operating the machine. Never look directly into the laser beam.

• നേത്ര സംരക്ഷണം: Always wear certified laser safety goggles (OD6+) when the machine is in operation.
• വെൻ്റിലേഷൻ: Ensure adequate ventilation in your workspace to dissipate fumes and smoke produced during engraving and cutting. Some materials can produce toxic fumes.
• അഗ്നി അപകടം: Laser processing can ignite flammable materials. Always have a fire extinguisher readily available. Never leave the machine unattended during operation.
• മെറ്റീരിയൽ സുരക്ഷ: Only process materials suitable for laser engraving/cutting. Avoid materials that produce hazardous gases or can easily ignite.
• അടിയന്തരമായി നിർത്തുക: Familiarize yourself with the physical emergency stop switch.
• ചൈൽഡ് ലോക്ക്: Utilize the child lock feature to prevent unauthorized use.
• ജ്വാല കണ്ടെത്തൽ: The machine is equipped with flame detection. If a flame is detected, the machine will automatically stop.
• ടിൽറ്റ് ഡിറ്റക്ഷൻ: The machine features tilt detection for added safety. If the machine is tilted during operation, it will stop.

Figure 2.1: Comprehensive safety features of the IKIER K1 Pro Max, including child lock, flame detection, and tilt detection, designed to ensure secure operation.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The IKIER K1 Pro Max is a state-of-the-art 70W laser engraving and cutting machine, engineered for precision and efficiency. It features a robust design with advanced functionalities to enhance your creative and production capabilities.

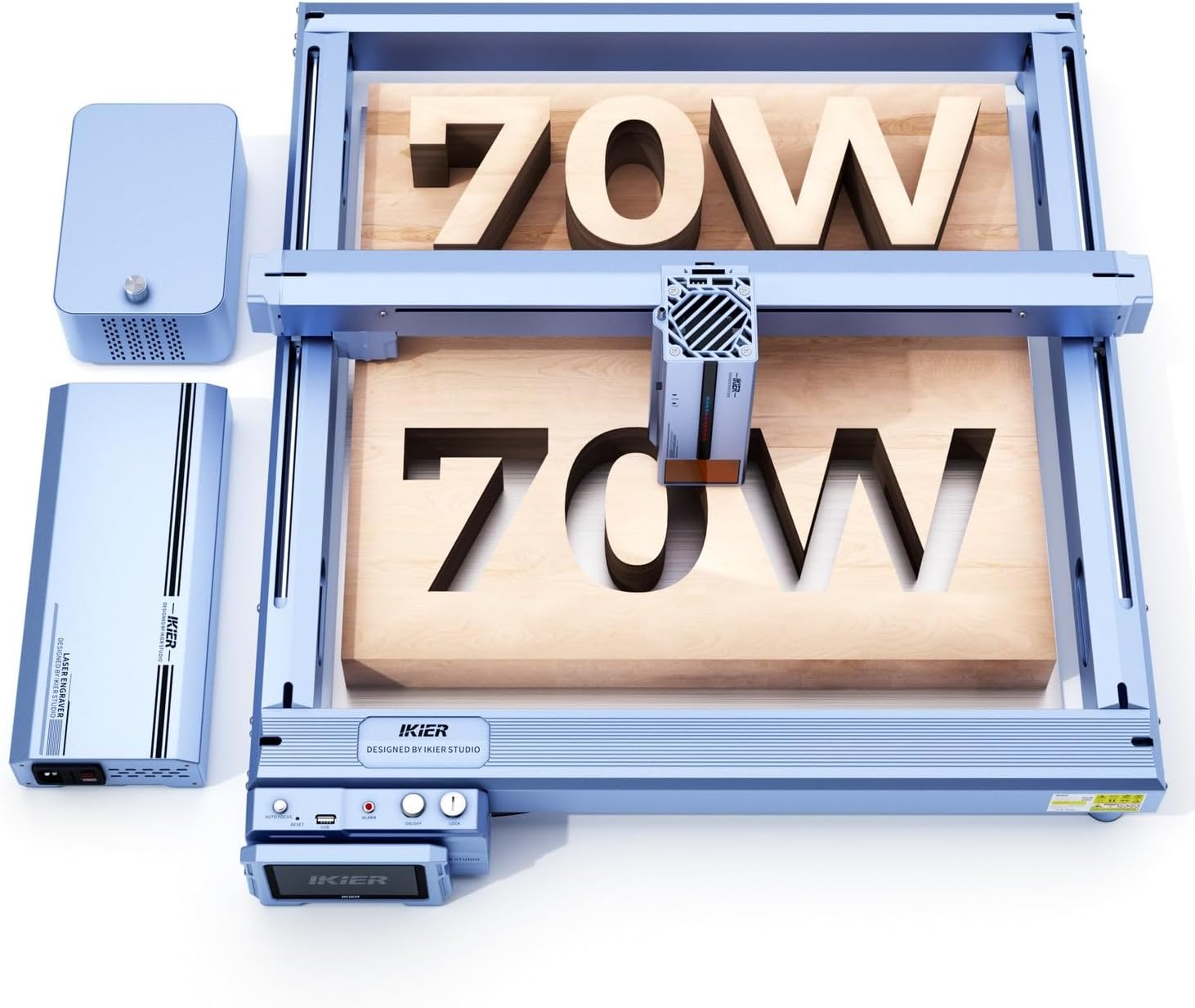

Figure 3.1: The IKIER K1 Pro Max 70W Laser Engraving Machine, showcasing its main components including the laser module and external air assist unit.

പ്രധാന സവിശേഷതകൾ:

• ശക്തമായ 70W ലേസർ ഔട്ട്പുട്ട്: Equipped with 14x6W laser diodes, providing exceptional cutting and engraving power, capable of cutting 25mm plywood in a single pass.
• Intelligent Z-Axis: Features both electric and manual settings, enabling automatic focus adjustment in approximately 8 seconds for precise laser positioning.
• Intelligent Air Assist: Integrated double-layer design ensures continuous airflow, preventing blockages and improving cutting performance.
• Sinking Cut Technology: Optimized laser algorithm and intelligent motherboard control automatic laser origin, increasing cutting depth by 30-50%.
• 4.3 ഇഞ്ച് എൽസിഡി ടച്ച് സ്‌ക്രീൻ: Allows for convenient offline operation, freeing the machine from constant computer connection.
• കരുത്തുറ്റ നിർമ്മാണം: Utilizes an optical axis and linear guide structure for enhanced stability, precision, and speed.
• Cross Positioning System: Provides precise and horizontal output for accurate engraving alignment and observable framing.

ചിത്രം 3.2: വിശദമായി view of the laser module, illustrating the arrangement of multiple 6W laser diodes that combine to achieve 70W optical power.

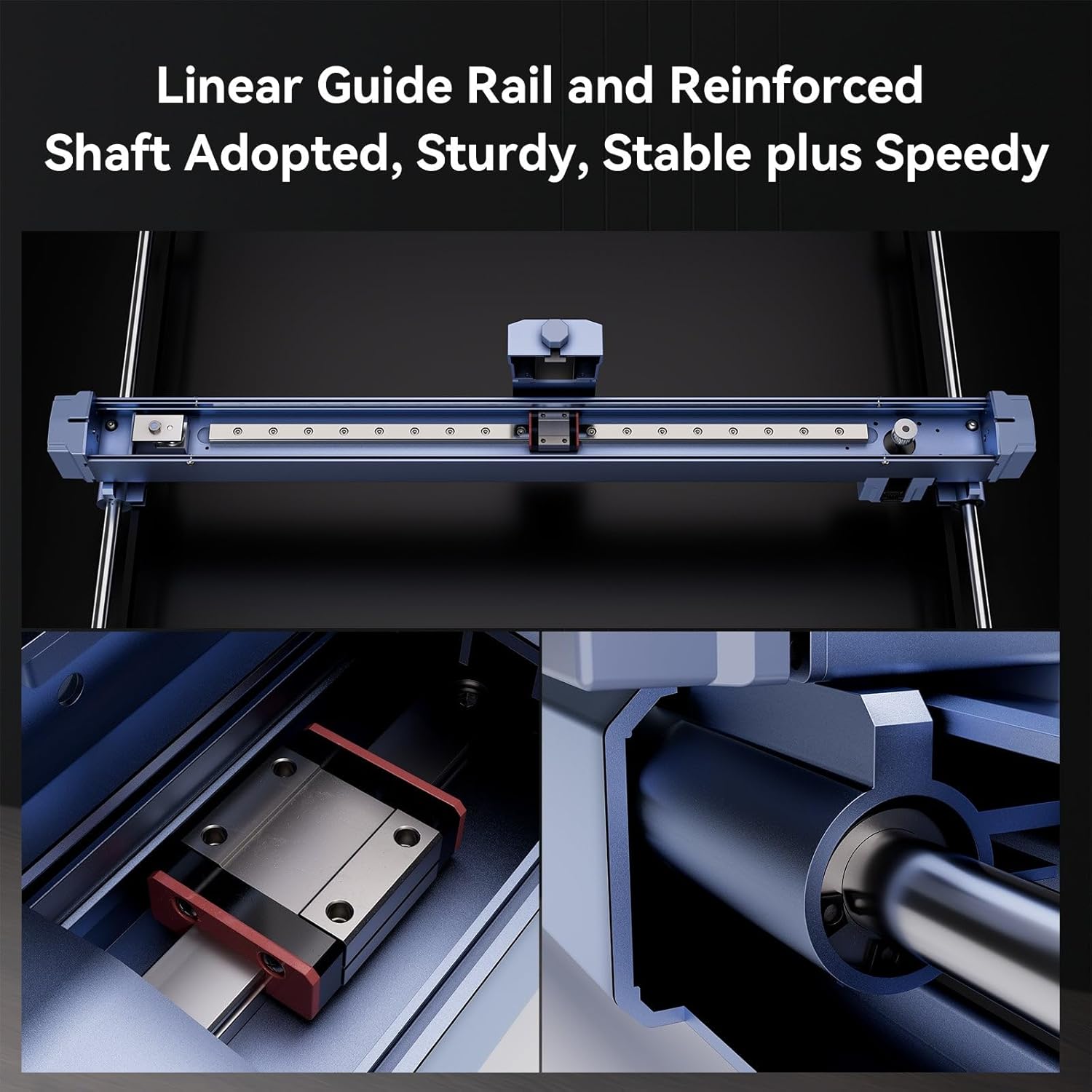

Figure 3.3: Close-up of the linear guide rail and reinforced shaft, highlighting the sturdy and stable mechanical design for precise movement.

4. സജ്ജീകരണം

The IKIER K1 Pro Max features a modular design for quick and easy assembly, typically within 15 minutes.

4.1 അൺപാക്കിംഗും അസംബ്ലിയും

1. പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. Follow the included quick assembly guide to connect the main frame components. Ensure all screws are tightened securely.
3. Install the laser module onto the gantry.
4. Connect the air assist unit to the designated port on the machine.

4.2 പവർ കണക്ഷൻ

Connect the provided DC power adapter to the machine's power input port and then to a suitable power outlet.

4.3 സോഫ്റ്റ്‌വെയർ ഇൻസ്റ്റലേഷൻ

The IKIER K1 Pro Max is compatible with popular laser control software such as LightBurn and LaserGRBL. Download the latest version of your preferred software from the official webസൈറ്റുകൾ.

• ലൈറ്റ് ബേൺ: Recommended for advanced users, offering comprehensive control and design features.
• ലേസർജിആർബിഎൽ: A free and open-source option, suitable for basic engraving tasks.

4.4 കണക്ഷൻ രീതികൾ

The machine supports multiple connection interfaces:

• USB: Connect directly to your computer via a USB cable.
• WLAN (വൈ-ഫൈ): Connect wirelessly to your network for convenient control.
• TF കാർഡ്: Load design files directly onto a TF card for offline operation using the 4.3-inch touch screen.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 പവർ ഓൺ/ഓഫ്

To power on the machine, flip the physical switch located on the control panel. To power off, flip the switch back to the OFF position.

5.2 മെറ്റീരിയൽ തയ്യാറാക്കൽ

Place your chosen material flat on the engraving bed. Ensure it is securely positioned to prevent movement during operation. The machine can engrave and cut a variety of materials, including:

• കൊത്തുപണി സാമഗ്രികൾ: Wood, bamboo, cardboard, plastic, leather, PCB plate, oxidized aluminum, non-dazzling electroplating and lacquered metal, 304 mirror stainless steel, glass, ceramic, cotton, slate.
• കട്ടിംഗ് മെറ്റീരിയലുകൾ: Cardboard, non-woven fabric, wood, acrylic, thin plastic plates, sponges.

Figure 5.1: Demonstrations of the cutting capability on Paulownia wood and black acrylic, showcasing the machine's ability to cut thick materials in a single pass.

5.3 ലേസർ ഫോക്കസ് ചെയ്യൽ

The IKIER K1 Pro Max features an intelligent Z-axis for automatic focusing:

• Automatic Focus: Press the auto-focus button on the control panel or via the software. The laser will automatically adjust its height to achieve optimal focus on the material surface. This process takes approximately 8 seconds.
• മാനുവൽ ഫോക്കസ്: For fine adjustments or specific applications, the Z-axis can also be adjusted manually.

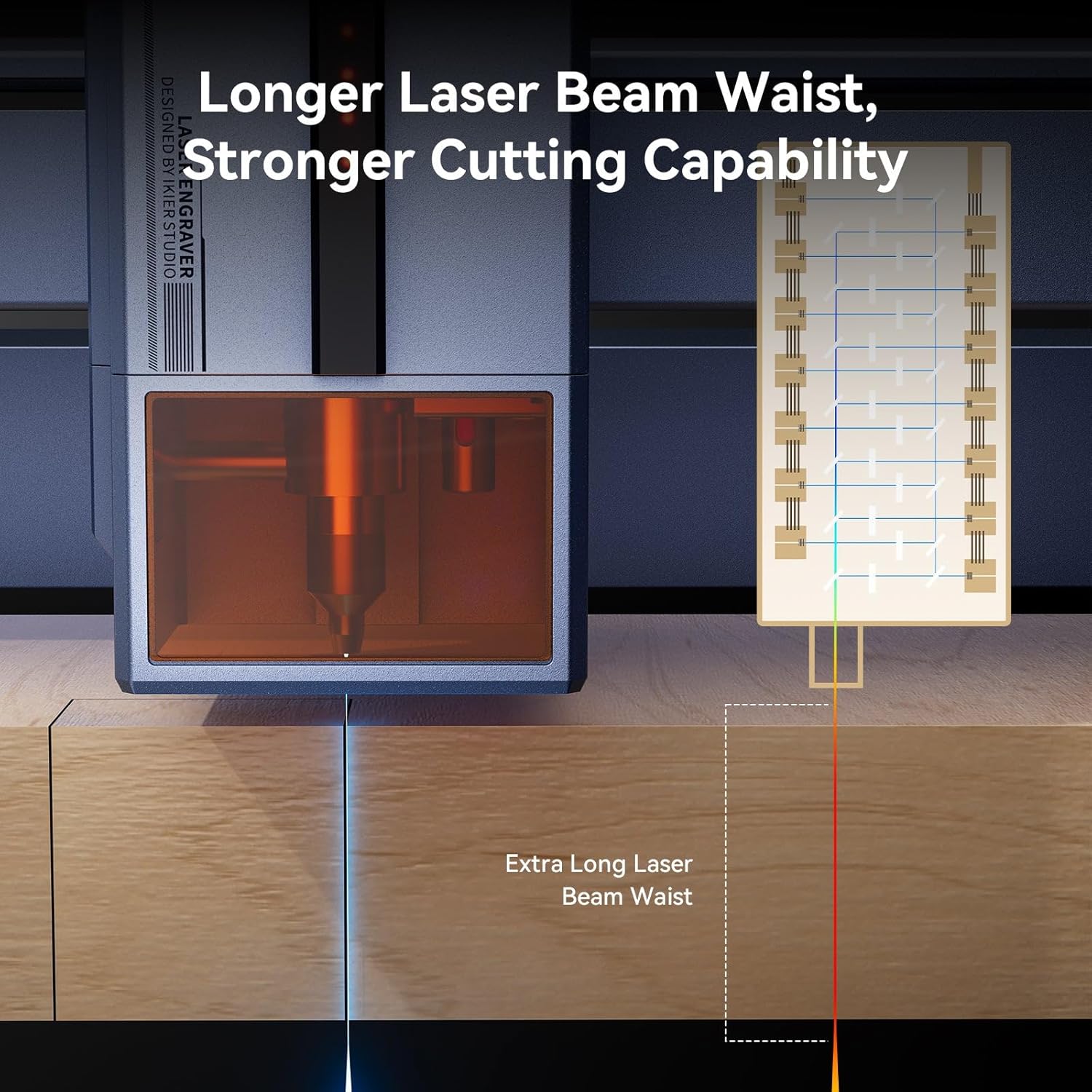

Figure 5.2: Illustration of the extended laser beam waist, which contributes to the machine's enhanced cutting capabilities and deeper penetration.

5.4 Loading Designs and Framing

നിങ്ങളുടെ ഡിസൈൻ തയ്യാറാക്കുക file using compatible software (LightBurn, LaserGRBL). The machine supports various file types including SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.

• സോഫ്റ്റ്‌വെയർ നിയന്ത്രണം: Load your design into the software and use the framing function to preview the engraving area on your material using the laser's cross positioning system.
• ഓഫ്‌ലൈൻ പ്രവർത്തനം: Save your design to a TF card and insert it into the machine. Use the 4.3-inch LCD touch screen to select and initiate the job.

Figure 5.3: The cross positioning system in action, demonstrating its utility for precise alignment and visual framing of the engraving area.

5.5 Adjusting Air Assist

The intelligent air assist system can be adjusted from 0-60 l/min. Adjust the airflow based on the material and desired cutting/engraving effect. Higher airflow generally helps with cleaner cuts and reduces charring.

5.6 പ്രവർത്തനം ആരംഭിക്കുന്നു

Once the material is placed, laser is focused, and design is loaded and framed, you can start the engraving or cutting process from your software or the touch screen. Monitor the operation closely, especially for new materials or settings.

6. പരിപാലനം

പതിവ് അറ്റകുറ്റപ്പണികൾ നിങ്ങളുടെ IKIER K1 Pro Max ന്റെ ദീർഘായുസ്സും മികച്ച പ്രകടനവും ഉറപ്പാക്കുന്നു.

• ലേസർ ലെൻസ് വൃത്തിയാക്കൽ: Periodically inspect and clean the laser lens using a lint-free cloth and lens cleaning solution. A dirty lens can significantly reduce laser power and engraving quality.
• Cleaning Air Assist Channels: The intelligent air assist has a double-layer design to prevent blockages, but occasional inspection and cleaning of the air channels are recommended to ensure continuous flow.
• മെഷീൻ ബോഡി വൃത്തിയാക്കൽ: Wipe down the machine's exterior and engraving bed regularly to remove dust and debris.
• Linear Rail Inspection: Check the linear guide rails for any debris or wear. Keep them clean and lightly lubricated if necessary, following manufacturer recommendations.
• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: ഔദ്യോഗിക IKIER പരിശോധിക്കുക website for any available firmware updates to ensure your machine has the latest features and performance improvements.

7. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന സാധാരണ പ്രശ്നങ്ങളെ ഈ വിഭാഗം അഭിസംബോധന ചെയ്യുന്നു. കൂടുതൽ സങ്കീർണ്ണമായ പ്രശ്നങ്ങൾക്ക്, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

• മെഷീൻ പ്രവർത്തിക്കുന്നില്ല:
    - Check if the power cable is securely connected to both the machine and the power outlet.
    - Ensure the physical power switch is in the 'ON' position.
• Laser Not Firing or Weak Output:
    - Verify that the laser module is properly connected.
    - Clean the laser lens as described in the Maintenance section.
    - Ensure the laser is correctly focused on the material surface.
    - Check laser power settings in your control software.
• മോശം കൊത്തുപണി/മുറിക്കൽ നിലവാരം:
    - Adjust laser power and speed settings for the specific material.
    - മെറ്റീരിയൽ പരന്നതും സുരക്ഷിതമായി സ്ഥാപിച്ചിരിക്കുന്നതുമാണെന്ന് ഉറപ്പാക്കുക.
    - Verify laser focus.
    - Clean the laser lens.
    - Check if the air assist is functioning correctly and adjusted appropriately.
• Machine Not Connecting to Computer/Software:
    - Check USB cable connection or Wi-Fi settings.
    - Ensure correct drivers are installed for your operating system.
    - Restart both the machine and your computer.
• മെഷീൻ അപ്രതീക്ഷിതമായി നിർത്തുന്നു:
    - Check for safety feature activation (flame detection, tilt detection). Address the cause (e.g., extinguish flame, ensure stable surface).
    - Ensure proper ventilation to prevent overheating.
• Air Assist Not Functioning:
    - Check the connection of the air assist unit.
    - Ensure the air assist current is set correctly (0-60 l/min).
    - Inspect air assist channels for blockages.

8 സ്പെസിഫിക്കേഷനുകൾ

Figure 8.1: Comparative specifications between the IKIER K1 Pro Max 70W semiconductor laser and a typical 180W CO2 laser, highlighting differences in laser type, weight, cutting capacity, and dimensions.

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or service inquiries, please refer to the official IKIER webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ നിങ്ങളുടെ അംഗീകൃത ഡീലറെ ബന്ധപ്പെടുക. വാറന്റി ക്ലെയിമുകൾക്കുള്ള വാങ്ങലിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

For the latest drivers, software updates, and additional resources, please visit the official IKIER support page.
