1. ആമുഖം
This manual provides instructions for the Brink's High Security 50mm Long Shackle Laminated Steel Padlock, model 887249. This padlock is engineered for heavy-duty security applications, offering robust protection for various assets and access points.
Key features include a chrome-plated Boron steel shackle for enhanced cut resistance, a four brass pin cylinder for optimal pick and pry resistance, and a steel locking bar mechanism for maximum security. The padlock also features a 2-1/2 inch shackle clearance for versatility and a form-fitted blue plastic bumper to minimize scratching and marring of surfaces.
2. ഉൽപ്പന്ന ഘടകങ്ങൾ
The package for your Brink's High Security 50mm Long Shackle Laminated Steel Padlock contains the following items:
- One (1) Brink's 50mm Long Shackle Laminated Steel Padlock
- രണ്ട് (2) കീകൾ
3. സജ്ജീകരണം
The Brink's 50mm Long Shackle Laminated Steel Padlock comes pre-assembled and ready for immediate use. No complex installation or initial setup procedures are required.
- Familiarize yourself with the padlock and the two provided keys.
- Insert one of the keys into the keyway to test the locking mechanism before initial use.
ചിത്രം 3.1: ഫ്രണ്ട് view of the Brink's 50mm Long Shackle Laminated Steel Padlock. The image displays the silver laminated steel body, the long silver Boron steel shackle with 'BORON STEEL' engraved, and the blue plastic bumper at the base with the 'B BRINKS' logo.
4. ഓപ്പറേഷൻ
4.1. പാഡ്ലോക്ക് അൺലോക്ക് ചെയ്യുന്നു
- Insert one of the provided keys fully into the keyway at the bottom of the padlock.
- Turn the key approximately 90 degrees, either clockwise or counter-clockwise. The internal mechanism will disengage, allowing the shackle to spring open slightly.
- Pull the shackle upwards to fully open the padlock.
- കീ നീക്കം ചെയ്യുക.
4.2. പാഡ്ലോക്ക് പൂട്ടുന്നു
- ചങ്ങല തുറന്ന സ്ഥാനത്താണെന്ന് ഉറപ്പാക്കുക.
- Position the shackle through the items or fixtures you wish to secure.
- Push the shackle firmly down into the padlock body until you hear and feel a distinct click. This indicates the shackle is fully engaged and the padlock is locked.
- സുരക്ഷിതമായി പൂട്ടിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കാൻ ചങ്ങലയിൽ സൌമ്യമായി വലിക്കുക.

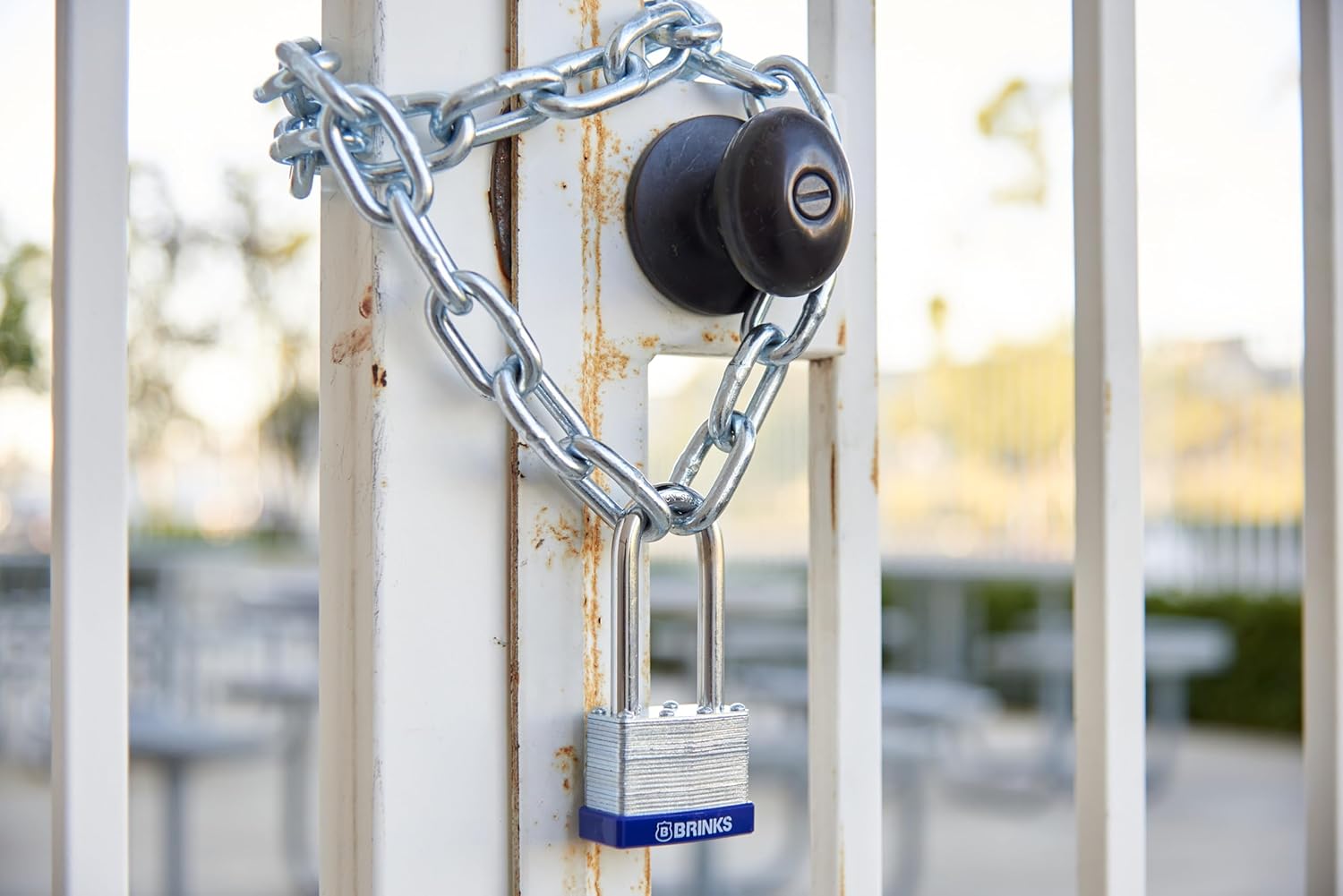

ചിത്രം 4.1: The padlock in use, securing a metal chain wrapped around a white gate handle. This demonstrates the long shackle's utility for larger securing tasks.
ചിത്രം 4.2: The padlock securing a metal chain wrapped around two silver door handles on a glass door. This illustrates its application for commercial or residential door security.
ചിത്രം 4.3: The padlock securing a bicycle frame to a stationary post using a cable. This shows its use for personal property security.
ചിത്രം 4.4: The padlock securing a heavy-duty metal latch, possibly on a trailer or storage container. This highlights its suitability for industrial or outdoor applications.
5. പരിചരണവും പരിപാലനവും
- വൃത്തിയാക്കൽ: Periodically wipe the padlock body and shackle with a soft, damp cloth to remove dirt and grime. Avoid using abrasive cleaners or solvents, as these can damage the finish or internal components.
- ലൂബ്രിക്കേഷൻ: If the key mechanism becomes stiff or difficult to operate, apply a small amount of graphite lubricant or a silicone-based lock lubricant into the keyway. Do not use oil-based lubricants, as they can attract dust and debris, potentially causing further issues.
- സംഭരണം: Store the padlock in a dry environment when not in use to prevent moisture accumulation and potential corrosion, especially if used outdoors.
6. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| താക്കോൽ കട്ടിയുള്ളതോ തിരിക്കാൻ പ്രയാസമുള്ളതോ ആണ്. | Dirt/debris in keyway, lack of lubrication, bent key | Ensure key is fully inserted. Apply graphite or silicone-based lock lubricant. Use the spare key if the primary key is damaged. |
| Shackle does not open/close smoothly | Obstruction, dirt, or corrosion in shackle mechanism | Inspect for obstructions. Clean the shackle and shackle holes. Apply lock lubricant to the shackle entry points. |
| Padlock will not lock | Shackle not fully inserted, internal mechanism obstruction | Ensure the shackle is pushed down firmly until it clicks. Check for any foreign objects preventing full shackle engagement. |
| Lost all keys | Keys are irreplaceable without professional intervention | The padlock will need to be replaced or professionally removed. Keep spare keys in a secure, separate location. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ബ്രാൻഡ് | ബ്രിങ്ക്സ് |
| മോഡലിൻ്റെ പേര് | Brink's High Security 50mm Long Shackle Laminated Steel Padlock |
| മോഡൽ നമ്പർ | 887249 |
| യു.പി.സി | 039208251112 |
| ലോക്ക് തരം | പിൻ ടംബ്ലർ |
| മെറ്റീരിയൽ | Laminated Steel body, Boron Steel shackle |
| Shackle Clearance | 2-1/2 inches (approx. 63.5 mm) |
| പ്രതിരോധം മുറിക്കുക | 9,300 പൗണ്ട് |
| Pry Resistance | 3,000 പൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ (L x W x H) | 4.3 x 1.2 x 2.05 ഇഞ്ച് (ഏകദേശം 109.2 x 30.5 x 52.1 മിമി) |
| ഇനത്തിൻ്റെ ഭാരം | 12.7 ഔൺസ് (ഏകദേശം 360 ഗ്രാം) |
| നിറം | Black (referring to the bumper) |
| പ്രത്യേക സവിശേഷതകൾ | Cut Resistant, Form-fitted plastic bumper |
8 സുരക്ഷാ വിവരങ്ങൾ
- Do not attempt to force the key or shackle, as this may damage the internal mechanism of the lock.
- Always keep spare keys in a secure and separate location from the padlock itself to prevent complete loss of access.
- While designed for high security, this padlock is a deterrent to theft and unauthorized access. It cannot guarantee absolute security against all forms of determined attack.
- Ensure the padlock is correctly applied and fully locked to the item or fixture you intend to secure.
9. വാറൻ്റിയും പിന്തുണയും
For detailed warranty information regarding your Brink's High Security 50mm Long Shackle Laminated Steel Padlock, please refer to the documentation included with your original purchase. You may also visit the official BRINKS webഏറ്റവും പുതിയ വാറന്റി നിബന്ധനകൾക്കും വ്യവസ്ഥകൾക്കുമുള്ള സൈറ്റ്.
For product support, technical assistance, or any inquiries not covered in this manual, please contact BRINKS customer service through their official website or designated support channels. Provide your model number (887249) when seeking assistance.
