LIONELO Tris Plus Multifunction Tricycle Instruction Manual

1. ആമുഖം

The Lionelo Tris Plus Multifunction Tricycle is designed to grow with your child, offering versatile configurations from a push-trike for infants to an independent tricycle for toddlers. This manual provides essential information for safe assembly, operation, and maintenance of your Tris Plus tricycle.

പ്രായപരിധി: 9 മാസം മുതൽ 5 വർഷം വരെ

പരമാവധി ഭാരം ശേഷി: 25 കി.ഗ്രാം

Figure 1: LIONELO Tris Plus Tricycle overview, കാണിക്കുകasing അതിന്റെ പൊരുത്തപ്പെടുത്തൽ.

2. പാക്കേജ് ഉള്ളടക്കം

Please ensure all the following components are present in the package:

• Tricycle Frame with Wheels
• പാരന്റ് ഹാൻഡിൽ
• Seat with Backrest and Harness
• മേലാപ്പ്
• സുരക്ഷാ ബാർ
• Footrests (for younger and older children)
• Parent Bag
• Handlebar Protector with Storage Compartment
• ബെൽ
• കുപ്പി ഹോൾഡർ

3. അസംബ്ലി നിർദ്ദേശങ്ങൾ

The Tris Plus tricycle features a quick, tool-free assembly process. All elements are designed to click into place intuitively.

3.1 പ്രാരംഭ അസംബ്ലി

1. Unfold the main tricycle frame until it locks securely.
2. Attach the front wheel assembly, ensuring it clicks into position.
3. Insert the rear wheels onto the axle until they lock.
4. Attach the seat unit to the frame.
5. Install the parent handle, adjusting its height as needed.
6. Mount the canopy, safety bar, and footrests according to your child's age and the desired configuration.

3.2 Folding for Storage or Transport

The tricycle can be folded to a compact size for convenient storage or transport. Refer to the specific folding mechanisms on the frame and seat for detailed steps. The folded dimensions are approximately 49 cm (L) x 62 cm (W) x 62 cm (H).

Figure 2: Tool-free assembly and compact folding feature.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Adapting to Child's Age

The modular design allows the Tris Plus to adapt to various stages of your child's development, from 9 months up to 5 years. Configurations can be adjusted by removing or adding components like the safety bar, canopy, and footrests.

Figure 3: Tricycle configurations for different age groups.

4.2 Parent Control Handle

The parent handle features a 4-stage height adjustment, from 80 cm to 100 cm, for comfortable pushing. An external steering control system on the handle allows parents to easily guide the tricycle.

4.3 Swivel Seat and Backrest Adjustment

The 360° swivel seat allows you to easily position your child facing forward or backward. The backrest can be adjusted to 3 levels for forward-facing and 2 levels for rear-facing positions, ensuring optimal comfort.

Figure 4: Swivel seat and backrest adjustment.

4.4 സുരക്ഷാ സവിശേഷതകൾ

The tricycle is equipped with a 3-point adjustable harness with soft covers and a protective safety bar to secure your child. An adjustable canopy provides protection from sun and light rain, and its reflective trim enhances visibility in low light conditions.

Figure 5: Safety bar and 3-point harness.

4.5 Wheels and Brakes

The Tris Plus features large, puncture-resistant PU wheels (26 cm front, 23 cm rear) for a smooth ride. The front wheel has a free-wheel function, allowing the child to pedal independently while the parent maintains control over speed. Rear wheel brakes ensure safe parking.

Figure 6: Puncture-proof wheels and rear brakes.

4.6 കാൽപ്പാടുകൾ

The tricycle includes footrests suitable for both younger children who cannot reach the pedals and older children who may need a rest from pedaling.

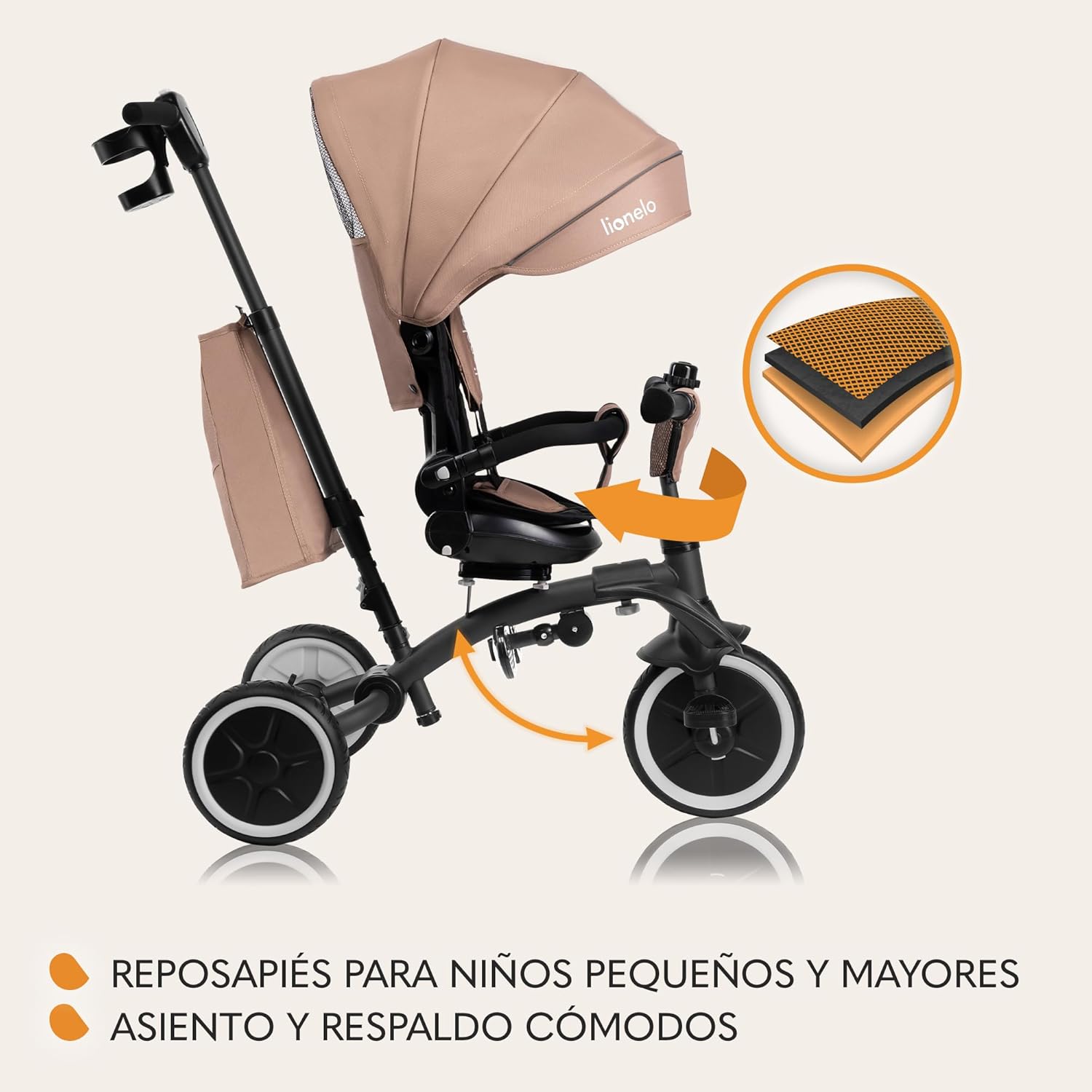

Figure 7: Adjustable footrests for comfort.

5. പരിപാലനം

5.1 ക്ലീനിംഗ് നിർദ്ദേശങ്ങൾ

The fabric components of the Tris Plus tricycle can be hand washed or machine washed on a gentle cycle with cold water. Line dry to maintain fabric integrity. Do not bleach or tumble dry.

5.2 പൊതു പരിചരണം

• Regularly check all screws, bolts, and fasteners to ensure they are tight and secure.
• Inspect wheels and tires for wear or damage.
• Keep the tricycle clean and dry to prevent rust and prolong its lifespan.
• Store the tricycle in a dry, protected area when not in use.

6. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your Tris Plus tricycle, please refer to the following common troubleshooting tips:

• Difficulty Steering: Ensure the parent handle is securely attached and the steering control mechanism is engaged. Check for any obstructions in the front wheel.
• Wobbly Wheels: Verify that all wheels are properly installed and locked into place. Check for any loose components.
• Seat Adjustment Issues: Ensure no fabric or debris is obstructing the seat swivel or recline mechanisms. Apply gentle force and follow the adjustment steps carefully.
• Brake Malfunction: Inspect the rear wheel brakes for any obstructions or damage. Ensure the brake lever is fully engaged.

ഇവിടെ പരാമർശിക്കാത്ത സ്ഥിരമായ പ്രശ്നങ്ങൾക്ക്, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

7 സ്പെസിഫിക്കേഷനുകൾ

ചിത്രം 8: ഉൽപ്പന്ന അളവുകൾ.

8 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: Use only under direct adult supervision. The product is suitable for children aged 9 months to 5 years, with a maximum weight of 25 kg. Always ensure your child is securely fastened with the harness and the safety bar is in place when in use. Do not leave children unattended in the tricycle. Regularly check for wear and tear on all components, especially safety features.

9. വാറൻ്റിയും പിന്തുണയും

Lionelo products are covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty details, including duration and terms, please refer to the warranty card included with your product or visit the official Lionelo webസൈറ്റ്.

For technical support, spare parts, or any questions regarding your Tris Plus tricycle, please contact Lionelo customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your model number (Tris Plus) and purchase date available.

ഉദ്യോഗസ്ഥൻ Webസൈറ്റ്: www.lionelo.com
