1. ആമുഖം
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Goodman GR9S920603BN Gas Furnace. Please read this manual thoroughly before attempting any installation, operation, or maintenance procedures. Proper adherence to these instructions will ensure optimal performance and longevity of your heating system.
The Goodman GR9S92 Gas Furnace is designed to provide reliable and efficient heating for your home. It features a single-stage operation, a multi-speed ECM motor, and a multi-position design for flexible installation.
ചിത്രം 1.1: പുറംഭാഗം view of the Goodman GR9S920603BN Gas Furnace, showcasing its compact design and the Goodman brand logo.
2 സുരക്ഷാ വിവരങ്ങൾ
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.
- യൂണിറ്റിന് സേവനം നൽകുന്നതിനുമുമ്പ് എല്ലായ്പ്പോഴും വൈദ്യുതി വിച്ഛേദിക്കുക.
- കാർബൺ മോണോക്സൈഡ് വിഷബാധ തടയാൻ ശരിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക.
- Do not store flammable materials near the furnace.
- ഇൻസ്റ്റാളേഷനും സേവനവും ഒരു യോഗ്യതയുള്ള ഇൻസ്റ്റാളർ അല്ലെങ്കിൽ സേവന ഏജൻസി നടത്തണം.
- എല്ലാ പ്രാദേശിക കോഡുകളും ഓർഡിനൻസുകളും പിന്തുടരുക.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
3.1 പ്രധാന സവിശേഷതകൾ
- Up to 92% AFUE: High fuel efficiency for reduced energy consumption and lower heating costs.
- സിംഗിൾ-എസ്tagഇ ഓപ്പറേഷൻ: Provides consistent and reliable heating performance.
- Multi-Speed ECM Motor: Optimizes airflow, enhances heating efficiency, and reduces operational noise.
- Multi-Position Installation: Flexible setup options for upflow or horizontal configurations.
- ശാന്തമായ പ്രവർത്തനം: Engineered to minimize noise for a more comfortable indoor environment.
- Environmentally Responsible: Designed for energy efficiency to minimize environmental impact.
3.2 സ്പെസിഫിക്കേഷനുകൾ
| സ്പെസിഫിക്കേഷൻ | മൂല്യം |
|---|---|
| മോഡൽ നമ്പർ | GR9S920603BN ന്റെ സവിശേഷതകൾ |
| ബ്രാൻഡ് | ഗുഡ്മാൻ |
| AFUE (Annual Fuel Utilization Efficiency) | 92% |
| BTU-കൾ | 60,000 |
| ഓറിയൻ്റേഷൻ | മുകളിലേക്ക് / തിരശ്ചീനമായി |
| വെന്റിംഗ് തരം | പി.വി.സി |
| ഉയരം | 34.5 ഇഞ്ച് |
| വീതി | 17.5 ഇഞ്ച് |
| ആഴം | 28.75 ഇഞ്ച് |
| ഭാരം | 164 പൗണ്ട് |
| വോൾട്ട് | 115V |
| മോട്ടോർ സ്പീഡ് | മൾട്ടി-സ്പീഡ് ECM |
| ഗ്യാസ് വാൽവ് | സിംഗിൾ-കൾtage |
| മെറ്റീരിയൽ തരം | ലോഹം |

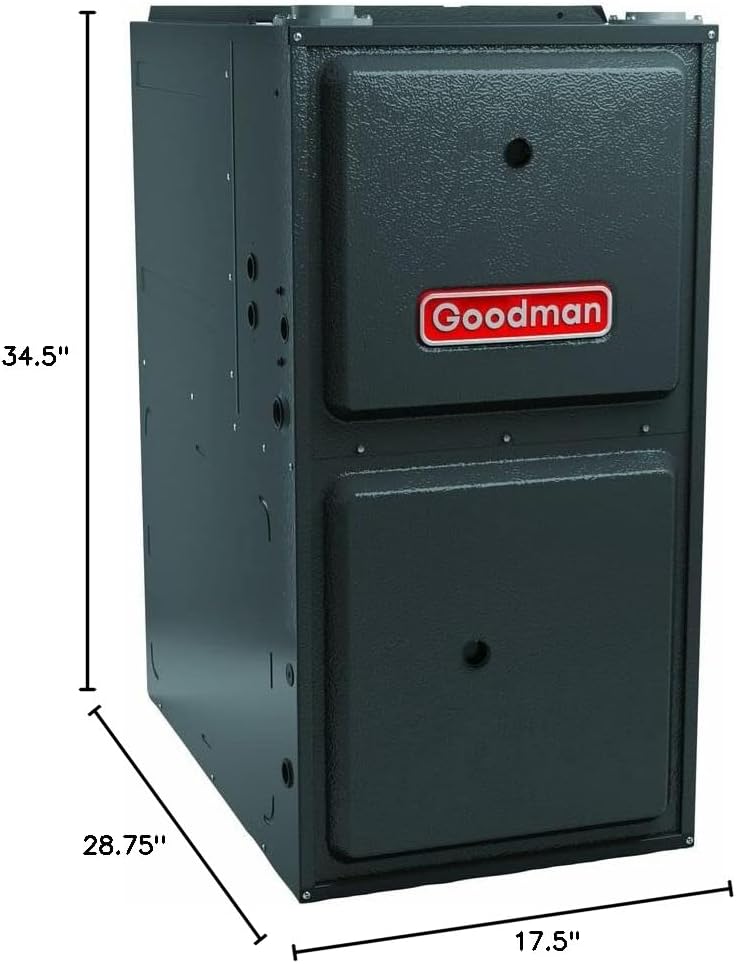

Image 3.1: Dimensional drawing of the Goodman GR9S920603BN Gas Furnace, indicating height, width, and depth.
Image 3.2: EnergyGuide label for the Goodman GR9S920603BN Gas Furnace, showing an efficiency rating of 92.1% AFUE.
4. ഇൻസ്റ്റലേഷൻ (സജ്ജീകരണം)
Installation of this gas furnace requires specialized knowledge and tools. It is strongly recommended that installation be performed by a qualified HVAC technician or service agency. Improper installation can lead to serious injury, property damage, or void the product warranty.
4.1 പ്രീ-ഇൻസ്റ്റലേഷൻ പരിശോധനകൾ
- Verify that the furnace model matches the system requirements and local codes.
- ഏതെങ്കിലും ഷിപ്പിംഗ് കേടുപാടുകൾക്കായി യൂണിറ്റ് പരിശോധിക്കുക.
- Ensure adequate space for installation, maintenance, and airflow.
- Confirm availability of proper gas, electrical, and venting connections.
4.2 Positioning and Venting
The GR9S920603BN furnace supports upflow and horizontal installation configurations. Refer to the detailed installation instructions provided with the unit for specific clearances and venting requirements. PVC piping is required for venting.
ചിത്രം 4.1: മുകളിൽ നിന്ന് താഴേക്ക് view of the Goodman GR9S920603BN Gas Furnace, showing the heat exchanger and venting connections.
4.3 Electrical and Gas Connections
All electrical wiring must comply with national and local electrical codes. The furnace requires a 115V electrical supply. Gas connections must be made by a licensed professional in accordance with all applicable codes and safety standards.
ചിത്രം 4.2: ആന്തരികം view of the Goodman GR9S920603BN Gas Furnace, highlighting the control board and electrical wiring connections.
5. ഓപ്പറേഷൻ
Once properly installed and commissioned by a qualified technician, your Goodman GR9S920603BN Gas Furnace is ready for operation. The furnace is controlled by your home's thermostat.
5.1 Starting the Furnace
- Ensure the gas supply valve to the furnace is open.
- ചൂളയിലേക്ക് വൈദ്യുത ശക്തി ഓണാക്കുക.
- Set your thermostat to the "Heat" mode and adjust the temperature setting above the current room temperature.
- The furnace will initiate its start-up sequence, which typically includes a pre-purge cycle, ignition, and then the main burner firing.
5.2 Shutting Down the Furnace
- Set your thermostat to the "Off" mode or lower the temperature setting below the current room temperature.
- For extended periods of inactivity or maintenance, turn off the electrical power and close the gas supply valve to the furnace.
6. പരിപാലനം
Regular maintenance is crucial for the efficient and safe operation of your furnace. Some tasks can be performed by the homeowner, while others require a qualified technician.
6.1 Homeowner Maintenance
- എയർ ഫിൽറ്റർ മാറ്റിസ്ഥാപിക്കൽ: Check and replace the air filter monthly, or more frequently if the furnace is in constant use or if you have pets. A clean filter ensures proper airflow and efficiency.
- Clear Area Around Furnace: Ensure the area around the furnace is clear of obstructions, combustible materials, and debris to maintain proper ventilation and safety.
6.2 Professional Maintenance (Annual)
It is recommended to have your furnace inspected and serviced annually by a qualified HVAC technician. This typically includes:
- Checking and cleaning the heat exchanger and burners.
- Inspecting the ignition system.
- Verifying gas pressure and connections.
- Testing safety controls.
- ചലിക്കുന്ന ഭാഗങ്ങൾ ലൂബ്രിക്കേറ്റ് ചെയ്യുന്നു (ബാധകമെങ്കിൽ).
- Checking electrical connections and motor operation.
7. പ്രശ്നപരിഹാരം
This section provides basic troubleshooting steps for common issues. For complex problems, always contact a qualified HVAC technician.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Furnace not heating | Thermostat set incorrectly, power off, gas valve closed, dirty air filter, pilot light out (if applicable), safety switch tripped. | Check thermostat settings, ensure power is on, open gas valve, replace air filter, reset furnace (if applicable), check circuit breaker. If problem persists, contact technician. |
| അപര്യാപ്തമായ ചൂട് | Dirty air filter, blocked vents, undersized furnace, duct leaks. | Replace air filter, ensure vents are open and unobstructed. Consult technician for other issues. |
| അസാധാരണമായ ശബ്ദങ്ങൾ | Loose parts, motor issues, dirty blower wheel. | Turn off furnace and contact a qualified technician for inspection. |
| Furnace cycles on and off frequently | Dirty air filter, thermostat malfunction, improper sizing, restricted airflow. | Replace air filter, check thermostat. If problem persists, contact technician. |
8. വാറൻ്റി വിവരങ്ങൾ
The Goodman GR9S920603BN Gas Furnace comes with a Limited Warranty. Specific terms and conditions, including coverage duration and exclusions, are provided in the warranty documentation included with your unit. Please retain your proof of purchase for warranty claims.
For detailed warranty information, please refer to the official Goodman warranty statement or contact your authorized Goodman dealer.
9. ഉപഭോക്തൃ പിന്തുണ
If you have questions regarding the installation, operation, or maintenance of your Goodman GR9S920603BN Gas Furnace, please contact your installing contractor or an authorized Goodman service provider. They are equipped with the necessary expertise and resources to assist you.
For general product information, you may visit the official Goodman webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ പ്രാദേശിക ഡീലറെ സമീപിക്കുക.
