സൈബെക്സ് ഗോൾഡ് ക്ലിക്ക് & ഫോൾഡ് ഹൈ ചെയർ സെറ്റ് 3-ഇൻ-1 ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and proper use, assembly, and maintenance of your CYBEX Gold CLICK & FOLD High Chair Set 3-in-1. Please read all instructions carefully before assembly and use, and keep this manual for future reference.

The CYBEX Gold CLICK & FOLD High Chair is designed to adapt to your child's growth, offering a versatile seating solution from approximately 6 months up to 99 years (with separate accessories for newborns). It features a durable construction of beech wood and plastic, ensuring stability and longevity.

Image 1.1: The CYBEX Gold CLICK & FOLD High Chair, illustrating its adaptability with a baby set and tray.

2 സുരക്ഷാ വിവരങ്ങൾ

മുന്നറിയിപ്പ്: ഈ മുന്നറിയിപ്പുകളും നിർദ്ദേശങ്ങളും പാലിക്കുന്നതിൽ പരാജയപ്പെടുന്നത് ഗുരുതരമായ പരിക്ക് അല്ലെങ്കിൽ മരണത്തിലേക്ക് നയിച്ചേക്കാം.

• Always secure your child in the high chair with the harness system.
• നിങ്ങളുടെ കുട്ടിയെ ഒരിക്കലും ശ്രദ്ധിക്കാതെ ഉയർന്ന കസേരയിൽ ഇരുത്തരുത്.
• Ensure the high chair is placed on a flat, stable surface.
• Keep children away from the product during assembly and disassembly.
• Regularly check all components for wear, damage, or missing parts. Discontinue use if any part is damaged.
• Do not use accessories or replacement parts other than those approved by Cybex.
• Maximum weight capacity for the high chair is 120 kg (264 lbs).
• The high chair is suitable for children from 6 months (or from birth with a separate Gold Lounger Nest) up to 99 years.

3. ഉൽപ്പന്ന ഘടകങ്ങൾ

The CYBEX Gold CLICK & FOLD High Chair Set includes the following main components:

• High Chair Frame (Beech Wood)
• സീറ്റ് ബോർഡ്
• Footrest Board
• ബാക്ക്‌റെസ്റ്റ്
• Assembly Hardware (screws, bolts, tools if provided)

Note: The baby set, tray, and newborn lounger nest are separate accessories and may not be included in all packages. Refer to your specific product packaging for included items.

Image 3.1: Main high chair frame with optional baby set and tray shown as separate components.

4. സജ്ജീകരണവും അസംബ്ലിയും

Assembly is required for this product. Please follow the steps below carefully. It is recommended to have two adults for assembly.

4.1 അൺപാക്കിംഗ്

1. പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. Check the contents against the product components list to ensure all parts are present.
3. Dispose of packaging materials responsibly and keep them away from children.

4.2 Assembling the High Chair Frame

1. Lay the two side frames on a clean, flat surface.
2. Attach the backrest to the designated slots on the side frames using the provided hardware. Ensure it is securely fastened.
3. Insert the seat board into the desired height slot. The CLICK & FOLD mechanism allows for easy adjustment. Ensure both sides click into place.
4. Insert the footrest board into the desired height slot below the seat board. Ensure both sides click into place.
5. Verify all connections are tight and secure before use.

ചിത്രം 4.1: മുൻഭാഗം view of the assembled high chair, ready for use or accessory attachment.

4.3 മടക്കുന്നതും തുറക്കുന്നതും

The CLICK & FOLD feature allows for compact storage.

1. To fold: Locate the folding mechanisms on the sides of the chair (refer to diagrams in the physical manual if available). Press the release buttons and gently push the backrest forward until the chair folds flat.
2. To unfold: Pull the backrest upwards until the chair locks into its open position. Ensure all locking mechanisms are engaged before use.

Image 4.2: The high chair in its folded state, demonstrating its compact storage capability.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The CYBEX Gold CLICK & FOLD High Chair offers 3-in-1 functionality, adapting to different stages of your child's development.

5.1 High Chair Mode (6 months - 3 years approx.)

For infants and toddlers who can sit unaided (approx. 6 months), use the high chair with the baby set and tray.

1. Attach the baby set to the seat board and backrest. Ensure it clicks securely into place.
2. Slide the tray onto the baby set until it locks.
3. Place your child in the seat and secure them with the 5-point harness (if included with baby set). Adjust the harness for a snug fit.
4. Adjust the seat and footrest height to ensure your child's feet are supported and they are comfortable.

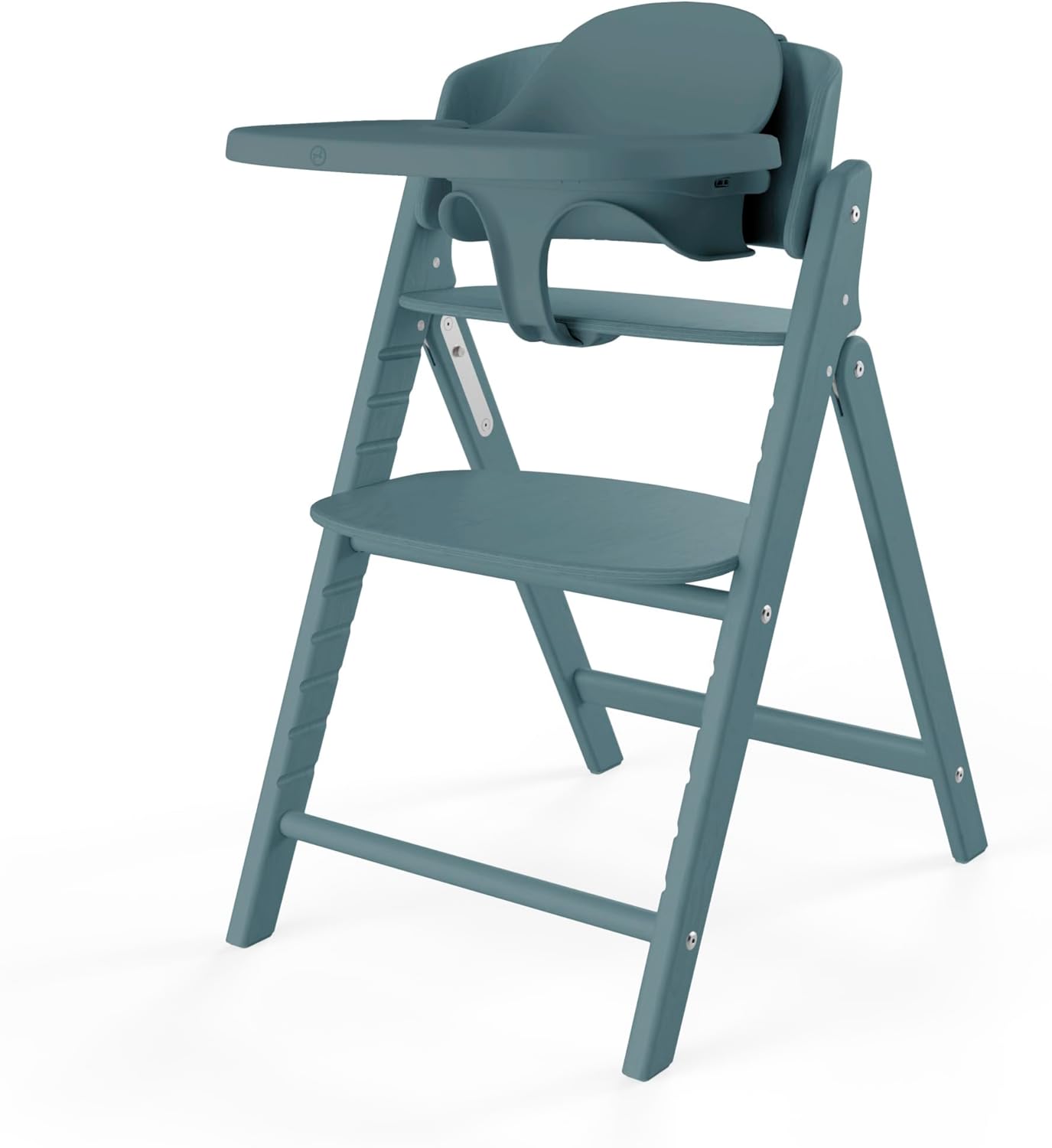

Image 5.1: The high chair configured with the baby set and tray for infant feeding.

Image 5.2: Another perspective of the high chair in infant feeding configuration.

5.2 Junior Chair Mode (3 years - 99 years approx.)

As your child grows, the high chair can be converted into a junior chair.

1. Remove the baby set and tray.
2. Adjust the seat and footrest boards to a comfortable height for your child, allowing them to sit at a standard table.
3. Ensure the footrest provides proper support for their feet.

5.3 Adult Chair Mode (99 years approx.)

The robust design allows the chair to be used as a regular adult chair.

1. Adjust the seat and footrest to the lowest positions or remove the footrest entirely for adult use.
2. Ensure the chair is stable and all components are securely in place.

6. പരിപാലനവും ശുചീകരണവും

Regular maintenance ensures the longevity and safety of your high chair.

6.1 വൃത്തിയാക്കൽ

• Wipe down wooden and plastic surfaces with a damp തുണിയും വീര്യം കുറഞ്ഞ സോപ്പും.
• Do not use abrasive cleaners or strong chemicals, as they may damage the materials.
• For fabric parts (if applicable, e.g., seat cushions), follow the care instructions on the label.
• Dry all parts thoroughly after cleaning to prevent moisture damage.

6.2 സംഭരണം

• Store the high chair in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.
• If storing for an extended period, ensure it is clean and dry.

7. പ്രശ്‌നപരിഹാരം

If you encounter any issues with your CYBEX Gold CLICK & FOLD High Chair, refer to the following common solutions:

• കസേര ആടുന്നതായി തോന്നുന്നു: Ensure all screws and bolts are tightened. Check that the seat and footrest boards are securely clicked into their slots.
• മടക്കുന്നതിനോ വിടുന്നതിനോ ഉള്ള ബുദ്ധിമുട്ട്: Ensure no obstructions are present in the folding mechanism. Apply gentle, even pressure. Refer to the folding instructions in Section 4.3.
• അനുയോജ്യമല്ലാത്ത ആക്‌സസറികൾ: Verify that you are using genuine CYBEX accessories compatible with the CLICK & FOLD model. Ensure they are aligned correctly before attempting to attach.

പ്രശ്നം നിലനിൽക്കുകയാണെങ്കിൽ, ദയവായി ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റി വിവരങ്ങൾ

Cybex products are manufactured with the highest quality standards. For detailed information regarding the warranty period and terms for your CYBEX Gold CLICK & FOLD High Chair, please refer to the warranty card included with your purchase or visit the official Cybex webസൈറ്റ്. ഏതെങ്കിലും വാറന്റി ക്ലെയിമുകൾക്ക് നിങ്ങളുടെ വാങ്ങലിന്റെ തെളിവ് സൂക്ഷിക്കുക.

10. ഉപഭോക്തൃ പിന്തുണ

If you have any questions, require assistance with assembly, or need to report a defect, please contact Cybex customer support. Contact details can typically be found on the product packaging, the official Cybex website, or your retailer's support page.

For online resources and FAQs, please visit the official Cybex webസൈറ്റ്: www.cybex-online.com
