1. ആമുഖം
The Andesfit Bluetooth Blood Pressure Monitor is designed for accurate and convenient blood pressure measurement at home. This device combines advanced technology with user-friendly features, allowing you to monitor your health effectively and share data with healthcare professionals. It is FDA Cleared and CE Certified, ensuring high quality and safety standards.
Figure 1: Andesfit Blood Pressure Monitor with included cuffs and companion app.
2. എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്
Your Andesfit Blood Pressure Monitor package includes the following components:
- Andesfit Blood Pressure Monitor Unit
- Large Blood Pressure Cuff (9-17 inches arm circumference)
- Extra Large Blood Pressure Cuff (13-21 inches arm circumference)
- 4 AA ബാറ്ററികൾ (ഉൾപ്പെട്ടിരിക്കുന്നു)
- USB Type-C Cable (for power, not charging batteries)
- സ്റ്റോറേജ് ബാഗ്
- ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
Figure 2: All components included in the Andesfit Blood Pressure Monitor package.
3. സജ്ജീകരണം
3.1 ഉപകരണം പവർ ചെയ്യുന്നു
The monitor can be powered using the included AA batteries or via the USB Type-C cable. USB power is prioritized if both are connected.
- ബാറ്ററി ഇൻസ്റ്റാളേഷൻ: Open the battery compartment on the back of the monitor. Insert the 4 AA batteries, ensuring correct polarity (+/-). Close the compartment.
- യുഎസ്ബി പവർ: Connect the provided USB Type-C cable to the monitor's USB port and plug the other end into a compatible USB power source (e.g., wall adapter, power bank). Note: The USB port is for power supply only and does not charge the batteries.
Figure 3: Dual power mode options for the monitor.
3.2 Attaching the Cuff
Select the appropriate cuff size (Large or Extra Large) for your arm. Connect the cuff's air tube securely into the air jack on the side of the monitor unit.
Figure 4: The two included cuff sizes for optimal fit.
3.3 App Installation (Optional but Recommended)
For enhanced tracking and data management, download the "ANDESFITBP" app from your smartphone's app store (Apple App Store or Google Play Store). The app allows for unlimited data storage and easy sharing.

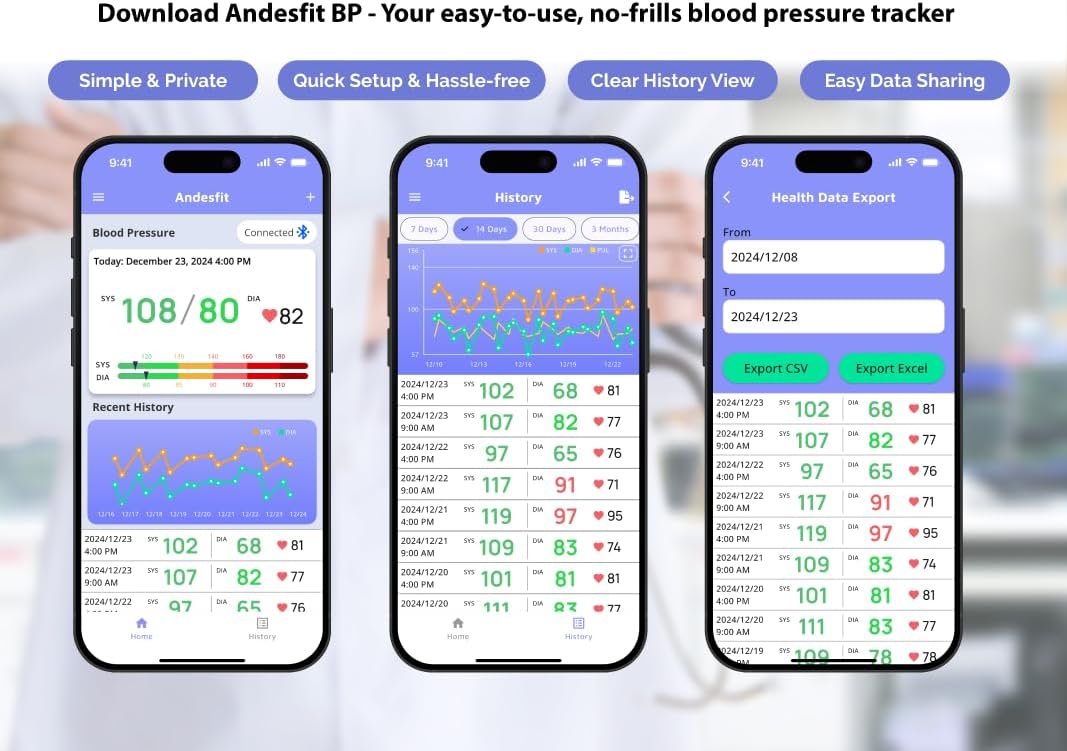

ചിത്രം 5: ഓവർview of the Andesfit BP app features.
കുറിപ്പ്: The app does not require personal data input or login, ensuring your privacy. Data is stored locally on your device and can be synced with Apple Health or Google Fit.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 ഒരു അളവ് എടുക്കുന്നു
- അളവെടുക്കൽ തയ്യാറെടുപ്പ്: Sit comfortably with your back supported and feet flat on the floor. Rest your arm on a table so the cuff is at heart level. Avoid talking or moving during the measurement.
- കഫ് പ്രയോഗിക്കുക: Wrap the cuff around your bare upper arm, ensuring the air tube is positioned correctly (usually aligned with your middle finger). The cuff should be snug but not too tight.
- അളക്കൽ ആരംഭിക്കുക: Press the "START/STOP" button on the monitor. The cuff will automatically inflate and then slowly deflate as it measures your blood pressure.
- ഫലങ്ങൾ വായിക്കുക: Your Systolic (SYS), Diastolic (DIA), and Pulse (PUL) readings will be displayed on the large 6-inch color LED screen. The screen also features a WHO color-coded indicator for easy interpretation of your blood pressure level.
Figure 6: The monitor's large color LED display with WHO color indicator.
4.2 Using the App with the Monitor
Once the app is installed and Bluetooth is enabled on your smartphone, simply switch on your blood pressure monitor and open the app. The app will automatically connect to the device. Your measurement readings will be synced and stored in the app, providing a comprehensive history of your blood pressure trends.
You can export your data as CSV files to share with your doctor or for personal record-keeping.
Video 1: Official Andesfit video demonstrating the Bluetooth blood pressure monitor and app connectivity.
5. പരിപാലനം
- വൃത്തിയാക്കൽ: Wipe the monitor and cuff with a soft, dry cloth. Do not use abrasive cleaners or immerse the device in water.
- സംഭരണം: Store the device in the provided storage bag in a cool, dry place, away from direct sunlight and extreme temperatures.
- ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace all 4 AA batteries when the low battery indicator appears on the display.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your Andesfit Blood Pressure Monitor, please refer to the following common solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ഒരു ഡിസ്പ്ലേയും/ഉപകരണവും ഓണാകില്ല. | Batteries are low or incorrectly installed; USB cable not connected properly. | Replace batteries or ensure correct polarity. Check USB cable connection. |
| കൃത്യമല്ലാത്ത വായനകൾ | Improper cuff placement; movement or talking during measurement; incorrect posture. | Ensure cuff is correctly applied and snug. Remain still and silent during measurement. Sit upright with feet flat. |
| ആപ്പ് ബ്ലൂടൂത്ത് വഴി കണക്റ്റ് ചെയ്യുന്നില്ല | Bluetooth is off on phone/monitor; app permissions not granted. | Ensure Bluetooth is enabled on both devices. Check app permissions in phone settings. Restart app/monitor. |
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ഉൽപ്പന്ന അളവുകൾ | 4.5"L x 4.2"W x 1.9"Th |
| ഇനം മോഡൽ നമ്പർ | A02-SEB |
| ബാറ്ററികൾ | 4 AA ബാറ്ററികൾ (ഉൾപ്പെട്ടിരിക്കുന്നു) |
| നിർമ്മാതാവ് | Shenzhen GoodlyMed Technology Co., Ltd. |
| പവർ ഉറവിടം | ബാറ്ററി പവർ / യുഎസ്ബി ടൈപ്പ്-സി |
| ഡിസ്പ്ലേ തരം | LED Color Display (6 inches) |
| കഫ് വലുപ്പങ്ങൾ | 9-17 inches (Large), 13-21 inches (Extra Large) |
| ഡാറ്റ സംഭരണം | 2 users * 199 readings (device), Unlimited (app) |
| സർട്ടിഫിക്കേഷനുകൾ | FDA Cleared & CE Certified |
8. വാറൻ്റിയും പിന്തുണയും
Andesfit products are designed for reliability and performance. For information regarding warranty coverage and technical support, please contact Andesfit directly. You can find contact details on the official Andesfit webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ വാങ്ങൽ പ്ലാറ്റ്ഫോം വഴി.
തിരികെ നൽകൽ നയം: This product typically has a 30-day return policy for refund or replacement, as per standard retail terms.
