ENGWE Y400 ഇലക്ട്രിക് സ്കൂട്ടർ നിർദ്ദേശ മാനുവൽ

ആമുഖം

Welcome to the ENGWE Y400 Electric Scooter instruction manual. This guide provides essential information for the safe and efficient operation, assembly, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.

സുരക്ഷാ മാർഗ്ഗനിർദ്ദേശങ്ങൾ

Your safety is paramount. Always wear a helmet and appropriate protective gear (knee pads, elbow pads, gloves) when riding. Familiarize yourself with local regulations regarding electric scooter usage. The ENGWE Y400 is UL 2272 Certified, ensuring compliance with electrical safety standards.

• ബ്രേക്കുകൾ, ടയറുകൾ, ബാറ്ററി ലെവൽ എന്നിവയുൾപ്പെടെ എല്ലായ്‌പ്പോഴും പ്രീ-റൈഡ് പരിശോധന നടത്തുക.
• Do not ride in heavy rain or through deep puddles, despite the IPX5 rating.
• വേഗപരിധിയും ട്രാഫിക് നിയമങ്ങളും പാലിക്കുക.
• മദ്യത്തിൻ്റെയും മയക്കുമരുന്നിൻ്റെയും ലഹരിയിൽ വാഹനമോടിക്കുന്നത് ഒഴിവാക്കുക.
• സവാരി ചെയ്യുന്നതിന് മുമ്പ് ഫോൾഡിംഗ് മെക്കാനിസം സുരക്ഷിതമായി പൂട്ടിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.

സജ്ജീകരണവും അസംബ്ലിയും

The ENGWE Y400 electric scooter comes 90% pre-assembled, making the setup process quick and straightforward. A toolkit is included for the remaining steps.

അൺബോക്‌സിംഗും പ്രാരംഭ സജ്ജീകരണവും

Carefully remove the scooter and all accessories from the packaging. Inspect for any damage during transit. The main components include the scooter body, handlebar, charger, and toolkit.

അസംബ്ലി ഘട്ടങ്ങൾ

1. Unfolding the Riser: Turn the safety buckle counter-clockwise to release it. Hold the red pedal and step on the footrest to raise the folding riser until it locks into place. Secure the safety buckle by turning it clockwise.
2. ഹാൻഡിൽബാർ ഇൻസ്റ്റലേഷൻ: Insert the handlebar into the top of the riser. Secure it with the provided nut and nut washer using the appropriate tool from the toolkit.
3. ബ്രേക്ക് അഡ്ജസ്റ്റ്മെൻ്റ്: Tighten the nuts of the brakes to fix both sides of the brakes, ensuring they are firm and responsive.
4. ഡിസ്പ്ലേ ഇൻസ്റ്റാളേഷൻ: Tighten the four screws to fix the display unit onto the handlebar.
5. പ്രാരംഭ ചാർജ്: Connect the charger to the scooter's charging port and a power outlet. Charge the battery fully before first use (approximately 6 hours).

For a visual guide on unboxing and assembly, please watch the official video below:

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

നിയന്ത്രിക്കുന്നുview

The ENGWE Y400 features an intuitive handlebar design for efficient riding control:

• കീ ജ്വലനം: Use the provided key to turn the scooter on/off.
• ഡിസ്പ്ലേ സ്ക്രീൻ: Shows speed (km/h), mileage (ODO/TRIP), battery level, and current riding mode (ECO, D, S).
• 'എസ്' ബട്ടൺ: Shifts through different display modes (e.g., single trip, total mileage).
• 'എം' ബട്ടൺ: Adjusts the three-speed gears (ECO, D, S).
• ത്രോട്ടിൽ: Located on the right handlebar for acceleration.
• ബ്രേക്ക് ലിവറുകൾ: Separate levers for front and rear disc brakes.
• ലൈറ്റിംഗ് സ്വിച്ച്: Activates the front headlight and rear brake lights.
• ടേൺ സിഗ്നലുകൾ: Left and right turn signal buttons for indicating direction.
• കൊമ്പ്: Button to activate the horn for safety.

റൈഡിംഗ് മോഡുകൾ

The ENGWE Y400 offers three distinct riding modes to suit various preferences and terrains:

• ECO മോഡ്: Energy-saving mode, ideal for longer ranges and casual cruising (up to 10mph).
• D (Drive) Mode: Balanced performance for everyday commuting (up to 20mph).
• എസ് (സ്പോർട്ട്) മോഡ്: Maximum power and speed for thrilling rides (up to 23mph).

First Ride Recommendations

When riding for the first time, please ride at a low speed. It is recommended to repeatedly squeeze the brake handle about 10 times during riding to ensure proper brake function and to familiarize yourself with the braking response before engaging in higher speeds or more challenging terrain.

ഉൽപ്പന്ന സവിശേഷതകൾ

C-Shaped Strong Suspension

The ENGWE Y400 is equipped with advanced C-shaped and rear suspension systems. This dual suspension minimizes vibration, providing a smoother and more comfortable ride across various terrains. It offers +30% increased comfort, +20% improved stability, and +30% extended durability compared to standard suspension.

Powerful Brushless Hub-Motor

Experience swift acceleration and effortless hill climbing with the 500W (750W peak) brushless hub motor. It delivers 24Nm of torque and can handle inclines of up to 15°, reaching a maximum speed of 23mph across its three-speed modes.

High-Performance 499WH Battery

The scooter is powered by a 48V 10.4AH (499WH) battery, offering a maximum range of up to 25 miles in 1st gear pure electric mode. It features a BMS (Battery Management System) for protection and takes approximately 6 hours for a full charge.

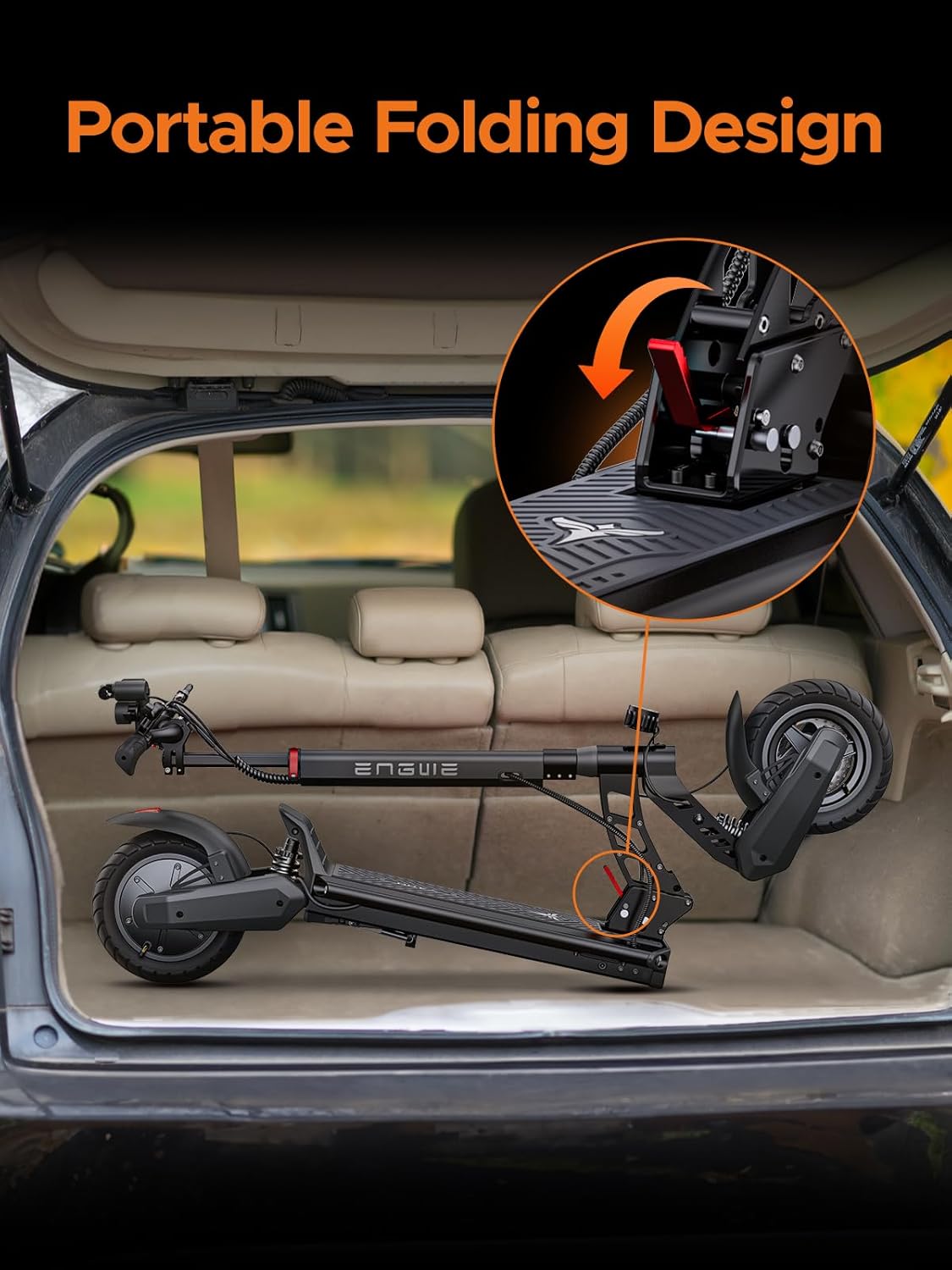

പോർട്ടബിൾ ഫോൾഡിംഗ് ഡിസൈൻ

Designed for convenience, the ENGWE Y400 features a foldable mechanism, allowing it to be easily stored in a car trunk or carried up stairs. Its folded dimensions are 52L x 24W x 20H inches, and it weighs 52 lbs, supporting a maximum load of 265 lbs.

All-Terrain 10" Tires

Equipped with 10-inch pneumatic rubber tires, the Y400 provides superior grip and stability. These robust tires are designed to handle various terrains, including sand, gravel, dirt, and snow, ensuring a smooth ride wherever you go.

സംയോജിത ലൈറ്റിംഗ് സിസ്റ്റം

The scooter features a complete lighting system for enhanced visibility and safety. This includes a bright front headlight, rear reflector, and integrated turn signals, ensuring you are seen by others, especially during night rides or in low-light conditions.

ഡ്യുവൽ ഡിസ്ക് ബ്രേക്കുകൾ

For superior stopping power and control, the ENGWE Y400 is equipped with both front and rear disc brakes. This system enhances safety, providing reliable and responsive braking performance in various riding conditions.

IPX5 വാട്ടർപ്രൂഫ് റേറ്റിംഗ്

The ENGWE Y400 boasts an IPX5 waterproof rating, allowing you to ride confidently in light rain and navigate through puddles and wet streets. While designed for durability, it is always recommended to ride in fair weather conditions for optimal safety and longevity.

മെയിൻ്റനൻസ്

Regular maintenance ensures the longevity and optimal performance of your ENGWE Y400 electric scooter.

• വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് സ്കൂട്ടർ തുടയ്ക്കുകamp cloth after each ride. Avoid using high-pressure water jets directly on electrical components.
• ടയറുകൾ: Check tire pressure regularly (refer to specifications for recommended PSI). Inspect tires for wear and tear or punctures.
• ബ്രേക്കുകൾ: Periodically check brake pads for wear and ensure brake levers are responsive. Adjust if necessary.
• ബാറ്ററി കെയർ: Store the scooter in a cool, dry place. Avoid fully discharging the battery frequently. If storing for extended periods, charge the battery to about 50-70% every 1-2 months.
• ഫാസ്റ്റനറുകൾ: Regularly check all screws and bolts to ensure they are tight, especially on the handlebar and folding mechanism.

ട്രബിൾഷൂട്ടിംഗ്

ചില സാധാരണ പ്രശ്നങ്ങളും അവയുടെ സാധ്യമായ പരിഹാരങ്ങളും ഇതാ:

If you encounter issues not listed here or if solutions do not resolve the problem, please contact ENGWE customer support.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

The ENGWE Y400 Electric Scooter comes with a 1 വർഷത്തെ വാറൻ്റി from the date of purchase. ENGWE is committed to providing permanent technical support for your product.

For any questions, technical assistance, or warranty claims, please contact ENGWE customer service through the official channels provided at the time of purchase or visit the ആമസോണിലെ ENGWE സ്റ്റോർ.

വാറന്റി ആവശ്യങ്ങൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
