1. ആമുഖം
This manual provides comprehensive instructions for the safe and efficient installation, operation, maintenance, and troubleshooting of your ABB PowerValue 11RT 2kVA Uninterruptible Power Supply (UPS). Please read this manual thoroughly before installing or operating the unit to ensure proper functionality and to prevent damage to the equipment or injury to personnel. Keep this manual for future reference.
2 സുരക്ഷാ വിവരങ്ങൾ
Observe the following safety precautions during all phases of UPS installation, operation, and maintenance. Failure to comply with these warnings may result in electric shock, fire, or serious injury.
- വൈദ്യുത അപകടം: The UPS contains internal batteries and can supply hazardous voltage even when disconnected from the AC mains.
- യോഗ്യതയുള്ള ഉദ്യോഗസ്ഥർ: Only qualified service personnel should perform installation, maintenance, or repair procedures.
- ഗ്രൗണ്ടിംഗ്: Ensure the UPS is properly grounded to prevent electric shock.
- പരിസ്ഥിതി: Do not operate the UPS in environments with excessive dust, humidity, or extreme temperatures.
- ബാറ്ററി സുരക്ഷ: Batteries can present a risk of electrical shock and high short-circuit current. Observe proper precautions when working with batteries.
3. ഉൽപ്പന്നം കഴിഞ്ഞുview
The ABB PowerValue 11RT 2kVA UPS is designed to provide reliable, high-quality power protection for critical loads. It features a compact design suitable for rack-mount or tower configurations, ensuring continuous power during outages and protecting against power fluctuations.

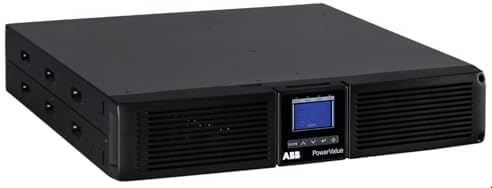

This image displays the front of the ABB PowerValue 11RT UPS, showing the ventilation grilles, the control panel with a blue LCD screen, and the ABB PowerValue branding. The unit is black and designed for rack-mount or tower configurations.
4. സജ്ജീകരണം
4.1 അൺപാക്കിംഗും പരിശോധനയും
- Carefully unpack the UPS and its accessories from the packaging.
- Inspect the unit for any signs of shipping damage. If damage is found, do not install and contact your supplier.
- ഭാവിയിലെ ഗതാഗതത്തിനോ സംഭരണത്തിനോ വേണ്ടി പാക്കേജിംഗ് വസ്തുക്കൾ സൂക്ഷിക്കുക.
4.2 പ്ലേസ്മെൻ്റ്
- Place the UPS in a clean, temperature-controlled environment, away from direct sunlight, heat sources, and excessive moisture.
- Ensure adequate airflow around the unit. Maintain at least 10 cm (4 inches) of clearance at the front and rear for ventilation.
- The UPS can be installed in a standard 19-inch rack or used as a tower unit with the provided stands (if applicable).
4.3 ഇലക്ട്രിക്കൽ കണക്ഷനുകൾ
- ഇൻപുട്ട് പവർ: Connect the UPS input power cord to a properly grounded electrical outlet. Ensure the outlet capacity matches the UPS requirements.
- ഔട്ട്പുട്ട് കണക്ഷനുകൾ: Connect your critical equipment to the UPS output receptacles. Do not overload the UPS.
- ആശയവിനിമയ തുറമുഖങ്ങൾ: If desired, connect communication cables (e.g., USB, RS-232, network card) for monitoring and management.
5. ഓപ്പറേഷൻ
5.1 പ്രാരംഭ ആരംഭം
- After all connections are secure, press and hold the power button on the front panel for a few seconds until the UPS powers on.
- The LCD display will illuminate and show the startup sequence.
- Allow the UPS to perform its self-test. Once complete, the display will show normal operating status.
5.2 സാധാരണ പ്രവർത്തനം
In normal operation, the UPS provides conditioned power to connected equipment and keeps its batteries charged. The LCD display provides real-time information on input/output voltage, load level, battery status, and operational mode.
5.3 ഷട്ട്ഡൗൺ നടപടിക്രമം
- Safely shut down all connected equipment.
- Press and hold the power button on the front panel until the UPS initiates its shutdown sequence.
- The UPS will power off, and the display will turn off.
6. പരിപാലനം
6.1 ബാറ്ററി കെയർ
- The UPS batteries are designed for a specific lifespan. Regular self-tests help monitor battery health.
- Replace batteries when indicated by the UPS or after their recommended service life. Battery replacement should only be performed by qualified personnel.
6.2 വൃത്തിയാക്കൽ
- Ensure the UPS is powered off and disconnected from the AC mains before cleaning.
- Use a soft, dry cloth to clean the exterior of the unit. Do not use liquid or aerosol cleaners.
- വെന്റിലേഷൻ ഓപ്പണിംഗുകൾ പൊടിയും അവശിഷ്ടങ്ങളും ഇല്ലാതെ വൃത്തിയായി സൂക്ഷിക്കുക.
7. പ്രശ്നപരിഹാരം
This section provides solutions to common issues you may encounter with your UPS. For problems not listed here, contact technical support.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| യുപിഎസ് ഓണാക്കുന്നില്ല. | No AC input power; Battery deeply discharged | Check power cord connection and wall outlet; Allow UPS to charge for several hours. |
| UPS beeps continuously | Overload condition; On battery power | Reduce connected load; Restore AC input power. |
| Battery runtime is short | Battery nearing end of life; Battery not fully charged | Consider battery replacement; Allow UPS to charge for 24 hours. |
8 സ്പെസിഫിക്കേഷനുകൾ
Key technical specifications for the ABB PowerValue 11RT 2kVA UPS (Model 4NWP100201R0001):
- ബ്രാൻഡ്: എ ബി ബി
- മോഡൽ: PowerValue 11RT 2kVA (4NWP100201R0001)
- ഉൽപ്പന്ന അളവുകൾ: 16.77 ഇഞ്ച് (D) x 17.24 ഇഞ്ച് (W) x 3.39 ഇഞ്ച് (H)
- ഇനത്തിൻ്റെ ഭാരം: 42 പൗണ്ട് (19.1 കിലോഗ്രാം)
- നിറം: കറുപ്പ്
- വാല്യംtage: Refer to the product label on the unit for specific input and output voltagഇ റേറ്റിംഗുകൾ.
9. വാറൻ്റിയും പിന്തുണയും
ABB products are manufactured to high standards and are backed by a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official ABB webസൈറ്റ്.
For technical assistance, troubleshooting, or service inquiries, please contact ABB customer support through their official channels. When contacting support, please have your product model number (4NWP100201R0001) and serial number available.
ABB Official Webസൈറ്റ്: www.abb.com
