1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The UPERFECT Delta 18.5-inch 100Hz Touchscreen Dual Portable Monitor (Model 185J11) is designed to expand your workspace with two independent displays. It features a 100Hz refresh rate, touchscreen functionality, and versatile connectivity for various devices.

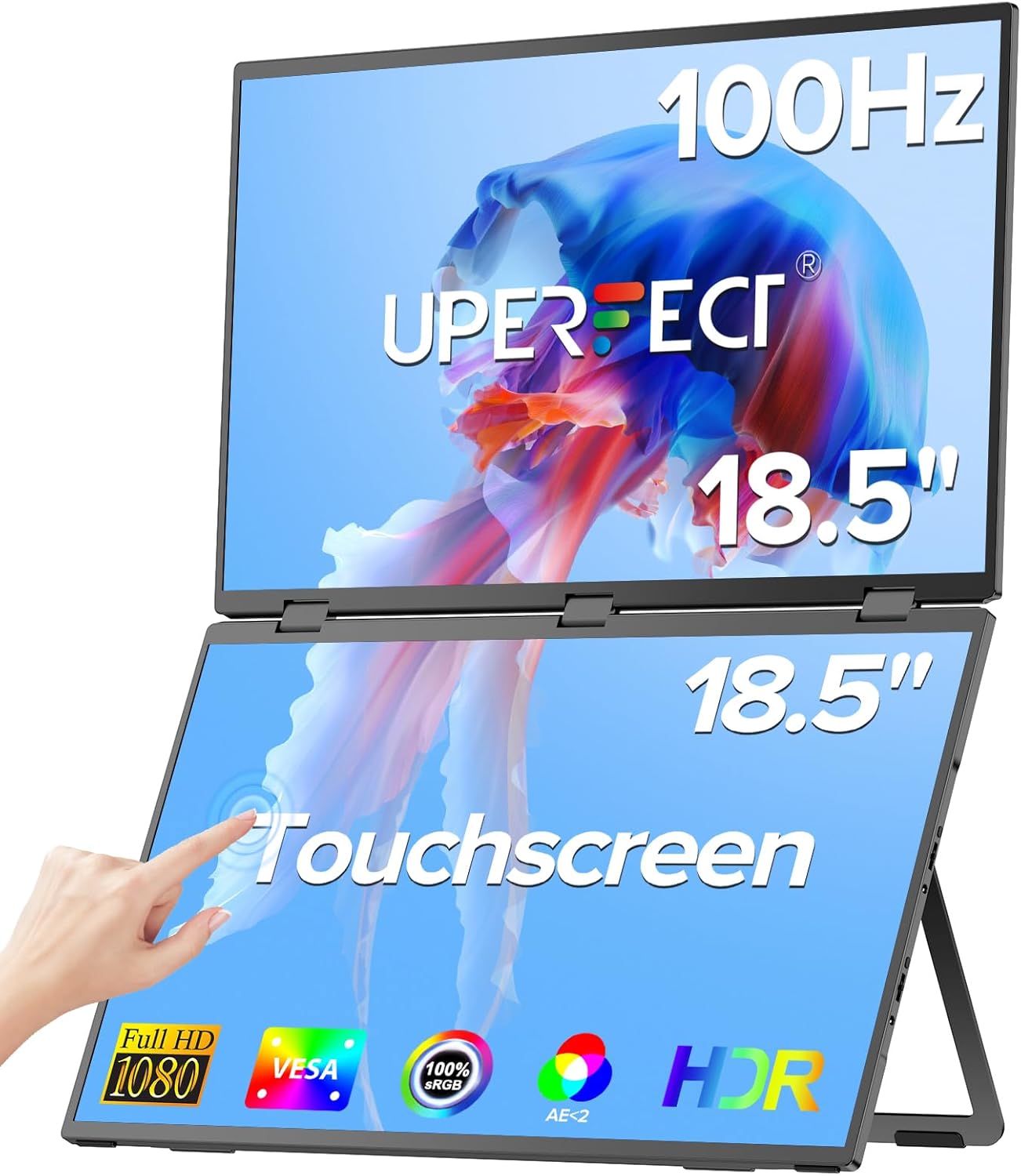

Image: UPERFECT Delta 18.5-inch Dual Portable Monitor.
2. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- UPERFECT Delta 18.5-inch Dual Portable Monitor
- USB-C to USB-C Cable (x2)
- മിനി എച്ച്ഡിഎംഐ മുതൽ എച്ച്ഡിഎംഐ കേബിൾ വരെ
- പവർ അഡാപ്റ്റർ
- ഉപയോക്തൃ മാനുവൽ
3. സജ്ജീകരണ നിർദ്ദേശങ്ങൾ
3.1 Initial Setup and Power Connection
The UPERFECT Delta monitor is designed for plug-and-play functionality, requiring no driver installation for basic operation. For optimal performance, always connect the power supply before use.
- Unfold the Monitor: Carefully unfold the monitor to your desired viewing angle. The integrated stand allows for various positions.
- പവർ ബന്ധിപ്പിക്കുക: Connect the provided power adapter to the monitor's power input port and a wall outlet.
- ഉപകരണത്തിലേക്ക് കണക്റ്റുചെയ്യുക: Use the appropriate cable (USB-C or HDMI) to connect the monitor to your laptop, PC, phone, or game console. Ensure your device's USB-C port supports full-featured Type-C (video, audio, and power delivery).
Image: Built-in Adjustable Stand. The monitor features an adjustable stand for ergonomic positioning.
3.2 വെസ മൗണ്ടിംഗ്
The monitor supports VESA mounting (75x75 mm, M5*4 mm screws) for attachment to a wall mount or monitor arm. This allows for space-saving configurations.
Image: VESA Mountable. The monitor can be mounted using a VESA-compatible arm or stand.
3.3 Connection Modes and Display Configuration
The monitor offers various connection and display modes depending on your operating system and desired setup.
3.3.1 Windows (Full Feature Type-C USB 3.1 or later)
- With External Power: Connect a 60/90/110W USB-C power supply to the bottom USB-C port of the monitor. Use one of the provided USB-C (Thunderbolt) cables to connect the top USB-C port of the monitor to your computer. Your PC should be powered by the monitor.
- Without External Power: Use one of the provided USB-C (Thunderbolt) cables to connect the bottom USB-C port of the monitor to your computer. If power is insufficient, connect a second USB-C cable to the bottom port from another PC USB port or the provided power adapter.
After connecting, allow up to 20 seconds for the screens to stabilize. In Windows Display Settings, select "Extend display" for independent screens, not "Duplicate display."
Image: Windows Display Modes (USB-C). Illustrates different display configurations for Windows via USB-C.
3.3.2 Windows (HDMI)
Connect the monitor via HDMI for video and a USB-C cable for power and touch functionality. Configure display settings in Windows for extended or duplicated modes.
Image: Windows Display Modes (HDMI). Illustrates different display configurations for Windows via HDMI.
3.3.3 MacOS (HDMI)
For three independent screens on MacOS, use a USB-C cable for the bottom monitor (display #1 + power) and an HDMI cable for the top monitor (display #2). Configure the monitor in "Expansion" or "StandAlone" mode via the OSD menu.
Image: MacOS Display Modes (HDMI). Illustrates different display configurations for MacOS via HDMI.
3.3.4 MacOS (Thunderbolt 3 or later)
With a single USB-C cable, MacOS may only mirror the display across both external screens in "Expansion" mode. To utilize the full display area as one large screen, use "Sequence" mode (simulates a single 1920x2160 screen). For independent displays, a combination of USB-C and HDMI may be required.
Image: MacOS Display Modes (Thunderbolt 3). Illustrates different display configurations for MacOS via Thunderbolt 3.
3.3.5 Other Devices
- Samsung (Dex Mode): Connect via USB-C. The monitor supports Samsung Dex Mode for a desktop-like experience.
- iPhone 15 Series (Type-C): Connect via USB-C for display output.
- ഗെയിമിംഗ് കൺസോളുകൾ: Connect via HDMI.
- രണ്ട് ഉപകരണങ്ങൾ: The monitor can connect to two separate devices simultaneously, allowing for independent use of each screen.
Image: Device Compatibility. Shows various devices connected to the UPERFECT Delta monitor.
3.4 Video Demonstration: Setup and Usage
Video: UPERFECT Delta Monitor Overview. This video demonstrates the monitor's features, including its folding design, 1080p resolution, 60Hz refresh rate, IPS technology, 100% sRGB color gamut, and various usage scenarios like horizontal and vertical display, screen sharing, and setting up two separate devices. It also highlights the VESA mount compatibility.
Video: Portable Setup Demonstration. This video illustrates the portability of the UPERFECT Delta monitor, showing a user setting up a multi-monitor workstation outdoors with ease.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 Physical Controls
The monitor features two sets of controls (a button and a scroll wheel) on the right side of the bottom screen. The top set controls the upper screen, and the bottom set controls the lower screen. The scroll wheels are clickable to confirm selections.
- Top Control Group (for Upper Screen):
- ബട്ടൺ ഹ്രസ്വമായി അമർത്തുക: ഇൻപുട്ട് തിരഞ്ഞെടുക്കൽ.
- ബട്ടൺ ദീർഘനേരം അമർത്തുക: Inverts the image, useful for presentation mode.
- Short press scroll wheel: Displays the screen customization menu.
- Scroll wheel up/down: Adjusts the brightness of the upper screen.
- Bottom Control Group (for Lower Screen):
- ബട്ടൺ ഹ്രസ്വമായി അമർത്തുക: Input selection and dual-screen display mode.
- ബട്ടൺ ദീർഘനേരം അമർത്തുക: Powers off both screens.
- Short press scroll wheel: Displays the screen customization menu.
- Scroll wheel up/down: Adjusts the brightness of the lower screen.
4.2 On-Screen Display (OSD) Menu Settings
To access the OSD menu, short press the scroll wheel. Use the scroll wheel to navigate and click to select. Use the button above the scroll wheel to go back or exit the menu.
- ചിത്ര മെനു:
- തെളിച്ചം: Adjusts screen brightness. (Recommended: 30-40)
- ദൃശ്യതീവ്രത: Adjusts screen contrast. (Recommended: 80)
- ബ്ലാക്ക് ഇക്വലൈസർ: Adjusts dark area visibility. (Recommended: 60)
- ഗെയിം മോഡ്: Selects display preset for gaming. (Recommended: Standard)
- Color Effect Menu:
- സാച്ചുറേഷൻ: Adjusts color intensity. (Recommended: 50)
- നിറം: Adjusts color tint. (Recommended: 45)
- മൂർച്ച: Enhances image detail. (Recommended: On)
- DispRotate: Screen rotation setting. (Recommended: Off for bottom screen, Auto for top screen)
- Temperature Menu:
- sRGB: Selects sRGB color profile for accurate color reproduction.
Note: Settings for the upper and lower screens are independent. Adjust each screen's settings separately for optimal display quality.
4.3 ടച്ച്സ്ക്രീൻ പ്രവർത്തനം
The monitor features 10-point multi-touch for responsive and intuitive interaction. Touch functionality allows direct interaction with the display without external input devices.
Image: Drawing Tablet Functionality. The touchscreen can be used like a drawing tablet.
4.4 ഡിസ്പ്ലേ മോഡുകൾ
The monitor supports multiple display modes to suit various tasks:
- ക്ലോൺ മോഡ്: Both screens display the same content.
- DPMST Mode (DisplayPort Multi-Stream Transport): The two screens can be used independently to display different content.
- ലിങ്ക് മോഡ്: The two screens are combined into one overall screen, effectively creating a single larger display.
Image: Multiple Display Modes. Visual representation of Clone, DPMST, and Link modes.
4.5 Ergonomics and Portability
The monitor features a 360° folding screen design and a built-in 180° gravity sensing system for automatic screen orientation adjustment, providing flexibility for various work environments and face-to-face meetings.
Image: 360° Folding Screen Design. The monitor can be folded to various angles for versatile use.
Image: 180° Gravity Sensing System. The screen automatically adjusts its orientation when rotated.
5. പരിപാലനം
To ensure the longevity and optimal performance of your UPERFECT Delta monitor, follow these maintenance guidelines:
- സ്ക്രീൻ വൃത്തിയാക്കൽ: മൃദുവായ, ലിൻ്റ് രഹിത തുണി ഉപയോഗിക്കുകampened with water or a screen-specific cleaning solution. For stubborn marks, isopropyl alcohol can be used. Avoid harsh chemicals or abrasive materials.
- സി വൃത്തിയാക്കൽasing: Wipe the monitor's casinമൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് ഗ്രാം.
- സംഭരണം: When not in use, fold the monitor and store it in a protective sleeve or bag to prevent scratches and damage.
- തീവ്രമായ അവസ്ഥകൾ ഒഴിവാക്കുക: Do not expose the monitor to extreme temperatures, humidity, or direct sunlight for prolonged periods.
6. പ്രശ്നപരിഹാരം
If you encounter issues with your UPERFECT Delta monitor, refer to the following common problems and solutions:
6.1 No Display or Intermittent Signal
- കണക്ഷനുകൾ പരിശോധിക്കുക: Ensure all cables (power, USB-C, HDMI) are securely connected to both the monitor and your device.
- വൈദ്യുതി വിതരണം: Verify that the monitor is receiving adequate power. Always connect the external power adapter for stable operation, especially when using both screens or high brightness.
- USB-C പോർട്ട് അനുയോജ്യത: Confirm that your device's USB-C port is a full-featured Type-C port that supports video output (DisplayPort Alternate Mode) and power delivery.
- Allow Stabilization Time: After connecting, allow up to 20 seconds for the monitor to detect inputs and stabilize the display. Screens may turn on and off multiple times during this process.
- Try Different Ports/Cables: Test with different USB-C or HDMI ports on your device, and if possible, try different cables to rule out faulty connections.
6.2 Display Quality Issues (e.g., Color Differences, Flickering)
- Independent Screen Settings: Remember that the OSD settings for the upper and lower screens are independent. Adjust the "Picture" and "Color Effect" settings for each screen separately to match them.
- വൈദ്യുതി വിതരണം: Insufficient power can cause flickering or reduced display quality. Ensure the monitor is connected to its power adapter.
- ഗ്രാഫിക്സ് കാർഡ്: If your computer's integrated graphics card does not support a sufficiently high resolution for an extended display (e.g., 1920x2160 for Link Mode), you may need an external graphics adapter.
6.3 MacOS Multi-Screen Issues
- Single USB-C Cable: With a single USB-C cable, MacOS may only allow mirroring across both external screens or using "Sequence" mode to combine them into one large display.
- Independent Displays: To achieve three independent displays (laptop + two external), a combination of USB-C and HDMI connections may be necessary. Connect one monitor via USB-C and the other via HDMI.
6.4 Unresponsive Touchscreen
- USB കണക്ഷൻ: Ensure the USB-C cable is properly connected, as touch functionality often relies on the USB data connection.
- ഓപ്പറേറ്റിംഗ് സിസ്റ്റം പിന്തുണ: Verify that your operating system supports touchscreen input.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| ബ്രാൻഡ് | തികഞ്ഞ |
| മോഡൽ നമ്പർ | 185J11 |
| സ്ക്രീൻ വലിപ്പം | 18.5 ഇഞ്ച് |
| ഡിസ്പ്ലേ തരം | ഐ.പി.എസ് |
| റെസലൂഷൻ | 1920 x 1080 (FHD 1080p) |
| വീക്ഷണാനുപാതം | 16:9 |
| പുതുക്കിയ നിരക്ക് | 100 Hz |
| പ്രതികരണ സമയം | 1 മില്ലിസെക്കൻഡ് |
| കോൺട്രാസ്റ്റ് റേഷ്യോ | 1200:1 |
| പ്രത്യേക സവിശേഷതകൾ | USB Hub, Portable, Touchscreen, Ultra-wide Screen |
| ഹാർഡ്വെയർ ഇന്റർഫേസ് | Mini HDMI, USB Type C |
| HDMI പോർട്ടുകളുടെ എണ്ണം | 1 |
| USB 3.0 പോർട്ടുകളുടെ എണ്ണം | 1 |
| ഉപകരണ അനുയോജ്യത | Game Console, Laptop, Tablet |
| ഇനത്തിന്റെ അളവുകൾ (L x W x H) | 42.5 x 26 x 2 സെൻ്റീമീറ്റർ |
| ഉൽപ്പന്ന ഭാരം | 2.7 കിലോഗ്രാം |
8. വാറൻ്റിയും പിന്തുണയും
UPERFECT is committed to customer satisfaction. The product comes with lifetime support. For any inquiries or assistance, please contact UPERFECT customer service. Support is available 24/7.
