ആമുഖം
The Behringer GO CAM Wireless Digital Clip-On Microphone System is designed for content creators seeking high-quality, portable audio solutions. This system offers multi-device compatibility, extended wireless range, and advanced noise reduction, making it ideal for interviews, vlogs, live streams, and more. This manual provides detailed instructions for setting up, operating, and maintaining your GO CAM Wireless system to ensure optimal performance.
ബോക്സിൽ എന്താണുള്ളത്
Upon unboxing your Behringer GO CAM Wireless system, please verify that all the following components are included:
- ട്രാൻസ്മിറ്റർ (Tx)
- റിസീവർ (Rx)
- യുഎസ്ബി ചാർജിംഗ് കേബിൾ
- TRS to TRS Audio Cable for Camera
- TRRS to TRS Audio Cable for Phones
- USB Type-C Earphones

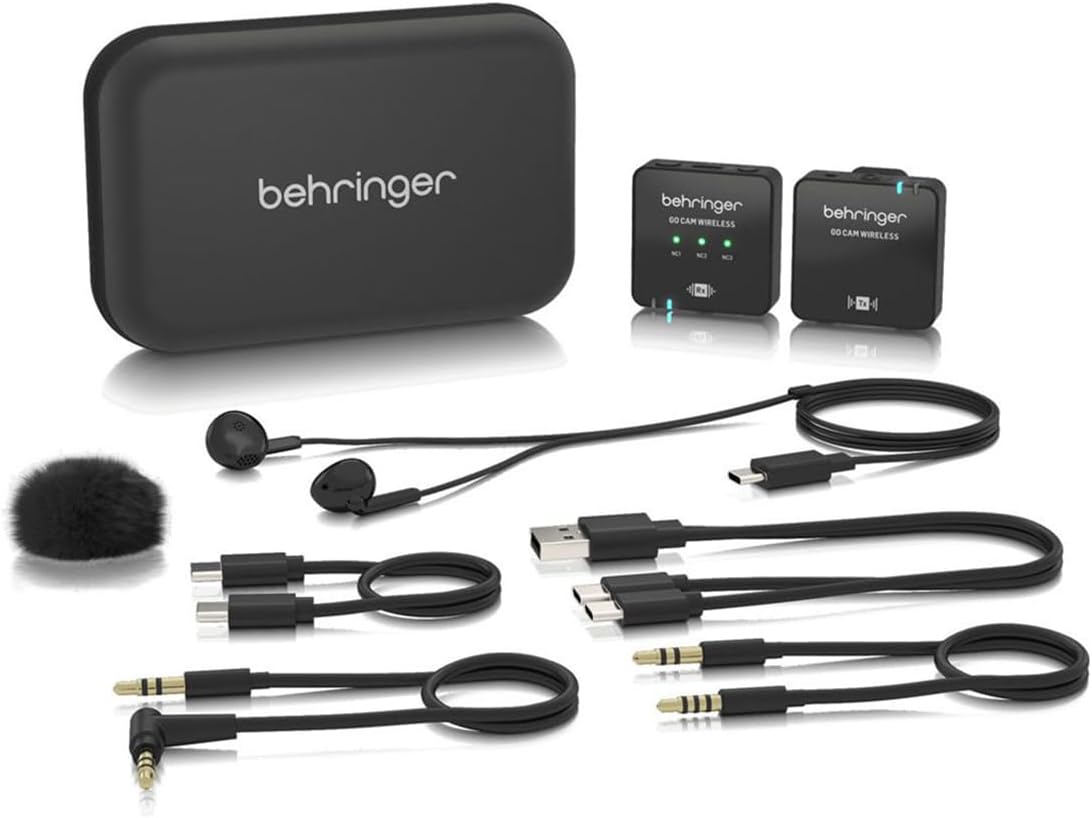

Figure 1: System Components. This image displays all items included in the Behringer GO CAM Wireless package. Visible are the compact transmitter and receiver units, a USB charging cable, two audio cables (one TRS to TRS for cameras, one TRRS to TRS for smartphones), a pair of USB Type-C earphones, and a small furry windscreen for the microphone.
ഉൽപ്പന്നം കഴിഞ്ഞുview
Familiarize yourself with the key components and their functions.
Figure 2: Receiver (Left) and Transmitter (Right) Front View. This image shows the front faces of the Behringer GO CAM Wireless receiver and transmitter. The receiver (left) features three green LED indicators for noise reduction levels (NC1, NC2, NC3) and an 'Rx' symbol indicating its receiving function. The transmitter (right) displays an 'Tx' symbol, indicating its transmitting function. Both units are compact and black.
Figure 3: Receiver and Transmitter Angled View. This image provides an angled perspective of both the receiver and transmitter units. The receiver (left) shows its side, revealing a dB level switch and a 3.5mm headphone jack for real-time monitoring. The transmitter (right) displays its USB-C charging port and power button on its side. Both units have a sleek, black design.
ചിത്രം 4: മുകളിലും താഴെയും View with Clip. This image shows the top and bottom surfaces of the Behringer GO CAM Wireless units. Both units feature an integrated clip for easy attachment to clothing or camera hot shoes. The transmitter's top surface reveals the built-in omnidirectional microphone and a USB-C port. The receiver's top surface shows its audio output and monitoring ports.
സജ്ജമാക്കുക
പ്രാരംഭ ചാർജിംഗ്
Before first use, fully charge both the transmitter and receiver units.
- Connect the supplied USB Charging Cable to the USB-C port on both the transmitter and receiver.
- USB കേബിളിന്റെ മറ്റേ അറ്റം ഒരു സ്റ്റാൻഡേർഡ് USB പവർ അഡാപ്റ്ററിലേക്ക് (ഉൾപ്പെടുത്തിയിട്ടില്ല) അല്ലെങ്കിൽ ഒരു കമ്പ്യൂട്ടറിന്റെ USB പോർട്ടിലേക്ക് പ്ലഗ് ചെയ്യുക.
- The charging indicator LED will illuminate during charging and turn off when fully charged. A full charge takes approximately 1.5 hours.
ഉപകരണങ്ങളിലേക്ക് കണക്റ്റുചെയ്യുന്നു
The GO CAM Wireless system is compatible with various devices.
- For Cameras/DSLRs: Use the supplied TRS to TRS audio cable. Connect one end to the receiver's output jack and the other end to your camera's microphone input.
- For Mobile Devices/Tablets: Use the supplied TRRS to TRS audio cable. Connect the TRRS end to your mobile device's headphone/microphone jack and the TRS end to the receiver's output jack.
- For Audio Recorders: Use the appropriate cable (TRS to TRS or TRRS to TRS) depending on your recorder's input type.

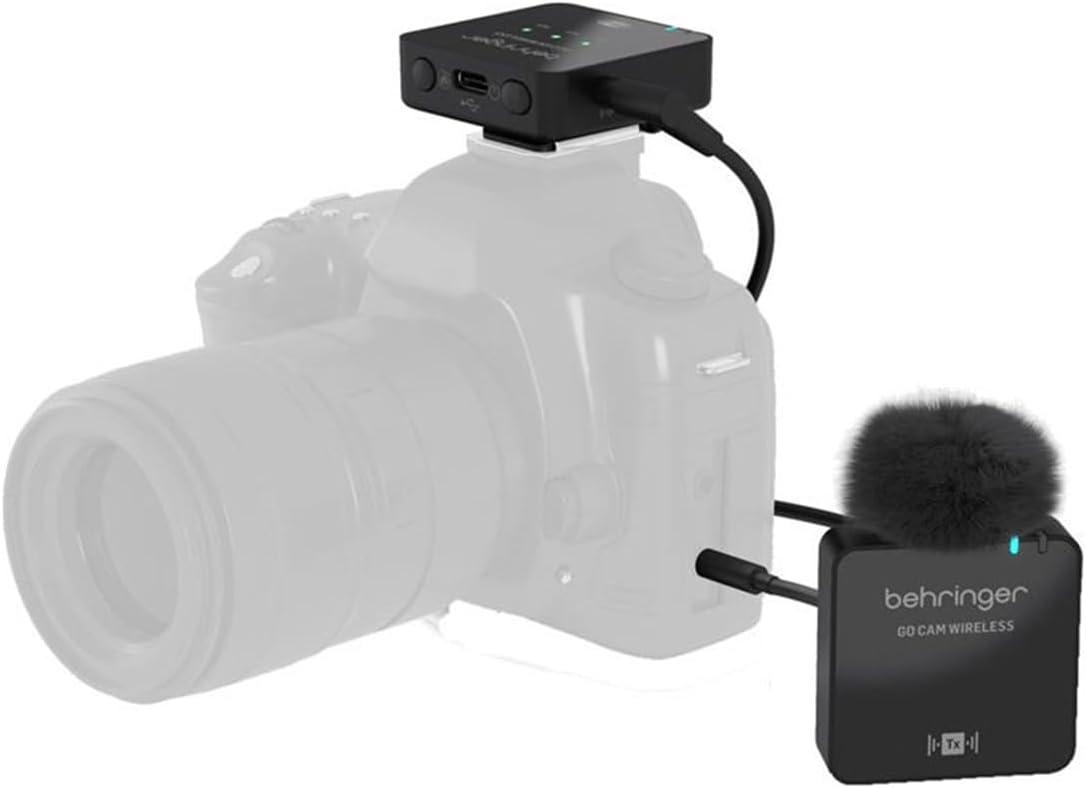

Figure 5: System Connected to a Camera. This image illustrates the Behringer GO CAM Wireless system in use with a camera. The receiver unit is shown mounted on the camera's hot shoe and connected to its microphone input via an audio cable. The transmitter unit, with its furry windscreen attached, is positioned separately, indicating its wireless connection to the receiver.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
പവർ ഓൺ/ഓഫ്, ജോടിയാക്കൽ
- Press and hold the power button on both the transmitter (Tx) and receiver (Rx) units until the indicator lights illuminate.
- The units will automatically pair within a few seconds. A solid blue light on both units indicates a successful connection.
- To power off, press and hold the power button on each unit until the lights turn off.
മൈക്രോഫോൺ ഉപയോഗിക്കുന്നു
- The transmitter features a built-in omnidirectional microphone, designed to capture sound from all directions.
- Clip the transmitter securely to your clothing, ideally near your mouth, for optimal voice capture. The integrated shirt clip allows for hands-free operation.
- For outdoor use or in windy conditions, attach the supplied furry windscreen to the transmitter's microphone to reduce wind noise.
ശബ്ദം കുറയ്ക്കൽ
The receiver unit features a 3-level noise reduction switch (NC1, NC2, NC3) to minimize background noise.
- NC1: Light noise reduction, suitable for quiet environments.
- NC2: Medium noise reduction, for moderately noisy environments.
- NC3: Strong noise reduction, for very noisy environments.
- Adjust the switch based on your recording environment to achieve the clearest audio.
തത്സമയ നിരീക്ഷണം
Connect the supplied USB Type-C earphones or your own 3.5mm headphones to the receiver's headphone jack to monitor your audio in real-time. This allows you to check audio levels and clarity during recording.
ബാറ്ററി ലൈഫും ചാർജിംഗും
The GO CAM Wireless system is equipped with long-lasting batteries for extended use.
- ട്രാൻസ്മിറ്റർ ബാറ്ററി ലൈഫ്: Up to 30 hours of continuous operation.
- Receiver Battery Life: Up to 8 hours of continuous operation.
- റീചാർജ് സമയം: Approximately 1.5 hours for a full charge using the USB charging cable.
- It is recommended to fully charge both units before each important recording session.
മെയിൻ്റനൻസ്
Proper care will extend the life and performance of your GO CAM Wireless system.
- വൃത്തിയാക്കൽ: Use a soft, dry cloth to clean the units. Do not use liquid cleaners or solvents.
- സംഭരണം: നേരിട്ടുള്ള സൂര്യപ്രകാശത്തിൽ നിന്നും കടുത്ത താപനിലയിൽ നിന്നും അകന്ന് തണുത്തതും വരണ്ടതുമായ സ്ഥലത്ത് സിസ്റ്റം സൂക്ഷിക്കുക.
- കൈകാര്യം ചെയ്യൽ: Avoid dropping the units or exposing them to excessive shock or vibration.
- വാട്ടർ എക്സ്പോഷർ: The units are not waterproof. Avoid exposure to water or high humidity.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your GO CAM Wireless system, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| ശബ്ദമോ കുറഞ്ഞ വോളിയമോ ഇല്ല |
|
|
| മോശം ഓഡിയോ നിലവാരം / സ്റ്റാറ്റിക് |
|
|
| Units not powering on |
|
|
സ്പെസിഫിക്കേഷനുകൾ
Detailed technical specifications for the Behringer GO CAM Wireless system:
- മോഡലിൻ്റെ പേര്: CAM വയർലെസ് പോകുക
- നിർമ്മാതാവ്: ബെഹ്രിംഗർ
- കണക്റ്റിവിറ്റി ടെക്നോളജി: Bluetooth (Wireless Digital)
- കണക്റ്റർ തരം: 3.5 mm Jack, USB Type-C
- മൈക്രോഫോൺ ഫോം ഘടകം: Lavalier (Clip-On Transmitter)
- പോളാർ പാറ്റേൺ: Omnidirectional (Built-in Microphone)
- വയർലെസ് ശ്രേണി: 30 മീറ്റർ വരെ (100 അടി)
- ശബ്ദം കുറയ്ക്കൽ: 3-level switch (NC1, NC2, NC3)
- ട്രാൻസ്മിറ്റർ ബാറ്ററി ലൈഫ്: 30 മണിക്കൂർ വരെ
- Receiver Battery Life: 8 മണിക്കൂർ വരെ
- റീചാർജ് സമയം: ഏകദേശം 1.5 മണിക്കൂർ
- ബാറ്ററി തരം: ലിഥിയം പോളിമർ
- ഇനത്തിൻ്റെ ഭാരം: Approx. 30 grams (each unit)
- അനുയോജ്യമായ ഉപകരണങ്ങൾ: Camcorder, Camera, PA System, Personal Computer, Smartphone
- UPC: 644216661107
വാറൻ്റിയും പിന്തുണയും
Behringer products are designed for reliability and performance. For information regarding warranty coverage, technical support, or service, please visit the official Behringer webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ പിന്തുണയുമായി ബന്ധപ്പെടുക. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങിയതിന്റെ തെളിവ് സൂക്ഷിക്കുക.
ഓൺലൈൻ ഉറവിടങ്ങൾ: For the latest manuals, FAQs, and software updates, please refer to the Behringer support page.
