roborock F25 Combo 5-in-1 Cordless Wet Dry Vacuum Cleaner User Manual

1. ആമുഖം

The roborock F25 Combo is a versatile 5-in-1 cordless wet and dry vacuum cleaner designed for comprehensive home cleaning. With a powerful 20,000 Pa suction, it effectively tackles both wet and dry messes, from spilled liquids and pet hair to sticky stains and everyday dirt. Its innovative features, including a 180° flat design and automatic self-cleaning, ensure efficient and convenient cleaning across various surfaces.

Image: The roborock F25 Combo in its various configurations, including the main wet/dry vacuum, handheld vacuum, and included accessories like the multi-surface brush, mini motorized brush, and 2-in-1 crevice and dusting tool.

2. ഉൽപ്പന്ന ഘടകങ്ങൾ

The roborock F25 Combo comes with several components to enhance your cleaning experience:

• Main Wet/Dry Vacuum Unit
• Multi-surface brush for carpets and hard floors
• Mini motorized brush for upholstery
• 2-in-1 cleaning head for crevices and dusting
• ചാർജിംഗ് ഡോക്ക്
• പവർ അഡാപ്റ്റർ
• Cleaning Solution (initial bottle)
• കഴുകാവുന്ന ഫിൽട്ടർ

3. സജ്ജീകരണ ഗൈഡ്

1. അൺപാക്ക്: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. കൂട്ടിച്ചേർക്കുക: Attach the handle to the main vacuum body until it clicks into place. For handheld use, attach the desired accessory (mini motorized brush or 2-in-1 tool) directly to the handheld unit.
3. ചാർജ്ജ്: Place the main unit on the charging dock and connect the power adapter. Ensure the device is fully charged before first use. The battery indicator will show charging status.
4. വാട്ടർ ടാങ്ക് നിറയ്ക്കുക: Open the clean water tank cap, fill with clean water up to the MAX line. For enhanced cleaning, add the recommended amount of roborock cleaning solution.
5. Install Dirty Water Tank: Ensure the dirty water tank is correctly installed before operation.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1. നനഞ്ഞതും ഉണങ്ങിയതുമായ വാക്വമിംഗ്

The F25 Combo is designed for both wet and dry messes. Simply power on the device and select the appropriate mode. The powerful 20,000 Pa suction ensures thorough cleaning.

Image: The vacuum cleaner in action, demonstrating the JawsScrapers design for tangle-free cleaning and powerful 20,000 Pa suction. This system is certified by SGS and TÜV for effective cleaning without tangles or streaks. For more details, visit the SGS certification page.

4.2. 5-in-1 Versatility

Beyond floor cleaning, the F25 Combo transforms into a versatile tool for various cleaning tasks:

• Cordless Stick Vacuum: പൊതുവായ തറ വൃത്തിയാക്കലിനായി.
• Crevice Cleaning: Use the 2-in-1 tool for tight spaces.
• Corner Cleaning: The design allows for effective cleaning along edges and in corners.
• അപ്ഹോൾസ്റ്ററി ക്ലീനിംഗ്: Attach the mini motorized brush for furniture and fabrics.
• പൊടിയിടൽ: Use the brush attachment of the 2-in-1 tool for delicate surfaces.

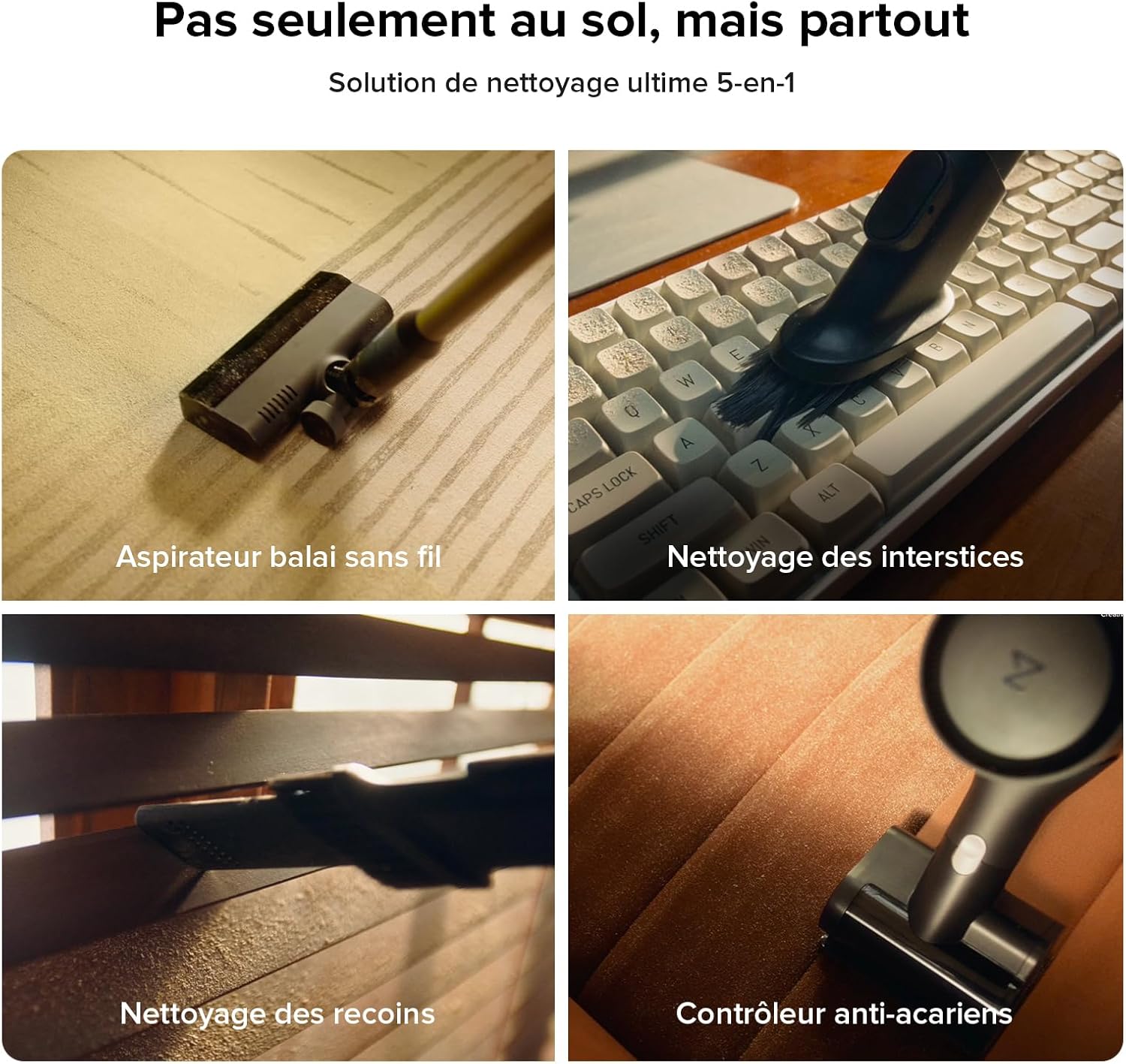

Image: Visual representation of the F25 Combo's 5-in-1 ultimate cleaning solution, including its use as a cordless stick vacuum, for crevice cleaning, corner cleaning, and as a mite controller.

4.3. Maneuverability and Edge Cleaning

The device features a 70° rotating head for easy navigation and a 180° flat design, allowing it to reach under furniture with a low profile of 12.5 cm without leakage. It also offers triple-action edge-to-edge cleaning, reaching within 0.76 mm of baseboards and corners.

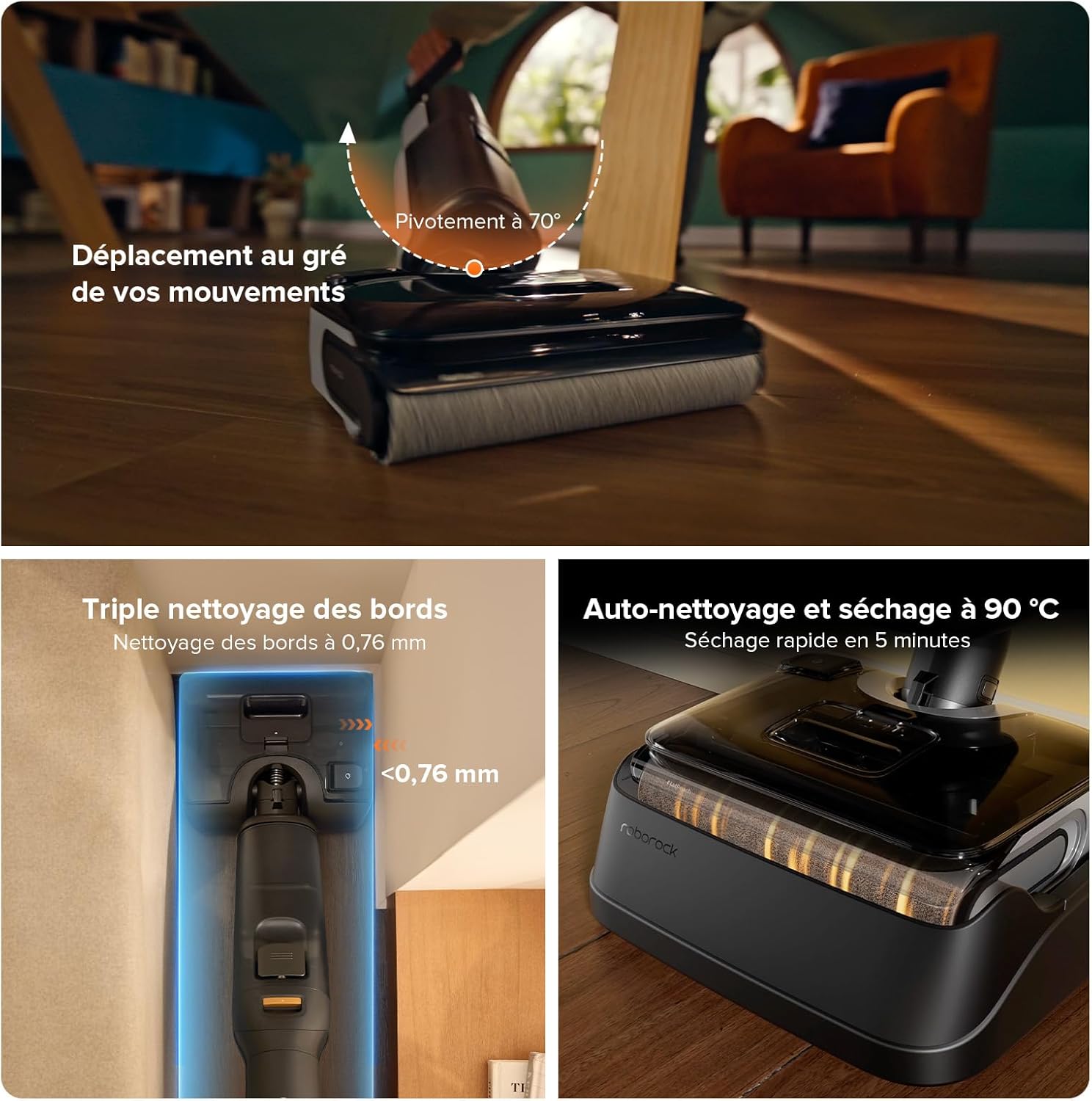

Image: Demonstrates the 70° pivot for easy movement, triple edge cleaning reaching within 0.76 mm of walls, and the 90°C hot water self-cleaning and 5-minute quick drying feature.

Image: Shows the 180° flexible reach, ultra-low position of 12.5 cm for cleaning under furniture, and confirms no leakage when laid flat.

4.4 ബാറ്ററി ലൈഫ്

The F25 Combo provides up to 60 minutes of operation in ECO mode, allowing you to clean large areas up to 410 m² on a single charge. The extended battery and strategically positioned water tank contribute to its long runtime.

Image: Illustrates the long battery life, capable of cleaning up to 410 m², and highlights the lower water tank position for extended autonomy.

5. പരിപാലനം

5.1. Auto-Cleaning and Drying

The F25 Combo features an automatic self-cleaning system that uses hot water to dissolve grease and dirt from the brush roll. After cleaning, you can choose between two drying modes: a quick 5-minute dry or a quiet 30-minute dry for hygienic maintenance.

Image: Shows the 90°C hot water self-cleaning and 5-minute quick drying feature, ensuring the brush roll is clean and ready for the next use.

5.2. Filter and Dustbin Maintenance

The device uses multi-layer filtration to prevent continuous clogging. The dustbin can be ejected with a single click for easy emptying. Regularly clean the washable HEPA filter to maintain optimal suction performance.

Image: Illustrates the multi-layer filtration system for continuous anti-clogging and the one-click dustbin ejection feature, part of the 5-layer noise reduction system.

5.3. Cleaning the Dirty Water Tank

After each use, it is recommended to empty and rinse the dirty water tank to prevent odors and maintain hygiene.

6. പ്രശ്‌നപരിഹാരം

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For detailed warranty information, please refer to the warranty card included with your product or visit the official roborock website. If you encounter any issues not covered in this manual, please contact roborock customer support for assistance.
