Lloyd's LC-1400

Lloyd's Smart Aroma Diffuser

മോഡൽ: LC-1400

ഉപയോക്തൃ മാനുവൽ

പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ

ഉപകരണം ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ സുരക്ഷാ നിർദ്ദേശങ്ങളും ശ്രദ്ധാപൂർവ്വം വായിക്കുക. ഭാവി റഫറൻസിനായി ഈ മാനുവൽ സൂക്ഷിക്കുക.

ഉൽപ്പന്നം കഴിഞ്ഞുview

The Lloyd's Smart Aroma Diffuser LC-1400 combines the functions of an aroma diffuser and a humidifier, dispersing a fragrant vapor through ultrasonic waves to create a relaxing and elegant atmosphere. It features a unique anti-gravity drip technology for a captivating visual experience and offers smart control capabilities.

Lloyd's Smart Aroma Diffuser with packaging

Image: Lloyd's Smart Aroma Diffuser LC-1400 and its retail packaging.

പ്രധാന സവിശേഷതകൾ:

Components of the Lloyd's Smart Aroma Diffuser

Image: The Lloyd's Smart Aroma Diffuser showing its main components, including the base and the top misting unit.

Key features of the diffuser: anti-gravity drip, voice control, included essence, soft mood lighting

Image: Visual representation of key features: anti-gravity drip, voice control, included rose essence, and soft mood lighting.

സജ്ജീകരണ ഗൈഡ്

പാക്കേജ് ഉള്ളടക്കം:

പ്രാരംഭ സജ്ജീകരണ ഘട്ടങ്ങൾ:

  1. ഉപകരണം തയ്യാറാക്കുക: Place the diffuser on a flat, stable surface. Ensure it is not near any electronic devices sensitive to moisture.
  2. വെള്ളം ചേർക്കുക: Carefully remove the top cover. Fill the water tank with up to 500 ml of purified or distilled water. Do not exceed the MAX fill line.
  3. അവശ്യ എണ്ണ ചേർക്കുക: Add 5-10 drops of your preferred 100% natural essential oil directly into the water tank. The included 10 ml rose scent oil can be used.
  4. Close the Device: മുകളിലെ കവർ ഡിഫ്യൂസറിൽ സുരക്ഷിതമായി തിരികെ വയ്ക്കുക.
  5. പവർ ബന്ധിപ്പിക്കുക: Connect the USB Type-C cable to the diffuser and plug the other end into a compatible USB power adapter (not included).
  6. ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക: Ensure your smartphone has iOS 11.0 or higher or Android™ 5.0 or higher. Download the official Lloyd's smart home application from your device's app store.
  7. വൈഫൈയിലേക്ക് കണക്റ്റുചെയ്യുക: Open the Lloyd's app and follow the on-screen instructions to add your new device. Ensure your Wi-Fi network is 2.4 GHz, as the device is compatible only with this frequency. The device supports quick Bluetooth configuration, eliminating the need for a separate HUB.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

മാനുവൽ പ്രവർത്തനം:

Smart Control via Mobile App:

Once connected to the Lloyd's app, you gain full control over your diffuser:

Woman using smartphone to control smart home devices

Image: Control your smart home, including the diffuser, from a single app on your smartphone.

ശബ്ദ നിയന്ത്രണം:

The diffuser is compatible with popular voice assistants. Link your Lloyd's account to Google Assistant, Amazon Alexa, or Siri Shortcuts to enable voice commands.

Woman meditating with diffuser, showing voice commands for Google and Alexa

Image: Control the diffuser using voice commands with Google Assistant or Amazon Alexa.

Woman with coffee, diffuser in background, showing voice command prompt

Image: Seamlessly activate your diffuser with a simple voice command.

Anti-Gravity Drip Feature:

The unique anti-gravity drip system creates a mesmerizing visual effect. This feature operates automatically when the diffuser is active, showcasing water droplets moving upwards.

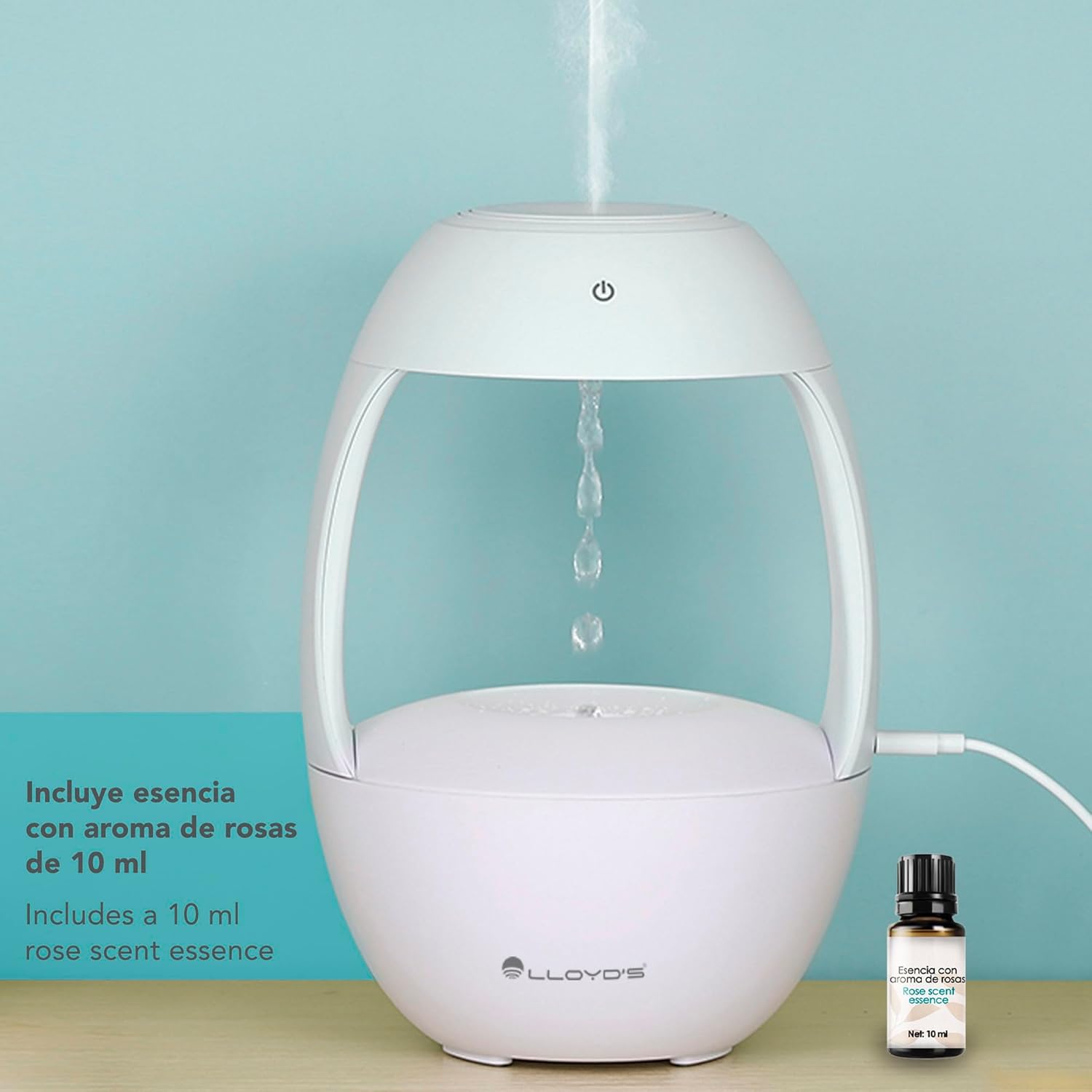

Diffuser showing anti-gravity water drip effect and included rose essence bottle

Image: The diffuser demonstrating its anti-gravity water drip effect, with the included rose scent essence bottle.

മെയിൻ്റനൻസ്

Proper maintenance ensures the longevity and optimal performance of your aroma diffuser.

ട്രബിൾഷൂട്ടിംഗ്

പ്രശ്നംസാധ്യമായ കാരണംപരിഹാരം
ഉപകരണം ഓണാക്കില്ല.No power connection; Water tank empty.Ensure the USB-C cable is securely connected to a power source. Fill the water tank with water.
മൂടൽമഞ്ഞോ ദുർബലമായ മൂടൽമഞ്ഞോ ഇല്ല.Insufficient water; Water level too high; Ultrasonic disc dirty; Fan blocked.Add water to the appropriate level. Clean the ultrasonic disc. Ensure the fan opening is clear.
അസാധാരണമായ ദുർഗന്ധം.Old or contaminated water; Residue from essential oils.Empty and clean the water tank thoroughly. Use fresh, purified water and natural essential oils.
ആപ്പ് കണക്ഷൻ പ്രശ്നങ്ങൾ.Incorrect Wi-Fi frequency; Bluetooth not enabled; Device too far from router.Ensure your Wi-Fi is 2.4 GHz. Enable Bluetooth on your phone. Move the diffuser closer to your router. Restart the app and device.
ശബ്ദ നിയന്ത്രണം പ്രവർത്തിക്കുന്നില്ല.Not linked to voice assistant; Incorrect commands.Verify the Lloyd's account is linked in your voice assistant app. Use the correct commands as specified in the app.

സ്പെസിഫിക്കേഷനുകൾ

ഫീച്ചർവിശദാംശങ്ങൾ
മോഡൽLC-1400
അളവുകൾ (L x W x H)16 x 16 x 24 സെ.മീ (6.3 x 6.3 x 9.4 ഇഞ്ച്)
ഇനത്തിൻ്റെ ഭാരം481 ഗ്രാം (1.06 പൗണ്ട്)
മെറ്റീരിയൽഅക്രിലോണിട്രൈൽ ബ്യൂട്ടാഡീൻ സ്റ്റൈറൈൻ (എബിഎസ്)
നിറംവെള്ള
വാട്ടർ ടാങ്ക് കപ്പാസിറ്റി500 മില്ലി
പ്രവർത്തന സമയം13 മണിക്കൂർ വരെ (തുടർച്ചയായ മൂടൽമഞ്ഞ്)
ടൈമർ ക്രമീകരണങ്ങൾ1-6 hours (via app)
കണക്റ്റിവിറ്റിWi-Fi 2.4 GHz, Bluetooth (for quick setup)
വോയ്‌സ് അസിസ്റ്റന്റ് അനുയോജ്യതGoogle Assistant, Amazon Alexa, Siri Shortcuts
പവർ ഉറവിടംUSB Type-C (adapter not included)
ശുപാർശ ചെയ്യുന്ന ജല തരംPurified or Distilled Water
ആക്‌സസറികൾ ഉൾപ്പെടുത്തിയിട്ടുണ്ട്10 ml Rose Scent Oil, USB Type-C Cable
Lloyd's Smart Aroma Diffuser with dimensions indicated

Image: Dimensions of the Lloyd's Smart Aroma Diffuser: 24 cm height, 10 cm width (at base).

വാറൻ്റിയും പിന്തുണയും

Lloyd's products are designed and manufactured to the highest quality standards. For detailed warranty information, please refer to the warranty card included with your purchase or visit the official Lloyd's webസൈറ്റ്.

If you encounter any issues or have questions regarding your Lloyd's Smart Aroma Diffuser, please contact our customer support team:

Please have your product model (LC-1400) and purchase details ready when contacting support.
