1. ഉൽപ്പന്നം കഴിഞ്ഞുview
The BTF-LIGHTING FCOB RGBCCT LED Strip Light utilizes Flip Chip On Board (FCOB) technology to deliver ultra-bright, uniform, and dot-free illumination. This flexible LED strip offers both RGB color-changing capabilities and CCT (Correlated Color Temperature) tunability, allowing adjustment from warm white (3000K) to cool white (6000K). It is designed for various indoor decorative and accent lighting applications.
Image 1: FCOB LED Strip (left) provides uniform light compared to traditional SMD LED Strip (right) with visible dots.
2. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉൾപ്പെടുന്നു:
- 1X 16.4FT FCOB RGBCCT LED strip
- 2X 6-pin connectors
- 6X LED Strip fixed clips
- 1X 15cm 6-pin 24AWG wire cable
കുറിപ്പ്: A power supply and controller are NOT included and must be purchased separately. Please ensure any accessories purchased are compatible with DC12V RGBCCT LED strips.
3 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| മോഡൽ നമ്പർ | FCOB-12V-840L-W-IP30 |
| വർക്കിംഗ് വോളിയംtage | DC12V |
| LED അളവ് | 840 LED-കൾ/മീറ്റർ |
| വർണ്ണ തരം | RGBCCT (RGB + Tunable White) |
| വർണ്ണ താപനില | 3000K-6000K |
| സ്ട്രിപ്പ് വീതി | 12 മി.മീ |
| സ്ട്രിപ്പ് നീളം | 16.4 അടി (5 മീറ്റർ) |
| ഇൻഡോർ/ഔട്ട്ഡോർ ഉപയോഗം | ഇൻഡോർ (IP30) |
| പ്രത്യേക സവിശേഷതകൾ | Color Changing, Uniform Light, Dimmable, Tunable Color Temperature, No Light Spot |
| ശരാശരി ജീവിതം | 65,000 മണിക്കൂർ |
4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Proper installation ensures optimal performance and longevity of your LED strip. This product requires an external DC12V power supply and a compatible RGBCCT LED controller (not included).
4.1 ഉപരിതല തയ്യാറാക്കൽ
Before installation, thoroughly clean and dry the desired installation surface. The strip comes with a strong self-adhesive backing for easy mounting.
4.2 LED സ്ട്രിപ്പ് മുറിക്കൽ
The FCOB LED strip is cuttable at designated points. Use scissors to cut only in the middle of the copper pads marked on the strip. This allows for custom lengths and future extensions.

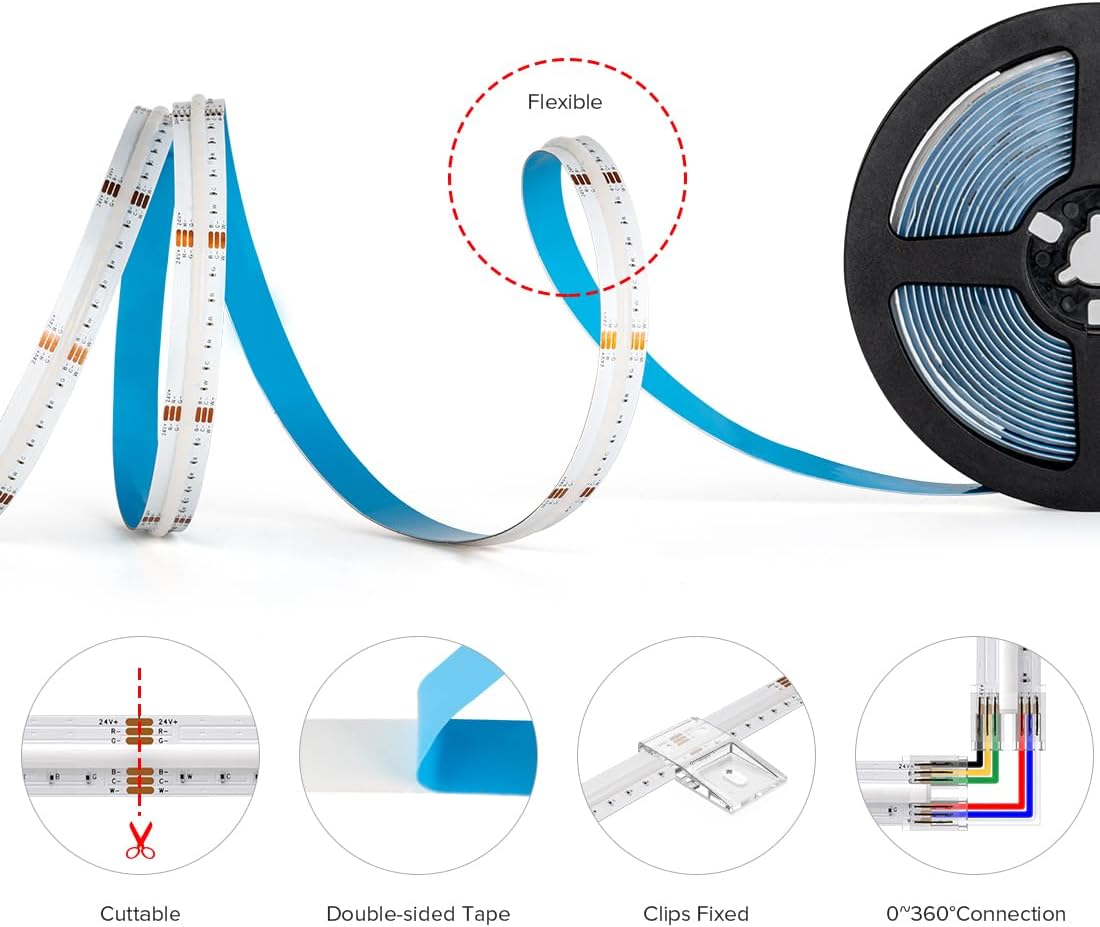

Image 2: The LED strip is flexible, cuttable at marked points, features double-sided tape, and can be secured with fixed clips.
4.3 Connecting to a Controller
Connect the 6-pin wire cable from the LED strip to your compatible RGBCCT controller. Ensure correct polarity and wire assignment (V+, G, R, B, C, W) as per your controller's instructions. The provided 6-pin connectors facilitate this connection.
Image 3: Wiring diagram for connecting the RGBCCT LED strip to a controller and power supply.
4.4 Mounting the LED Strip
Peel off the protective backing from the double-sided tape and firmly press the LED strip onto the prepared surface. For added security, use the included fixed clips at regular intervals or corners.
Image 4: Applying the LED strip with its self-adhesive backing.
Image 5: Fixed clips provide additional security for the LED strip.
5. ഓപ്പറേഷൻ
The FCOB RGBCCT LED strip is controlled via a compatible external controller, often managed through a smartphone application. This allows for versatile lighting adjustments.
5.1 ആപ്പ് നിയന്ത്രണം
Download the recommended control application (e.g., from തുയ സ്മാർട്ട് ലൈഫ് or as indicated by your controller's manual) by scanning the QR code on your controller or its packaging. The app typically offers:
- RGB വർണ്ണ തിരഞ്ഞെടുപ്പ്: Choose from 16 million colors.
- ട്യൂണബിൾ വൈറ്റ്: Adjust color temperature from warm white (3000K) to cool white (6000K).
- മങ്ങുന്നു: തെളിച്ച നില ക്രമീകരിക്കുക.
- ഡൈനാമിക് മോഡുകൾ: Pre-set lighting effects like color jump, breathe, strobe, and gradient.
- സംഗീത സമന്വയം: Some controllers offer synchronization with music.
- ഷെഡ്യൂളിംഗ്: Set timers for turning lights on/off.
Image 6: SP530E controller and app interface for lighting control.
5.2 Dual Lighting Modes (RGB+CCT)
The RGBCCT functionality allows you to switch between vibrant RGB colors for dynamic effects and precise white light tuning for functional or ambient lighting. This flexibility caters to various moods and occasions.
Image 7: Demonstration of RGB+CCT lighting, showing tunable white light and vibrant color options.
6. അപേക്ഷകൾ
This FCOB LED light is suitable for various interior decoration and lighting projects, including:
- സ്വീകരണമുറികൾ
- ഇടനാഴികൾ
- കിടപ്പുമുറികൾ
- Kitchens (under cabinet lighting)
- ആക്സന്റ് ലൈറ്റിംഗ്
- Stairs and mirrors
- DIY backlighting and special use projects
ചിത്രം 8: ഉദാamples of the LED strip light used in various indoor settings.
7. പ്രശ്നപരിഹാരം
If you encounter issues with your LED strip, consider the following:
- വെളിച്ചമില്ല: Ensure the power supply is connected and functioning, and the controller is receiving power. Check all connections for proper seating and polarity.
- തെറ്റായ നിറങ്ങൾ: Verify the LED type settings in your control app match the RGBCCT strip. Check wire connections to the controller for correct color assignment (R, G, B, CW, WW).
- അസമമായ തെളിച്ചം: For very long runs, voltage drop can occur. Consider using an LED amplifier or injecting power at multiple points along the strip.
- ആപ്പ് കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure your controller is within range of your Wi-Fi/Bluetooth network and that your smartphone's location services are enabled if required by the app for Wi-Fi information.
8. വാറൻ്റിയും പിന്തുണയും
BTF-LIGHTING provides a 12-month worry-free warranty and 24/7 customer service. For troubleshooting, replacement, or any questions regarding purchase or installation, please contact customer support.
9. ഉൽപ്പന്ന പ്രദർശന വീഡിയോ
Watch this video for a detailed demonstration of the BTF-LIGHTING FCOB COB LED Strip, including unboxing, connection, app setup, and various lighting effects.
Video 1: BTF-LIGHTING FCOB COB LED Strip RGBCCT Color 12V - A comprehensive guide to setting up and using the LED strip.
