Voice Prompt Module with Integrated MP3 Player and Speaker

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The DFROBOT Voice Prompt Module is an intelligent audio playback solution designed for various applications requiring clear voice prompts and sound effects. This compact module integrates an MP3 music playback chip and a speaker, offering a complete audio output system in a single unit. It is engineered for ease of use, supporting direct operation via power supply, battery, and physical buttons, or through serial communication commands for more complex control.

ചിത്രം 1.1: മുൻഭാഗം view of the Voice Prompt Module, highlighting the integrated speaker grill.

2 പ്രധാന സവിശേഷതകൾ

• സംയോജിത ഡിസൈൻ: Combines an intelligent MP3 music playback chip and a speaker into a single module, simplifying integration and reducing wiring complexity.
• വഴക്കമുള്ള നിയന്ത്രണം: Supports direct operation with a power supply, battery, and buttons, or advanced control via serial commands (UART).
• ഓഡിയോ ഫോർമാറ്റ് പിന്തുണ: Features seamless hardware decoding for MP3, WAV, and WMA audio formats, ensuring high-quality sound playback.
• Ample സംഭരണം: Equipped with 16MB of onboard memory, providing sufficient space for a wide range of audio files. Stored files remain secure even during power outages.
• ഉപയോക്തൃ സൗഹൃദമായ: Designed for straightforward implementation, offering a reliable and efficient audio solution compared to multi-component setups.

Figure 2.1: Comparison illustrating the high integration of the Voice Prompt Module versus traditional separate MP3 module and speaker setups.

3. അപേക്ഷകൾ

This module is suitable for a wide array of applications where automated voice prompts or audio playback are required:

• Car Navigation Systems: Enhances driving experience with clear navigation prompts.
• Public Transport Systems: Provides safety announcements at railway stations, bus stops, and within vehicles.
• Financial Business Halls: Assists customers with service guidance via voice prompts.
• Security and Inspection Systems: Used in security checks and toll stations for clear instructions and alerts.
• Public Safety and Alerts: Essential for public security, fire alarms, and equipment failure notifications.
• Tourist and Transport Vehicles: Ensures safety with driving notices and operational guides.

4. സജ്ജീകരണ ഗൈഡ്

Before operating the Voice Prompt Module, follow these steps for proper setup:

4.1. ഘടകങ്ങൾ കഴിഞ്ഞുview

Figure 4.1: The Voice Prompt Module and its accompanying USB cable for file കൈമാറ്റം.

4.2. Pinout and Dimensions

Familiarize yourself with the module's pinout for correct wiring and its dimensions for integration into your project.

ചിത്രം 4.2: പിൻഭാഗം view of the module displaying the pinout for power, audio, and serial communication.

Figure 4.3: Detailed diagram showing the module's dimensions and pin assignments.

4.3. പവർ കണക്ഷൻ

Connect the module to a stable 5V DC power supply. Ensure correct polarity when connecting to the 5V and GND pins. The module can also be powered by a compatible battery source.

4.4. Loading Audio Files

The module has 16MB of internal memory. To load MP3, WAV, or WMA audio files:

1. Connect the module to a computer using the provided USB cable.
2. The module should appear as a removable storage device.
3. നിങ്ങളുടെ ഓഡിയോ വലിച്ചിടുക files into the module's storage. Ensure file names are simple and follow any specific naming conventions if using serial control (e.g., 001.mp3, 002.mp3).
4. Safely eject the module from your computer before disconnecting the USB cable.

4.5. Control Connection (Optional)

Depending on your application, you can connect physical buttons or a microcontroller for serial control:

• ബട്ടൺ നിയന്ത്രണം: Connect buttons to the designated control pins (e.g., P1) as per your project's requirements.
• Serial Control: Connect the module's TX and RX pins to your microcontroller's RX and TX pins, respectively, for UART communication.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

Once set up, the Voice Prompt Module can be operated in various ways:

5.1. Direct Playback (Button Control)

If configured with physical buttons, pressing a button will trigger the playback of a pre-assigned audio file. Refer to your specific project's wiring and programming for button functionality.

5.2. Serial Command Control

For advanced control, send commands via UART from a microcontroller or computer. Common commands may include:

• പ്രത്യേക ട്രാക്ക് പ്ലേ ചെയ്യുക: Send a command to play a file by its index or name (e.g., play 001.mp3).
• Play Next/Previous: Commands to navigate through audio files.
• വോളിയം നിയന്ത്രണം: പ്ലേബാക്ക് വോളിയം ക്രമീകരിക്കുക.
• താൽക്കാലികമായി നിർത്തുക/പുനരാരംഭിക്കുക: Control playback state.
• നിർത്തുക: Halt current playback.

Refer to the DFROBOT official documentation or example code for detailed serial communication protocols and command sets specific to the DFR1173 module.

6. പരിപാലനം

To ensure the longevity and optimal performance of your Voice Prompt Module, consider the following maintenance guidelines:

• ഉണക്കി സൂക്ഷിക്കുക: Protect the module from moisture and liquids, as these can damage electronic components.
• തീവ്രമായ താപനില ഒഴിവാക്കുക: Operate and store the module within its specified temperature range to prevent component degradation.
• ശ്രദ്ധയോടെ കൈകാര്യം ചെയ്യുക: Avoid dropping or subjecting the module to strong impacts.
• സൌമ്യമായി വൃത്തിയാക്കുക: If cleaning is necessary, use a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• ഉപയോഗത്തിലില്ലാത്തപ്പോൾ പവർ ഓഫ്: Disconnect power when the module is not in active use for extended periods.

7. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Voice Prompt Module, refer to the following common problems and solutions:

7.1. ശബ്ദ ഔട്ട്പുട്ട് ഇല്ല

• പവർ പരിശോധിക്കുക: Ensure the module is receiving stable 5V power and that connections are secure.
• വോളിയം നില: Verify that the volume is not set to minimum or muted, especially if controlled via serial commands.
• ഓഡിയോ Files: Confirm that audio files are correctly loaded onto the module and are in a supported format (MP3, WAV, WMA). Try playing a different file.
• സ്പീക്കർ ഗ്രിൽ: Ensure the speaker grill is not obstructed.

Figure 7.1: Close-up of the module's speaker grill, which should remain unobstructed for clear audio output.

7.2. Module Not Recognized by Computer

• യൂഎസ്ബി കേബിൾ: മറ്റൊരു USB കേബിൾ പരീക്ഷിക്കുക.
• USB പോർട്ട്: Connect to a different USB port on your computer.
• റീബൂട്ട്: നിങ്ങളുടെ കമ്പ്യൂട്ടർ പുനരാരംഭിച്ച് വീണ്ടും ശ്രമിക്കുക.

7.3. Serial Control Issues

• വയറിംഗ്: Double-check TX/RX connections between the module and your microcontroller.
• ബോഡ് നിരക്ക്: Ensure the baud rate configured in your code matches the module's default or configured baud rate.
• കമാൻഡ് വാക്യഘടന: Verify that the serial commands sent are correct according to the module's protocol.

8 സ്പെസിഫിക്കേഷനുകൾ

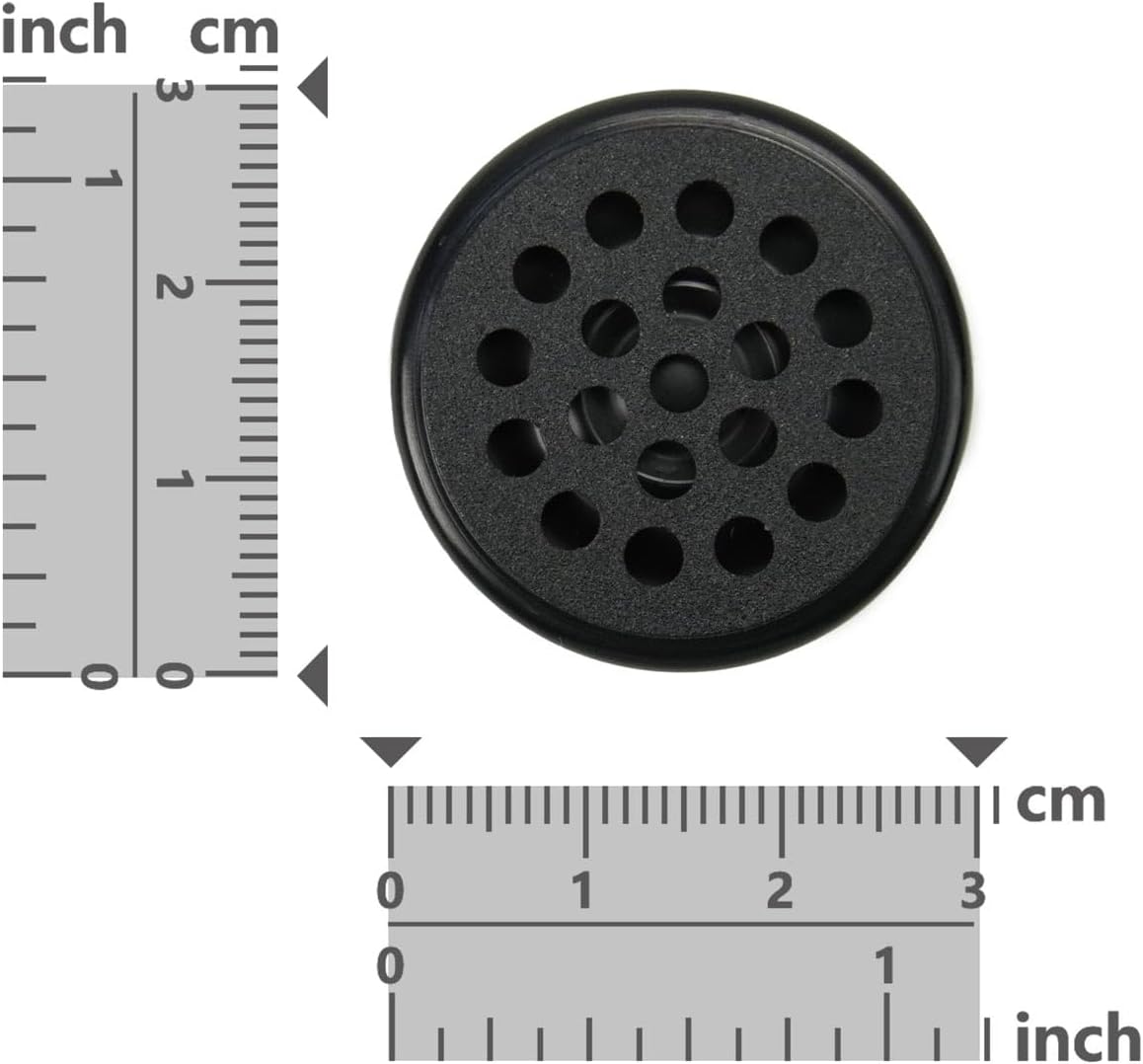

Figure 8.1: Module dimensions illustrated with a ruler for scale.

9. വാറൻ്റിയും പിന്തുണയും

Information regarding product warranty and customer support for the DFROBOT Voice Prompt Module (Model DFR1173) was not available in the provided data. For specific warranty terms, technical support, or further inquiries, please refer to the official DFROBOT webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക.
