ഉൽപ്പന്നം കഴിഞ്ഞുview
The GOOLOO A2 is a versatile 8-in-1 roadside emergency tool designed for drivers. It combines a powerful car jump starter, a cordless tire inflator, a multi-mode LED light, and a power bank into one compact device. This unit ensures you are prepared for unexpected situations on the road, from dead batteries to low tire pressure.
The GOOLOO A2 8-in-1 Jump Starter with Air Compressor, showcasing its compact design and integrated features.
ബോക്സിൽ എന്താണുള്ളത്
| ഇനം | അളവ് |
|---|---|
| GOOLOO A2 Portable Car Jump Starter with Tire Inflator | 1 |
| ജമ്പർ കേബിൾ | 1 |
| Air Hose Tube | 1 |
| എയർ നോസിലുകൾ | 5 |
| ഉപയോക്തൃ മാനുവൽ | 1 |
All components included in the GOOLOO A2 package, neatly arranged with the main unit, jumper cables, air hose, various nozzles, and user manual.
സ്പെസിഫിക്കേഷനുകൾ
| ബ്രാൻഡ്: | ഗൂലൂ |
| മോഡൽ: | A2 |
| ഉൽപ്പന്ന അളവുകൾ: | 4.84"D x 1.97"W x 6.54"H |
| ഇനത്തിൻ്റെ ഭാരം: | 2.8 പൗണ്ട് |
| പീക്ക് ഔട്ട്പുട്ട് കറന്റ്: | 2500 Amps |
| Ampകോപം: | 2500 Amps |
| ബാറ്ററി ശേഷി: | 37Wh |
| നിലവിലെ ആരംഭം: | 400എ |
| യുഎസ്ബി-സി ഇൻപുട്ട്: | 5V/2A |
| USB-A putട്ട്പുട്ട്: | 5V/2.1A |
| മാതൃരാജ്യം: | ചൈന |
സുരക്ഷാ വിവരങ്ങൾ
- Always read the user manual completely before first use.
- Do not short-circuit the jumper clamps.
- Do not expose the unit to extreme temperatures outside of -20℃ to 60℃.
- കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
- Ensure proper polarity connection before jump starting.
- Do not attempt to jump start a frozen or damaged battery.
- Remove jumper cables from the vehicle battery within 30 seconds after the vehicle starts.
സജ്ജമാക്കുക
Charging the GOOLOO A2:
Before first use, fully charge the GOOLOO A2 using the provided USB-A to USB-C cable. The LED display will indicate the battery level during charging. A full charge ensures optimal performance.
The GOOLOO A2 being charged via its USB-C input port, demonstrating its power bank functionality for electronic devices.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
1. ഒരു വാഹനം സ്റ്റാർട്ട് ചെയ്ത് ചാടുക:
- Ensure the GOOLOO A2 has at least 2 bars of battery power.
- Insert the blue end of the smart jumper cable into the jump starter socket on the GOOLOO A2.
- ചുവന്ന cl കണക്റ്റുചെയ്യുകamp വാഹന ബാറ്ററിയുടെ പോസിറ്റീവ് (+) ടെർമിനലിലേക്കും കറുത്ത cl യിലേക്കുംamp to the negative (-) terminal. The smart jumper cable will indicate a correct connection with a green light.
- നിങ്ങളുടെ കാർ എഞ്ചിൻ ആരംഭിക്കുക.
- Once the vehicle has started, remove the jumper cables from the vehicle battery within 30 seconds.
The GOOLOO A2 connected to a car battery, ready to jump start a vehicle. The image highlights its 2500A peak power and compatibility with various engine sizes.
Official GOOLOO video demonstrating the jump starting process for a vehicle.
2. Using the Air Compressor:
- Attach the air hose to the unit's air output port and tighten it.
- Connect the appropriate air nozzle to the item you wish to inflate (tire, ball, etc.).
- Press and hold the power button to turn on the unit. Press the 'Setting' button to choose the inflation mode (car, motorcycle, bicycle, ball).
- Use the '+' or '-' buttons to adjust the desired PSI.
- Short press the power button to start inflation. The unit will automatically shut off when the preset pressure is reached.
The GOOLOO A2 inflating a car tire, demonstrating its 150 PSI cordless air compressor with auto-shutoff feature.
Official GOOLOO video demonstrating the tire inflation process.
3. LED ലൈറ്റ് ഉപയോഗിക്കുന്നത്:
The GOOLOO A2 features a bright LED light with multiple modes for emergencies. Press the light button to cycle through modes: steady spotlight, SOS signal, and red strobe warning light.
A person using the GOOLOO A2's 400 lumen LED light to illuminate a car engine at night, highlighting its spotlight, SOS, and strobe functions.
4. Using as a Power Bank:
Connect your mobile devices to the USB-A output port using a compatible USB cable to charge them on the go. The unit supports more than 1000+ charge cycles.

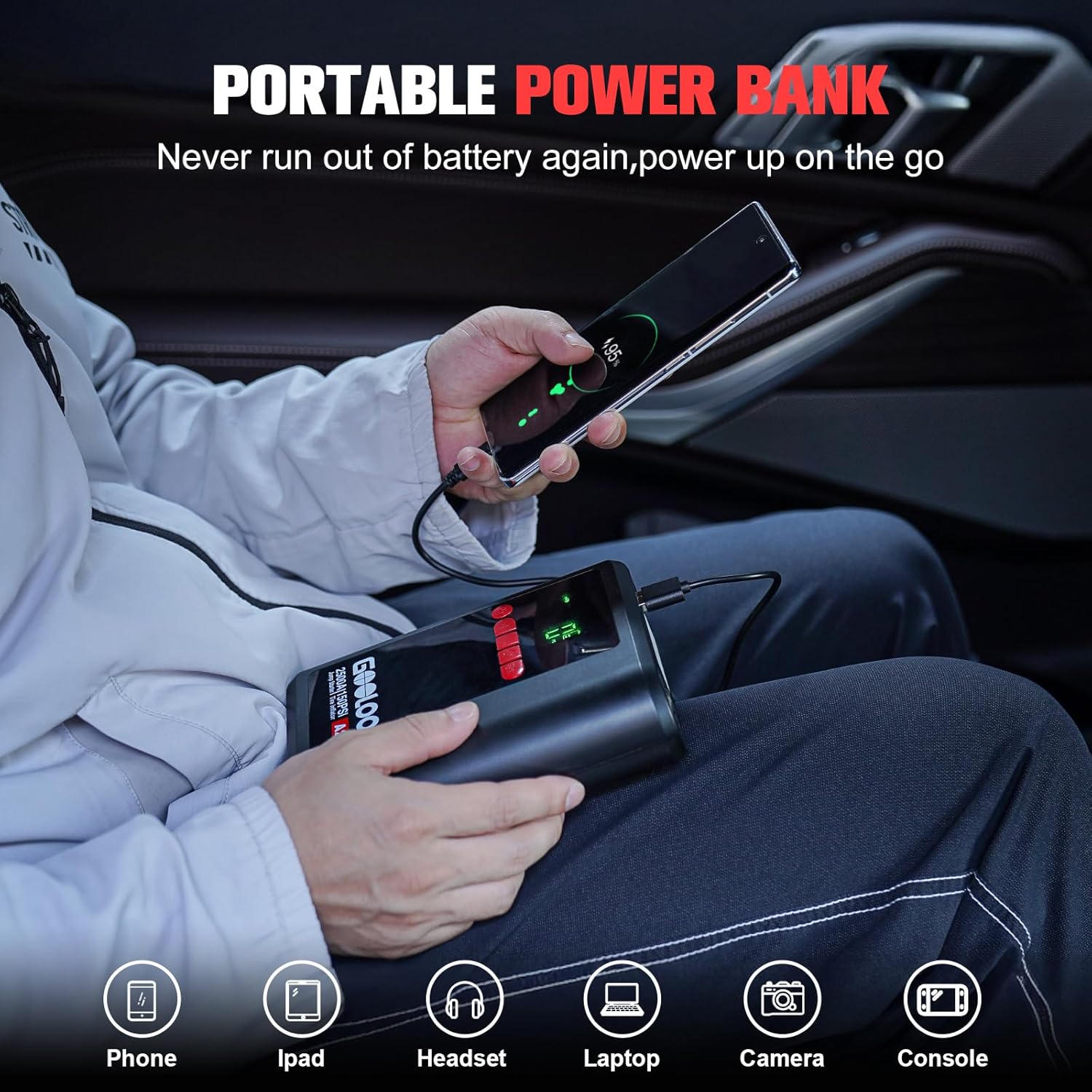

A person charging a smartphone using the GOOLOO A2's power bank function, illustrating its capability to power various electronic devices.
മെയിൻ്റനൻസ്
- Store the unit in its carrying bag in a cool, dry place.
- Recharge the unit every 3-6 months to maintain battery health, even if not used.
- ഉണങ്ങിയതും മൃദുവായതുമായ തുണി ഉപയോഗിച്ച് യൂണിറ്റ് വൃത്തിയാക്കുക. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളോ ഉള്ള വസ്തുക്കൾ ഉപയോഗിക്കരുത്.
- Keep the air output port free from dust and debris.
ട്രബിൾഷൂട്ടിംഗ്
യൂണിറ്റ് ഓണാക്കുന്നില്ല:
- Ensure the unit is charged. If the battery level is low, recharge it fully.
- Press and hold the power button for a few seconds to turn it on.
Vehicle not jump starting:
- ജമ്പർ cl ആണോ എന്ന് പരിശോധിക്കുകamps are connected correctly to the battery terminals (red to positive, black to negative).
- Ensure the smart jumper cable is fully inserted into the jump starter socket.
- If the vehicle battery is completely dead, use the "BOOST" function on the smart jumper cable (refer to the quick start guide for details).
Air compressor not inflating:
- Verify the air hose and nozzle are securely attached.
- Check the selected inflation mode and preset PSI.
- Ensure the unit has sufficient battery power.
വാറൻ്റി & പിന്തുണ
The GOOLOO A2 comes with an 18-month warranty from the date of purchase. For warranty claims, technical support, or any inquiries, please contact GOOLOO customer service.
Contact information can be found in the included user manual or on the official GOOLOO webസൈറ്റ്.
