1. ആമുഖവും ഉൽപ്പന്നവും കഴിഞ്ഞുview
The GOOLOO A2 is a versatile 5-in-1 portable device designed for roadside emergencies and outdoor activities. It integrates a powerful car jump starter, a high-efficiency tire inflator, an SOS light, a bright LED illumination, and a mobile device charger. This manual provides detailed instructions for safe and effective use of your GOOLOO A2.
Image: The GOOLOO A2 unit, showcasing its compact design, integrated display, control buttons, jump starter ports, and air hose connection. Various air nozzles and a USB-C cable are also visible.
പ്രധാന സവിശേഷതകളിൽ ഇവ ഉൾപ്പെടുന്നു:
- High-Efficient Jump Starter: 2500A peak current, capable of jump-starting vehicles with up to 8.0L gas or 6.0L diesel engines.
- Upgraded 150 PSI Cordless Air Compressor: Features smart preset auto shut-off and a turbocharged 35L/Min inflation rate for quick tire inflation.
- Emergency Lifesaver: Equipped with a bright LED light offering steady, SOS, and strobe modes, and functions as a power bank for mobile devices.
- സുരക്ഷാ സവിശേഷതകൾ: Incorporates 10 built-in intelligent safety protections, including spark-proof technology and reverse polarity protection.
- പോർട്ടബിൾ ഡിസൈൻ: Compact and lightweight for easy storage and transport.
2. പാക്കേജ് ഉള്ളടക്കം
നിങ്ങളുടെ പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ദയവായി പരിശോധിക്കുക:
- 1 x GOOLOO A2 Portable Car Jump Starter with Tire Inflator
- 1 x സ്മാർട്ട് ജമ്പർ കേബിൾ
- 1 x USB-A മുതൽ USB-C കേബിൾ വരെ
- 1 x Pump Tube (Air Hose)
- 5 x Air Nozzles (British Valve Adapter, Short Tapered Nozzle, Presta Valve Adapter, Ball Needle Adapter, Long Tapered Nozzle)
- 1 x ഉപയോക്തൃ മാനുവൽ
- 1 x ചുമക്കുന്ന ബാഗ്
Image: A visual representation of the GOOLOO A2 unit, its smart jumper cables, USB-C charging cable, air hose, various air nozzles, user manual, and carrying bag, all neatly arranged.
3. സജ്ജീകരണവും ചാർജിംഗും
Before first use, ensure the GOOLOO A2 is fully charged. It comes with a built-in lithium polymer battery.
3.1 പ്രാരംഭ ചാർജിംഗ്
- Connect the provided USB-A to USB-C cable to the USB-C input port on the GOOLOO A2.
- Connect the other end of the USB-A cable to a 5V/2A USB wall adapter (not included) or a compatible USB port.
- The LED display will indicate the charging status. Charge until the battery indicator shows full.
കുറിപ്പ്: For optimal performance and battery longevity, it is recommended to fully charge the unit every 3-6 months if not in regular use.
Image: A diagram of the GOOLOO A2 unit, highlighting the LED display, power button, up/down buttons, setting button, LED button, USB-C input (5V/2A), USB-A output (5V/2.1A), aerated port, LED flashlight, and jump cable socket.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1 ഒരു വാഹനം ആരംഭിക്കുമ്പോൾ ചാടുക
Ensure the GOOLOO A2 is sufficiently charged (at least 50% battery recommended) before attempting to jump start a vehicle.
- Connect Jumper Cable: Insert the blue end of the smart jumper cable into the 12V jump cable socket on the GOOLOO A2 unit. Ensure a firm connection.
- ബാറ്ററിയുമായി ബന്ധിപ്പിക്കുക: ചുവന്ന cl അറ്റാച്ചുചെയ്യുകamp (+) to the positive terminal of the vehicle's battery and the black clamp (-) to the negative terminal. Ensure the clamps make good contact with the battery terminals.
- സൂചകം പരിശോധിക്കുക: Observe the indicator light on the smart jumper cable.
- കട്ടിയുള്ള പച്ച: Ready to jump start.
- Solid Red with Beep: Reverse polarity detected. Disconnect clamps and re-attach correctly.
- മിന്നുന്ന പച്ച: ബാറ്ററി വോളിയംtage too low. Press the "BOOST" button on the smart cable if available, then proceed.
- വാഹനം സ്റ്റാർട്ട് ചെയ്യുക: Once the indicator is solid green, start your vehicle's engine.
- വിച്ഛേദിക്കുക: As soon as the vehicle starts, remove the jumper clamps from the car battery, then disconnect the smart jumper cable from the GOOLOO A2 unit.
Image: The GOOLOO A2 unit connected to a car battery via its smart jumper cables, demonstrating the jump-starting process. The image highlights the 2500A peak current and compatibility with 12V, 8.0L gas, and 6.0L diesel engines.
Image: A three-step visual guide showing how to jump start a vehicle: 1. Insert the jumper cable into the unit. 2. Connect the red clamp പോസിറ്റീവ് ബാറ്ററി ടെർമിനലിലേക്കും കറുത്ത clamp to the negative. 3. Start the car engine when the light on the smart cable turns green.
4.2 ടയർ വിലക്കയറ്റം
The GOOLOO A2 features an intelligent tire inflator with auto shut-off.
- എയർ ഹോസ് അറ്റാച്ചുചെയ്യുക: Screw the air hose securely onto the aerated port of the GOOLOO A2.
- ടയർ വാൽവുമായി ബന്ധിപ്പിക്കുക: Attach the other end of the air hose to the tire valve stem. Ensure it is tightly screwed on to prevent air leakage.
- പവർ ഓണാക്കി മോഡ് തിരഞ്ഞെടുക്കുക: Press the power button to turn on the unit. Use the "Setting" button (often represented by a gear icon or 'M') to cycle through inflation modes (Car, Motorcycle, Bicycle, Ball). The display will show the current pressure unit (PSI, BAR, KPA).
- ലക്ഷ്യ മർദ്ദം സജ്ജമാക്കുക: Use the "+" and "-" buttons to adjust the desired target pressure. The LCD display provides real-time pressure readings.
- പണപ്പെരുപ്പം ആരംഭിക്കുക: Press the power button again to begin inflation. The compressor will automatically stop once the preset pressure is reached.
- വിച്ഛേദിക്കുക: Quickly unscrew the air hose from the tire valve and then from the GOOLOO A2 unit.

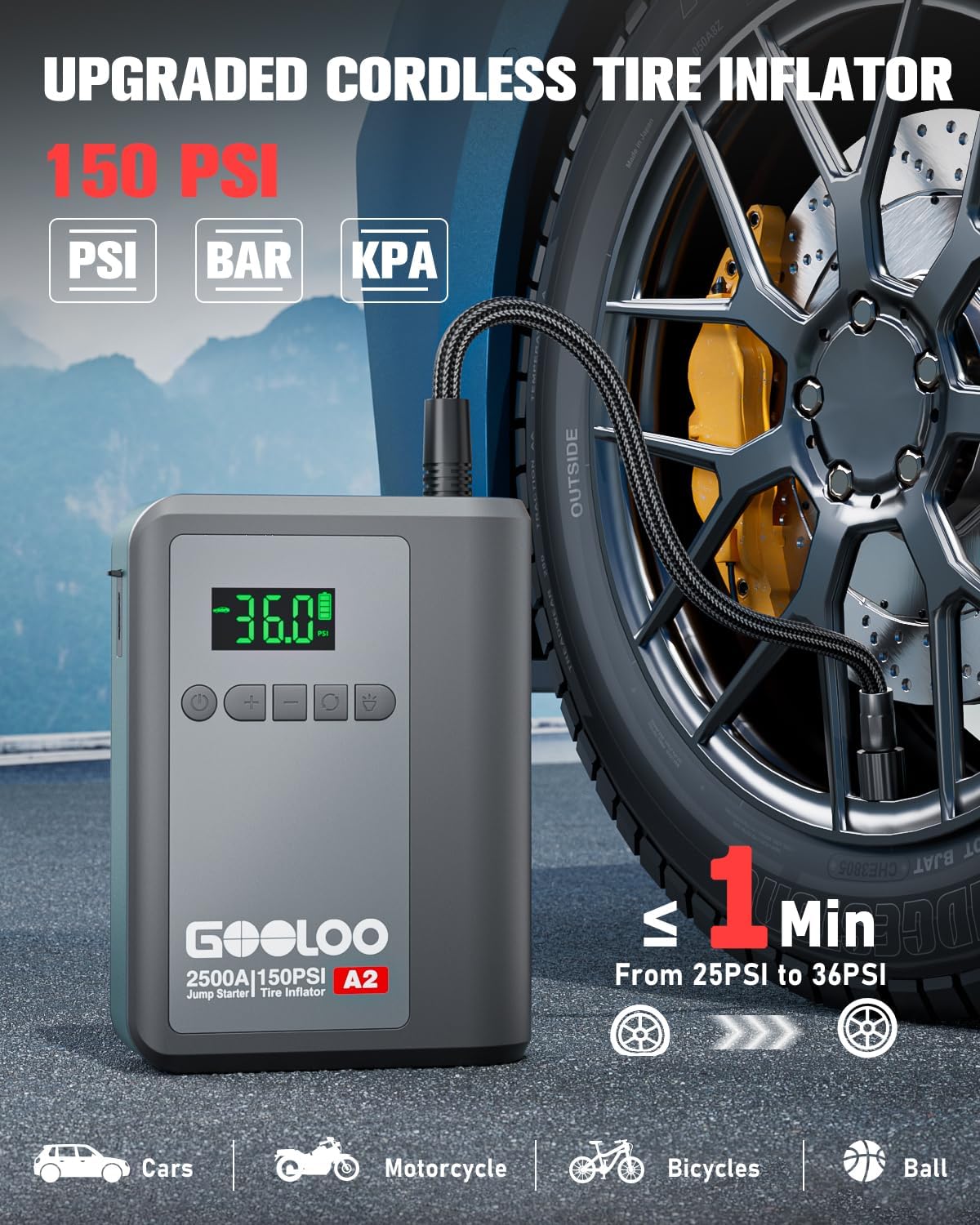

Image: The GOOLOO A2 unit connected to a car tire valve via its air hose, demonstrating the tire inflation process. The display shows "36.0" PSI, indicating the target pressure. The image highlights the 150 PSI capacity and quick inflation time.
Image: A four-step visual guide for tire inflation: 1. Attach the air hose and tighten it. 2. Press the mode button to choose the inflation mode. 3. Press the power button to start inflation. 4. Pull out the air hose when auto-stop occurs.
കുറിപ്പ്: Use the appropriate air nozzle for different inflatables (e.g., car tires, bicycle tires, sports balls).
Image: A visual guide showing the GOOLOO A2's capability to inflate various items, including car tires, motorcycle tires, bicycle tires, balls, and swimming rings, along with their recommended pressure ranges and adjustable ranges.
4.3 പവർ ബാങ്ക് പ്രവർത്തനം
The GOOLOO A2 can charge your electronic devices on the go.
- Connect your device's charging cable to the USB-A output port (5V/2.1A) on the GOOLOO A2.
- The unit will automatically begin charging your device.
Image: A person sitting in a car, charging their smartphone using the GOOLOO A2 unit, demonstrating its function as a portable power bank. Icons below indicate compatibility with phones, iPads, headsets, laptops, cameras, and consoles.
4.4 LED Light Functions
The integrated LED light provides illumination and emergency signaling.
- Press the "LED" button (often represented by a light bulb icon) to cycle through the light modes:
- Steady On (Spotlight): പൊതുവായ പ്രകാശത്തിനായി.
- SOS മോഡ്: Flashes the international SOS signal (three short, three long, three short flashes).
- സ്ട്രോബ് മോഡ്: Rapid flashing for warning or signaling.
- Press and hold the "LED" button to turn off the light.

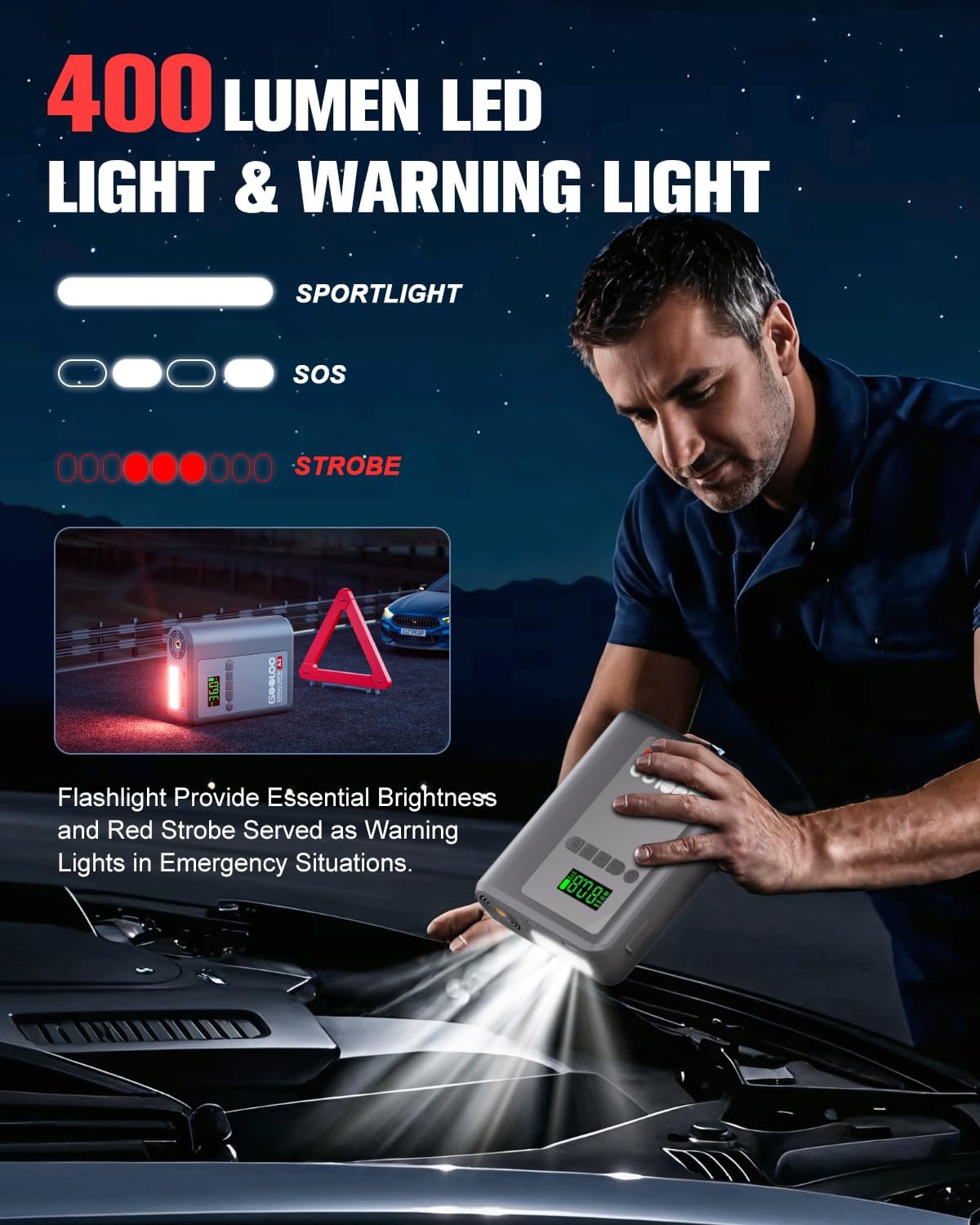

Image: A person using the GOOLOO A2's LED flashlight to illuminate a car engine bay at night, with a warning triangle in the background. The image illustrates the 400 lumen output and the spotlight, SOS, and strobe modes.
5. പരിപാലനവും പരിചരണവും
Proper maintenance ensures the longevity and reliability of your GOOLOO A2.
- സംഭരണം: Store the unit in a cool, dry place away from direct sunlight and extreme temperatures. Use the provided carrying bag for protection.
- ചാർജിംഗ്: Recharge the unit every 3-6 months, even if not in use, to maintain battery health.
- വൃത്തിയാക്കൽ: Wipe the unit with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
- വെള്ളം ഒഴിവാക്കുക: യൂണിറ്റ് വെള്ളത്തിനോ അമിതമായ ഈർപ്പത്തിനോ വിധേയമാക്കരുത്.
- താപനില: The unit is designed to operate in temperatures from -20℃ to 60℃. Avoid using or storing outside this range.
ചിത്രം: ഒരു എക്സ്-റേ ശൈലി view of the GOOLOO A2 unit, illustrating its internal design for efficient battery heat dissipation, with blue air currents flowing through. This design helps ensure longer product life and reliable operation in varying temperatures (-20°C to 60°C).
6. പ്രശ്നപരിഹാരം
If you encounter issues with your GOOLOO A2, refer to the following common problems and solutions:
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| യൂണിറ്റ് ഓണാക്കുന്നില്ല. | ബാറ്ററി തീർന്നു. | യൂണിറ്റ് പൂർണ്ണമായും ചാർജ് ചെയ്യുക. |
| വാഹനം ജമ്പ് സ്റ്റാർട്ട് ആകുന്നില്ല. | തെറ്റായ clamp connection; Battery too dead; Vehicle issue. | Cl ഉറപ്പാക്കുകamps are connected correctly (red to +, black to -). Check smart cable indicator. If battery is extremely low, use "BOOST" function if available. Consult a mechanic if vehicle still won't start. |
| Tire inflator not working or slow. | Air hose not securely attached; Incorrect pressure setting; Unit battery low. | Ensure air hose is tightly screwed onto both the unit and tire valve. Verify target pressure. Charge the unit. |
| LED display is dim or unreadable in sunlight. | Direct sunlight glare. | The display is designed for sunlight readability, but extreme glare can still affect visibility. Try to shade the screen if possible. |
| Unit gets warm during use. | Normal operation during high power output (jump starting, inflating). | This is normal. The unit has built-in heat dissipation. If it becomes excessively hot or emits smoke, discontinue use immediately and contact support. |
If the problem persists after trying these solutions, please contact GOOLOO customer support.
7 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ | A2 portable jump starter with tire inflator |
| പീക്ക് ഔട്ട്പുട്ട് കറന്റ് | 2500 Amps |
| എഞ്ചിൻ അനുയോജ്യത | 8.0 ലിറ്റർ ഗ്യാസ് / 6.0 ലിറ്റർ ഡീസൽ വരെ |
| ടയർ ഇൻഫ്ലേറ്റർ പ്രഷർ | പരമാവധി 150 പി.എസ്.ഐ. |
| ഉൽപ്പന്ന അളവുകൾ | 4.84"D x 1.97"W x 6.54"H |
| ഇനത്തിൻ്റെ ഭാരം | 1.5 പൗണ്ട് |
| ബാറ്ററി തരം | ലിഥിയം പോളിമർ (1 ആവശ്യമാണ്, ഉൾപ്പെടുത്തിയിട്ടുണ്ട്) |
| USB-C ഇൻപുട്ട് | 5V/2A |
| യുഎസ്ബി-എ put ട്ട്പുട്ട് | 5V/2.1A |
| പ്രവർത്തന താപനില | -20℃ മുതൽ 60°F വരെ (-4°F മുതൽ 140°F വരെ) |
| LED ലൈറ്റ് ഔട്ട്പുട്ട് | 400 ല്യൂമെൻസ് |
8. വാറൻ്റിയും പിന്തുണയും
GOOLOO stands behind the quality of its products.
- വാറൻ്റി കാലയളവ്: The GOOLOO A2 comes with an 18-month warranty from the date of purchase.
- റിട്ടേൺ ഗ്യാരണ്ടി: A 30-day unconditional return guarantee is offered.
- ഉപഭോക്തൃ പിന്തുണ: GOOLOO provides 24/7 customer support and lifetime technical support.
For warranty claims, technical assistance, or any inquiries, please contact GOOLOO customer service through their official website or the platform where you purchased the product. Please have your model number (A2) and purchase details ready.
You can visit the official GOOLOO store for more information: GOOLOO Official Store
