TOPDON ArtiDiag600 എലൈറ്റ് OBD2 സ്കാനർ ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The TOPDON ArtiDiag600 Elite is a powerful and comprehensive OBD2 scanner designed for full-system vehicle diagnostics. It offers a wide range of functions, including reading and clearing Diagnostic Trouble Codes (DTCs), analyzing real-time data, and accessing Electronic Control Unit (ECU) information across all major vehicle systems such as Engine, ABS, Transmission Control Module (TCM), Steering Angle Sensor (SAS), Tire Pressure Monitoring System (TPMS), and Supplemental Restraint System (SRS).

This diagnostic tool is an upgraded version of previous models like the AD500, AD600S, and AD600 Pro, featuring enhanced hardware and software for a smoother and faster diagnostic experience. It supports over 70 car brands and 10,000 vehicle models, including compatibility with FCA Gateway for newer Chrysler, Jeep, Dodge, and Fiat vehicles (2017 onwards), and CAN-FD protocol for 2024 models like GM's Blazer and Cadillac CT series, and Chrysler's Grand Cherokee and Grand Wagoneer.

Figure 1.1: The TOPDON ArtiDiag600 Elite diagnostic tool, showcasing its compact design and user interface.

2. പാക്കേജ് ഉള്ളടക്കം

Upon unboxing your TOPDON ArtiDiag600 Elite, please verify that all components listed below are present and in good condition:

• ArtiDiag600 Elite Diagnostic Tool x 1
• OBD 16 Pin Diagnostic Cable x 1
• ടൈപ്പ്-സി യുഎസ്ബി കേബിൾ x 1
• ദ്രുത ഉപയോക്തൃ ഗൈഡ് x 1
• ഉപയോക്തൃ മാനുവൽ x 1
• കേസ് x 1

Figure 2.1: All items included in the ArtiDiag600 Elite package, neatly arranged within the carrying case.

3. സജ്ജീകരണവും പ്രാരംഭ ഉപയോഗവും

3.1 ഉപകരണം ചാർജ് ചെയ്യുന്നു

Before first use, ensure the ArtiDiag600 Elite is fully charged. Connect the provided Type-C USB cable to the device and a suitable power adapter. The device features a built-in Lithium Ion battery.

3.2 പവറിംഗ് ഓണും പ്രാരംഭ കോൺഫിഗറേഷനും

Press and hold the power button to turn on the device. Follow the on-screen prompts to complete the initial setup, which includes selecting your preferred language (12 languages supported) and connecting to a Wi-Fi network for updates.

3.3 സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ

The ArtiDiag600 Elite comes with 2 years of free software and vehicle coverage updates. It is highly recommended to perform a one-click update upon initial setup to ensure you have the latest features and vehicle compatibility. Regular updates keep your tool current with new vehicle models and diagnostic capabilities.

Figure 3.1: The device screen showing the update interface, highlighting the 2-year free update feature.

4. Operating the ArtiDiag600 Elite

4.1 വാഹനവുമായി ബന്ധിപ്പിക്കൽ

Locate your vehicle's OBD2 port, typically under the dashboard on the driver's side. Connect the OBD 16 Pin Diagnostic Cable from the ArtiDiag600 Elite to the vehicle's OBD2 port. Turn the vehicle's ignition to the 'ON' position (engine off).

4.2 Smart AutoVIN Identification

The ArtiDiag600 Elite features an AutoVIN function that automatically identifies your vehicle's VIN (Vehicle Identification Number) and provides precise vehicle information in seconds. This streamlines the diagnostic process by eliminating manual input.

4.3 Full-System Diagnostics

Navigate to the 'Diagnostics' menu on the device. The tool can perform a full-system scan, covering all electronic control units (ECUs) in your vehicle. This includes, but is not limited to, Engine, ABS, TCM, SAS, TPMS, and SRS systems. You can read and clear DTCs, view live data streams, and access ECU information for comprehensive troubleshooting.

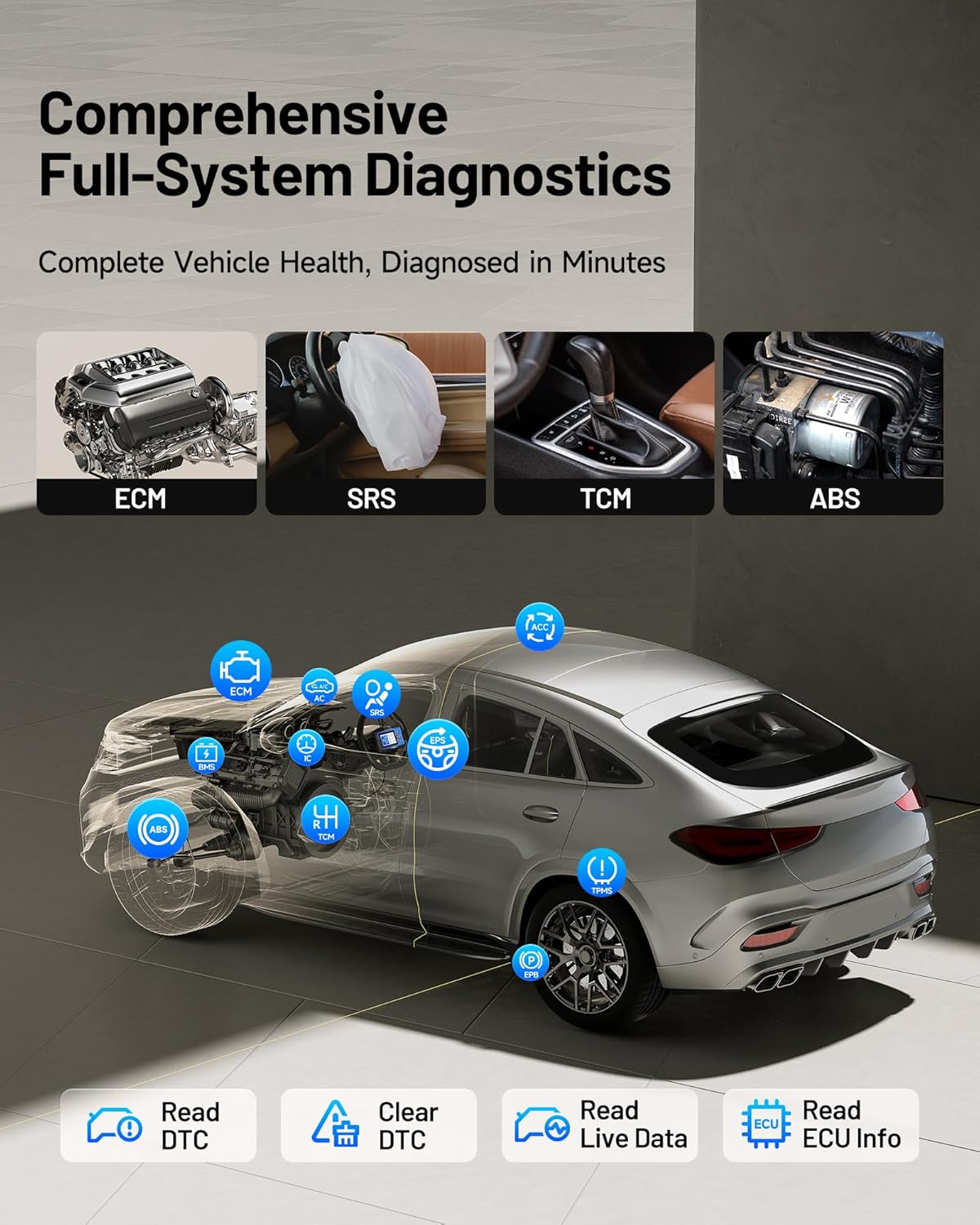

Figure 4.1: An illustration demonstrating the ArtiDiag600 Elite's capability to perform comprehensive diagnostics across all vehicle systems.

4.4 ലൈവ് ഡാറ്റ മോണിറ്ററിംഗ്

Monitor real-time data parameters from various sensors and modules. The ArtiDiag600 Elite allows you to compare up to four data streams simultaneously, which is crucial for identifying intermittent issues and analyzing vehicle performance trends.

4.5 Diagnostic Report Generation

After completing a diagnostic session, the tool can generate detailed professional reports. These reports can be easily shared via email or QR code, providing a convenient way to document and communicate findings.

Figure 4.2: Visual representation of Smart AutoVIN, graphic live data, online user feedback, and diagnostic report generation features.

4.6 FCA Gateway and CAN-FD Support

The ArtiDiag600 Elite supports FCA Gateway access, enabling full diagnostics on newer Chrysler, Jeep, Dodge, and Fiat models from 2017 onwards. It also supports the CAN-FD protocol, ensuring compatibility with the latest vehicle models, including select GM and Chrysler vehicles from 2020-2024.

Figure 4.3: Diagram illustrating the FCA Gateway access and CAN-FD protocol support for modern vehicles.

5. Maintenance and Reset Services

The ArtiDiag600 Elite provides 13 essential and advanced reset services to assist with routine vehicle maintenance and specific system recalibrations. These functions help ensure your vehicle operates optimally and can save time and costs associated with dealership visits.

5.1 Essential Reset Services (9 Functions)

• ഓയിൽ റീസെറ്റ്: Resets the oil life system after an oil change.
• ത്രോട്ടിൽ അഡാപ്റ്റേഷൻ: ത്രോട്ടിൽ ആക്യുവേറ്ററുകളെ ഡിഫോൾട്ട് അവസ്ഥയിലേക്ക് ഇനീഷ്യലൈസ് ചെയ്യുന്നു.
• SAS റീസെറ്റ് (സ്റ്റിയറിങ് ആംഗിൾ സെൻസർ): Performs calibration for the Steering Angle Sensor.
• Brake Reset (EPB): Resets the electronic parking brake pads after replacement.
• TPMS റീസെറ്റ് (ടയർ പ്രഷർ മോണിറ്ററിംഗ് സിസ്റ്റം): Resets tire pressure sensors after replacement or rotation.
• ബിഎംഎസ് റീസെറ്റ് (ബാറ്ററി മാനേജ്മെന്റ് സിസ്റ്റം): Registers the new battery after replacement.
• എബിഎസ് രക്തസ്രാവം: Bleeds air from the brake system after component replacement.
• DPF Regeneration (Diesel Particulate Filter): ഡിപിഎഫ് ഫിൽട്ടറിൽ നിന്ന് കണികാ പദാർത്ഥം നീക്കം ചെയ്യുന്നു.
• ഇൻജക്ടർ കോഡിംഗ്: പുതിയ ഇൻജക്ടർ നമ്പറുകൾ ഇസിയുവിലേക്ക് കോഡ് ചെയ്യുന്നു.

5.2 Advanced Reset Services (4 Functions)

• AFS Reset (Adaptive Front-lighting System): Initializes the adaptive headlight system.
• AdBlue Reset: Resets the urea level after AdBlue fluid refill.
• Stop/Start Reset: Resets the engine start-stop system.
• Windows Calibration: Performs window initialization/calibration.

ചിത്രം 5.1: ഓവർview of the 13 essential and advanced maintenance functions available on the ArtiDiag600 Elite.

6. പ്രശ്‌നപരിഹാരം

This section provides general guidance for common issues you might encounter while using the ArtiDiag600 Elite. For more detailed troubleshooting or specific technical assistance, please refer to the support section.

6.1 ഉപകരണം ഓണാക്കുന്നില്ല

• Ensure the device is fully charged. Connect it to a power source using the provided Type-C USB cable and allow it to charge for at least 30 minutes before attempting to power it on again.
• Verify that the power button is being pressed and held for a sufficient duration (typically 3-5 seconds).

6.2 Failure to Connect to Vehicle

• Check that the OBD 16 Pin Diagnostic Cable is securely connected to both the ArtiDiag600 Elite and the vehicle's OBD2 port.
• Ensure the vehicle's ignition is in the 'ON' position (engine off).
• Verify that the vehicle's battery has sufficient voltagഇ. കുറഞ്ഞ ബാറ്ററി വോളിയംtage ആശയവിനിമയം തടയാൻ കഴിയും.
• Confirm that the vehicle model is supported by the ArtiDiag600 Elite. Refer to the vehicle coverage list in the specifications or on the TOPDON webസൈറ്റ്.

6.3 Diagnostic Functions Not Working

• Ensure the device software is up-to-date. Outdated software may lack support for newer vehicle systems or specific functions.
• Verify that the specific function (e.g., a reset service) is supported for your vehicle's make, model, and year. Not all functions are universally applicable.
• If an error message appears, note the message and consult the user manual or TOPDON support for specific guidance.

7 സ്പെസിഫിക്കേഷനുകൾ

Figure 7.1: Illustration of the ArtiDiag600 Elite's extensive vehicle compatibility across American, European, and Asian brands.

8. വാറൻ്റിയും പിന്തുണയും

8.1 വാറൻ്റി വിവരങ്ങൾ

The TOPDON ArtiDiag600 Elite comes with a 1 വർഷത്തെ വാറൻ്റി from the date of purchase. This warranty covers manufacturing defects and ensures reliable operation of your device. Please retain your proof of purchase for warranty claims.

8.2 Free Software Updates

ആസ്വദിക്കൂ 2 years of FREE software and vehicle coverage updates. These updates are crucial for keeping your ArtiDiag600 Elite compatible with the latest vehicle models and diagnostic technologies. Updates can be performed directly on the device via Wi-Fi.

8.3 ഉപഭോക്തൃ പിന്തുണ

TOPDON provides professional customer service available 24/7 to assist you with any questions, technical issues, or troubleshooting needs. You can reach out to TOPDON support through their official website or the contact information provided in the quick user guide.
