ആമുഖവും അവസാനവുംview
This manual provides detailed instructions for the TOWILD CL600+ACL01 Bike Headlight, designed for night riding and compatible with Garmin/GoPro mounts. It features 600 lumens brightness, a 2000mAh rechargeable battery, and IPX6 waterproofing.
The TOWILD CL600+ACL01 Bike Light is an industrial-designed headlight with an aircraft-grade aluminum body, ensuring tough and reliable construction. It offers excellent rigidity and anti-corrosion properties, and its IPX6 waterproof rating allows it to withstand heavy rain.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
The CL600+ACL01 bike light offers versatile mounting options. It supports under-mount installation, allowing the headlight to sit on top or hang below the handlebars, freeing up space on the front frame.
The remote control allows adjustment of brightness and modes according to riding conditions, and can be used to reach highest brightness for alerts.
The light is compatible with Garmin and GoPro mounts, ensuring secure attachment to various setups including out-front mounts, GoPro mounts, and helmets.
This video demonstrates the process of pairing the wireless remote control with the TOWILD bike light, showing how to activate the pairing mode on both devices for seamless control during rides.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
The bike light features a smart mode that automatically turns off after 2 minutes of no vibration and turns on when sensing vibration, conserving battery power.
The light offers 5 lighting modes: High (600LM), Mid (300LM), Low (150LM), and two Flash modes. Single-click to switch between brightness levels, double-click for flash modes. Long press to turn on/off.
The anti-glare lens reduces glare and ensures safety for oncoming traffic while maintaining high visibility for the rider.
This video showcases the various lighting modes and brightness levels of the TOWILD CL1200 Bike Light, demonstrating its performance in different riding conditions and highlighting its smart features.
പരിപാലനവും പരിചരണവും

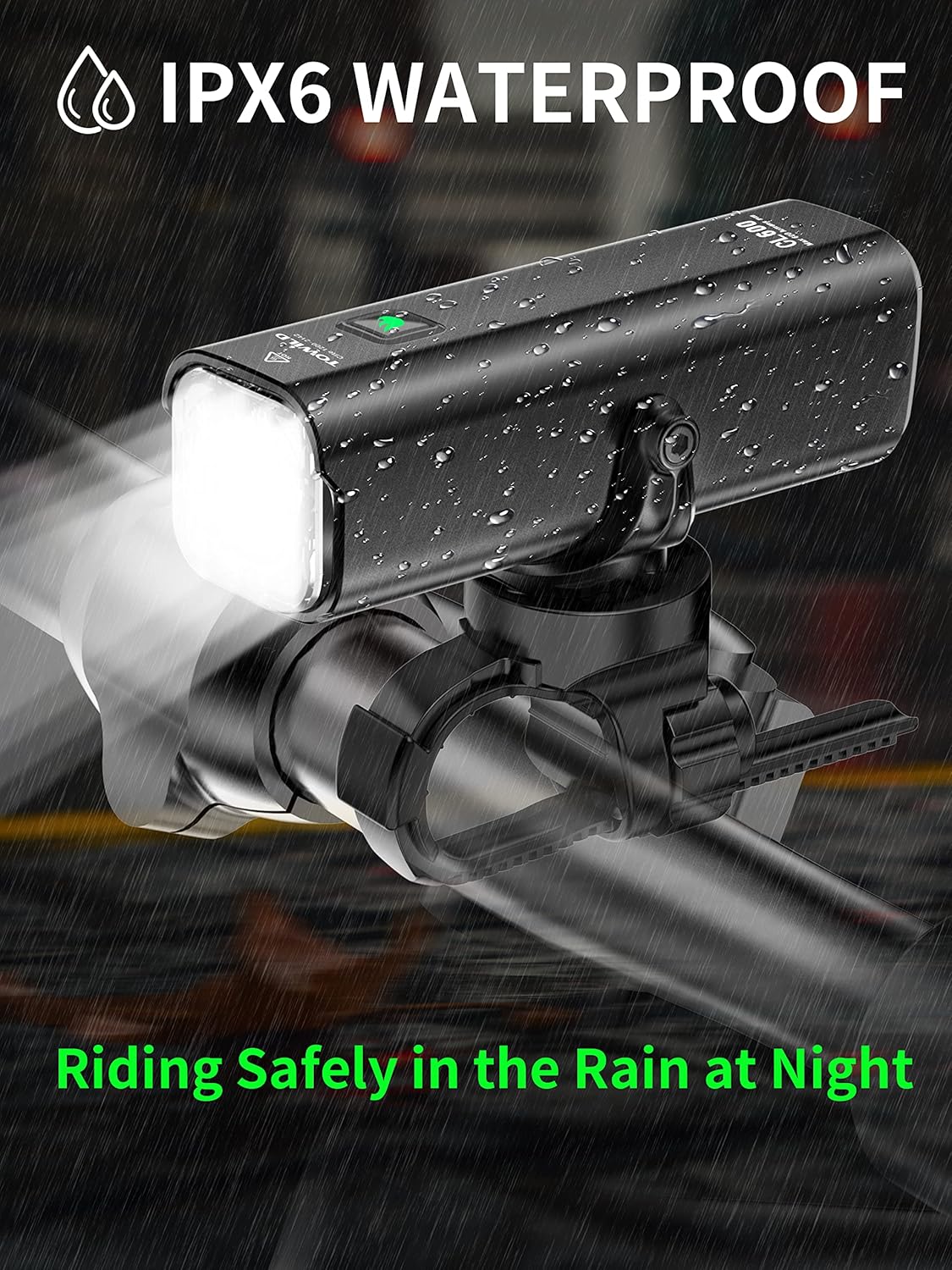

The CL600+ACL01 is IPX6 waterproof, ensuring durability in various weather conditions. It also includes overheat protection, automatically reducing brightness when the light overheats to prolong its lifespan.
The light features a built-in 2000mAh rechargeable battery and supports Type-C charging. It can also act as an emergency power supply for other electronic products.
ട്രബിൾഷൂട്ടിംഗ്
ലൈറ്റ് ഓണാക്കുന്നില്ല
Ensure the battery is charged. Connect the light to a Type-C charger and check the battery indicator.
If using the remote, ensure it is properly paired with the light. Refer to the "Setup & Installation" section for pairing instructions.
Light Turning Off Unexpectedly
In smart mode, the light turns off after 2 minutes of no vibration. Ensure you are in the correct mode for continuous lighting if needed.
Check for overheating. The light automatically reduces brightness or turns off if it overheats. Allow it to cool down.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | TOWILD |
| മോഡലിൻ്റെ പേര് | Clight |
| ശൈലി | Cl600+acl01 |
| നിറം | CL600 BIKE LIGHT WITH REMOTE |
| മെറ്റീരിയൽ | അലുമിനിയം |
| പവർ ഉറവിടം | ബാറ്ററി പവർ |
| തെളിച്ചം | 600 ല്യൂമെൻ |
| ക്രമീകരണങ്ങളുടെ എണ്ണം | 1 (main switch, multiple modes via remote) |
| ജല പ്രതിരോധ നില | വാട്ടർപ്രൂഫ് (IPX6) |
| മൗണ്ടിംഗ് തരം | Frame Mount (Garmin/GoPro compatible) |
| ബാറ്ററി ശേഷി | 2000mAh |
| Service Life (LED) | 50,000 മണിക്കൂർ |
വാറൻ്റി & പിന്തുണ
The TOWILD CL600+ACL01 Bike Light comes with a 2-Years Guarantee from the manufacturer.
For further support or inquiries, please visit the official TOWILD Store.
