ആമുഖം
The MTX TH1400.5 is a versatile 5-channel Class-D amplifier from the MTX Thunder Series, designed to power your entire car audio system. This amplifier provides full-range clarity for your speakers and deep, impactful bass for your subwoofer, all within a compact footprint. Each unit includes a Dyno Certificate, verifying its performance exceeds rated specifications, ensuring reliable and powerful output.
പ്രധാന സവിശേഷതകൾ
- ഓൾ-ഇൻ-വൺ Amplification Solution: Powers your entire car audio system with its versatile five-channel design, providing 100 watts RMS per channel for speakers at 2Ω and 800 watts RMS for the subwoofer at 1Ω.
- Customizable Sound Control: Fine-tune your audio with adjustable gain, crossover, and bass boost settings for each channel. Controls are hidden beneath a sleek panel for a clean installation.
- Efficient and Reliable Class-D Technology: Utilizes advanced Class-D circuitry for high efficiency, reducing heat and power consumption. Includes built-in thermal, short, and voltage protection systems.
- Compact Design with Big Power: Despite its impressive 1400-watt RMS output, the TH1400.5 features a compact chassis for easy installation in tight spaces.
- Convenient Subwoofer Control: An external wired bass control remote is included, allowing quick adjustment of bass levels from the driver’s seat.
- High-Quality Inputs: Features Tiffany-style RCA inputs and 10V high-level audio input compatibility.
- Clip Detection Light: Aids in tuning optimization.
- Dyno Power Rating Certificate: ഓരോന്നും amplifier comes with a certificate verifying its actual power output.
ഉൽപ്പന്നം കഴിഞ്ഞുview
ഔദ്യോഗിക ഉൽപ്പന്നം അവസാനിച്ചുview: ഈ വീഡിയോ ഒരു സമഗ്രമായ ഓവർ നൽകുന്നുview MTX തണ്ടർ സീരീസിന്റെ Amplifiers, including the TH1400.5. It highlights key features, compact design, and the range of models available, demonstrating their power and versatility for various car audio setups.
The MTX Thunder Series offers a range of amplifiers designed for various car audio needs, all featuring a compact footprint with significant power output. This series includes monoblock amplifiers like the TH750.1, TH1500.1, and TH2500.1 for powering subwoofers, and multi-channel amplifiers such as the TH400.4, TH800.4, TH900.6, and the TH1400.5 (which includes a built-in sub-amp for an all-in-one system solution).
ഘടകങ്ങളും പാക്കേജിംഗും

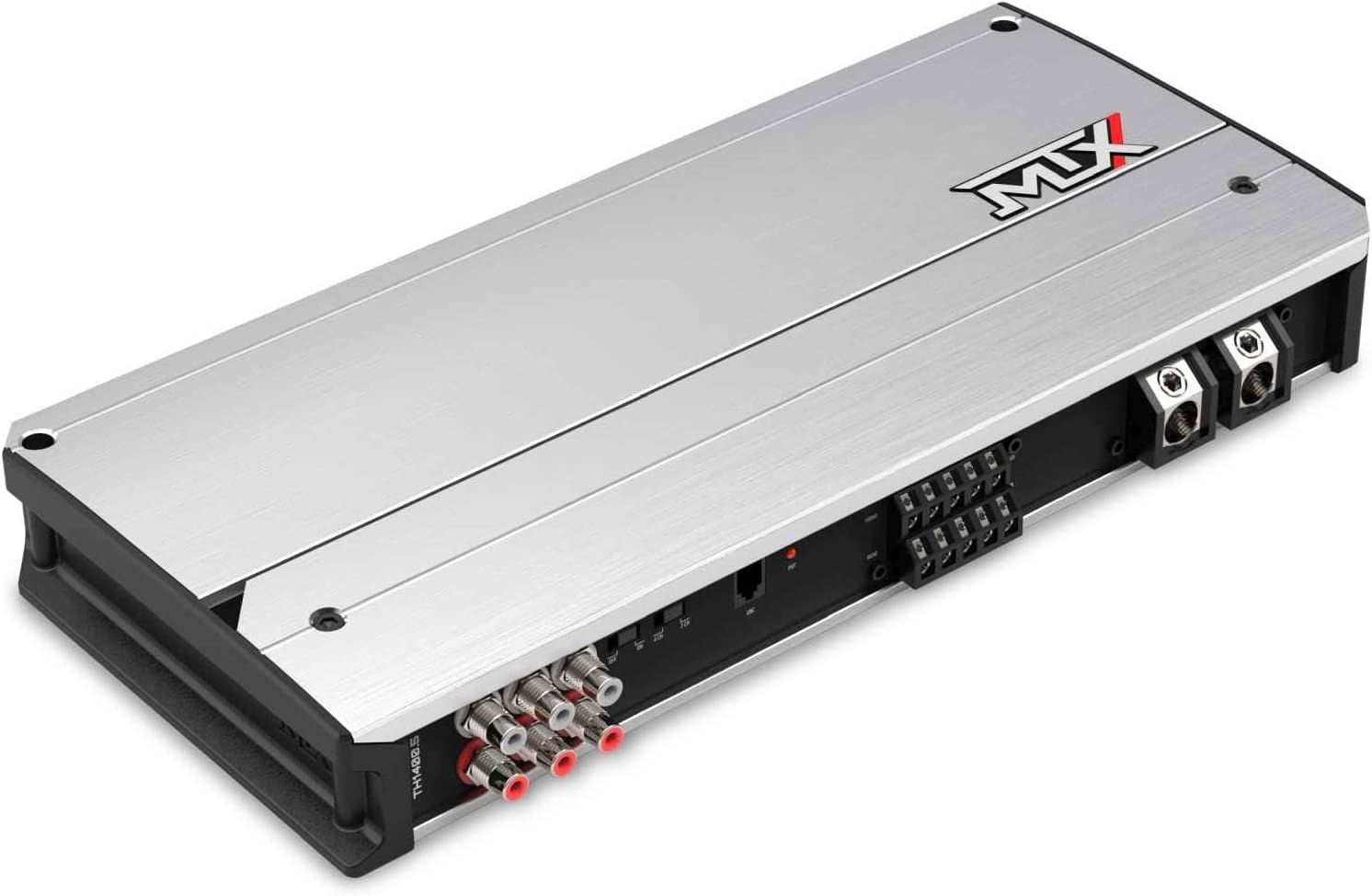

ചിത്രം 1: The MTX TH1400.5 Thunder Series 5-Channel Amplifier features a sleek, brushed aluminum finish with the MTX logo prominently displayed. This top-down view highlights its compact design.
ചിത്രം 2: The included wired remote control allows for convenient adjustment of bass levels from the driver's seat. This remote is standard with TH750.1, TH1500.1, TH2500.1, and TH1400.5 models.
Each MTX Thunder Series amplifier comes with a Dyno Certificate, providing verified power output measurements. For example, a TH1500.1 amplifier might test out at 1751 watts, exceeding its rated power. This ensures you receive the advertised performance and more.
The packaging for all Thunder Series amplifiers features a uniform family look, with the amplifier displayed on the front and detailed specifications, including power ratings, on the back. This transparency ensures customers are well-informed about the product's capabilities.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Before installation, ensure your vehicle's battery is disconnected. Proper wiring and grounding are crucial for optimal performance and safety. Refer to the detailed wiring diagrams in the full user manual for specific connections.

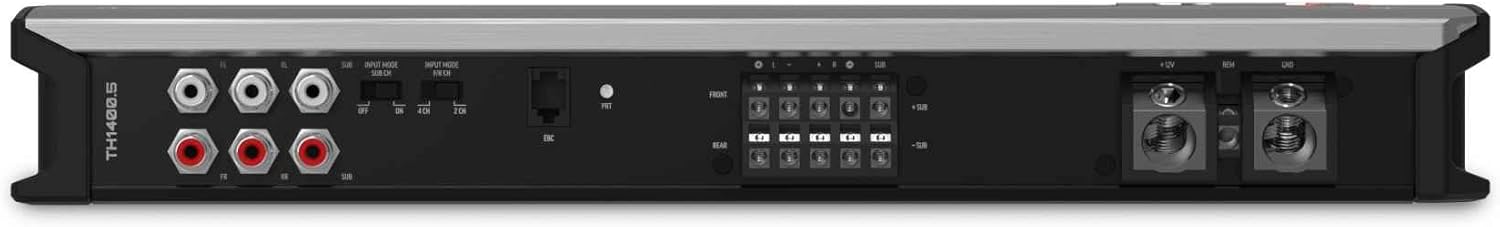

ചിത്രം 3: എ വിശദമായി view യുടെ amplifier's rear panel, showcasing the various input and output terminals for audio connections and power. Ensure all connections are secure and properly insulated.
ചിത്രം 4: This image shows the MTX TH1400.5 amplifier with its protective top cover removed, revealing the hidden control panel for adjustments. The cover can be removed using the supplied Allen head wrench.
മൗണ്ടിംഗ്
Choose a mounting location that is dry, well-ventilated, and away from direct heat sources. The compact design of the TH1400.5 allows for flexible placement in various vehicle interiors. Secure the amplifier firmly using appropriate mounting hardware.
പ്രവർത്തനവും ക്രമീകരണങ്ങളും
The TH1400.5 features a hidden control panel for precise audio adjustments. This panel is accessible by removing the top cover using the supplied Allen head wrench. Once adjusted, the cover can be re-secured for a clean look and to protect settings.
ചിത്രം 5: This close-up highlights the adjustable controls for Low Pass Filter (LPF), Boost, Subsonic filter, Phase, and Gain, along with a Clip indicator. These controls are easily accessible from the top of the ampജീവൻ.
നിയന്ത്രണ പ്രവർത്തനങ്ങൾ:
- LPF (ലോ പാസ് ഫിൽട്ടർ): Adjusts the upper frequency limit for the subwoofer channel.
- ബൂസ്റ്റ്: Controls the bass boost level for enhanced low-frequency output.
- സബ്സോണിക്: Filters out ultra-low frequencies that are inaudible and can damage subwoofers.
- ഘട്ടം: Adjusts the phase of the subwoofer output (0° or 180°) to optimize bass integration with other speakers.
- നേട്ടം: പൊരുത്തപ്പെടുന്നു ampഔട്ട്പുട്ട് വോളിയത്തിലേക്കുള്ള ലൈഫയറിന്റെ ഇൻപുട്ട് സെൻസിറ്റിവിറ്റിtage of your head unit. Use the Clip detection light for optimal setting.
- ക്ലിപ്പ് സൂചകം: Illuminates when the input signal is clipping, indicating distortion. Adjust gain down until the light no longer illuminates during peak playback.
The external bass control remote (Figure 2) provides convenient, on-the-fly adjustment of the subwoofer level without needing to access the ampനേരിട്ട് ലൈഫയർ.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| വിവരണം | 5-ചാനൽ Ampജീവപര്യന്തം |
| ടോപ്പോളജി | ക്ലാസ് ഡി |
| 4Ω RMS പവർ ഔട്ട്പുട്ട് | 100W x 4 Channels + 300W (Sub) |
| 2Ω RMS പവർ ഔട്ട്പുട്ട് | 150W x 4 Channels + 500W (Sub) |
| 4Ω RMS Bridged Power Output | 300W x 2 Channels (1/2/3/4) |
| 1Ω RMS പവർ ഔട്ട്പുട്ട് | 800W (Sub Only) |
| THD | <0.4% |
| സിഗ്നൽ ടു നോയ്സ് റേഷ്യോ | > 95dB |
| Frequency Response (Ch1-4) | 20Hz - 20KHz |
| Frequency Response (Sub) | 20Hz - 250Hz |
| Crossover (Ch1-4) | 40Hz - 400Hz |
| Crossover (Sub) | 50Hz - 250Hz |
| സബ്സോണിക് ഫിൽട്ടർ | 10Hz - 55Hz (Sub) |
| പരമാവധി ഇൻപുട്ട് സിഗ്നൽ | 10V |
| ഇനത്തിൻ്റെ ഭാരം | 9.06 പൗണ്ട് |
| പാക്കേജ് അളവുകൾ | 16.93 x 9.45 x 3.15 ഇഞ്ച് |
മെയിൻ്റനൻസ്
To ensure the longevity and optimal performance of your MTX TH1400.5 amplifier, regular maintenance is recommended. Keep the amplifier clean and free from dust and debris. Ensure proper ventilation around the unit to prevent overheating. Periodically check all wiring connections for tightness and corrosion. Avoid exposing the ampതീവ്രമായ ഊഷ്മാവിലേക്കോ ഈർപ്പത്തിലേക്കോ ലിഫയർ.
ട്രബിൾഷൂട്ടിംഗ്
നിങ്ങളുടെ ഉപകരണത്തിൽ പ്രശ്നങ്ങൾ അനുഭവപ്പെടുകയാണെങ്കിൽ amplifier, consult the following basic troubleshooting steps before seeking professional assistance:
- ശക്തിയില്ല: Check all power and ground connections. Verify the fuse is intact. Ensure the remote turn-on wire is receiving a signal.
- ഓഡിയോ ഔട്ട്പുട്ട് ഇല്ല: Confirm all RCA input and speaker output connections are secure. Check the head unit's settings and ensure it is sending an audio signal. Verify the ampലിഫയറിന്റെ ഗെയിൻ ക്രമീകരണങ്ങൾ വളരെ കുറവല്ല.
- വികലമായ ശബ്ദം: Reduce the gain setting. Check for proper impedance matching with your speakers/subwoofers. Ensure the input signal is not clipping (monitor the Clip indicator light).
- Ampലിഫയർ അമിത ചൂടാക്കൽ: ചുറ്റും മതിയായ വായുസഞ്ചാരം ഉറപ്പാക്കുക amplifier. Check speaker/subwoofer impedance to ensure it's within the amplifier's stable operating range.
For more detailed troubleshooting, refer to the complete user manual or contact MTX customer support.
വാറൻ്റിയും പിന്തുണയും
MTX TH1400.5 തണ്ടർ സീരീസ് Ampലൈഫയർ ഒരു കൂടെ വരുന്നു 2 വർഷത്തെ വാറൻ്റി, ensuring confidence in your purchase. For warranty claims, technical support, or further assistance, please refer to the contact information provided in your product packaging or visit the official MTX webസൈറ്റ്.
Manufacturer: MTX
