Refoss Smart Plug MSS301 User Manual

ആമുഖം

This manual provides essential information for the safe and efficient operation of your Refoss Smart Plug (Model MSS301). Please read these instructions thoroughly before use and retain them for future reference.

The Refoss Smart Plug is designed to offer intelligent control and energy monitoring for your household appliances. It features real-time energy consumption tracking, solar production monitoring, Time-of-Use (TOU) tariff support, overcurrent and overheating protection, and smart control via app and voice assistants like Alexa and Google Home.

സുരക്ഷാ വിവരങ്ങൾ

• Ensure the smart plug is used within its specified electrical ratings (240V, 10A, 2400W).
• ഉപകരണം ഡിസ്അസംബ്ലിംഗ് ചെയ്യുകയോ റിപ്പയർ ചെയ്യുകയോ പരിഷ്കരിക്കുകയോ ചെയ്യരുത്.
• വെള്ളത്തിലോ ഈർപ്പമുള്ള അന്തരീക്ഷത്തിലോ എക്സ്പോഷർ ചെയ്യുന്നത് ഒഴിവാക്കുക.
• കുട്ടികൾക്ക് ലഭ്യമാകാതെ സൂക്ഷിക്കുക.
• The device is made of high-quality flame-retardant ABS material.
• ഇൻഡോർ ഉപയോഗത്തിന് മാത്രം.

പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ ഉൾപ്പെടുന്നു:

• 4 x Refoss Smart Plugs (MSS301)
• 1 x ഉപയോക്തൃ മാനുവൽ

സജ്ജമാക്കുക

1. പ്രാരംഭ കണക്ഷൻ

1. Plug the Refoss Smart Plug into a standard wall outlet.
2. Ensure your Wi-Fi network is 2.4 GHz. The smart plug does not support 5 GHz Wi-Fi.
3. Download the Refoss app from your smartphone's app store (iOS or Android).

2. ആപ്പ് ജോടിയാക്കൽ

1. Open the Refoss app and create an account or log in.
2. Follow the in-app instructions to add a new device. This typically involves selecting the device type and entering your Wi-Fi credentials.
3. The smart plug's indicator light will guide you through the pairing process.

3. വോയ്‌സ് അസിസ്റ്റന്റ് ഇന്റഗ്രേഷൻ (അലക്‌സ/ഗൂഗിൾ ഹോം)

1. Once the smart plug is successfully paired with the Refoss app, open your Alexa or Google Home app.
2. Enable the "Refoss" skill/service within the voice assistant app.
3. Discover devices. Your smart plug should now be controllable via voice commands.

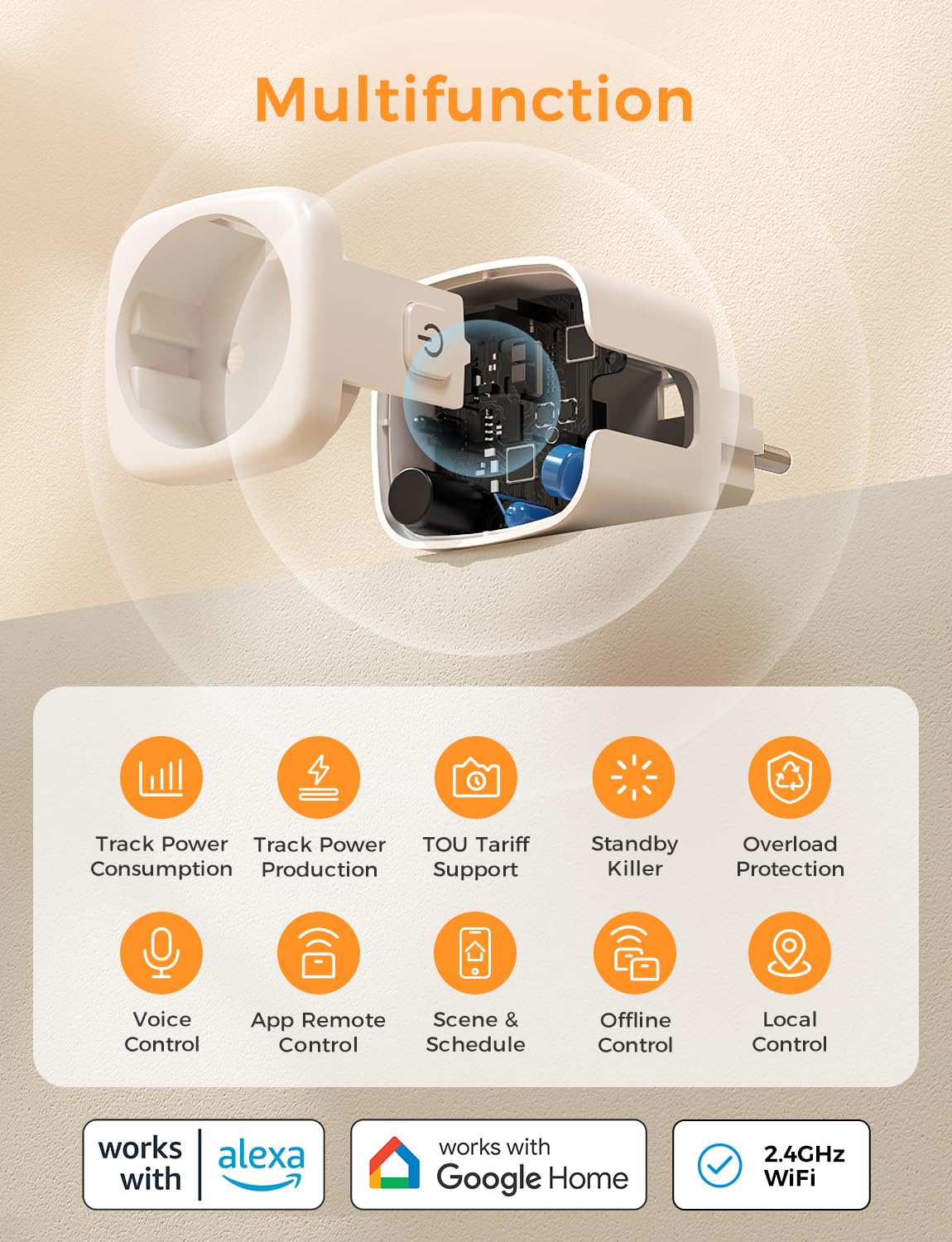

ചിത്രം: കഴിഞ്ഞുview of Refoss Smart Plug's multifunction capabilities, including power consumption tracking, power production tracking, TOU tariff support, standby killer, overload protection, voice control, app remote control, scene & schedule, offline control, and local control. It also highlights compatibility with Alexa, Google Home, and 2.4GHz WiFi.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. ആപ്പ് വഴി റിമോട്ട് കൺട്രോൾ

Use the Refoss app to turn connected devices on or off from anywhere with internet access. You can also monitor energy usage and set schedules.

Image: A smartphone displaying the Refoss app interface, showing various smart devices (light, fan, heater, toaster) that can be controlled remotely. This demonstrates the app's ability to control home appliances from any location with internet access.

2. ശബ്ദ നിയന്ത്രണം

Control your smart plug using voice commands through Alexa or Google Home. For example, say "Alexa, turn on the lamp" or "Hey Google, turn off the coffee machine."

Image: An Amazon Echo Dot device on a wooden table next to a lamp, with a Refoss Smart Plug connected to the lamp. Text bubbles show "Alexa, turn on the lamp." and "Okay.", illustrating voice control functionality.

3. എനർജി മോണിറ്ററിംഗ്

The Refoss app provides real-time energy consumption data for devices connected to the smart plug. This allows you to identify high-power appliances and optimize energy usage.

Image: A Refoss Smart Plug connected to a lamp, with a smartphone displaying the Refoss app's power monitoring interface. The screen shows current power consumption (913.28W) and historical data for week, month, and year, helping users track energy usage.

4. Solar Production Monitoring

For users with photovoltaic installations, the app can display the amount of electricity your solar system produces, helping you align your energy consumption with solar generation.

Image: A house with solar panels on the roof, and a smartphone displaying the Refoss app's electricity production monitoring. The app shows current power (913.28W) and historical data for solar energy generation, allowing users to track their photovoltaic system's output.

5. Time-of-Use (TOU) Tariff Support

Configure the smart plug to automatically operate high-energy devices during off-peak hours when electricity rates are lower, reducing your electricity costs.

Image: A split image showing a room with a heater. On the left, the heater is off during peak time/high tariff. On the right, the heater is on during off-peak time/low tariff. A smartphone displays the Refoss app's electricity bill calculation with rate tiers and peak/mid-peak/off-peak time periods, illustrating how TOU tariff support helps adjust power use for cheaper rates.

6. Standby Killer Feature

The smart plug can automatically power off appliances when they enter standby mode, eliminating phantom load and saving energy. You can customize the power-off threshold in the app.

Image: A collage of appliances (TV, fan, coffee machine, printer) that can be automatically powered off when in standby mode. A smartphone screen shows the "Standby Killer" settings in the Refoss app, allowing users to set a power-off threshold and receive notifications, promoting energy saving.

7. Schedules and Scenes

Set timers, schedules, and scenes (e.g., "Good Morning," "Good Night") to automate device operation. Schedules can function even if internet connectivity is temporarily lost.

Image: A kitchen scene with a smartphone displaying the Refoss app's "Smart" section, showing various scenes and routines like "Sunrise," "Sunset," "Good Night," and "Have a Good Weekend." Text bubbles indicate automated actions like "Closed at 20:30" and "Open at 13:00", demonstrating how users can set scenes and schedules for their smart devices.

മെയിൻ്റനൻസ്

• Clean the smart plug with a dry, soft cloth. Do not use liquid cleaners.
• Regularly check for firmware updates through the Refoss app to ensure optimal performance and security.
• Ensure the plug is not obstructed or covered, allowing for proper ventilation.

ട്രബിൾഷൂട്ടിംഗ്

1. Device Not Connecting to Wi-Fi

• Ensure your Wi-Fi network is 2.4 GHz. The smart plug does not support 5 GHz.
• Check if the Wi-Fi signal strength is adequate at the plug's location.
• നിങ്ങളുടെ വൈഫൈ റൂട്ടർ പുനരാരംഭിച്ച് ജോടിയാക്കൽ പ്രക്രിയ വീണ്ടും ശ്രമിക്കുക.
• നിങ്ങൾ ശരിയായ വൈഫൈ പാസ്‌വേഡ് നൽകിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.

2. Voice Control Not Working

• Verify that the Refoss skill/service is enabled in your Alexa or Google Home app.
• Ensure the smart plug is named clearly and uniquely in the Refoss app and recognized by your voice assistant.
• നിങ്ങളുടെ ഇൻ്റർനെറ്റ് കണക്ഷൻ പരിശോധിക്കുക.

3. Overcurrent/Overheating Protection Triggered

• If the plug automatically turns off, it may be due to an overcurrent or overheating event.
• Unplug the connected device and check its power consumption. Ensure it does not exceed the smart plug's maximum rating (10A, 2400W).
• Allow the smart plug to cool down if overheating is suspected.

സ്പെസിഫിക്കേഷനുകൾ

വാറൻ്റിയും പിന്തുണയും

Refoss provides a 2-year customer service warranty for this product. For any questions or technical assistance, please contact Refoss customer support through the official webസൈറ്റ് അല്ലെങ്കിൽ ഉൽപ്പന്ന പാക്കേജിംഗിൽ നൽകിയിരിക്കുന്ന ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ.

Please note that warranty coverage may vary based on regional regulations and purchase location. Keep your proof of purchase for warranty claims.
