EPEVER XTRA4210N-G3 MPPT Solar Charge Controller User Manual

1. ആമുഖം

The EPEVER XTRA4210N-G3 MPPT Solar Charge Controller is an advanced maximum power point tracking (MPPT) device designed for off-grid photovoltaic systems. It efficiently manages power from solar panels to charge various battery types, including Sealed, Gel (AGM), Flooded, LiFePO4, and Li(NiCoMn)O2 batteries. This controller features a common negative grounding design, ensuring compatibility with diverse applications such as communication base stations, household systems, street lighting, and RV solar setups.

Key features include high tracking efficiency up to 99.5%, peak conversion efficiency of 98%, and an ultra-quiet design. The G3 version introduces independent voltage regulation, allowing direct load connection even without a battery, and enhanced protection mechanisms for system integrity.

ചിത്രം 1: ഓവർview of EPEVER XTRA-N-G3 MPPT Solar Charge Controller features.

2. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

Proper installation is crucial for the safe and efficient operation of your EPEVER XTRA4210N-G3 controller. Follow the connection sequence carefully.

2.1 Connection Sequence

1. ബാറ്ററി കൺട്രോളറുമായി ബന്ധിപ്പിക്കുക.
2. Connect the load to the controller.
3. Connect the PV array (solar panels) to the controller.

വിച്ഛേദിക്കൽ ക്രമം: To disconnect the system, reverse the connection order: first disconnect the PV array, then the load, and finally the battery.

Figure 2: Recommended connection and disconnection order for the solar system components.

2.2 Wiring Recommendations

• The cable length for the battery should not exceed 3 meters.
• The recommended cable length for the PV array should not exceed 3 meters. If the PV array cable length is less than 3 meters, the system meets EN/IEC61000-6-3 requirements. If it exceeds 3 meters, the system may not meet these requirements.
• Controller Terminals: #6AWG (16mm²).
• Recommended Wire Cable: #8AWG (10mm²).

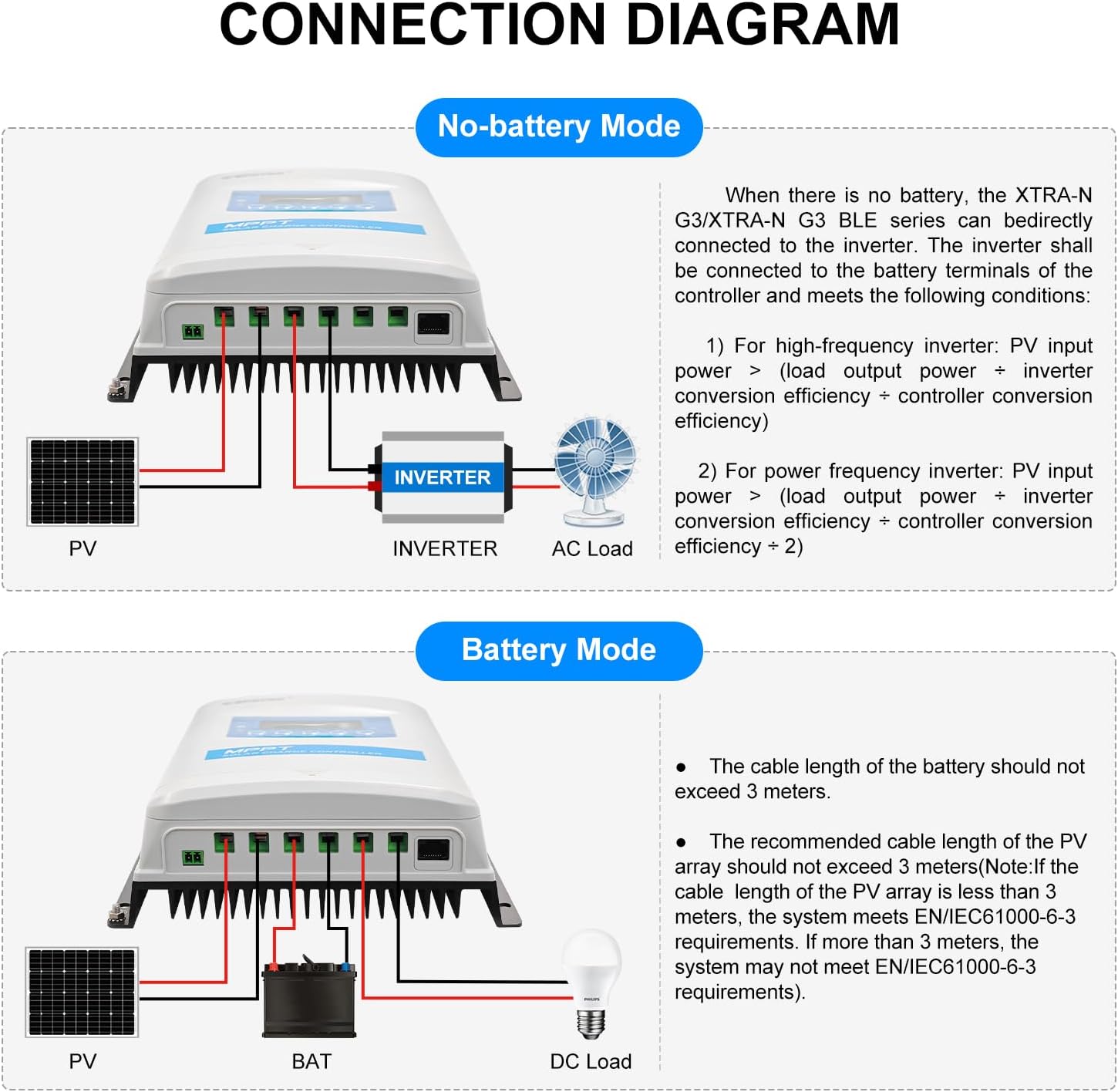

Figure 3: Connection diagrams for both No-battery Mode and Battery Mode configurations.

2.3 സിസ്റ്റം കഴിഞ്ഞുview

The controller supports 12V/24V DC auto-work for lead-acid batteries and manual selection for lithium battery systems. It can handle a maximum PV input power of 520W for a 12V battery system or 1040W for a 24V battery system, with a maximum PV open circuit voltage of 100V (at minimum operating environment temperature) or 92V (at 25°C environment temperature).

Figure 4: System capabilities including PV input power, supported battery types, and MPPT charging characteristics.

3. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

3.1 MPPT Algorithm and Adaptive Charging

The XTRA4210N-G3 utilizes a revolutionary MPPT algorithm that enhances tracking and response speeds, reduces losses, and minimizes downtime. It improves efficiency across various power segments and optimizes energy extraction in all scenarios. The adaptive charging features stages like bulk, boost, equalize, and float, which optimize battery health, lifespan, and overall performance.

Figure 5: MPPT algorithm and adaptive charging stages for optimal battery charging.

3.2 ബാറ്ററി തരം തിരഞ്ഞെടുക്കൽ

The controller supports multiple battery types. For Lead-acid batteries (Sealed, Gel, Flooded), you can select the type directly. For Lithium batteries (LiFePO4, Li(NiCoMn)O2), or custom user settings, parameters need to be configured via accessories like MT50 (remote meter), BLE/WiFi Adapter (APP), eLOG01, or PC software via the RS485 interface.

Figure 6: Supported battery types and methods for setting lithium battery parameters.

3.3 Display and Control Interface

The controller features a three-color LED indicator and an LCD display to show PV, Battery, and Load working status intuitively. Five buttons allow for easy adjustment and browsing of system parameters.

Figure 7: Controller display interface and battery type selection options.

3.4 Load Working Modes

The controller offers various load control modes, including Manual, Light ON/OFF, Light ON plus Timer, and User-defined settings. These modes allow for flexible management of connected loads based on user requirements and environmental conditions.

Figure 8: Load working modes for flexible power management.

4. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your solar charge controller and battery system.

4.1 ബാറ്ററി ആരോഗ്യം

The controller's adaptive charging stages (bulk, absorption, float, equalization) are designed to prolong the lifecycle of batteries. Ensure correct battery type selection and parameter settings, especially for lithium batteries, to maintain optimal charging conditions.

4.2 സിസ്റ്റം സംരക്ഷണം

The controller includes all-around electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current. These features protect the battery from being over-charged by solar modules and over-discharged by loads. Periodically inspect all connections for tightness and corrosion.

4.3 പരിസ്ഥിതി പരിഗണനകൾ

The controller has a dustproof and waterproof design with IP33 enclosure, making it suitable for various environments. However, ensure it is installed in a well-ventilated area, away from direct sunlight and excessive moisture, to prevent overheating and ensure optimal performance.

5. പ്രശ്‌നപരിഹാരം

This section provides guidance on common issues and protective measures.

5.1 Output Overcurrent Protection

The XTRA4210N-G3 controller features intelligent overcurrent detection and dynamic load management. It quickly detects and responds to excessive current, adjusting output in milliseconds to prevent system overload and ensure continuous operation. This protects the solar system from damage due to overcurrent events.

Figure 9: Comparison of overcurrent protection in a typical system versus the XTRA-N G3 controller.

5.2 Battery Management System (BMS) Disconnection

The G3 version's constant voltage output and limited current features ensure the system runs smoothly even if the BMS disconnects the battery. This protects connected equipment and loads from interruption and potential damage.

5.3 ആശയവിനിമയ പ്രശ്നങ്ങൾ

If experiencing issues with remote monitoring or parameter adjustment, ensure that communication accessories (e.g., BLE/WiFi Adapter, RS485 cable) are correctly connected and configured. Check the respective mobile app or PC software for error messages or connection status.

6 സ്പെസിഫിക്കേഷനുകൾ

6.1 മെക്കാനിക്കൽ പാരാമീറ്ററുകൾ

Figure 10: Mechanical parameters and available accessories for the XTRA series.

6.2 Electrical Parameters (XTRA4210N-G3)

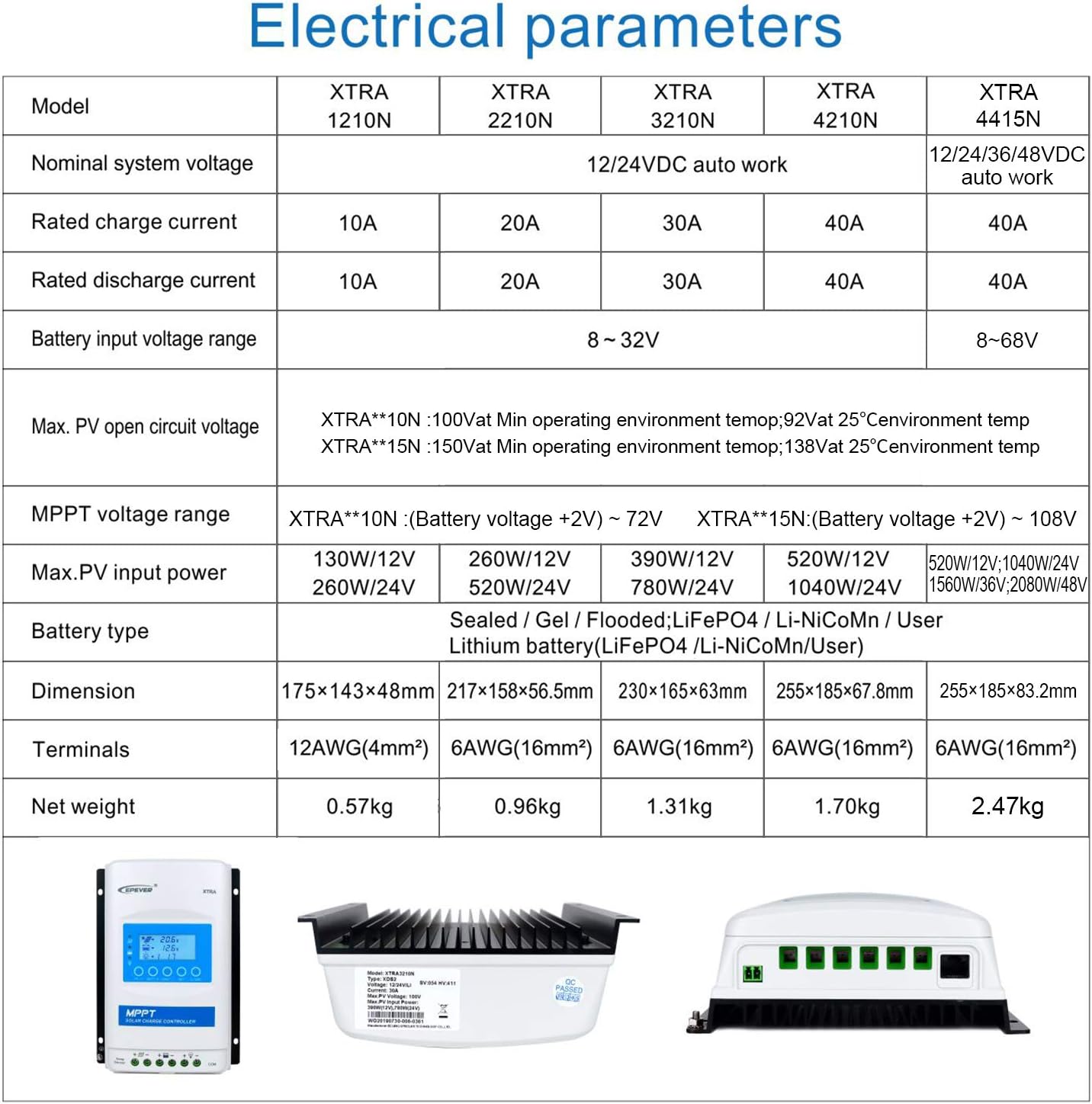

Figure 11: Electrical parameters for the XTRA series solar charge controllers.

7. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the documentation provided with your purchase or contact the authorized EPEVER seller, Goland Century. The product is CE certified (LVD EN/IEC62109, EMC EN61000-6-1/3).

EPEVER offers various accessories to enhance monitoring and control:

• Remote Meter (MT50): For remote monitoring and real-time parameter configuration.
• USB to RS485 Cable (CC-USB-RS485-150U): For monitoring and configuration via PC software.
• WiFi 2.4G Adapter (EPEVER-WiFi-2.4G-RJ45-D): Compatible with mobile app or cloud platform for wireless monitoring and parameter configuration via WiFi signal.
• Bluetooth Adapter (EPEVER-BLE-RJ45-D): Compatible with mobile app for wireless monitoring and parameter configuration via Bluetooth signal.
• Serial Device Server (EPEVER TCP 306): Compatible with mobile app or cloud platform via TCP network communication for remote wireless monitoring. LAN monitoring can be achieved using PC configuration tools and PC software.
• 4G Wireless Data Transmission Terminal (EPEVER RTU 4G HC01): Compatible with mobile app or cloud platform via a GSM or GPRS SIM card for remote wireless monitoring.
• Remote Temperature Sensor (RT-MF58R47K3.81A): For accurate control and protection of charging and discharging by collecting real-time battery temperature.
