ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your Delta Trinsic U-Spout Widespread Bathroom Faucet. Inspired by the sleek elegance of modern European design, the Trinsic Bath Collection is engineered to complement contemporary bathroom aesthetics. This faucet incorporates Delta's advanced Diamond Seal Technology for long-lasting, leak-free performance and is WaterSense labeled, ensuring water efficiency without compromising functionality.

Figure 1: The Delta Trinsic U-Spout Widespread Bathroom Faucet in Champagne Bronze finish, featuring a high arc spout and two lever handles.
ഉൽപ്പന്നം കഴിഞ്ഞുview ഫീച്ചറുകളും
The Delta Trinsic faucet is designed for widespread 3-hole installations, offering both aesthetic appeal and functional excellence. Key features include:
- Diamond Seal Technology: This patented design reduces leak points and ensures the faucet performs like new for life, lasting twice as long as the industry standard.
- ബ്രില്യൻസ് ഫിനിഷുകൾ: Engineered for durability, these finishes are tested for corrosion resistance and are designed to resist cracking, peeling, chipping, blistering, or changing color over time.
- InnoFlex PEX Supply Lines: Integrated directly into the faucet, these supply lines are designed to resist cracks, kinks, and corrosion, reducing potential leak points.
- വാട്ടർസെൻസ് ലേബൽ ചെയ്തിരിക്കുന്നു: Uses at least 20% less water than the industry standard, contributing to water conservation without compromising performance.
- Easy-to-Clean Metal Push-Pop Drain: The included drain assembly unscrews from above the deck for quick removal and easy cleaning of hair and debris.

Figure 2: Illustration of Delta's DIAMOND Seal Technology, highlighting the DIAMOND Valve and InnoFlex PEX supply lines for leak-free operation.

Figure 3: Demonstration of the scratch-resistant and high-performance nature of Delta Brilliance Finishes, tested against household cleaners and abrasion.

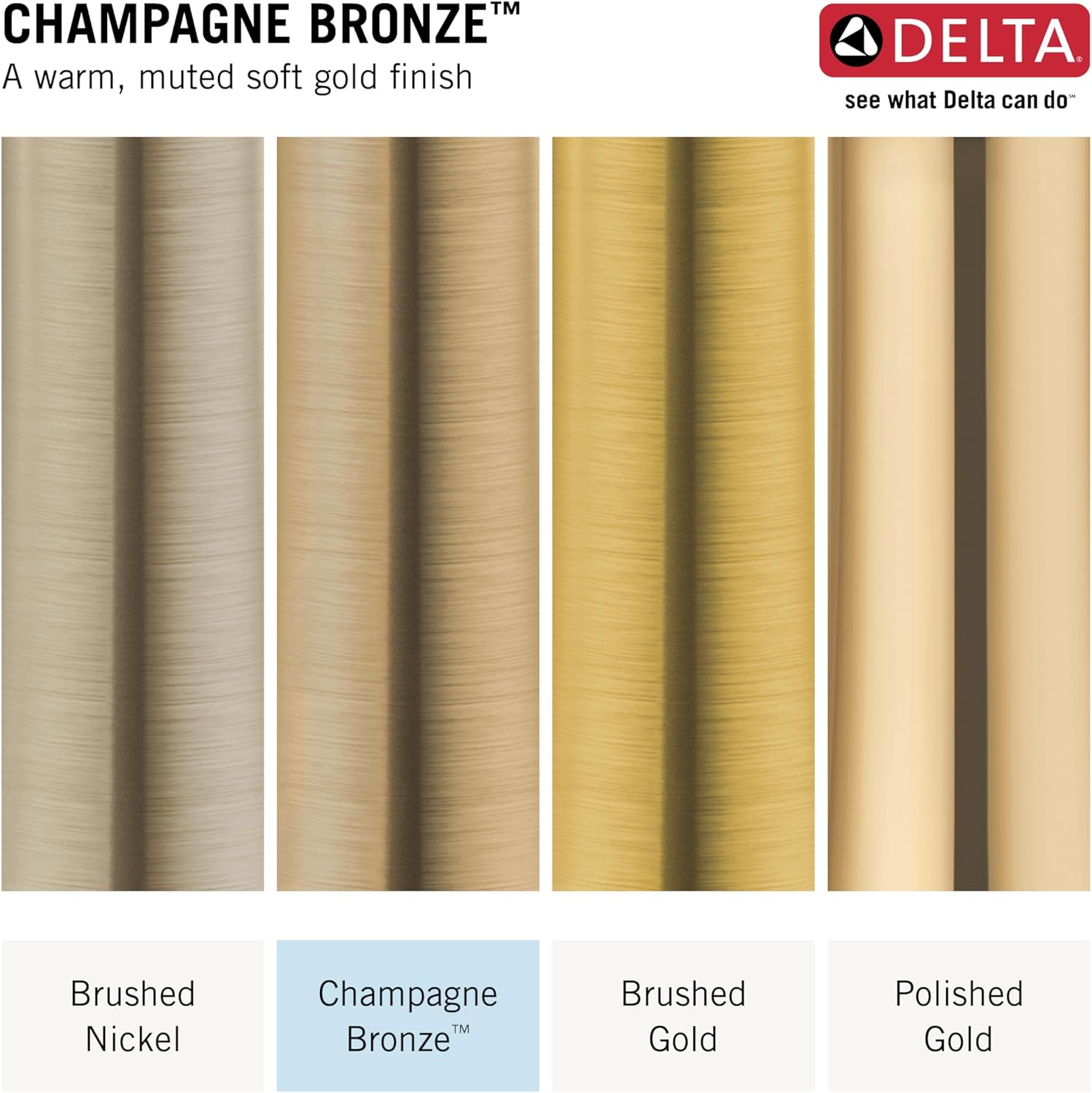

Figure 4: A visual comparison of various Delta finishes, showcasing the warm, muted soft gold of the Champagne Bronze finish.

Figure 5: Visual representation of InnoFlex PEX supply lines, integrated into the faucet to resist cracks, kinks, and corrosion.
സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | ഡെൽറ്റ |
| മോഡലിൻ്റെ പേര് | ട്രിൻസിക്® |
| മോഡൽ നമ്പർ | 3554-CZMPU-DST |
| നിറം | Champagne വെങ്കലം |
| മെറ്റീരിയൽ | സ്റ്റെയിൻലെസ്സ് സ്റ്റീൽ |
| ഫിനിഷ് തരം | ബ്രഷ് ചെയ്തു |
| മൗണ്ടിംഗ് തരം | ഡെക്ക് മ .ണ്ട് |
| ഇൻസ്റ്റലേഷൻ തരം | Widespread (3-hole, 4-16 inch spread) |
| ഹാൻഡിലുകളുടെ എണ്ണം | 2 |
| ഉൽപ്പന്ന അളവുകൾ (D x W x H) | 6.44" x 12.13" x 7.5" |
| സ്പൗട്ട് റീച്ച് | 5 ഇഞ്ച് |
| പരമാവധി ഡെക്ക് കനം | 2.25 ഇഞ്ച് |
| ദ്വാരത്തിൻ്റെ വലിപ്പം | 1.13-1.5 ഇഞ്ച് |
| ജലവിതരണ കണക്ഷൻ | 3/8 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 5.24 പൗണ്ട് |
| പ്രത്യേക ഫീച്ചർ | ലീഡ് ഫ്രീ |
| ഉൾപ്പെടുത്തിയ ഘടകങ്ങൾ | Instruction Manual, Metal Push-Pop Drain Assembly |

Figure 6: Detailed dimensions for the Delta Trinsic Widespread Bathroom Faucet, including height, spout reach, and installation hole requirements.
ഇൻസ്റ്റലേഷൻ നിർദ്ദേശങ്ങൾ
Before beginning installation, ensure you have all necessary tools and components. Refer to the included instruction manual for detailed diagrams and safety warnings. This faucet is designed for easy DIY installation.
- ഇൻസ്റ്റലേഷൻ ഏരിയ തയ്യാറാക്കുക: Ensure the sink deck has three holes with a widespread range of 4-16 inches and a maximum deck thickness of 2.25 inches. The hole size should be between 1.13-1.5 inches.
- ഫ്യൂസറ്റ് ബോഡി ഇൻസ്റ്റാൾ ചെയ്യുക: Position the main faucet body and handles into the pre-drilled holes on your sink or countertop.
- വാട്ടർ ലൈനുകൾ ബന്ധിപ്പിക്കുക: Utilize the wrench-free, quick-connect hose system. Listen for an audible click to confirm proper connection of the water lines, which helps prevent leaks. The integrated InnoFlex PEX supply lines are designed for durability.
- സുരക്ഷിത ഫ്യൂസെറ്റ്: Tighten the mounting nuts from underneath the sink to secure the faucet assembly firmly to the deck.
- ഡ്രെയിൻ അസംബ്ലി ഇൻസ്റ്റാൾ ചെയ്യുക: Install the metal push-pop drain assembly according to the separate instructions provided. Ensure a proper seal to prevent leaks.
- Connect Supply Lines to Water Stops: Connect the 3/8 inch water supply connections to your hot and cold water stops.
- ചോർച്ചയ്ക്കുള്ള പരിശോധന: Once all connections are made, slowly turn on the water supply and check for any leaks at all connection points.
For detailed step-by-step visual guides, please refer to the comprehensive installation manual included in your product packaging.
ഫ്യൂസറ്റ് പ്രവർത്തിപ്പിക്കുന്നു
Your Delta Trinsic widespread faucet features two lever handles for precise control over water temperature and flow.
- തണുത്ത വെള്ളം: The right handle controls the cold water. Turn the handle counter-clockwise to increase cold water flow.
- ചൂടുവെള്ളം: The left handle controls the hot water. Turn the handle counter-clockwise to increase hot water flow.
- താപനില നിയന്ത്രണം: Adjust both handles simultaneously to achieve your desired water temperature.
- ഒഴുക്ക് നിയന്ത്രണം: The further you turn the handles, the greater the water flow.

Figure 7: The Delta Trinsic faucet installed and in operation on a bathroom vanity, demonstrating its functional elegance.
പരിചരണവും പരിപാലനവും
Proper care and maintenance will ensure the longevity and appearance of your Delta Trinsic faucet.
- ഫിനിഷ് വൃത്തിയാക്കൽ: To clean the Champagne Bronze Brilliance finish, use a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes, as these can damage the finish. The Brilliance finish is designed to resist corrosion and scratches, making it easy to maintain with simple cleaning.
- Cleaning the Drain: The metal push-pop drain is designed for easy cleaning. Simply unscrew the drain stopper from above the deck to remove it. This allows for quick and easy removal of hair and other debris that may accumulate in the sink drain. Reinstall by screwing it back into place.
- എയറേറ്റർ പരിപാലനം: If water flow decreases, the aerator may be clogged. Unscrew the aerator from the end of the spout, clean any debris, and rinse thoroughly before reattaching.

Figure 8: Visual guide demonstrating the easy removal and cleaning of the metal push pop-up drain, ensuring better performance and hygiene.
ട്രബിൾഷൂട്ടിംഗ്
This section addresses common issues you might encounter with your faucet. For more complex problems, contact Delta Faucet customer support.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| താഴ്ന്ന ജലപ്രവാഹം | വിതരണ ലൈനുകളിൽ അടഞ്ഞുപോയ എയറേറ്റർ അല്ലെങ്കിൽ അവശിഷ്ടങ്ങൾ. | Remove and clean the aerator. Flush supply lines if necessary. |
| സ്പൗട്ടിൽ നിന്ന് ചോർച്ച | Debris in valve or worn seals. | Flush the faucet by turning off water, removing handles, and turning water back on briefly. If problem persists, contact support. |
| ഫ്യൂസറ്റിന്റെ അടിഭാഗത്ത് ചോർച്ച | Loose mounting nuts or improper seal during installation. | Ensure mounting nuts are securely tightened. Check for proper sealant application. |
| താപനില ക്രമീകരിക്കുന്നതിൽ ബുദ്ധിമുട്ട് | Mineral buildup in cartridges. | Contact Delta Faucet customer support for assistance with cartridge maintenance. |
വാറൻ്റിയും പിന്തുണയും
Delta Faucet stands behind the quality of its products. Your Delta Trinsic U-Spout Widespread Bathroom Faucet is backed by a ലൈഫ് ടൈം ലിമിറ്റഡ് വാറൻ്റി.
This warranty covers defects in material and workmanship for as long as the original consumer purchaser owns the home in which the faucet was first installed. For full warranty details and terms, please refer to the warranty information included with your product or visit the official Delta Faucet webസൈറ്റ്.
For technical assistance, replacement parts, or warranty claims, please contact Delta Faucet Company customer support. Contact information can typically be found on the Delta Faucet webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്നത്തിനൊപ്പം നൽകിയിരിക്കുന്ന ഡോക്യുമെന്റേഷനിൽ.
നിർമ്മാതാവ്: ഡെൽറ്റ ഫ്യൂസെറ്റ് കമ്പനി
