1 പ്രധാനപ്പെട്ട സുരക്ഷാ വിവരങ്ങൾ
Operating a laser engraver involves inherent risks. Adhere strictly to all safety guidelines to prevent injury and damage. This device is a Class 4 laser product.
- നേത്ര സംരക്ഷണം: Always wear the provided safety glasses or equivalent laser-protective eyewear when the machine is in operation. The panoramic magnetic eye protection shield filters 97% of strong light, but direct exposure to the laser beam can cause permanent eye damage.
- വെൻ്റിലേഷൻ: Operate the laser engraver in a well-ventilated area to dissipate fumes and smoke produced during engraving and cutting.
- അഗ്നി സുരക്ഷ: Keep a fire extinguisher nearby. Never leave the machine unattended during operation, especially when cutting materials that may ignite.
- മെറ്റീരിയൽ സുരക്ഷ: Engrave and cut only approved materials. Certain materials can produce toxic fumes or catch fire easily.
- അടിയന്തരമായി നിർത്തുക: Familiarize yourself with the location of the emergency stop button and how to use it.
അന്തർനിർമ്മിത സുരക്ഷാ സവിശേഷതകൾ:
- Flame Detector: The IKIER X5 Pro is equipped with a flame detector that will automatically stop processing and trigger a buzzer alarm if it detects a flame.
- Tilt Sensor (Gyroscope): The machine will automatically stop operation and sound an alarm if it tilts more than 15 degrees, preventing accidents from unexpected movement.
Image: The IKIER X5 Pro's integrated flame detector and gyroscope for enhanced operational safety.
2. പാക്കേജ് ഉള്ളടക്കം
Verify that all components listed below are present in your package before proceeding with assembly.
- IKIER X5 Pro Laser Engraver (main unit)
- Installation Toolkit (screws, wrenches, etc.)
- പവർ കേബിൾ
- പവർ അഡാപ്റ്റർ
- യുഎസ്ബി ഫ്ലാഷ് ഡ്രൈവ് (സോഫ്റ്റ്വെയറും ഡ്രൈവറുകളും അടങ്ങിയിരിക്കുന്നു)
- ടൈപ്പ് സി കേബിൾ
- X-axis Connecting Line
- Focus Shims
- സുരക്ഷാ ഗ്ലാസുകൾ
- ഉൽപ്പന്ന മാനുവൽ
Image: All components included in the IKIER X5 Pro Laser Engraver package.
3. അസംബ്ലിയും സജ്ജീകരണവും
The IKIER X5 Pro is designed for quick assembly, typically completed within 10-20 minutes. The full aluminum alloy structure ensures stability and durability.
- ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: Carefully remove all items from the packaging and place them on a clean, flat surface.
- ഫ്രെയിം കൂട്ടിച്ചേർക്കുക: Follow the step-by-step instructions in the included Product Manual to connect the frame components using the provided toolkit. Ensure all screws are securely tightened, but avoid over-tightening, which can cause rail friction.
- ലേസർ മൊഡ്യൂൾ ഇൻസ്റ്റാൾ ചെയ്യുക: Mount the laser module onto the gantry. The integral lead screw design ensures precise laser movement.
- കേബിളുകൾ ബന്ധിപ്പിക്കുക: Connect the power cable, Type C cable, and X-axis connecting line as indicated in the manual.
- പ്രാരംഭ പവർ ഓൺ: Connect the power adapter and turn on the machine. Observe for any unusual sounds or movements.
Image: Visual guide for quick assembly, mobile app connection, and direct engraving setup.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
സോഫ്റ്റ്വെയറും കണക്റ്റിവിറ്റിയും:
The IKIER X5 Pro supports various operating systems and file formats, offering flexible control options.
- ഓപ്പറേറ്റിംഗ് സിസ്റ്റങ്ങൾ: Compatible with Linux, Mac OS, and Windows.
- File ഫോർമാറ്റുകൾ: Supports SVG, PNG, DXF, TIF, BMP, and PDF.
- Next-Generation APP Control: Utilize the dedicated mobile application for a streamlined user experience and enhanced control functions. This allows for convenient operation directly from your smartphone or tablet.
- ഓഫ്ലൈൻ കൊത്തുപണി: The machine supports offline engraving, enabling you to engrave projects without a continuous computer connection once the file ലോഡ് ചെയ്തിരിക്കുന്നു.
- വൈദ്യുതി നഷ്ടം വീണ്ടെടുക്കൽ: പെട്ടെന്നൊരു വൈദ്യുതി ഉണ്ടായാൽtage or accidental interruption, the machine features a power loss recovery function, allowing it to resume engraving from the exact original position.
Engraving and Cutting Process:
- മെറ്റീരിയൽ തയ്യാറാക്കുക: Place your chosen material securely within the working area (410x380mm).
- ലേസർ ഫോക്കസ് ചെയ്യുക: Use the provided focus shims to set the correct focal distance for optimal engraving and cutting precision. The laser spot area is 0.06*0.06mm, balancing precision and cutting energy.
- ലോഡ് ഡിസൈൻ: Transfer your design file to the machine via USB or the connected software/APP.
- പാരാമീറ്ററുകൾ സജ്ജമാക്കുക: Adjust engraving/cutting parameters (speed, power, passes) based on the material type and desired outcome.
- പ്രവർത്തനം ആരംഭിക്കുക: Initiate the engraving or cutting process. Monitor the machine closely, especially during the initial stages.

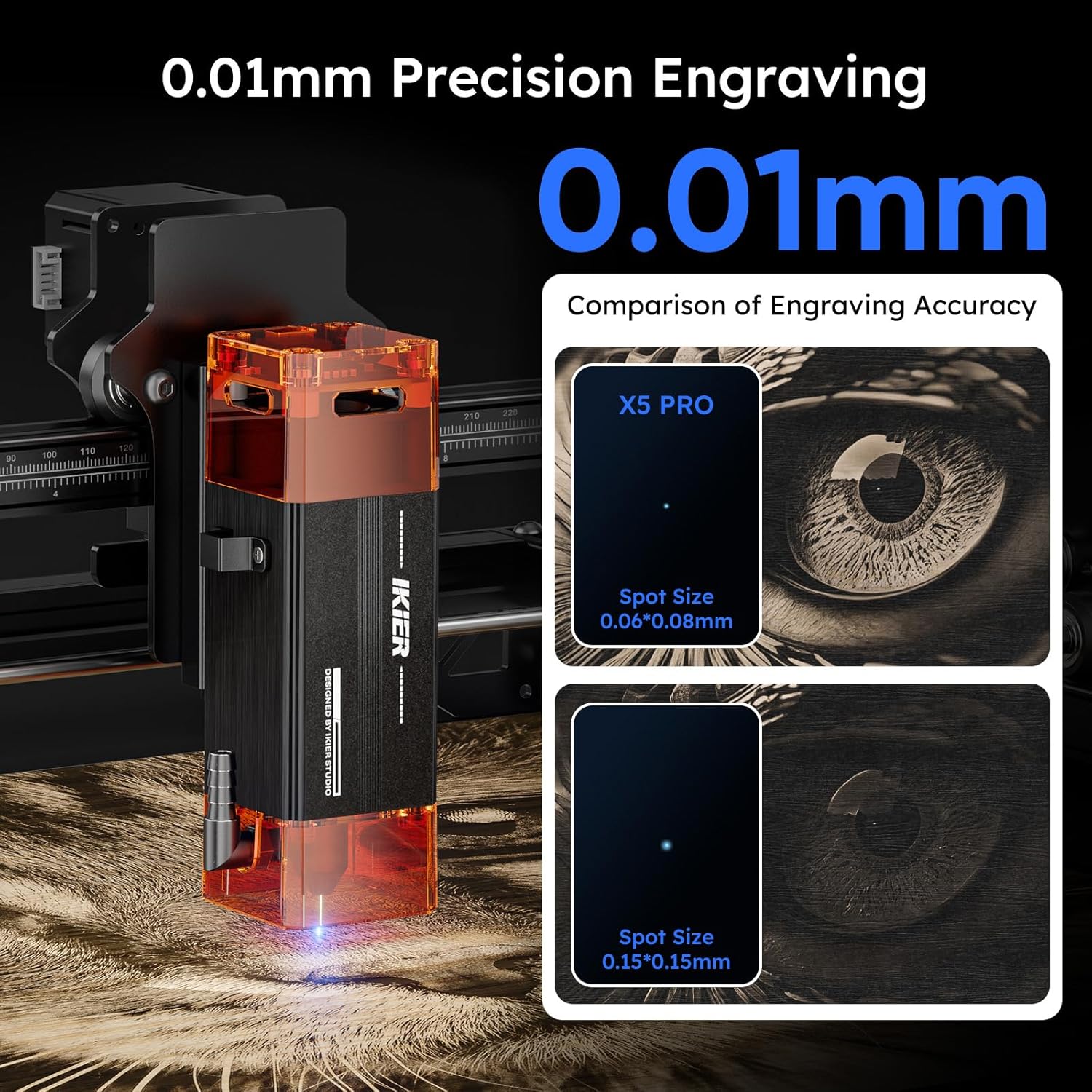

Image: The IKIER X5 Pro offers 0.01mm precision engraving with a fine laser spot size of 0.06*0.06mm.
Image: Demonstrates the 5W laser's ability to cut 5mm Paulownia wood and 3mm black acrylic in a single pass.
5. മെറ്റീരിയൽ അനുയോജ്യത
The IKIER X5 Pro is suitable for engraving and cutting a wide range of materials. Always test on a small, inconspicuous area first to determine optimal settings.
- കൊത്തുപണി: Wood, Glass, Plastic, Leather, Rubber, Paper, Cardboard, Anodized Aluminum, Stainless Steel (with coating), Ceramics (with coating), Stone.
- മുറിക്കൽ: Wood (up to 5mm Paulownia), Paper, Cardboard, Leather, Non-transparent Acrylic (up to 3mm black acrylic), Fabric.
കുറിപ്പ്: Transparent materials like clear acrylic or glass may require a dark coating (e.g., paint or marker) on the surface for the laser to interact effectively.
6. പരിപാലനം
Regular maintenance ensures the longevity and optimal performance of your IKIER X5 Pro laser engraver.
- ക്ലീൻ ലേസർ ലെൻസ്: Periodically clean the laser lens with a soft, lint-free cloth and lens cleaning solution to ensure clear laser output.
- റെയിലുകളും ചക്രങ്ങളും വൃത്തിയാക്കുക: Keep the X and Y axis rails and wheels free from dust and debris. A build-up can affect movement precision.
- Check Belt Tension: Ensure the timing belts are properly tensioned. Loose belts can lead to inaccurate engraving.
- ഫേംവെയർ അപ്ഡേറ്റുകൾ: ഔദ്യോഗിക IKIER പരിശോധിക്കുക website or APP for any available firmware updates to ensure your machine has the latest features and bug fixes.
7. പ്രശ്നപരിഹാരം
This section addresses common issues you might encounter. For more complex problems, refer to the comprehensive manual or contact customer support.
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| മെഷീൻ പവർ ഓണാക്കുന്നില്ല. | Power cable loose, power adapter faulty, power switch off. | Check all power connections. Ensure the power switch is in the 'ON' position. Test power adapter if possible. |
| Laser not firing or weak. | Laser lens dirty, focus incorrect, power setting too low, laser module faulty. | Clean the laser lens. Re-focus the laser using shims. Increase laser power in software. Contact support if issue persists. |
| Engraving/cutting is inaccurate or skipped lines. | Loose belts, dirty rails, stepper motor issue, material not secured. | Check and tighten timing belts. Clean X and Y axis rails. Ensure material is firmly secured. Verify all assembly bolts are appropriately tightened, as over-tightening can cause rough movement. |
| Machine stops unexpectedly with alarm. | Flame detected, machine tilted, emergency stop pressed. | Check for flames or smoke. Ensure the machine is on a stable, level surface. Release emergency stop button if pressed. |
| Software/APP not connecting to machine. | Incorrect cable connection, driver issues, software version mismatch. | Verify USB/Type C cable connection. Reinstall drivers from the USB flash drive. Ensure software/APP is the latest version. |
8 സ്പെസിഫിക്കേഷനുകൾ
Key technical specifications for the IKIER X5 Pro Laser Engraver.
| ഫീച്ചർ | സ്പെസിഫിക്കേഷൻ |
|---|---|
| മോഡൽ | IKIER X5 Pro |
| ലേസർ ഔട്ട്പുട്ട് പവർ | 5000 മെഗാവാട്ട് (5 വാട്ട്) |
| ലേസർ ക്ലാസ് | ക്ലാസ് 4 |
| Laser Spot Area | 0.06*0.06 മി.മീ |
| കൊത്തുപണി ഏരിയ | 410 x 380 മിമി (16.14 x 14.96 ഇഞ്ച്) |
| ഉൽപ്പന്ന അളവുകൾ | 22.8 x 22.6 x 7.6 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 12.18 പൗണ്ട് |
| മെറ്റീരിയൽ | അലുമിനിയം അലോയ് |
| പവർ ഉറവിടം | എസി/ഡിസി |
| പിന്തുണയ്ക്കുന്ന OS | Linux, Mac OS, Windows |
| പിന്തുണച്ചു File ഫോർമാറ്റുകൾ | SVG, PNG, DXF, TIF, BMP, PDF |
Image: The generous 410x380mm working area of the IKIER X5 Pro.
9. വാറൻ്റിയും പിന്തുണയും
For warranty information, please refer to the documentation included with your product or visit the official IKIER website. If you encounter any issues or require technical assistance, please contact IKIER customer support. They are available to help with troubleshooting and provide guidance for optimal use of your laser engraver.
ബന്ധപ്പെടാനുള്ള വിവരങ്ങൾ: Refer to the official IKIER website or the contact details provided in your product manual for the most up-to-date support channels.
ഓൺലൈൻ ഉറവിടങ്ങൾ: Explore online forums, community groups, and official IKIER tutorials for additional tips and project ideas.
