BODEGACOOLER 38 Quart Dual Zone Portable Car Refrigerator User Manual

1. ആമുഖവും അവസാനവുംview

The BODEGACOOLER T36 is a versatile 38-quart (36L) portable electric compressor cooler designed for use in various environments, including RVs, cars, trucks, boats, and during camping or road trips. This dual-zone unit functions as both a refrigerator and a freezer, allowing independent temperature control for each compartment. It supports multiple power sources and offers convenient APP control for enhanced user experience.

Figure 1: BODEGACOOLER 38 Quart Dual Zone Portable Car Refrigerator.

2 പ്രധാന സവിശേഷതകൾ

• ഡ്യുവൽ സോൺ പ്രവർത്തനം: Two independent compartments with separate temperature controls, allowing simultaneous refrigeration and freezing. The middle plate can be removed to convert to a single zone.
• വിശാലമായ താപനില പരിധി: Capable of cooling from -4°F (-20°C) to 68°F (20°C).
• ഒന്നിലധികം പവർ ഓപ്ഷനുകൾ: Operates on 12V/24V DC (car cigarette lighter) and 100-240V AC (standard home outlet). Compatible with solar panels and power stations.
• APP നിയന്ത്രണം: Connects via Wi-Fi/Bluetooth for convenient temperature monitoring and control from Android and iOS devices.
• Energy Efficient Compressor: Features a powerful compressor for rapid cooling and energy saving modes (ECO/MAX).
• ബാറ്ററി സംരക്ഷണ സംവിധാനം: Three levels (H/M/L) to prevent vehicle battery drain.
• പോർട്ടബിൾ ഡിസൈൻ: Equipped with durable wheels and a retractable handle for easy transport. Side handles are also included and can be removed for permanent installation.
• കുറഞ്ഞ ശബ്ദ പ്രവർത്തനം: Engineered for quiet performance, ensuring a comfortable environment.
• ഉപയോക്തൃ സൗഹൃദ സവിശേഷതകൾ: Includes a built-in LED light for visibility in low light, a bottom drain hole for easy cleaning, and a USB charging port for external devices.

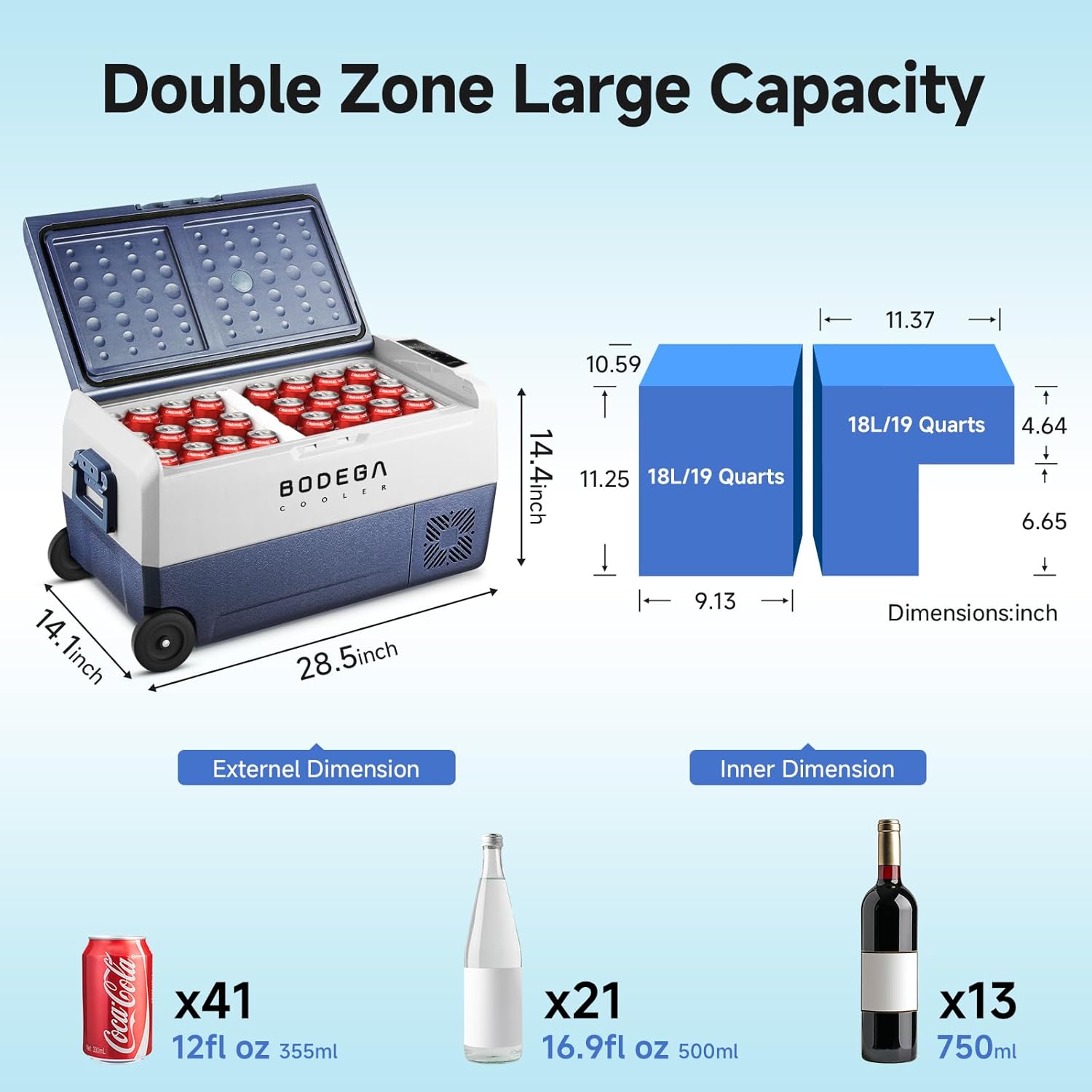

Figure 2: Internal capacity and external dimensions of the BODEGACOOLER T36. It can hold approximately 41 cans of cola, 21 bottles of water, or 13 bottles of red wine.

Figure 3: The BODEGACOOLER T36 can be powered by 12V/24V DC (car cigarette lighter), 100-240V AC (home outlet), or external power sources like solar panels and power stations.

Figure 4: The BODEGACOOLER T36 features integrated wheels and a retractable handle for easy portability. Side handles are also included for lifting.

3. സജ്ജീകരണം

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove the refrigerator from its packaging. Ensure all accessories, including the cigarette lighter connector, wall plug, wall plug adapter, user manual, and basket, are present.
2. പ്ലേസ്മെൻ്റ്: Place the refrigerator on a stable, level surface. Ensure adequate ventilation around the unit, especially near the compressor and fan vents. If installing permanently in a vehicle, the side handles can be removed.
3. പവർ കണക്ഷൻ:
   • For vehicle use, connect the 12V/24V DC cable to your vehicle's cigarette lighter socket.
   • For home or AC power, use the provided 100-240V AC adapter and wall plug.
4. പ്രാരംഭ തണുപ്പിക്കൽ: For optimal performance, especially when storing frozen items, it is recommended to pre-cool the refrigerator for a few hours before loading it with contents.
5. APP Control Setup:
   • Download the official BODEGACOOLER APP (available for Android and iOS).
   • Follow the in-app instructions to connect your smartphone to the refrigerator via Wi-Fi or Bluetooth. This allows remote temperature control and monitoring.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

• പവർ ഓൺ/ഓഫ്: യൂണിറ്റ് ഓണാക്കാനോ ഓഫാക്കാനോ നിയന്ത്രണ പാനലിലെ പവർ ബട്ടൺ ഉപയോഗിക്കുക.
• താപനില ക്രമീകരണം: Use the '+' and '-' buttons on the control panel or the mobile APP to set the desired temperature for each zone. The dual zones can be controlled independently.
• Cooling Modes (ECO/MAX):
  • ECO മോഡ്: Energy-saving mode for efficient operation over longer periods.
  • പരമാവധി മോഡ്: വേഗത്തിലുള്ള താപനില കുറയ്ക്കലിനായി പരമാവധി തണുപ്പിക്കൽ ശക്തി നൽകുന്നു.
• ബാറ്ററി സംരക്ഷണം: Select the appropriate battery protection level (H/M/L) based on your vehicle's battery condition to prevent excessive discharge. This system adjusts the startup and shutdown voltagഇ ത്രെഷോൾഡുകൾ.
• യുഎസ്ബി ചാർജിംഗ് പോർട്ട്: A built-in USB port allows you to charge small electronic devices, such as smartphones, directly from the refrigerator.
• ആന്തരിക LED ലൈറ്റ്: The interior is equipped with an LED light for easy visibility of contents, especially in dark conditions.

Figure 5: The intuitive control panel allows for easy temperature adjustments and mode selection.

Figure 6: The integrated USB charging port provides convenient power for your mobile devices.

5. പരിപാലനം

• വൃത്തിയാക്കൽ: Regularly clean the interior and exterior of the refrigerator. The bottom drain hole facilitates easy water drainage for cleaning or defrosting. Use a soft cloth and mild detergent; avoid abrasive cleaners.
• ഡിഫ്രോസ്റ്റിംഗ്: The unit features an automatic defrost system. For manual defrosting or thorough cleaning, unplug the unit and allow ice to melt naturally, then drain the water.
• വെൻ്റിലേഷൻ: Ensure that the air vents on the unit are clear of obstructions to maintain proper airflow and cooling efficiency.
• സംഭരണം: When not in use for extended periods, ensure the refrigerator is clean, dry, and stored in a well-ventilated area.

Figure 7: The interior of the BODEGACOOLER T36, showing the removable basket and the drain hole at the bottom for easy cleaning.

6. പ്രശ്‌നപരിഹാരം

If you encounter issues with your BODEGACOOLER T36, please refer to the following common troubleshooting steps. For more detailed information or persistent problems, consult the full user manual or contact customer support.

• യൂണിറ്റ് ഓണാക്കുന്നില്ല:
  • പവർ കേബിൾ യൂണിറ്റിലേക്കും പവർ സ്രോതസ്സിലേക്കും സുരക്ഷിതമായി ബന്ധിപ്പിച്ചിട്ടുണ്ടോയെന്ന് പരിശോധിക്കുക.
  • Verify that the power source (vehicle outlet, home outlet, power station) is functioning correctly.
  • Ensure the battery protection level is not set too high, which might prevent the unit from starting if the input voltagഇ കുറവാണ്.
• അപര്യാപ്തമായ തണുപ്പിക്കൽ:
  • Confirm that the temperature settings are appropriate for your needs.
  • Check if the unit is in ECO mode; switch to MAX mode for faster cooling.
  • Ensure the vents are not blocked and there is sufficient space around the unit for heat dissipation.
  • Avoid frequently opening the lid, as this can cause temperature fluctuations.
• അസാധാരണമായ ശബ്ദം:
  • കംപ്രസ്സറിൽ നിന്ന് നേരിയ ഒരു മൂളൽ ശബ്ദം കേൾക്കുന്നത് സാധാരണമാണ്.
  • Ensure the unit is on a stable, level surface to prevent rattling.
  • Check for any loose items inside or around the refrigerator.
• APP കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ:
  • Ensure Bluetooth/Wi-Fi is enabled on your smartphone and the refrigerator.
  • Restart both the APP and the refrigerator.
  • Ensure your phone is within range of the refrigerator.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

BODEGACOOLER offers the following warranty for this product:

• കംപ്രസർ: 5 വർഷത്തെ ആയുസ്സ്
• മറ്റെല്ലാ ഭാഗങ്ങളും: 1 വർഷത്തെ വാറൻ്റി

For any issues, technical support, or warranty claims, please contact BODEGACOOLER customer support via Amazon. They aim to respond within 24 hours to ensure a satisfactory experience.
