1. ആമുഖം
The Macally Wired Keyboard (Model UCACEKEYSG2) is designed for seamless connectivity and comfortable typing across various devices. This ultra-slim keyboard features a full-size 110-key layout, including a numeric keypad and 20 dedicated macOS shortcut keys, enhancing productivity for Mac, PC, iOS, and Android users. Its scissor-switch keys provide a quiet and responsive typing experience, while the integrated 2-in-1 USB-A and USB-C plug ensures broad compatibility.

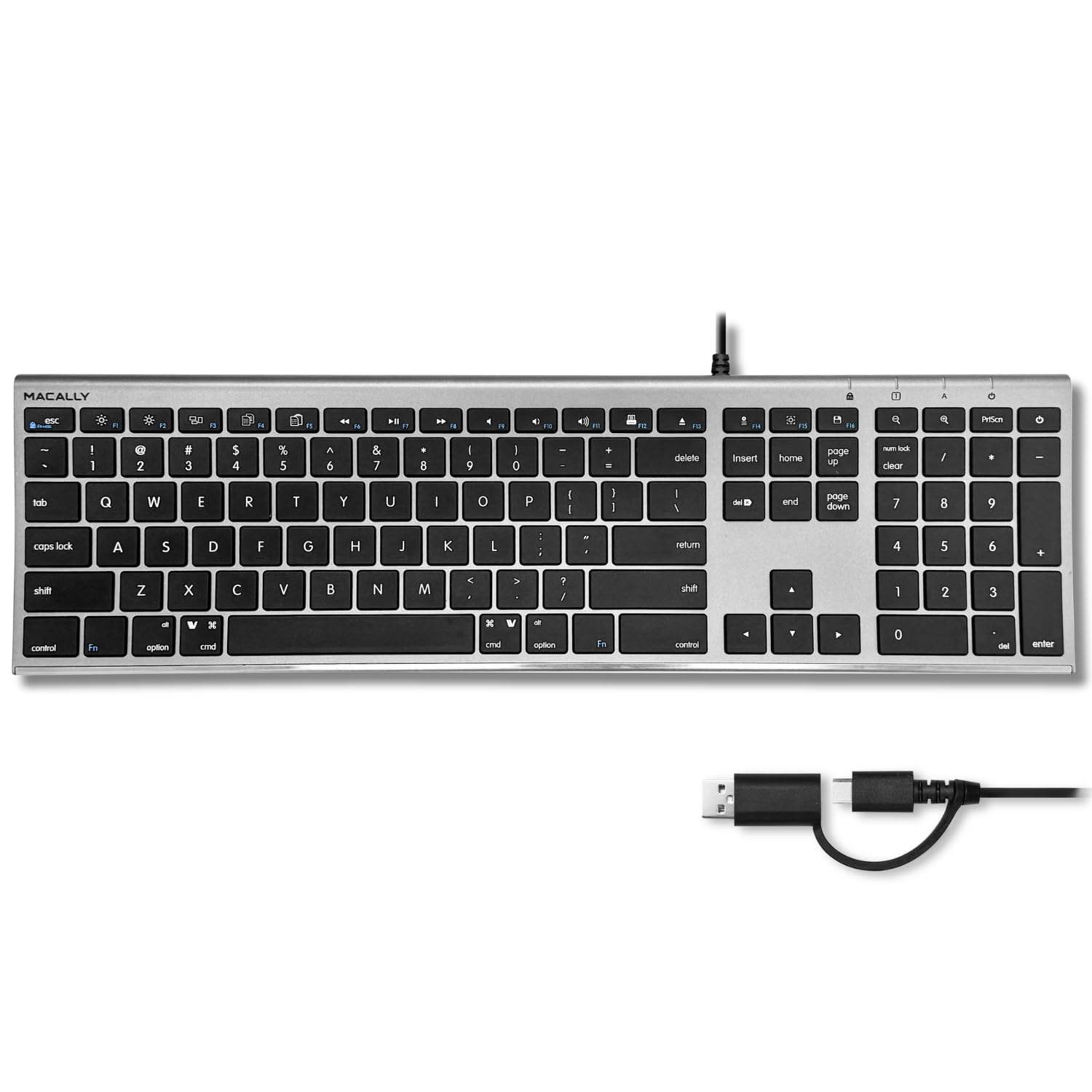

Image 1.1: The Macally Wired Keyboard, showcasing its full layout and dual USB connector.
2. സജ്ജീകരണം
Setting up your Macally Wired Keyboard is a straightforward plug-and-play process. No additional drivers or software installations are required.
2.1 കീബോർഡ് ബന്ധിപ്പിക്കുന്നു
- Identify the appropriate USB port on your computer or device. The keyboard features a versatile 2-in-1 USB plug, allowing connection to either a standard USB-A port or a modern USB-C port.
- Plug the keyboard's USB connector into the chosen port.
- Your operating system should automatically detect the keyboard and make it ready for use within a few seconds.

Image 2.1: The keyboard's dual USB-A and USB-C plug for flexible connectivity.

Image 2.2: The keyboard connected to a device via its wired USB-C connection.
The wired connection ensures a stable and reliable input without the need for batteries or wireless pairing.
3. കീബോർഡ് പ്രവർത്തിപ്പിക്കൽ
The Macally Wired Keyboard offers a familiar layout with enhanced functionality for macOS users.
3.1 സ്റ്റാൻഡേർഡ് ടൈപ്പിംഗ്
The 110-key layout includes all standard alphanumeric keys, function keys (F1-F12), navigation keys, and a dedicated numeric keypad. The scissor-switch mechanism provides a comfortable and quiet typing experience with tactile feedback.

Image 3.1: Demonstrating the smooth and tactile keystrokes of the keyboard.
3.2 macOS Shortcut Keys
The keyboard features 20 pre-programmed macOS shortcut keys located in the function row and other dedicated keys. These shortcuts allow for quick access to various system functions, such as brightness control, volume adjustment, media playback, Mission Control, and Launchpad.
- തെളിച്ച നിയന്ത്രണം: F1 (decrease), F2 (increase)
- ദൗത്യ നിയന്ത്രണം: F3
- ലോഞ്ച്പാഡ്: F4
- മീഡിയ നിയന്ത്രണങ്ങൾ: F7 (previous track), F8 (play/pause), F9 (next track)
- വോളിയം നിയന്ത്രണം: F10 (mute), F11 (decrease), F12 (increase)
- പുറത്താക്കുക: Dedicated eject key

Image 3.2: Highlighting the 20 macOS shortcut keys for enhanced productivity.

Image 3.3: The 110-key layout, optimized for macOS but compatible with other operating systems.
3.3 LED സൂചകങ്ങൾ
The keyboard includes LED indicators for Caps Lock, Num Lock, and Scroll Lock, providing visual feedback on their activation status.
4. പരിപാലനം
Proper care and maintenance will ensure the longevity and optimal performance of your Macally Wired Keyboard.
4.1 വൃത്തിയാക്കൽ
- പൊതുവായ ശുചീകരണം: മൃദുവായ, ലിൻ്റ് രഹിത തുണി ഉപയോഗിക്കുകampened with water or a mild, non-abrasive cleaning solution to wipe the surface of the keyboard. Avoid excessive moisture.
- കീകൾക്കിടയിൽ: Use compressed air to remove dust, crumbs, and debris from between the keys. Alternatively, a soft brush can be used.
- ഒഴിവാക്കുക: Do not use harsh chemicals, solvents, or abrasive materials, as these can damage the keyboard's finish or key legends.
4.2 കേബിൾ കെയർ
Avoid bending or twisting the USB cable sharply, especially near the connectors, to prevent internal wire damage. Store the cable neatly when not in use to prevent tangling.
5. പ്രശ്നപരിഹാരം
If you encounter issues with your Macally Wired Keyboard, try the following troubleshooting steps:
- കീബോർഡ് പ്രതികരിക്കുന്നില്ല:
- Ensure the USB connector is fully and securely plugged into the computer's USB port.
- നിങ്ങളുടെ കമ്പ്യൂട്ടറിലെ മറ്റൊരു USB പോർട്ടിലേക്ക് കീബോർഡ് പ്ലഗ് ചെയ്യാൻ ശ്രമിക്കുക.
- ഒരു യുഎസ്ബി ഹബ് ഉപയോഗിക്കുകയാണെങ്കിൽ, കീബോർഡ് നേരിട്ട് കമ്പ്യൂട്ടറുമായി ബന്ധിപ്പിക്കാൻ ശ്രമിക്കുക.
- നിങ്ങളുടെ കമ്പ്യൂട്ടറോ ഉപകരണമോ പുനരാരംഭിക്കുക.
- പ്രവർത്തിക്കാത്ത പ്രത്യേക കീകൾ:
- Check for any physical obstructions or debris under the affected key. Use compressed air to clear it.
- Ensure the keyboard is connected directly to the computer and not through a faulty hub.
- Incorrect Key Output (e.g., @ instead of "):
- Verify that your operating system's keyboard layout settings match the physical layout of your keyboard (e.g., US English).
- Keyboard Not Detected on Mac:
- After plugging in, macOS might prompt you to identify the keyboard type. Follow the on-screen instructions to select the correct keyboard layout.
ഈ ഘട്ടങ്ങൾ പ്രശ്നം പരിഹരിക്കുന്നില്ലെങ്കിൽ, ദയവായി വിഭാഗം 7 ലെ പിന്തുണാ വിവരങ്ങൾ പരിശോധിക്കുക.
6 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡൽ നമ്പർ | UCACEKEYSG2 |
| ഉൽപ്പന്ന അളവുകൾ | 16.5"L x 4.5"W x 0.6"H (41.9 x 11.4 x 1.5 സെ.മീ) |
| ഇനത്തിൻ്റെ ഭാരം | 1.32 പൗണ്ട് (0.6 കി.ഗ്രാം) |
| കണക്റ്റിവിറ്റി ടെക്നോളജി | വയേർഡ് (USB-A, USB-C) |
| കീബോർഡ് വിവരണം | USB C Keyboard, Full-size 110-key layout |
| പ്രത്യേക സവിശേഷതകൾ | 2-in-1 USB A + C Plug, 20 macOS Shortcuts, Scissor Keys |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Laptop, PC, Tablet (Mac, PC, iOS, Android) |
| നിറം | സ്പേസ് ഗ്രേ |
| മെറ്റീരിയൽ | Plastic With Metallic Finish |
| പവർ ഉറവിടം | വയർഡ് |

Image 6.1: Physical dimensions of the Macally Wired Keyboard.
7. വാറൻ്റിയും പിന്തുണയും
For warranty information and technical support, please refer to the documentation included with your product packaging or visit the official Macally webസൈറ്റ്. പ്രദേശത്തെയും റീട്ടെയിലറെയും ആശ്രയിച്ച് നിർദ്ദിഷ്ട വാറന്റി നിബന്ധനകളും വ്യവസ്ഥകളും വ്യത്യാസപ്പെടാം.
ഓൺലൈൻ പിന്തുണ: www.macally.com/support
നിർമ്മാതാവ്: മേസ് ഗ്രൂപ്പ് ഇൻകോർപ്പറേറ്റഡ് / മക്കലി പെരിഫെറൽസ്
