EVoCharge ഹോം 50 ലെവൽ 2 EV ചാർജർ NACS ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides essential instructions for the safe installation, operation, and maintenance of your EVoCharge Home 50 Level 2 EV Charger NACS. Please read this manual thoroughly before installation and use, and retain it for future reference. This charging station is designed for residential use to charge electric vehicles equipped with a NACS connector, including Tesla vehicles.

2 സുരക്ഷാ വിവരങ്ങൾ

WARNING: Risk of Electric Shock. Improper installation or use can result in serious injury or death.

• Installation must be performed by a qualified, licensed electrician in accordance with all local and national electrical codes and regulations.
• Do not attempt to open, disassemble, repair, or modify the charging station. Contact EVoCharge support for service.
• ചാർജിംഗ് സ്റ്റേഷൻ ശരിയായി ഗ്രൗണ്ട് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• Do not use the charging station if the enclosure or charging cable is damaged.
• ചാർജിംഗ് സ്റ്റേഷനിൽ പ്രവർത്തിക്കുമ്പോൾ കുട്ടികളെ അതിൽ നിന്ന് അകറ്റി നിർത്തുക.
• Avoid submerging the charging station or charging cable in water.
• Operate the charging station within its specified environmental conditions.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• EVoCharge Home 50 Level 2 EV Charging Station
• 25-foot Charging Cable with NACS Connector
• Remote Holster
• മൌണ്ടിംഗ് ബ്രാക്കറ്റ്
• ഇൻസ്റ്റലേഷൻ ഗൈഡ് (ഈ പ്രമാണം)

4. ഉൽപ്പന്ന സവിശേഷതകൾ

• Level 2 EV Charging: Provides up to 45 miles of range per hour charged, significantly reducing charging times compared to Level 1 chargers.
• NACS Connector: Compatible with Tesla vehicles and other electric vehicles utilizing the NACS charging standard.
• ക്രമീകരിക്കാവുന്ന Ampകോപം: ഉപയോക്താവിനെ തിരഞ്ഞെടുക്കാവുന്നതാണ് amperage settings from 16A to 50A, allowing optimization for your home's electrical capacity.
• സ്മാർട്ട് ചാർജിംഗ് കഴിവുകൾ: Manage charging schedules, monitor charging data, and share access via the EVoCharge mobile app and desktop portal.
• ഹാർഡ് വയർഡ് ഇൻസ്റ്റലേഷൻ: Designed for a secure and permanent 240V hardwired connection.
• മോടിയുള്ള ഡിസൈൻ: NEMA 4 weatherproof rating ensures suitability for both indoor and outdoor installation.
• UL ലിസ്റ്റുചെയ്തത്: സുരക്ഷയ്ക്കും ഗുണനിലവാര മാനദണ്ഡങ്ങൾക്കും സാക്ഷ്യപ്പെടുത്തി.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The EVoCharge Home 50 Level 2 EV Charger requires a 240V hardwired electrical connection. Due to the electrical requirements and safety considerations, installation must be performed by a qualified, licensed electrician.

5.1 ഇൻസ്റ്റലേഷന് മുമ്പുള്ള പരിഗണനകൾ

• സ്ഥാനം: Choose a suitable location near your parking area, ensuring the 25-foot cable can comfortably reach your vehicle's charging port. Consider indoor or outdoor placement based on your needs; the unit is NEMA 4 rated.
• വൈദ്യുത സേവനം: Confirm your home's electrical panel can support a dedicated 240V circuit with appropriate amperage (up to 50A).
• മൗണ്ടിംഗ് ഉപരിതലം: The mounting surface must be capable of supporting the weight of the charging station and withstand the forces of cable management.

5.2 Installation Steps (for Licensed Electrician)

1. വൈദ്യുതി വിച്ഛേദിക്കൽ: Ensure all power to the installation area is disconnected at the main breaker panel.
2. മൗണ്ടിംഗ്: Securely attach the mounting bracket to the chosen wall surface using appropriate hardware.
3. വയറിംഗ്: Connect the 240V electrical supply to the charging station's internal terminals as per the wiring diagram provided in the detailed installation guide (included in the box). Ensure proper grounding.
4. Amperage Setting: Adjust the internal DIP switches to set the desired maximum charging amperage (16A to 50A) according to the circuit breaker rating and local codes.
5. എൻക്ലോഷർ ക്ലോഷർ: Securely close the charging station's enclosure.
6. വൈദ്യുതി പുനഃസ്ഥാപിക്കൽ: Restore power at the main breaker panel.
7. പ്രവർത്തനക്ഷമത പരിശോധന: Verify the LED status indicator lights and perform an initial charge test.

Image: A licensed electrician performing the 240V hardwired installation of the EVoCharge Home 50 charger.

Image: The EVoCharge Home 50 charger installed in a residential garage, demonstrating its adjustable amperage feature.

6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The EVoCharge Home 50 offers both simple plug-and-charge functionality and advanced smart charging features via the mobile app.

6.1 അടിസ്ഥാന ചാർജിംഗ്

1. ചാർജിംഗ് സ്റ്റേഷൻ ഓണാണെന്ന് ഉറപ്പാക്കുക.
2. Plug the NACS connector firmly into your electric vehicle's charging port.
3. The charging process will typically begin automatically. Monitor your vehicle's dashboard or the charger's LED indicator for charging status.
4. To stop charging, safely disconnect the connector from your vehicle.

6.2 Smart Charging with the EVoCharge App

Download the EVoCharge mobile app from the App Store or Google Play to unlock advanced features.

Image: The EVoCharge mobile app and desktop portal interface, illustrating smart charging management.

• ആപ്പ് ജോടിയാക്കൽ: Follow the in-app instructions to pair your EVoCharge Home 50 charger with your smartphone.
• ഷെഡ്യൂൾ ചാർജിംഗ്: Set preferred charging times to take advantage of off-peak electricity rates or to ensure your vehicle is ready by a specific time.
• മോണിറ്റർ ചാർജിംഗ്: View real-time charging status, energy consumption, and estimated range added.
• ആക്സസ് മാനേജ്മെൻ്റ്: Share access to your charger with other users if desired.
• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: The app facilitates over-the-air firmware updates to ensure your charger has the latest features and improvements.

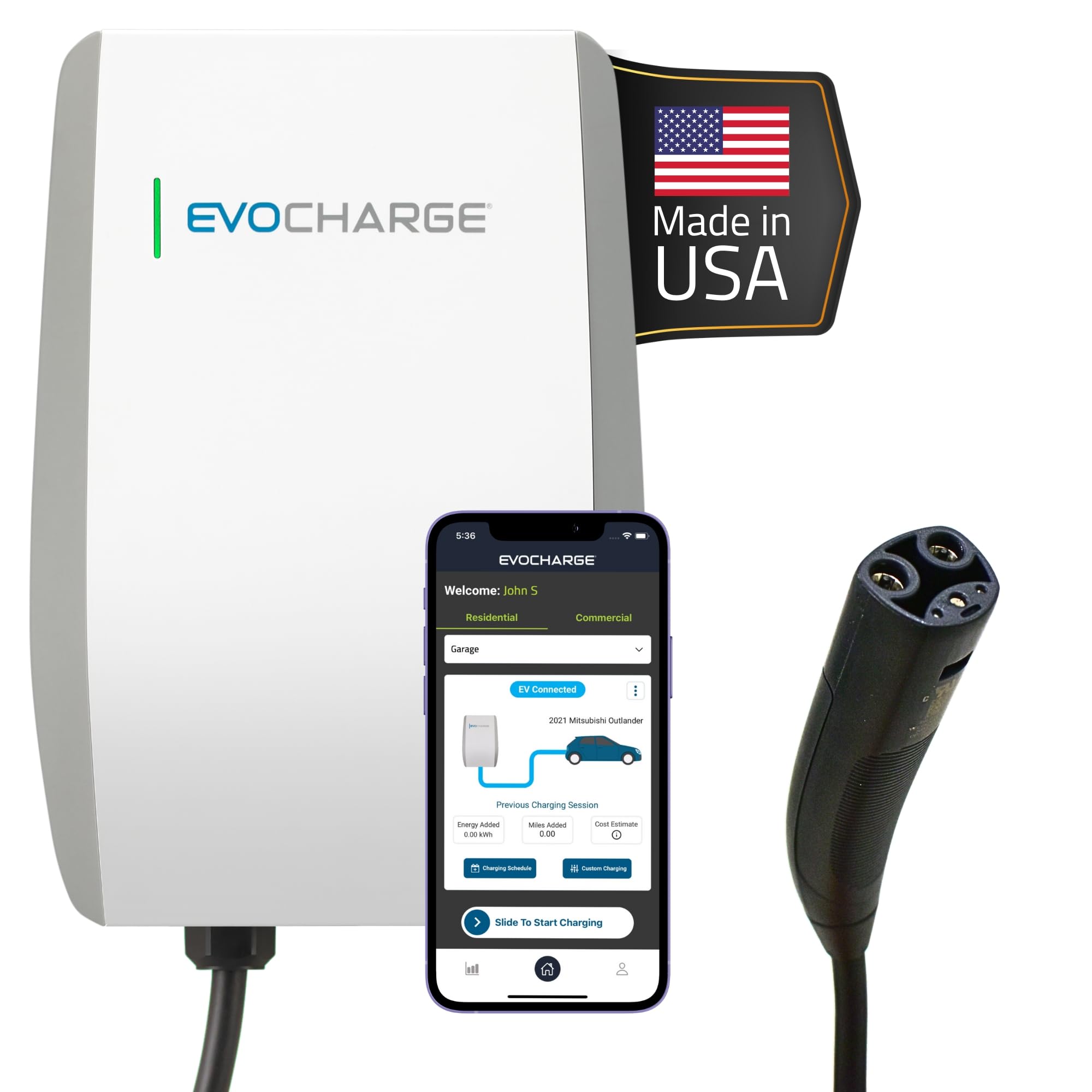

Image: The EVoCharge Home 50 charger, its NACS connector, and the accompanying mobile application interface.

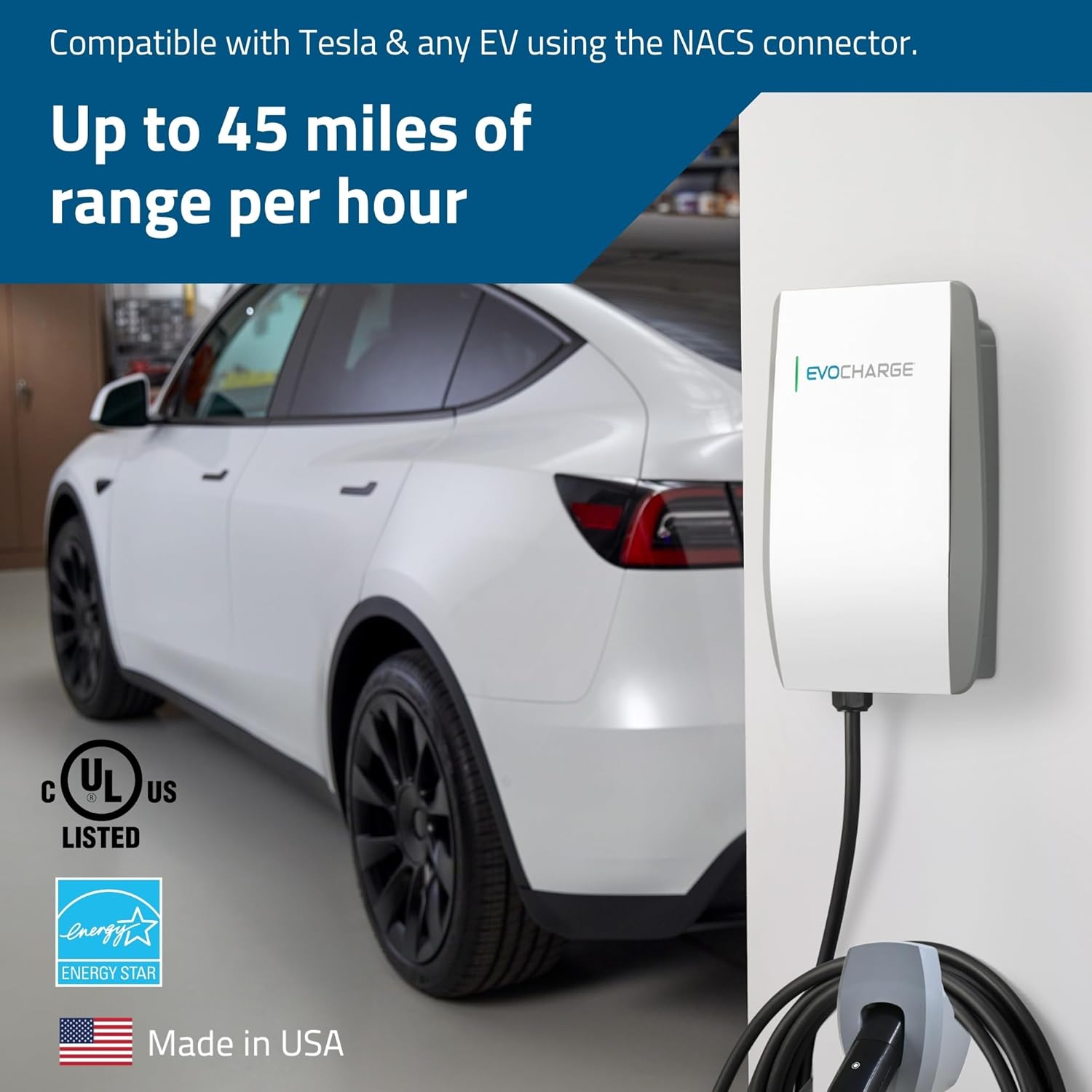

Image: The EVoCharge Home 50 charger installed, demonstrating its compatibility with Tesla vehicles and charging speed.

7. പരിപാലനം

The EVoCharge Home 50 charger is designed for minimal maintenance. Regular inspection and cleaning will help ensure optimal performance and longevity.

• വൃത്തിയാക്കൽ: Periodically wipe the exterior of the charging station and the charging cable with a soft, damp തുണി. കഠിനമായ രാസവസ്തുക്കളോ അബ്രാസീവ് ക്ലീനറുകളോ ഉപയോഗിക്കരുത്. വൃത്തിയാക്കുന്നതിന് മുമ്പ് യൂണിറ്റ് ഓഫ് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• കേബിൾ പരിശോധന: Regularly inspect the charging cable and connector for any signs of wear, cuts, fraying, or damage. If any damage is observed, discontinue use immediately and contact EVoCharge support.
• കണക്റ്റർ കെയർ: Keep the NACS connector clean and free of debris. Ensure the protective cap is used when the connector is not in use.
• ഹോൾസ്റ്റർ ഉപയോഗം: Always return the charging connector to its holster after use to protect it from environmental elements and accidental damage.

8. പ്രശ്‌നപരിഹാരം

If you encounter issues with your EVoCharge Home 50 charger, refer to the following common troubleshooting steps:

• പവർ/എൽഇഡി ഓഫല്ല:
  • Check the circuit breaker for the charging station at your main electrical panel. Reset if tripped.
  • Ensure the charging station is properly hardwired and all connections are secure (this should be checked by a qualified electrician).
• Charging Not Starting:
  • Ensure the NACS connector is fully inserted into the vehicle's charging port.
  • Check your vehicle's charging settings; some vehicles have scheduled charging enabled.
  • Verify that the EVoCharge app does not have a charging schedule or delay active.
  • Inspect the charging cable and connector for any visible damage.
• സ്ലോ ചാർജിംഗ്:
  • സ്ഥിരീകരിക്കുക amperage setting on the charger is appropriate for your electrical circuit and vehicle.
  • Check your vehicle's charging settings; some vehicles allow adjustment of charging current.
• ആപ്പ് കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ:
  • Ensure your home Wi-Fi network is active and the charger is within range.
  • Restart your Wi-Fi router and the charging station (by cycling its circuit breaker).
  • Ensure your EVoCharge app is updated to the latest version.

For persistent issues or problems not covered here, please contact EVoCharge customer support.

9 സ്പെസിഫിക്കേഷനുകൾ

Image: Detailed side view of the EVoCharge Home 50 charger with key features and dimensions.

10. വാറൻ്റിയും പിന്തുണയും

For warranty information, please refer to the warranty card included with your product or visit the official EVoCharge website. If you require technical assistance, troubleshooting beyond this manual, or have questions regarding your EVoCharge Home 50 charger, please contact EVoCharge customer support through their official channels.

നിർമ്മാതാവ്: ഇവോചാർജ്

Webസൈറ്റ്: Visit the EVoCharge Store
