ആമുഖം
This manual provides detailed instructions for the installation, operation, and maintenance of your ARENTI 8MP 4K Outdoor Security Camera. Please read this manual thoroughly before use to ensure proper functionality and safety. This camera delivers crystal-clear 4K resolution, advanced AI detection, and full-color night vision for comprehensive home security.
ബോക്സിൽ എന്താണുള്ളത്
- ARENTI 8MP 4K Outdoor Security Camera
- ഇൻസ്ട്രക്ഷൻ മാനുവൽ
സജ്ജമാക്കുക
The ARENTI 8MP 4K Outdoor Security Camera offers flexible setup options. It supports Power over Ethernet (PoE) for simplified installation or can be used standalone with a 12V power adapter (not included) and a standard router.
PoE ഇൻസ്റ്റാളേഷൻ
For PoE setup, connect the camera to a PoE-enabled NVR (such as an Arenti NVR) or a standard PoE switch using a single Ethernet cable. This cable will provide both power and data transmission.
Figure 1: Simple PoE Setup Diagram. The camera connects to a PoE switch or NVR via an Ethernet cable, which then connects to a router.
Standalone Setup (with 12V adapter)
If a PoE setup is not desired, the camera can operate by connecting to a standard router along with a 12V power adapter (not included). Ensure the camera is within Wi-Fi range for optimal performance.
ആപ്പ് കോൺഫിഗറേഷൻ
To complete the setup and access camera features, download the free ARENTI app (available on iOS and Android). An account is required for initial setup. Follow the in-app instructions to add your device and configure settings.
Video: Dome Camera Setup with 12V adapter/without NVR. This video demonstrates the physical setup process for the dome camera using a 12V adapter.
Video: Arenti NVR security cameras system setup. This video guides users through the setup process for an Arenti NVR security camera system.
ക്യാമറ പ്രവർത്തിപ്പിക്കുന്നത്
8MP Ultra HD Clarity
The camera captures video in 8MP Ultra HD (4K) resolution, providing clear and detailed images for effective surveillance.
Figure 2: ARENTI 8MP 4K Outdoor Security Camera with live view ഒരു സ്മാർട്ട്ഫോണിൽ.
സ്മാർട്ട് AI കണ്ടെത്തൽ
Advanced AI algorithms accurately distinguish between people, vehicles, and pets, reducing false alarms. You can customize detection zones within the app to monitor specific areas of interest.
Figure 3: AI-Powered Detection highlighting human figures for accurate alerts.
പൂർണ്ണ വർണ്ണ നൈറ്റ് വിഷൻ
The camera features dual-light night vision, providing clear full-color images up to 32 feet even in complete darkness. It automatically switches between full-color and infrared modes based on lighting conditions.
Figure 4: Flawless 4K Night & Day Vision.
ക്രമീകരിക്കാവുന്ന Viewing ആംഗിൾ
The camera offers a 110° wide-angle view, allowing for broad coverage of your property.
Figure 5: Adjustable Viewing Angle for comprehensive protection.
Real-Time Monitoring via ARENTI App
Monitor your camera anytime, anywhere using the free ARENTI app on iOS, Android, or through a secure web portal on PC. The app provides live view, playback, and device sharing capabilities.
Figure 6: Real-Time Monitoring via Arenti App on various devices.
മെയിൻ്റനൻസ്

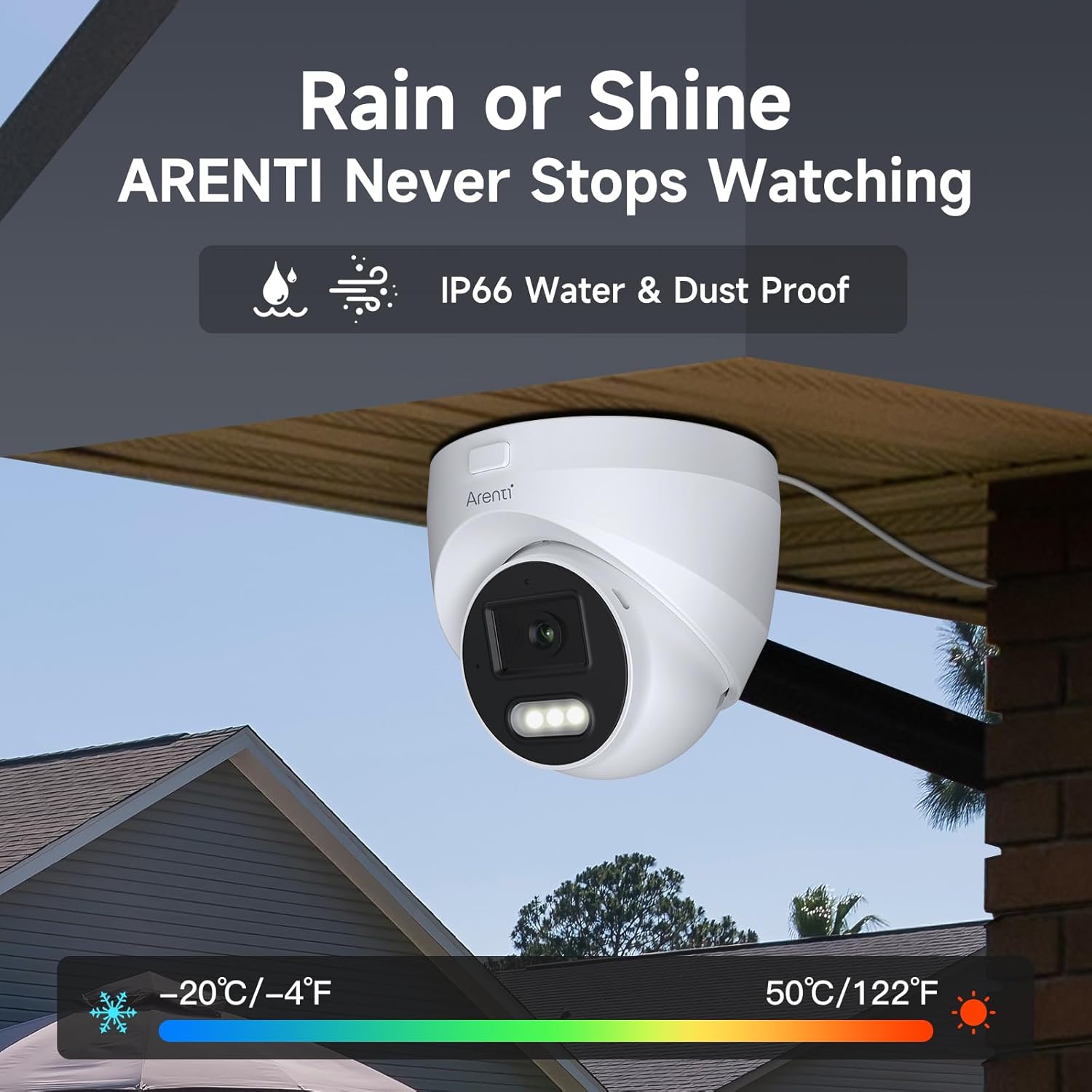

Durable All-Weather Design
The camera is built with IP66-rated metal housing, ensuring it can withstand various weather conditions including rain, snow, and extreme temperatures (-20°C to 50°C / -4°F to 122°F). Regular cleaning of the lens may be required to maintain optimal image clarity.
Figure 7: IP66 Weatherproof Design for year-round protection.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your ARENTI camera, consider the following:
- കണക്റ്റിവിറ്റി പ്രശ്നങ്ങൾ: Ensure your camera is connected to a 2.4GHz Wi-Fi network. Some routers may require manual selection of the 2.4GHz band.
- എൻവിആർ അനുയോജ്യത: For standalone use, connect to a PoE-enabled NVR or a standard PoE switch. Direct compatibility with non-PoE routers is not supported for standalone PoE cameras.
- ആപ്പ് പ്രവർത്തനം: If the app experiences issues, try resetting the camera (refer to the user manual for reset button location) and re-pairing it with the app.
- തെറ്റായ അലാറങ്ങൾ: Utilize the advanced AI detection and customize detection zones within the app to minimize false alerts from environmental factors.
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| മോഡലിൻ്റെ പേര് | US-AIC-Dome-AIC-520B |
| വീഡിയോ ക്യാപ്ചർ റെസല്യൂഷൻ | 4K (8MP) |
| ഇൻഡോർ/ഔട്ട്ഡോർ ഉപയോഗം | ഇൻഡോർ, ഔട്ട്ഡോർ |
| പവർ ഉറവിടം | Corded Electric (PoE or 12V adapter) |
| കണക്റ്റിവിറ്റി പ്രോട്ടോക്കോൾ | ഇഥർനെറ്റ് |
| കണക്റ്റിവിറ്റി ടെക്നോളജി | Ethernet, Wired |
| പ്രത്യേക സവിശേഷതകൾ | Motion Sensor, Night Vision (Full-Color), Weather Proof (IP66) |
| Viewing ആംഗിൾ | 110° വൈഡ് ആംഗിൾ |
| നൈറ്റ് വിഷൻ റേഞ്ച് | Up to 32ft (Full-Color) |
| പ്രവർത്തന താപനില | -20°C~50°C (-4°F~122°F) |
| ഇനത്തിൻ്റെ ഭാരം | 1.23 പൗണ്ട് |
| ഉൽപ്പന്ന അളവുകൾ | 4.33 x 4.33 x 3.54 ഇഞ്ച് |
വാറൻ്റിയും പിന്തുണയും
For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the official ARENTI website. The manufacturer, ARENTI, is committed to providing assistance for their products.
