YADEA 500W ഇലക്ട്രിക് ബൈക്ക് ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

Welcome to your new YADEA 500W Electric Bike. This manual provides essential information for safe operation, maintenance, and optimal performance of your e-bike. Please read it thoroughly before your first ride.

The YADEA Cocoa electric bike is designed for eco-friendly commuting and cargo transport, featuring a powerful 500W motor, a high-density LG 45V 15Ah battery for extended range, and a comfortable, adjustable design. It's built for durability and convenience in urban adventures.

Image: The YADEA Cocoa Electric Bike, showcasing its design and integrated front basket.

2 സുരക്ഷാ വിവരങ്ങൾ

Your safety is paramount. Adhere to these guidelines to ensure a safe riding experience.

• Always wear a certified helmet when riding your e-bike.
• Familiarize yourself with local traffic laws and e-bike regulations.
• Perform a pre-ride check before each use: inspect brakes, tire pressure, battery charge, and ensure all lights are functional.
• The battery is equipped with a Battery Management System (BMS) for protection against overcharging, over-discharging, and overheating.
• മദ്യത്തിന്റെയും മയക്കുമരുന്നിന്റെയും ലഹരിയിൽ വാഹനമോടിക്കരുത്.
• നിങ്ങളുടെ ചുറ്റുപാടുകളെക്കുറിച്ച് ബോധവാന്മാരായിരിക്കുകയും പ്രതിരോധാത്മകമായി വാഹനമോടിക്കുകയും ചെയ്യുക.

Image: A rider demonstrating safe operation of the YADEA e-bike in an urban environment.

Image: Two riders enjoying their YADEA e-bikes on a scenic path, highlighting the bike's suitability for leisure and safe outdoor activity.

3. പാക്കേജ് ഉള്ളടക്കം

Upon opening your YADEA Electric Bike package, please ensure all the following components are present:

• YADEA 500W Electric Bike (main frame, wheels, handlebars, seat)
• Removable LG 45V 15Ah Battery (may be pre-installed)
• ബാറ്ററി ചാർജർ
• ബെൽ
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
• Basic Assembly Tools (if applicable)

4. സജ്ജീകരണവും അസംബ്ലിയും

Your YADEA Cocoa electric bike requires some final assembly upon arrival. Follow these steps carefully.

4.1 അൺപാക്കിംഗ്

1. പാക്കേജിംഗിൽ നിന്ന് ബൈക്കും എല്ലാ ഘടകങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. Inspect for any shipping damage. Contact customer support immediately if damage is found.

4.2 ഹാൻഡിൽബാർ ഇൻസ്റ്റലേഷൻ

Attach the handlebars to the stem, ensuring all bolts are securely tightened. Refer to the included quick-start guide for specific torque settings.

4.3 പെഡൽ ഇൻസ്റ്റലേഷൻ

Identify the left (L) and right (R) pedals. Thread them into the corresponding crank arms. Note that the left pedal is reverse-threaded (turn counter-clockwise to tighten). Ensure they are tightened securely.

4.4 സീറ്റ് പോസ്റ്റും സാഡിൽ ക്രമീകരണവും

Insert the seat post into the frame and adjust the saddle height for comfortable riding. The adjustable seat feature accommodates riders from 5' to 6'5". Ensure the quick-release lever or bolt is securely fastened after adjustment.

ചിത്രം: ഒരു സൈഡ് പ്രോfile of the YADEA Cocoa e-bike, useful for visual reference during assembly.

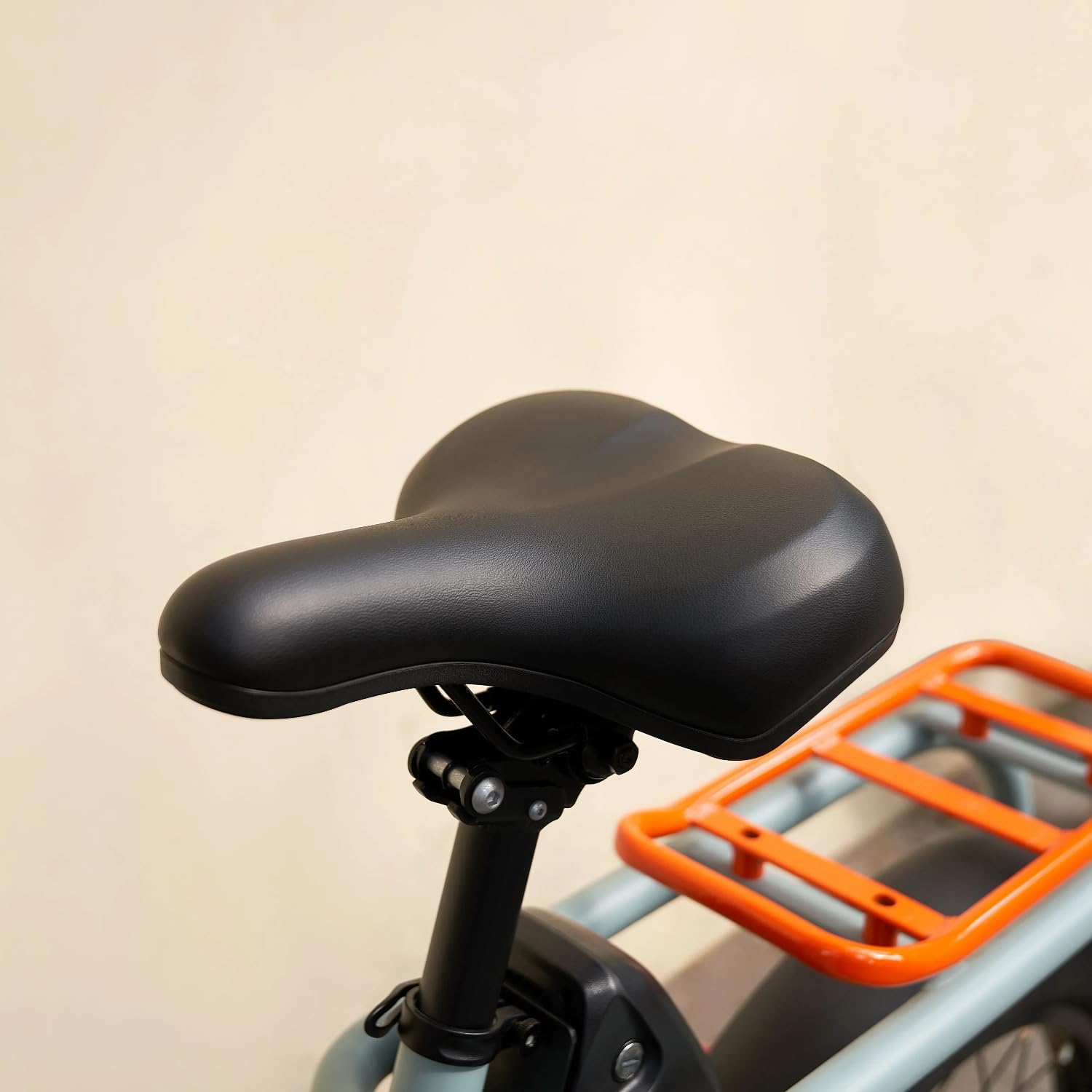

Image: Detail of the adjustable saddle and robust rear rack, emphasizing comfort and utility.

5. നിങ്ങളുടെ ഇ-ബൈക്ക് പ്രവർത്തിപ്പിക്കുക

Learn how to operate your YADEA electric bike for an optimal riding experience.

5.1 ബാറ്ററി ചാർജിംഗ്

Before your first ride, fully charge the LG 45V 15Ah battery. Connect the charger to the bike's charging port and then to a power outlet. The indicator light on the charger will change when fully charged. The battery is BMS-protected for safe charging.

Image: The integrated battery pack, designed for easy charging and secure placement.

5.2 Smart Display (5.5" TFT)

The intuitive 5.5" TFT smart display provides real-time information essential for your ride, including:

• നിലവിലെ വേഗത
• ആകെ മൈലേജ്
• ബാറ്ററി നില
• Calories Expended
• Carbon Emissions Saved

Image: The smart display providing comprehensive ride data at a glance.

5.3 റൈഡിംഗ് മോഡുകൾ

Your YADEA e-bike offers three distinct riding modes to suit your needs:

• EV Mode (Pure Electric): Provides effortless electric propulsion without pedaling. Offers a range of up to 37 miles.
• ECO Mode (Pedal-Assist): Assists your pedaling for extended range, up to 60 miles. Ideal for longer commutes and conserving battery.
• Sport Mode (Manual): No power assist. Ride like a traditional bicycle, ideal for calorie burning and exercise.

5.4 ഗിയർ മാറ്റൽ

The Shimano 7-speed gears allow for smooth transitions across various terrains. Use the shifter on the handlebars to change gears, adapting to inclines or flat roads for efficient riding.

Image: The Shimano 7-speed gear system, ensuring smooth and reliable shifting.

5.5 ബ്രേക്കിംഗ് സിസ്റ്റം

The hydraulic disc brakes provide reliable stopping power in various conditions. Always apply both brakes simultaneously for optimal control and shorter stopping distances.

Image: The hydraulic disc brake system, designed for responsive and powerful braking.

5.6 ലൈറ്റിംഗ്

The automatic LED headlights enhance visibility and safety, especially in low-light conditions or at night. Ensure they are clean and unobstructed.

Image: The powerful LED headlight, providing clear illumination for night riding.

5.7 Cargo Features

The YADEA Cocoa is designed with versatility in mind, featuring a 35-lb capacity front basket and a 110-lb capacity rear rack. Universal mounting points support additional accessories like baby seats or panniers, making it ideal for errands or family outings.

Image: The robust rear cargo rack, ready for various carrying needs.

Image: The front basket in use, showcasing the bike's practical cargo capabilities for daily tasks.

6. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your YADEA electric bike.

6.1 റെഗുലർ ക്ലീനിംഗ്

പരസ്യത്തിലൂടെ നിങ്ങളുടെ ബൈക്ക് പതിവായി വൃത്തിയാക്കുക.amp cloth and mild soap. Avoid high-pressure washing directly on electrical components. The bike has an IP65 waterproofing rating, but direct high-pressure water can still cause issues.

6.2 ടയർ മർദ്ദം

Check the pressure of the 20x3.0" anti-slip fat tires before each ride. Maintain the recommended PSI (found on the tire sidewall) for optimal performance, comfort, and safety.

6.3 ചെയിൻ ലൂബ്രിക്കേഷൻ

Lubricate the rust-proof chain regularly, especially after riding in wet conditions, to ensure smooth operation and prevent wear.

6.4 ബ്രേക്ക് പരിശോധന

Periodically inspect brake pads and rotors for wear. Adjust or replace them as needed. If you notice reduced braking performance or unusual noises, have them checked by a professional.

6.5 ബാറ്ററി കെയർ

Store the battery in a cool, dry place when not in use. Avoid fully discharging the battery for extended periods. Charge it regularly, even if the bike is not being used, to maintain battery health.

7. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your YADEA electric bike.

7.1 ബൈക്ക് ഓണാക്കുന്നില്ല

• Check if the battery is properly seated and locked into place.
• Ensure the battery is charged. Connect the charger and check the charging indicator.
• Press and hold the power button on the display for a few seconds.

7.2 മോട്ടോർ അസിസ്റ്റിംഗ് ചെയ്യുന്നില്ല

• Verify that the selected riding mode is not Sport Mode (which provides no assist).
• Check the battery level on the display; a low battery will reduce or stop assist.
• Ensure the pedal-assist sensor (PAS) is clean and unobstructed.

7.3 Brakes Squealing

• Clean brake rotors and pads with a clean cloth and rubbing alcohol.
• Check for proper alignment of calipers. If the issue persists, professional adjustment may be needed.

7.4 ഡിസ്പ്ലേ പ്രവർത്തിക്കുന്നില്ല

• Check all cable connections to the display for looseness or damage.
• ബാറ്ററിക്ക് മതിയായ ചാർജ് ഉണ്ടെന്ന് ഉറപ്പാക്കുക.
• If the display remains unresponsive, contact customer support.

8 സ്പെസിഫിക്കേഷനുകൾ

Detailed technical specifications for your YADEA 500W Electric Bike.

9. വാറൻ്റിയും പിന്തുണയും

Your YADEA 500W Electric Bike is backed by a comprehensive warranty to ensure your peace of mind:

• 5 വർഷത്തെ മോട്ടോർ വാറൻ്റി
• 1 വർഷത്തെ കവറേജ് for the battery, frame, and other components.

For warranty claims, technical support, or any questions not covered in this manual, please visit the official YADEA webസൈറ്റ് അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക.
