ELEGOO മെർക്കുറി പ്ലസ് 3.0 വാഷ് ടാങ്ക് ഇൻസ്ട്രക്ഷൻ മാനുവൽ

1. ആമുഖം

This manual provides instructions for the proper use and maintenance of the ELEGOO Mercury Plus 3.0 Wash Tank. This large-capacity washing container is designed for efficient post-processing of resin 3D printed models, offering compatibility with the Mercury Plus V3.0 Wash and Cure Station.

The wash tank features a generous 7.5L capacity, allowing for the cleaning of larger models or multiple smaller prints simultaneously. Its design incorporates features for both basket and hanging cleaning methods, ensuring thorough resin removal.

ചിത്രം 1: മുൻഭാഗം view of the ELEGOO Mercury Plus 3.0 Wash Tank, displaying its clear plastic construction and the 7.5L maximum fill line.

2. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• ELEGOO Mercury Plus 3.0 Wash Tank (7.5L capacity)
• ബാസ്കറ്റ് കഴുകൽ
• Adjustable Build Plate Holders (2 pieces)
• Hex Key and Screws (for assembly of build plate holders)

Figure 2: Package contents, showing the wash tank, washing basket, and additional accessories.

3. സജ്ജീകരണം

1. ഘടകങ്ങൾ അൺപാക്ക് ചെയ്യുക: പാക്കേജിംഗിൽ നിന്ന് എല്ലാ ഇനങ്ങളും ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
2. കേടുപാടുകൾക്കായി പരിശോധിക്കുക: Check the wash tank and accessories for any signs of damage during transit. Contact support if any issues are found.
3. Prepare Cleaning Solution: Fill the wash tank with an appropriate cleaning solution (e.g., Isopropyl Alcohol, Ethanol) up to the MAX 7.5L line, or to a level sufficient to submerge your printed models.
4. Install Build Plate Holders (if using hanging mode): If you intend to clean models directly on the build plate, attach the adjustable build plate holders to the washing basket using the provided hex key and screws. Ensure they are securely fastened and adjusted to fit your specific build plate size.

Figure 3: Detail of the magnetic stirring plate within the wash tank, which facilitates efficient cleaning solution agitation.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The ELEGOO Mercury Plus 3.0 Wash Tank supports two primary cleaning modes:

4.1 Basket Cleaning Mode

This mode is suitable for models that have been removed from the build plate.

1. Carefully remove your 3D printed model(s) from the build plate.
2. Place the model(s) into the washing basket.
3. Lower the washing basket into the wash tank, ensuring the models are fully submerged in the cleaning solution.
4. Close the lid securely to prevent splashes and evaporation.
5. Initiate the washing cycle on your Mercury Plus V3.0 Wash and Cure Station (sold separately).
6. After the cleaning cycle, remove the basket, allow excess solution to drip off, and proceed with drying and curing the models.

Maximum washing volume for basket cleaning: 230 × 135 × 260 mm.

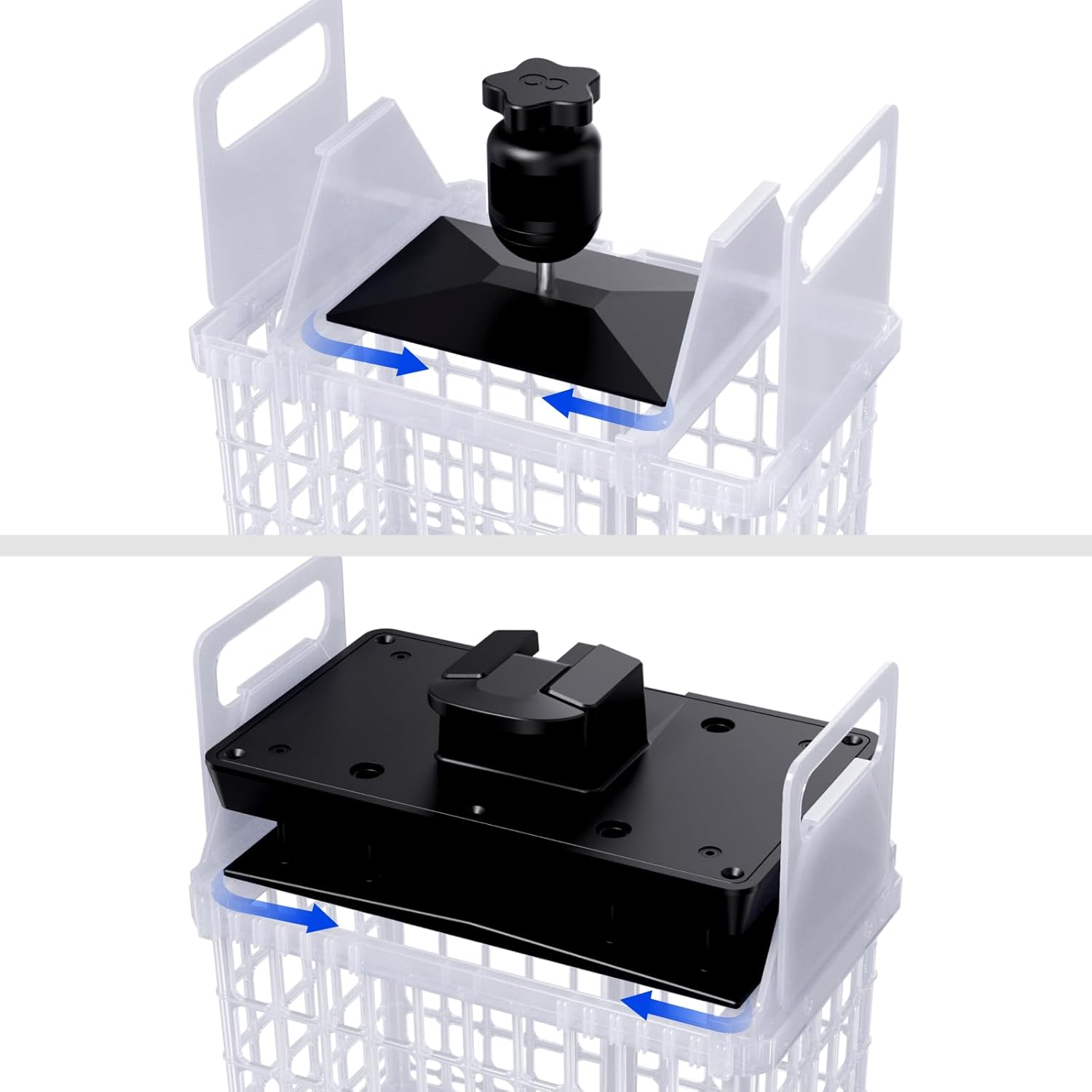

4.2 Hanging Cleaning Mode

This mode allows for cleaning models directly on the build plate, minimizing handling.

1. Attach the adjustable build plate holders to the washing basket (if not already done).
2. Secure your build plate, with the printed model(s) still attached, onto the adjustable holders within the washing basket.
3. Lower the washing basket and build plate assembly into the wash tank, ensuring the models are fully submerged in the cleaning solution.
4. ലിഡ് സുരക്ഷിതമായി അടയ്ക്കുക.
5. Initiate the washing cycle on your Mercury Plus V3.0 Wash and Cure Station.
6. After the cleaning cycle, carefully remove the build plate, allow excess solution to drip off, and proceed with model removal, drying, and curing.

Maximum washing volume for hanging cleaning: 214 × 135 × 180 mm.

ചിത്രം 4: കോണാകൃതിയിലുള്ളത് view of the wash tank, highlighting its overall design and capacity markings.

5. പരിപാലനം

• ടാങ്ക് വൃത്തിയാക്കൽ: Regularly clean the wash tank and basket with warm water and mild soap. Ensure all resin residue is removed.
• പരിഹാരം മാറ്റിസ്ഥാപിക്കൽ: Replace the cleaning solution periodically, especially when it becomes cloudy or heavily saturated with resin. Dispose of used resin-contaminated solution according to local regulations.
• ലിഡ് സീൽ: Ensure the rubber seal on the lid is clean and free of debris to maintain a tight, splash-proof, and evaporation-resistant closure.
• സംഭരണം: Store the wash tank in a cool, dry place away from direct sunlight when not in use. The tank is made of high-quality PP plastic, offering chemical and heat resistance for durability.

6. പ്രശ്‌നപരിഹാരം

• Resin Residue After Washing:
  • Ensure models are fully submerged in the cleaning solution.
  • Check the cleaning solution concentration and replace if it appears diluted or heavily contaminated.
  • Increase washing time or consider a second wash cycle.
• മൂടി ശരിയായി അടയ്ക്കാത്തത്:
  • Inspect the rubber seal for any damage or debris. Clean or replace if necessary.
  • Ensure the lid is correctly aligned and latched on all sides.

7 സ്പെസിഫിക്കേഷനുകൾ

8. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please refer to the official ELEGOO website or contact ELEGOO customer service directly. Keep your purchase receipt as proof of purchase.

Official ELEGOO Webസൈറ്റ്: www.elegoo.com
