IKIER K1 Pro Max Laser Engraver User Manual

1. ആമുഖം

Welcome to the user manual for the IKIER K1 Pro Max Laser Engraver. This powerful machine is designed for precision engraving and cutting on a variety of materials including wood, metal, acrylic, and leather. Featuring a 48000mW laser output, advanced autofocus, and high-speed capabilities, the K1 Pro Max offers versatility and efficiency for your creative projects. Please read this manual thoroughly before operation to ensure safe and optimal use of your device.

Image: The IKIER K1 Pro Max Laser Engraver, showcasing its main components and the R2 Rotary Roller accessory, along with examples of engraved and cut materials.

2 സുരക്ഷാ വിവരങ്ങൾ

Operating a laser engraver involves inherent risks. Adhere to all safety guidelines to prevent injury or damage.

• നേത്ര സംരക്ഷണം: Always wear appropriate laser safety goggles (OD6+) when the laser is active. Direct exposure to the laser beam can cause severe eye damage.
• വെൻ്റിലേഷൻ: Operate the machine in a well-ventilated area or use an exhaust system to remove fumes and particles generated during engraving/cutting. Some materials produce toxic fumes.
• അഗ്നി അപകടം: Laser engraving/cutting can ignite materials. Never leave the machine unattended during operation. Keep a fire extinguisher nearby.
• മെറ്റീരിയൽ അനുയോജ്യത: Only engrave or cut materials approved for laser processing. Avoid PVC, vinyl, or other chlorine-containing materials as they produce corrosive and toxic gases.
• ഇലക്ട്രിക്കൽ സുരക്ഷ: മെഷീൻ ശരിയായി ഗ്രൗണ്ട് ചെയ്തിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക. നനഞ്ഞ കൈകൾ കൊണ്ടോ അല്ലെങ്കിൽ ഇരുമ്പ് ദ്വാരങ്ങൾക്കുള്ളിലോ പ്രവർത്തിക്കരുത്.amp വ്യവസ്ഥകൾ. അറ്റകുറ്റപ്പണി നടത്തുന്നതിന് മുമ്പ് വൈദ്യുതി വിച്ഛേദിക്കുക.
• Child Lock & Safety Features: Utilize the child lock feature to prevent unauthorized use. Familiarize yourself with the gyroscope, omnidirectional limit switch, and flame detector safety functions.
• ലേസർ ക്ലാസ്: This product is a Class 4 laser device. Exercise extreme caution.

Image: Illustration of the four safety functions: Child lock, Gyroscope, Omnidirectional limit switch, and Flame Detector, designed to enhance operational safety.

3. പാക്കേജ് ഉള്ളടക്കം

Upon opening the package, verify that all components are present and undamaged. The standard package for the IKIER K1 Pro Max typically includes:

• IKIER K1 Pro Max Laser Engraver Unit (Pre-assembled frame)
• 48000mW Laser Module
• R2 Rotary Roller (Optional, may be included depending on package)
• പവർ അഡാപ്റ്ററും കേബിളും
• USB കേബിൾ
• സുരക്ഷാ കണ്ണടകൾ
• Air Assist Pump and Tubing
• Sample Materials for Testing
• ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
• അസംബ്ലിക്കുള്ള ഉപകരണങ്ങൾ (ആവശ്യമെങ്കിൽ)

4. സജ്ജീകരണ ഗൈഡ്

Follow these steps to set up your IKIER K1 Pro Max Laser Engraver:

1. അൺപാക്ക് ചെയ്യുന്നു: Carefully remove all components from the packaging. Retain the original packaging for future storage or transport.
2. അസംബ്ലി: The K1 Pro Max frame comes largely pre-assembled. Attach the gantry to the main frame using the provided screws. Ensure all connections are secure.
3. ലേസർ മൊഡ്യൂൾ ഇൻസ്റ്റാളേഷൻ: Mount the laser module onto the gantry according to the instructions in the quick start guide. Connect the necessary cables.
4. എയർ അസിസ്റ്റ് കണക്ഷൻ: Connect the air assist pump to the designated port on the laser module and the machine.
5. പവർ കണക്ഷൻ: Connect the power adapter to the machine and then to a suitable power outlet. Do not power on yet.
6. സോഫ്റ്റ്‌വെയർ ഇൻസ്റ്റാളേഷൻ: Install the recommended software (e.g., LaserGRBL, LightBurn) on your computer. The IKIER APP is also available on app stores.
7. പ്രാരംഭ കണക്ഷൻ: Connect the engraver to your computer via USB or Wi-Fi (if supported).

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

This section outlines the basic operation of your laser engraver.

1. പവർ ഓൺ: Turn on the machine using the main power switch. Observe the LED display for status.
2. മെറ്റീരിയൽ പ്ലേസ്മെൻ്റ്: Place your material securely on the working surface. Ensure it is flat and stable.
3. ഓട്ടോഫോക്കസ്: The IKIER K1 Pro Max features a motorized Z-axis for automatic focusing. The machine will measure the distance to the object and adjust the focus automatically.
4. Power Switching (48W/24W): Utilize the power switch on the laser module to select between 48W for cutting and 24W for fine engraving.
5. സോഫ്റ്റ്‌വെയർ തയ്യാറാക്കൽ: Open your chosen software (e.g., LightBurn). Import or create your design. Configure laser parameters (speed, power, passes) based on your material and desired outcome.
6. Air Assist Control: The smart air assist system automatically adjusts airflow. Ensure it is enabled for cutting (strong airflow) and set to weak airflow for engraving.
7. പ്രവർത്തനം ആരംഭിക്കുക: Initiate the engraving or cutting process from the software. Monitor the machine closely during operation.
8. Offline Working: For offline operation, copy your engraving or cutting files to a USB drive and use the 4.3-inch touch screen to control the machine.
9. പവർ ഓഫ്: Once the task is complete, power off the machine and disconnect from the power source.

Image: Visual representation of the cutting mode (48W high power) and engraving mode (24W small light spot 2K fine engraving) with their respective power switching options.

Image: Depiction of the motorized Z-axis, infrared cross positioning, and autofocus sensing point, highlighting the automatic focusing and air assist features.

6 പ്രധാന സവിശേഷതകൾ

• Powerful 48W Laser Output: The K1 Pro Max utilizes the latest laser technology, delivering up to 48000mW output power. This enables single-pass cutting of 25mm wood, 19mm black acrylic, and 0.3mm stainless steel. It can also directly carve colored patterns on mirror stainless steel, ceramics, and opaque glass.
• Resume Engraving Function: An advanced automatic power failure recovery system remembers the engraving position, allowing the machine to quickly locate and continue engraving from where it left off after an unexpected power outage. This prevents material waste and ensures uninterrupted production.
• Motorized Z-axis with Autofocus: Eliminates manual focusing. The intelligent Z-axis automatically measures the distance to the object and adjusts the focus for precise results.
• Revolutionary Design & High Engraving Speed: Upgraded optical axis and linear guides provide stability and reliability, supporting engraving speeds up to 900mm/s, which is significantly faster than many other machines.
• Super Cooling System: Features an innovative dual air duct design with 4 high-quality copper tubes for heat conduction, double rows of large fins, and a high-power fan for maximum heat dissipation of the laser module.
• 32-bit Smart Motherboard: Greatly improves data processing capacity and speeds up machine efficiency.
• Rich Interface: Includes USB, HDMI, Type-C, Power, and Air Assist interfaces for versatile connectivity.
• PC Software and APP Compatibility: Compatible with Windows and macOS systems, supporting software like LaserGRBL and LightBurn. The IKIER APP is available on the Apple App Store and Google Play Store.

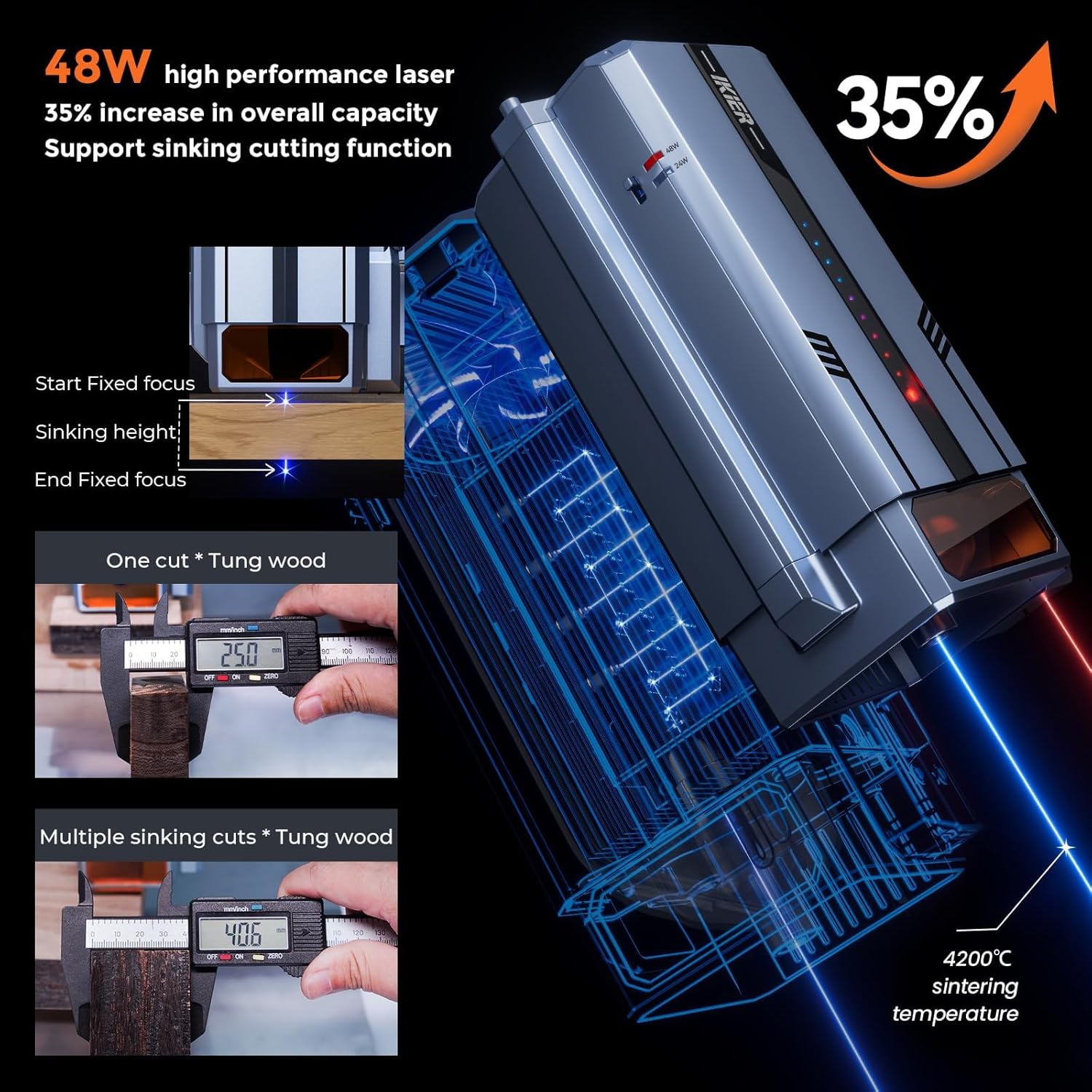

Image: Details on the 48W laser performance, including a 35% increase in overall capacity and support for the sinking cutting function, showing how the laser adjusts focus during multi-pass cuts.

ചിത്രം: ആന്തരികം view of the new 32-bit motherboard and a close-up of the upgraded optical axis and linear guides, illustrating how they contribute to the 900mm/s engraving speed and improved accuracy.

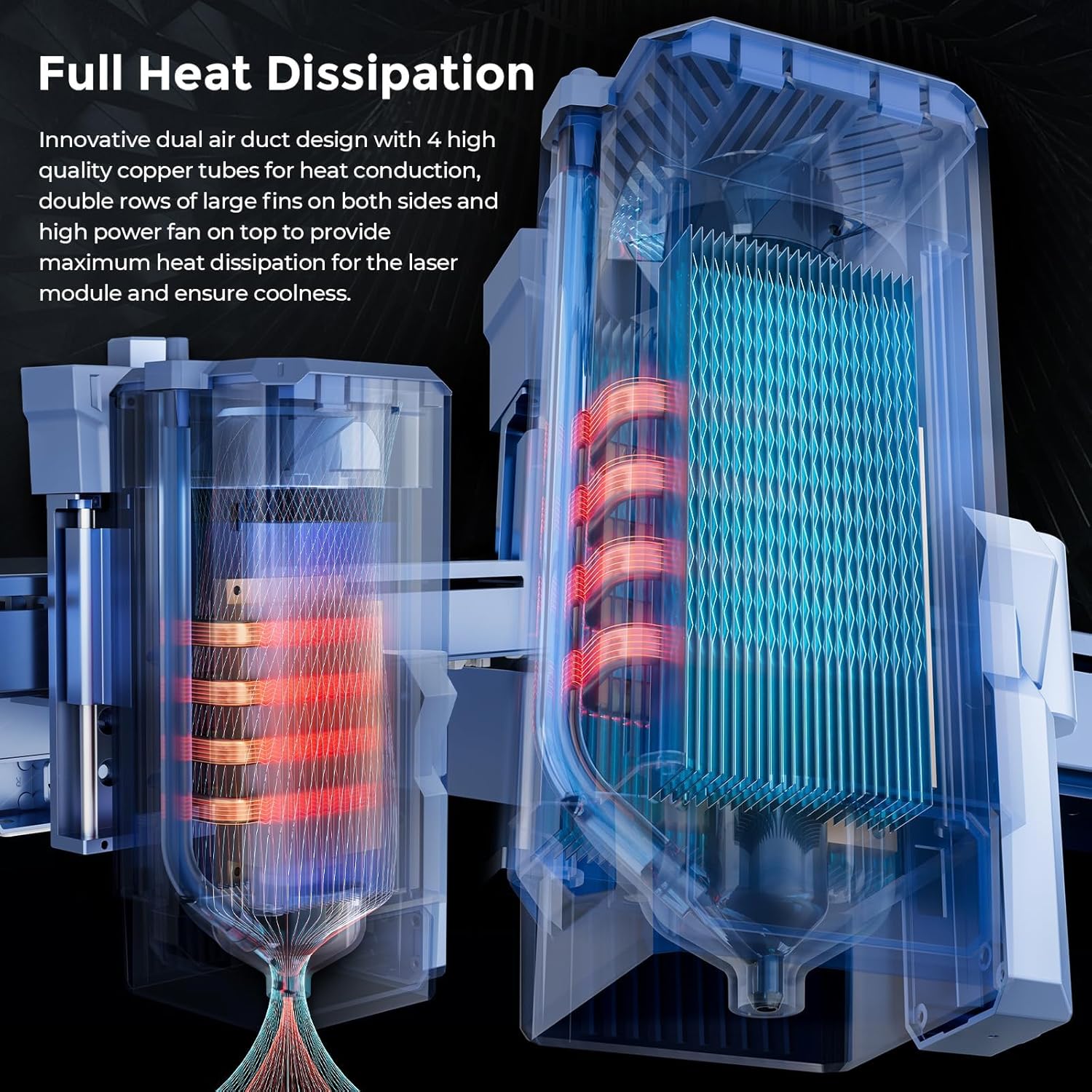

Image: Diagram illustrating the innovative dual air duct design, copper tubes, and large fins for efficient heat dissipation within the laser module.

7. പരിപാലനം

Regular maintenance ensures the longevity and optimal performance of your IKIER K1 Pro Max.

• Cleaning the Laser Lens: Periodically clean the laser lens with a lint-free cloth and lens cleaning solution. A dirty lens can reduce laser power and engraving quality.
• Cleaning the Work Area: Remove debris and dust from the working surface and around the machine after each use.
• ലൂബ്രിക്കേഷൻ: Apply a small amount of lubricant to the linear guides and screws as recommended by the manufacturer to ensure smooth movement.
• ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: Check the official IKIER website or app for any available firmware updates to ensure your machine operates with the latest improvements and bug fixes.
• കേബിൾ പരിശോധന: Regularly inspect all cables for signs of wear or damage. Replace any damaged cables immediately.

8. പ്രശ്‌നപരിഹാരം

നിങ്ങൾ നേരിട്ടേക്കാവുന്ന പൊതുവായ പ്രശ്നങ്ങൾക്കുള്ള പരിഹാരങ്ങൾ ഈ വിഭാഗം നൽകുന്നു.

9 സ്പെസിഫിക്കേഷനുകൾ

10. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or service inquiries, please contact IKIER customer service through their official webനിങ്ങൾ ഉൽപ്പന്നം വാങ്ങിയ സൈറ്റ് അല്ലെങ്കിൽ റീട്ടെയിലർ. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.

ഓൺലൈൻ ഉറവിടങ്ങൾ:

• IKIER Official Webസൈറ്റ്: Visit IKIER Store on Amazon
• Software Downloads & Updates: Refer to the software provider's official websites (e.g., LightBurn, LaserGRBL) or the IKIER APP.
