FOHERE ഔട്ട്ഡോർ കിച്ചൺ ട്രാഷ് ഡ്രോയർ ഉപയോക്തൃ മാനുവൽ

1. ആമുഖം

Thank you for choosing the FOHERE Outdoor Kitchen Trash Drawer. This built-in stainless steel pull-out trash bin is designed to enhance the functionality and aesthetics of your outdoor or indoor kitchen, BBQ island, or grill station. Its robust construction and thoughtful design ensure a clean and organized cooking environment.

Image 1.1: The FOHERE Outdoor Kitchen Trash Drawer, showcasing its sleek stainless steel design and pull-out mechanism with an internal trash bin.

പ്രധാന സവിശേഷതകൾ:

• വിശാലമായ സംഭരണ ​​ശേഷി: Accommodates a significant amount of kitchen waste, bearing over 25KG.
• മോടിയുള്ളതും വൃത്തിയാക്കാൻ എളുപ്പവുമാണ്: Constructed from 304 rust-resistant stainless steel, waterproof and designed for easy maintenance.
• Smooth Sliding, Effortless Access: Features 201 stainless steel rails and ball bearings for quiet and smooth operation.
• Safe Storage with Good Ventilation: Raised bottom frame secures trash cans, and ventilation panels prevent gas buildup.
• ചിന്തനീയമായ ഡിസൈൻ: Integrated design with rounded corners and a sleek handle for user convenience and safety.
• ബഹുമുഖ ഉപയോഗം: Suitable for outdoor kitchens, BBQ islands, and indoor kitchens.

Image 1.2: The FOHERE trash drawer's wide application in various kitchen environments, including outdoor, BBQ island, and indoor settings.

2. ഉൽപ്പന്ന സവിശേഷതകൾ

3. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The FOHERE Outdoor Kitchen Trash Drawer is designed for built-in installation. Ensure you have the correct cutout dimensions before proceeding.

Image 3.1: Visual guide for product and installation dimensions. Product: 13.4"W x 25.8"H x 19.6"D. Installation Cutout: 11.7"W x 23.8"H x 20"D.

ഇൻസ്റ്റലേഷൻ ഘട്ടങ്ങൾ:

1. ഓപ്പണിംഗ് തയ്യാറാക്കുക: Ensure your outdoor kitchen island or cabinet has a cutout opening that matches the specified installation dimensions: 11.7"W x 23.8"H x 20"D.
2. Position the Drawer: Carefully slide the trash drawer unit into the prepared opening.
3. യൂണിറ്റ് സുരക്ഷിതമാക്കുക: Use appropriate fasteners (not included, as specific to your cabinet material) to secure the drawer frame to the surrounding structure. Ensure it is level and flush with the cabinet surface.
4. പ്രവർത്തനം സ്ഥിരീകരിക്കുക: Once secured, pull the drawer out and push it back in several times to ensure smooth operation of the sliding rails.

Note: Professional installation is recommended if you are unsure about the process.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

The FOHERE Outdoor Kitchen Trash Drawer is designed for simple and efficient use.

Image 4.1: The drawer fully extended, illustrating its capacity for a standard trash can (not included).

ഉപയോഗം:

• ഡ്രോയർ തുറക്കുന്നു: Gently pull the sleek handle located on the front of the drawer. The smooth sliding rails will allow the drawer to extend effortlessly.
• Placing/Removing Trash Bin: Once the drawer is fully extended, place your trash can or propane tank inside the designated area. The raised bottom frame helps secure the container.
• ഡ്രോയർ അടയ്ക്കുന്നു: Push the drawer back into the cabinet until it is fully closed and flush with the surface. The seamless construction ensures a tight seal, protecting contents from outdoor elements and pests.

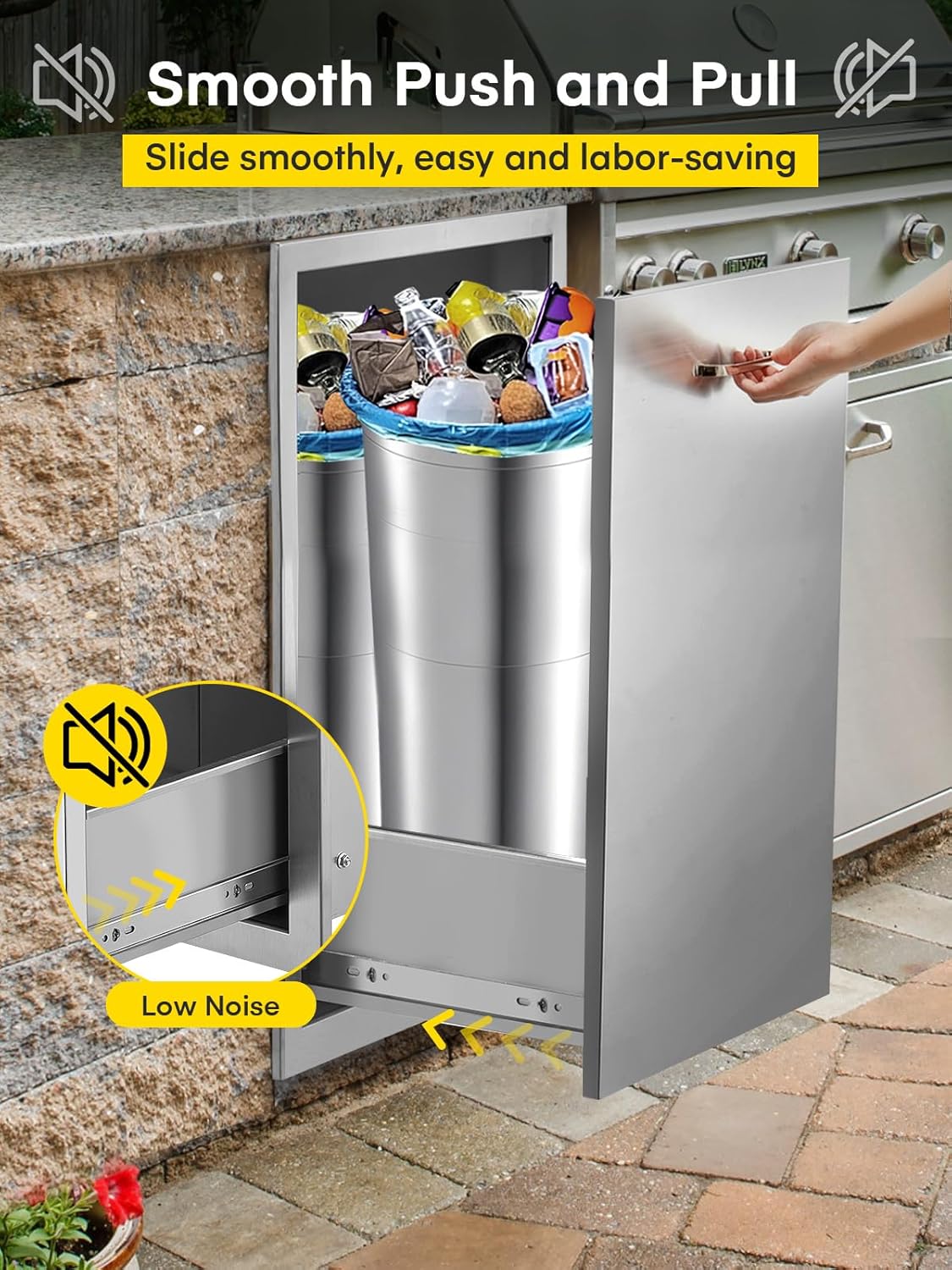

Image 4.2: Detail of the smooth, low-noise sliding mechanism, ensuring quiet operation.

The drawer's design allows for quiet and smooth operation, making it convenient for frequent use.

5. പരിചരണവും പരിപാലനവും

To ensure the longevity and pristine appearance of your FOHERE Outdoor Kitchen Trash Drawer, follow these simple care and maintenance guidelines.

Image 5.1: The drawer's 304 stainless steel construction offers corrosion-proof, rustproof, weatherproof, and fire resistance properties, making it easy to clean.

ക്ലീനിംഗ് നിർദ്ദേശങ്ങൾ:

• പതിവ് വൃത്തിയാക്കൽ: Wipe down the stainless steel surfaces regularly with a soft cloth and mild soap and water solution.
• ശാഠ്യമുള്ള പാടുകൾ: For more stubborn stains, use a stainless steel cleaner specifically designed for kitchen appliances. Always wipe in the direction of the grain.
• ഉരച്ചിലുകൾ ഒഴിവാക്കുക: Do not use abrasive cleaners, scouring pads, or steel wool, as these can scratch the stainless steel finish.
• ഉണക്കൽ: After cleaning, dry the surface thoroughly with a clean, soft cloth to prevent water spots.
• Slide Rails: Periodically inspect the slide rails for any debris. Clean them with a dry cloth. Lubrication is generally not required for ball-bearing slides unless friction is noted.

Image 5.2: The seamless and weatherproof design protects against elements, ensuring durability and hygiene.

Proper maintenance will ensure your trash drawer remains functional and aesthetically pleasing for years.

6. പ്രശ്‌നപരിഹാരം

This section addresses common issues you might encounter with your FOHERE Outdoor Kitchen Trash Drawer.

പൊതുവായ പ്രശ്നങ്ങളും പരിഹാരങ്ങളും:

• ഡ്രോയർ തുറക്കാനോ അടയ്ക്കാനോ പ്രയാസമാണ്:
  • Check the slide rails for any obstructions (e.g., dirt, debris). Clean them thoroughly.
  • Ensure the drawer is properly aligned within the cabinet opening. Re-adjust if necessary.
  • Verify that the internal trash can or propane tank is not interfering with the drawer's movement.
• Drawer appears loose or wobbly:
  • Check all mounting screws that secure the drawer frame to the cabinet. Tighten any loose screws.
  • Ensure the cabinet structure itself is stable and level.
• Rust spots appear on stainless steel:
  • While 304 stainless steel is rust-resistant, surface rust can occur from external contaminants (e.g., iron particles). Clean immediately with a non-abrasive stainless steel cleaner and a soft cloth.
  • Avoid prolonged contact with corrosive substances.
• Unpleasant odors from the drawer:
  • Ensure the trash can inside is regularly emptied and cleaned.
  • Clean the interior of the drawer unit thoroughly.
  • Verify that the ventilation panels are not blocked, allowing for proper airflow.

7. വാറൻ്റിയും പിന്തുണയും

FOHERE products are manufactured to high-quality standards. Specific warranty details are typically provided with your purchase documentation or can be found on the manufacturer's official webസൈറ്റ്.

For technical support, replacement parts, or any inquiries not covered in this manual, please contact FOHERE customer service through their official channels. Refer to the contact information provided at the time of purchase or on the FOHERE brand store page on Amazon.

ഓൺലൈൻ പിന്തുണ: Visit the FOHERE Store on Amazon: FOHERE Store
