BSIMB 24-Inch FHD WiFi Digital Picture Frame User Manual

1. ആമുഖം

This manual provides detailed instructions for the setup, operation, and maintenance of your BSIMB 24-Inch FHD WiFi Digital Picture Frame. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience. Keep this manual for future reference.

2. പാക്കേജ് ഉള്ളടക്കം

Carefully unpack your digital picture frame and verify that all items listed below are included and in good condition.

• BSIMB 24-Inch Digital Picture Frame
• Wall Adapter with US Plug
• Remote Control (AAA+ battery not included)
• ഉപയോക്തൃ മാനുവൽ
• ദ്രുത ആരംഭ ഗൈഡ്
• സ്ക്രൂഡ്രൈവർ
• സ്ക്രൂകളും വാൾ ആങ്കറുകളും
• നിൽക്കുക
• Auto-Rotate Wall Mount (100x100 VESA Compatible)

ചിത്രം: പാക്കേജ് ഉള്ളടക്കങ്ങൾ

3. സജ്ജീകരണം

3.1 പ്രാരംഭ പവർ ഓൺ

1. Connect the wall adapter to the DC IN port on the back of the frame.
2. Plug the wall adapter into a power outlet. The frame will automatically power on.

Image: Plug in and use for instant setup.

3.2 Connecting to WiFi and VPhoto App

The BSIMB Digital Picture Frame utilizes the VPhoto app for easy photo and video sharing.

1. VPhoto ആപ്പ് ഡൗൺലോഡ് ചെയ്യുക: ഇതിനായി തിരയുക "VPhoto" in your smartphone's app store (available on App Store and Google Play) and install it.
2. ഒരു അക്കൗണ്ട് സൃഷ്ടിക്കുക: Open the VPhoto app and follow the on-screen instructions to create a new user account.
3. Connect Your Frame: On the digital picture frame, follow the initial setup wizard to connect to your WiFi network. Once connected, the frame will display a unique Frame ID.
4. Link App to Frame: In the VPhoto app, enter the unique Frame ID to link your smartphone to the digital picture frame.

Image: Three steps to get started with the VPhoto app.

3.3 വാൾ മൗണ്ടിംഗ്

The frame includes an auto-rotate wall mount for flexible display options.

1. Identify a suitable location on your wall for mounting.
2. Use the provided screws and wall anchors to securely attach the wall mount bracket to the wall. Ensure it is level.
3. Align the VESA holes on the back of the digital picture frame with the wall mount.
4. Attach the frame to the bracket. The auto-rotate feature allows you to easily switch between landscape and portrait orientations after mounting.

Image: Switching between landscape and portrait orientation with the swivel wall mount.

4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

4.1 Uploading Photos and Videos

You can upload media to your frame using several methods:

• VPhoto App: Use the linked VPhoto app on your smartphone to select and send photos and videos directly to the frame.
• ഇമെയിൽ: The frame has a unique email address. You can send photos and short videos as attachments to this email address, and they will appear on your frame.
• Micro SD Card (TF Card): Insert a Micro SD card into the designated slot on the frame. The frame supports direct playback from the card.
• USB ഡ്രൈവ്: Insert a USB drive into the USB port. The frame supports direct playback from the drive.

Image: Spacious 64GB storage, expandable via Micro SD card or USB drive.

4.2 Sharing with Family and Friends

Invite others to share their memories directly to your frame:

1. Share your frame's unique digital code (found in the frame's settings) with friends and family.
2. They can download the VPhoto app, enter the code, and send photos and videos to your frame from anywhere.

Image: Easily invite loved ones to share photos to your frame.

4.3 റിമോട്ട് കൺട്രോൾ ഉപയോഗിക്കുന്നു

The included remote control allows for convenient navigation and setting adjustments.

• നാവിഗേഷൻ: Use the directional buttons to move through menus and select options.
• പ്ലേബാക്ക്: Control slideshows, pause/play videos, and adjust volume.
• ക്രമീകരണങ്ങൾ: Access various settings such as display mode, sleep mode, and more.

കുറിപ്പ്: The remote control requires AAA+ batteries, which are not included in the package.

Image: Remote control for easy navigation and media playback.

4.4 Personalized Functions and Settings

The frame offers various customizable settings to enhance your viewഅനുഭവം:

• സ്ലൈഡ്ഷോ മോഡ്: Adjust transition effects, display duration, and playback order for photos.
• സ്ലീപ്പ് മോഡ്: Schedule the frame to automatically turn on and off at specific times to conserve energy.
• Photo Captions: Add captions to your photos for additional context.
• Weather and Clock: നിലവിലെ കാലാവസ്ഥാ വിവരങ്ങളും സമയവും സ്ക്രീനിൽ പ്രദർശിപ്പിക്കുക.
• ബ്ലൂടൂത്ത് സ്പീക്കർ: Connect your smartphone or other Bluetooth devices to the frame to play audio.

Image: Diverse personalized functions available on the frame.

Image: Bluetooth connectivity for audio playback.

5. പരിപാലനം

5.1 ഫ്രെയിം വൃത്തിയാക്കൽ

To maintain the clarity and appearance of your digital picture frame:

• മൃദുവായ, ലിന്റ് രഹിത തുണി ഉപയോഗിച്ച് സ്‌ക്രീൻ സൌമ്യമായി തുടയ്ക്കുക. കഠിനമായ പാടുകൾക്ക്, ചെറുതായി dampവെള്ളം അല്ലെങ്കിൽ സ്ക്രീൻ-സേഫ് ക്ലീനിംഗ് ലായനി ഉപയോഗിച്ച് തുണിയിൽ തടവുക.
• Avoid using harsh chemicals, abrasive cleaners, or aerosol sprays directly on the screen or frame.
• Clean the frame's exterior with a dry, soft cloth.

5.2 സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ

Periodically check for software updates through the frame's settings menu or the VPhoto app to ensure optimal performance and access to new features.

6. Troubleshooting and Known Limitations

This section addresses common issues and clarifies certain functionalities of the BSIMB Digital Picture Frame.

6.1 USB Drive Folder Structure

The frame's current software does not support recognizing folder structures on USB drives. All images and videos on a connected USB drive will be displayed in a flat, unorganized manner. Users cannot select specific folders for playback.

6.2 USB-C Port Functionality

While a USB-C port is present, its functionality for direct file transfer from a computer may be limited or non-operational. For reliable file transfer, use a Micro SD card, USB-A drive, or the VPhoto app/email sharing features.

6.3 Usable Storage Capacity

The frame is advertised with 64GB of internal storage. However, a portion of this capacity (approximately 7GB) is occupied by the operating system and pre-installed software. The actual usable storage for user media is approximately 57GB.

6.4 പൊതു പ്രശ്നങ്ങൾ

• ഫ്രെയിം ഓണാക്കുന്നില്ല: പവർ അഡാപ്റ്റർ ഫ്രെയിമിലേക്കും പ്രവർത്തിക്കുന്ന ഒരു പവർ ഔട്ട്‌ലെറ്റിലേക്കും സുരക്ഷിതമായി ബന്ധിപ്പിച്ചിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
• No WiFi connection: Verify your WiFi password and ensure the frame is within range of your router. Restarting both the frame and router may help.
• റിമോട്ട് കൺട്രോൾ പ്രവർത്തിക്കുന്നില്ല: Check if the AAA+ batteries are correctly inserted and have sufficient charge. Ensure there are no obstructions between the remote and the frame's IR receiver.

7 സ്പെസിഫിക്കേഷനുകൾ

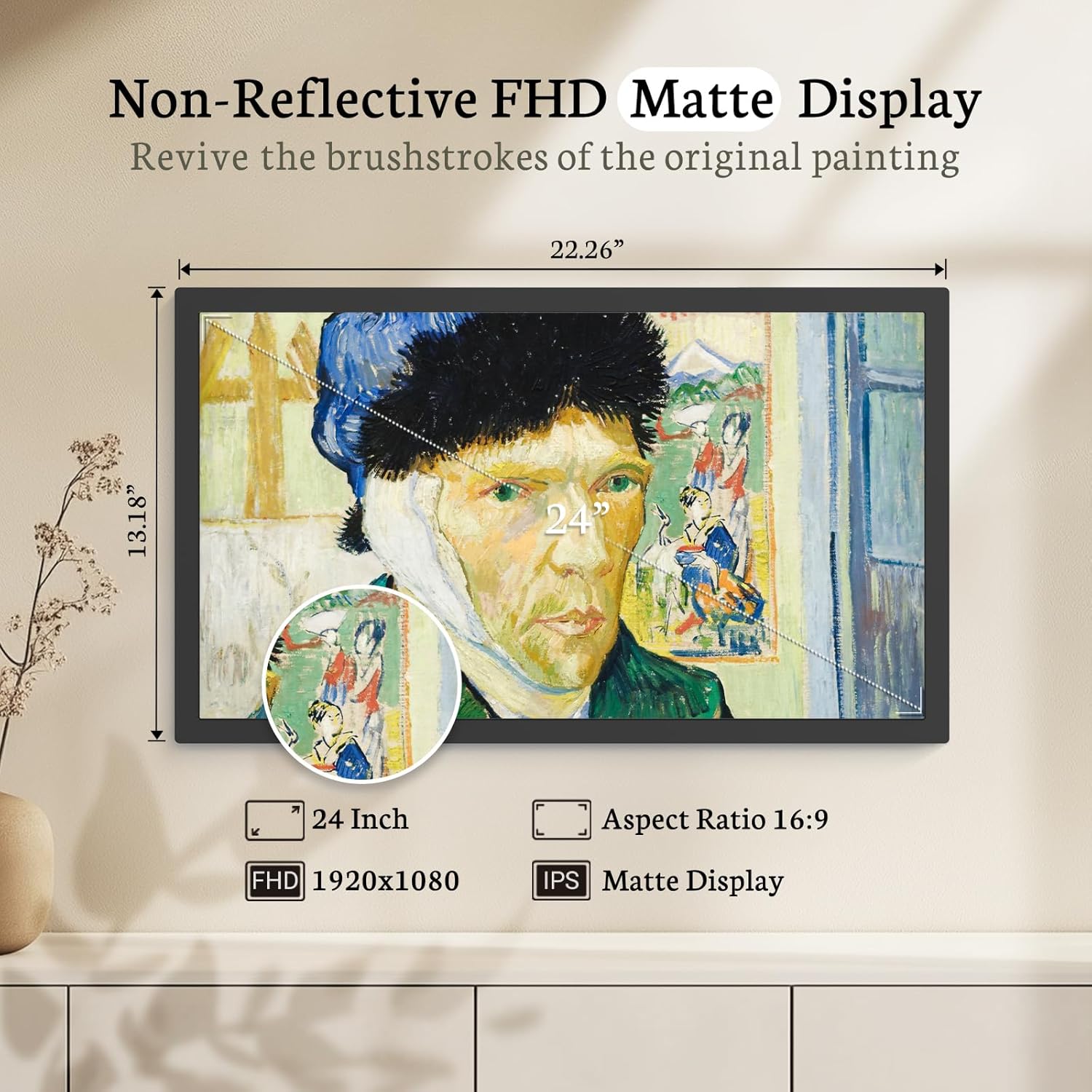

Image: Display specifications and dimensions.

Image: Thoughtfully designed details and port locations.

8. വാറൻ്റിയും പിന്തുണയും

8.1 വാറൻ്റി വിവരങ്ങൾ

BSIMB offers a 30 ദിവസത്തെ പണം തിരികെ നൽകാനുള്ള ഗ്യാരണ്ടി കൂടാതെ എ 1 വർഷത്തെ ആശങ്കരഹിത വാറന്റി for this product. This warranty covers manufacturing defects and ensures your satisfaction with the product.

8.2 ഉപഭോക്തൃ പിന്തുണ

If you encounter any issues or have questions regarding your BSIMB Digital Picture Frame, please do not hesitate to contact our customer service team. We are committed to providing professional support and ensuring your satisfaction.

• Refer to the contact information provided in your Quick Start Guide or on the official BSIMB webസൈറ്റ്.

Image: Professional customer service and support.
