BOYA BOYALINK 3 വയർലെസ് ലാവലിയർ മൈക്രോഫോൺ ഉപയോക്തൃ മാനുവൽ

ഉൽപ്പന്നം കഴിഞ്ഞുview

The BOYA BOYALINK 3 is an advanced wireless lavalier microphone system designed for high-quality audio recording across multiple devices. Featuring AI-powered noise cancellation, studio-grade sound, and multi-device compatibility, it is ideal for vlogging, interviews, live streaming, and online teaching.

Image: The BOYA BOYALINK 3 system, showing the charging case, receiver, transmitters, and various adapters.

എന്താണ് ഉൾപ്പെടുത്തിയിരിക്കുന്നത്

താഴെ പട്ടികപ്പെടുത്തിയിരിക്കുന്ന എല്ലാ ഘടകങ്ങളും നിങ്ങളുടെ പാക്കേജിൽ ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• 1 x റിസീവർ
• 2 x ട്രാൻസ്മിറ്ററുകൾ
• 1 x ചാർജിംഗ് കേസ്
• 1 x USB-C അഡാപ്റ്റർ
• 1 x Lightning Adapter
• 1 x TRS to TRS Audio Cable
• 2 x Magnetic Mounts
• 2 x Magnetic Back Clips
• 2 x ഫ്യൂറി വിൻഡ്ഷീൽഡുകൾ
• 1 x USB-C മുതൽ USB-A ചാർജിംഗ് കേബിൾ വരെ
• 1 x ചുമക്കുന്ന സഞ്ചി

Image: All components included in the BOYALINK 3-01 package.

സജ്ജീകരണ ഗൈഡ്

സിസ്റ്റം ചാർജ് ചെയ്യുന്നു

Before first use, fully charge the transmitters, receiver, and charging case. Place the transmitters and receiver into the charging case. Connect the charging case to a power source using the provided USB-C to USB-A charging cable.

നിങ്ങളുടെ ഉപകരണത്തിലേക്ക് കണക്റ്റുചെയ്യുന്നു

The BOYALINK 3 offers universal compatibility with various devices:

• For iPhone/iOS Devices: Attach the Lightning adapter to the receiver and plug it into your iPhone's Lightning port.
• For Android/USB-C Devices: Attach the USB-C adapter to the receiver and plug it into your Android device's USB-C port.
• For Cameras/Laptops/PCs (with 3.5mm input): Use the provided 3.5mm TRS to TRS audio cable to connect the receiver's 3.5mm output to your camera's or computer's audio input.

The system will automatically pair the transmitters with the receiver upon power-on. Ensure the blue indicator light on the receiver is solid, indicating a successful connection.

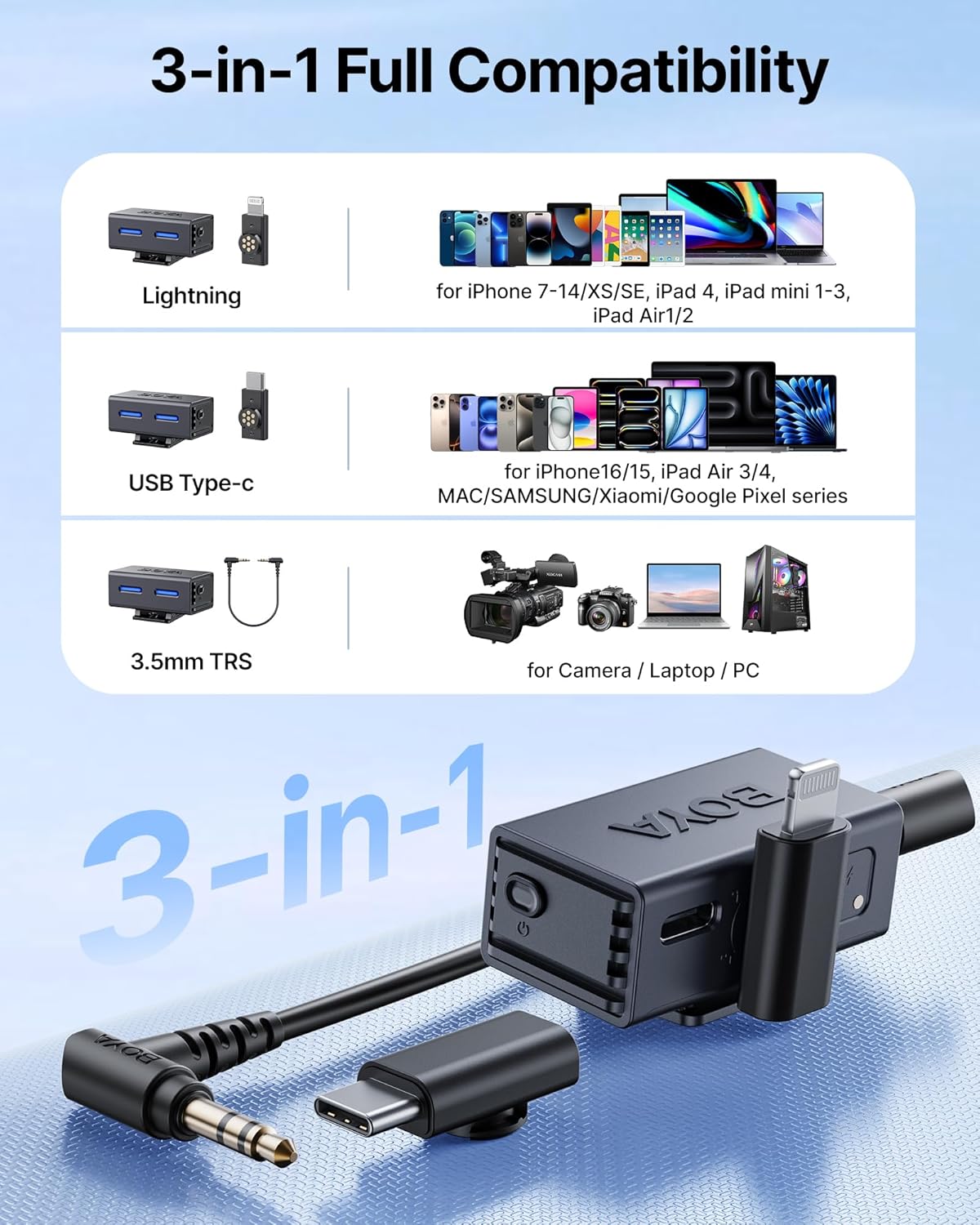

Image: The receiver with its interchangeable Lightning, USB-C, and 3.5mm TRS adapters for broad compatibility.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

ട്രാൻസ്മിറ്റർ ധരിക്കുന്നു

Attach the transmitter to your clothing using the magnetic back clip or magnetic mount. For optimal audio quality, position the microphone approximately 6-8 inches (15-20 cm) from your mouth.

Image: The compact and lightweight design of the mini button microphone.

AI നോയ്‌സ് റദ്ദാക്കൽ

The BOYALINK 3 features AI-powered noise reduction. To cycle through Low, Medium, and High noise cancellation modes, double-press the RX button on the receiver. You can also control this feature via the BOYA Central app.

Image: Visual representation of the AI noise cancellation technology, showing its effectiveness against various noise types.

Using the BOYA Central App

Download the "BOYA Central" app from your device's app store for advanced control. The app allows you to:

• Adjust 4-level AI noise reduction.
• Customize EQ modes (Podcast, Music, Live).
• Sync multiple BOYALINK 3 devices.
• ഫേംവെയർ അപ്ഡേറ്റുകൾ നടത്തുക.
• Monitor audio with zero-latency.

Image: The BOYA Central app interface, demonstrating various audio adjustment options.

തത്സമയ നിരീക്ഷണം

Connect headphones to the receiver's 3.5mm output for real-time audio monitoring. This allows you to hear crystal-clear, uncompressed audio with less than 10ms delay, ensuring optimal recording quality.

Multi-Device Support (2TX-4RX)

The system supports one transmitter pairing with up to four receivers simultaneously. This feature is beneficial for multi-angle filming, live broadcasts, or collaborative projects, allowing real-time audio synchronization across various recording devices. Additional receivers are sold separately.

Image: Illustration of the multi-source sync recording system, showing one transmitter broadcasting to multiple receivers.

Extended Range and Battery Life

The BOYALINK 3 provides an ultra-stable transmission range of up to 984 feet (300 meters). Each microphone offers approximately 6 hours of runtime, extended to over 30 hours with the fully charged charging case. The microphones can be fast-charged in about 1.5 hours.

Image: Visual representation of the microphone's stable wireless range up to 984 feet.

Image: Illustration of the extended battery life, showing 6 hours of microphone use and over 30 hours with the charging case.

Professional-Grade Recording

Experience crystal-clear audio with 48kHz/24-bit resolution, a frequency response of 20Hz-20kHz, and a signal-to-noise ratio of 85 dB. The system incorporates Smart AGC (Automatic Gain Control) and distortion-limiting features to ensure studio-quality recordings with minimal post-editing required.

ചിത്രം: വിശദമായത് view of the microphone's internal structure, highlighting its 6mm Hi-Fi mic and low distortion.

മെയിൻ്റനൻസ്

To ensure the longevity and optimal performance of your BOYA BOYALINK 3 system, follow these maintenance guidelines:

• വൃത്തിയാക്കൽ: Use a soft, dry cloth to wipe the transmitters, receiver, and charging case. Avoid using liquid cleaners or solvents.
• സംഭരണം: Store the system in its carrying pouch when not in use to protect it from dust and physical damage. Keep it in a cool, dry place away from direct sunlight and extreme temperatures.
• ബാറ്ററി കെയർ: For long-term storage, ensure the batteries are charged to approximately 50%. Recharge them every three months to prevent deep discharge, which can reduce battery life.
• Furry Windshields: Clean the furry windshields gently with a soft brush if they accumulate dust or debris. Replace them if they become worn or damaged to maintain effective wind noise reduction.

ട്രബിൾഷൂട്ടിംഗ്

If you encounter issues with your BOYA BOYALINK 3, refer to the following common problems and solutions:

സാങ്കേതിക സവിശേഷതകൾ

വാറൻ്റിയും പിന്തുണയും

For warranty information and technical support, please refer to the official BOYA website or contact BOYA customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.

BOYA Official Webസൈറ്റ്: www.boya-mic.com
