Briidea BR-159 Salt Chlorine Generator Instruction Manual

1. ആമുഖം

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Briidea BR-159 Salt Chlorine Generator. This device is designed to provide a chemical-free sanitization solution for hot tubs and swim spas up to 2000 gallons, utilizing a USA-made titanium salt cell to produce chlorine from salt.

Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your unit.

2 സുരക്ഷാ വിവരങ്ങൾ

Always follow basic safety precautions to reduce the risk of fire, electric shock, and injury to persons, including the following:

• ഈ ഉൽപ്പന്നം ഉപയോഗിക്കുന്നതിന് മുമ്പ് എല്ലാ നിർദ്ദേശങ്ങളും വായിക്കുക.
• Do not operate the unit if the power cord or chlorinator cell is damaged.
• Ensure the power outlet is protected by a Ground Fault Circuit Interrupter (GFCI).
• Keep the controller above ground and away from water splashes.
• ഏതെങ്കിലും അറ്റകുറ്റപ്പണികൾ അല്ലെങ്കിൽ വൃത്തിയാക്കൽ നടത്തുന്നതിന് മുമ്പ് എല്ലായ്പ്പോഴും വൈദ്യുതി വിച്ഛേദിക്കുക.
• This device is intended for hot tubs and swim spas up to 2000 gallons. Do not use for larger volumes.

3. പാക്കേജ് ഉള്ളടക്കം

എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• Briidea BR-159 Salt Chlorine Generator Controller
• Chlorinator Cell with Cable
• പവർ അഡാപ്റ്റർ
• നിർദ്ദേശ മാനുവൽ (ഈ പ്രമാണം)

4 സ്പെസിഫിക്കേഷനുകൾ

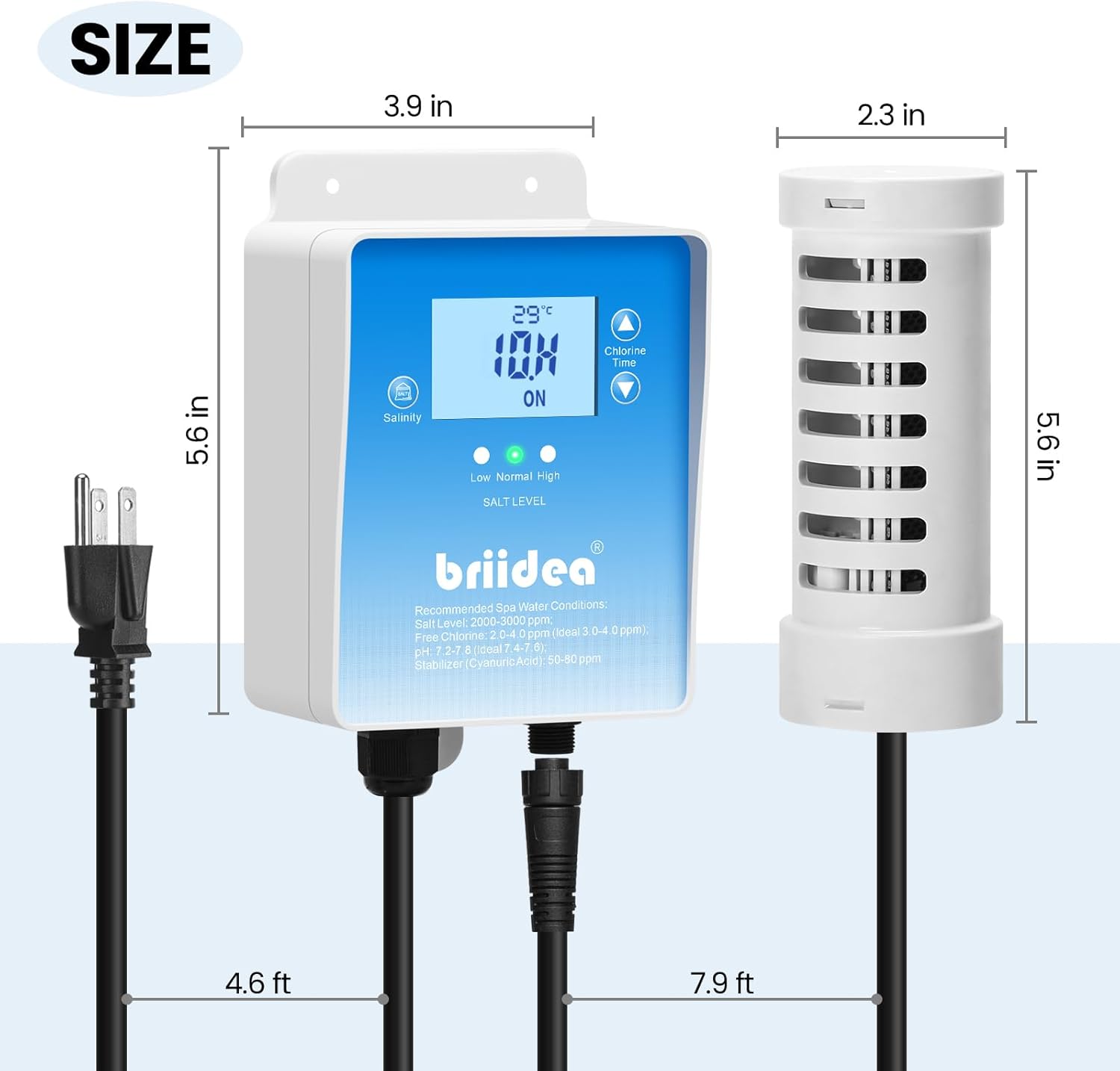

Figure 1: Dimensions of the Briidea BR-159 Salt Chlorine Generator controller and cell.

5. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Briidea BR-159 Salt Chlorine Generator is designed for easy installation without the need for complex plumbing. Follow these steps:

1. Prepare Your Spa/Hot Tub: Ensure your hot tub or swim spa is clean and filled with water.
2. ഉപ്പ് ചേർക്കുക: Add appropriate pool/spa salt (sodium chloride) to your water. The recommended salt level for optimal operation is typically between 2000-3000 ppm (parts per million). Refer to your spa's volume to calculate the required amount of salt. Dissolve the salt completely before proceeding.
3. Position the Controller: Mount the controller unit above ground in a dry, protected area, away from direct water exposure. Ensure it is within reach of a GFCI-protected power outlet.
4. Submerge the Chlorinator Cell: Place the chlorinator cell directly into the hot tub or swim spa water. Ensure it is fully submerged and positioned where water can circulate freely around it.
5. പവർ ബന്ധിപ്പിക്കുക: Plug the chlorinator cell's cable into the controller, then plug the controller's power adapter into the GFCI-protected electrical outlet.
6. പ്രാരംഭ പരിശോധന: The LED indicators on the controller will display the current salt level (Low, Normal, High) and water temperature.

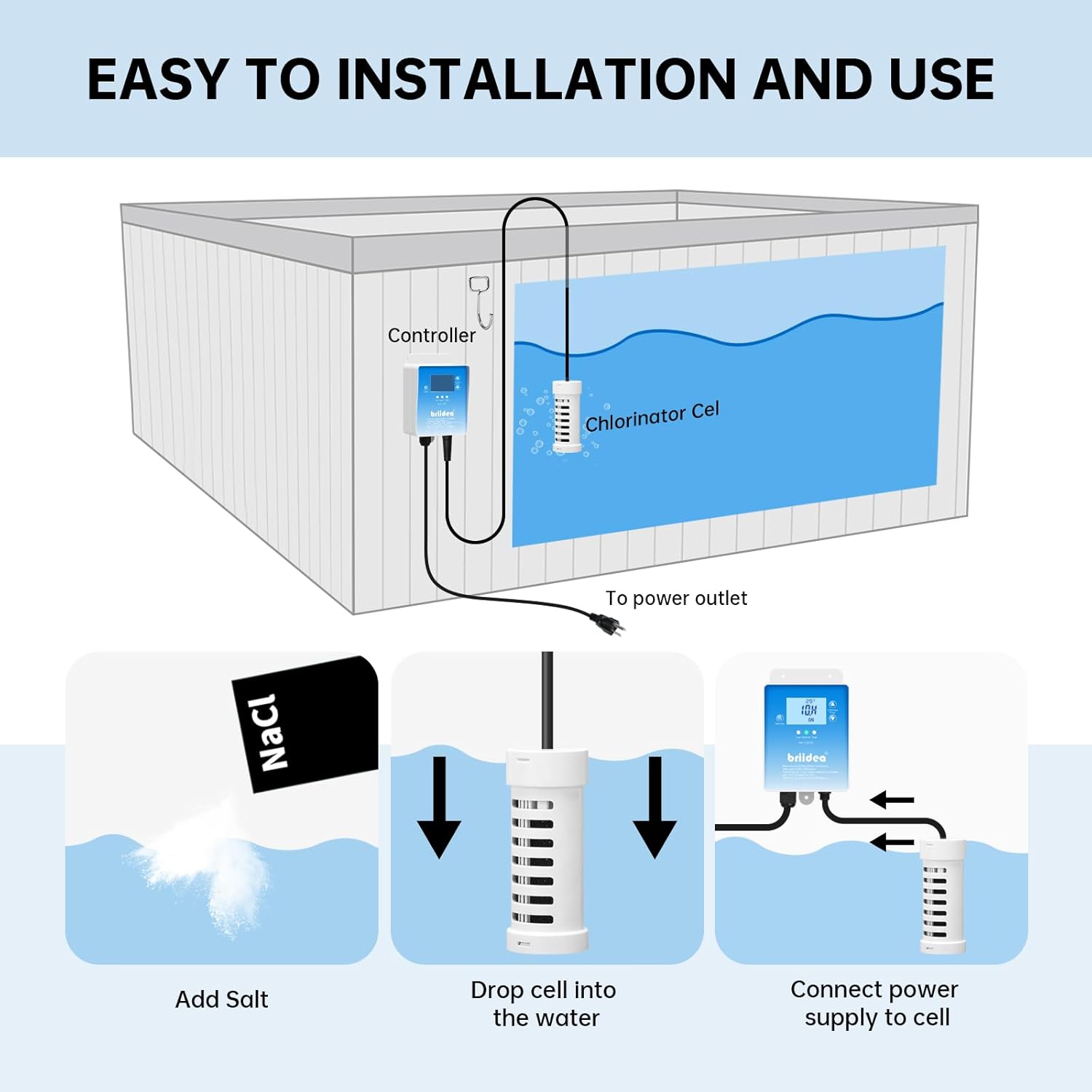

Figure 2: Diagram illustrating the simple installation process of the controller and chlorinator cell.

6. ഓപ്പറേഷൻ

The BR-159 features a built-in timer/controller for automated operation. Once installed and powered on, the unit will begin to generate chlorine.

• LED സൂചകങ്ങൾ: The controller's LED display shows the water temperature and the current operating status. The "Salt Level" indicators (Low, Normal, High) provide a quick visual reference for your spa's salinity.
• ടൈമർ ക്രമീകരിക്കുന്നു: Use the controls on the unit (or a connected app if available for your model) to set the daily operating time. The optimal run time will vary based on spa size, usage, and desired chlorine levels. Start with a recommended duration (e.g., 3-4 hours for a typical hot tub) and adjust as needed based on water testing.
• Salt Concentration Detection: The device continuously monitors the salt level. If the salt level is too low, the unit may reduce or stop chlorine production. If too high, it may indicate a need to dilute the water.
• ക്ലോറിൻ ഉത്പാദനം: The chlorinator cell converts salt into chlorine, which sanitizes the water. You may observe small bubbles emanating from the cell during operation, indicating active chlorine generation.

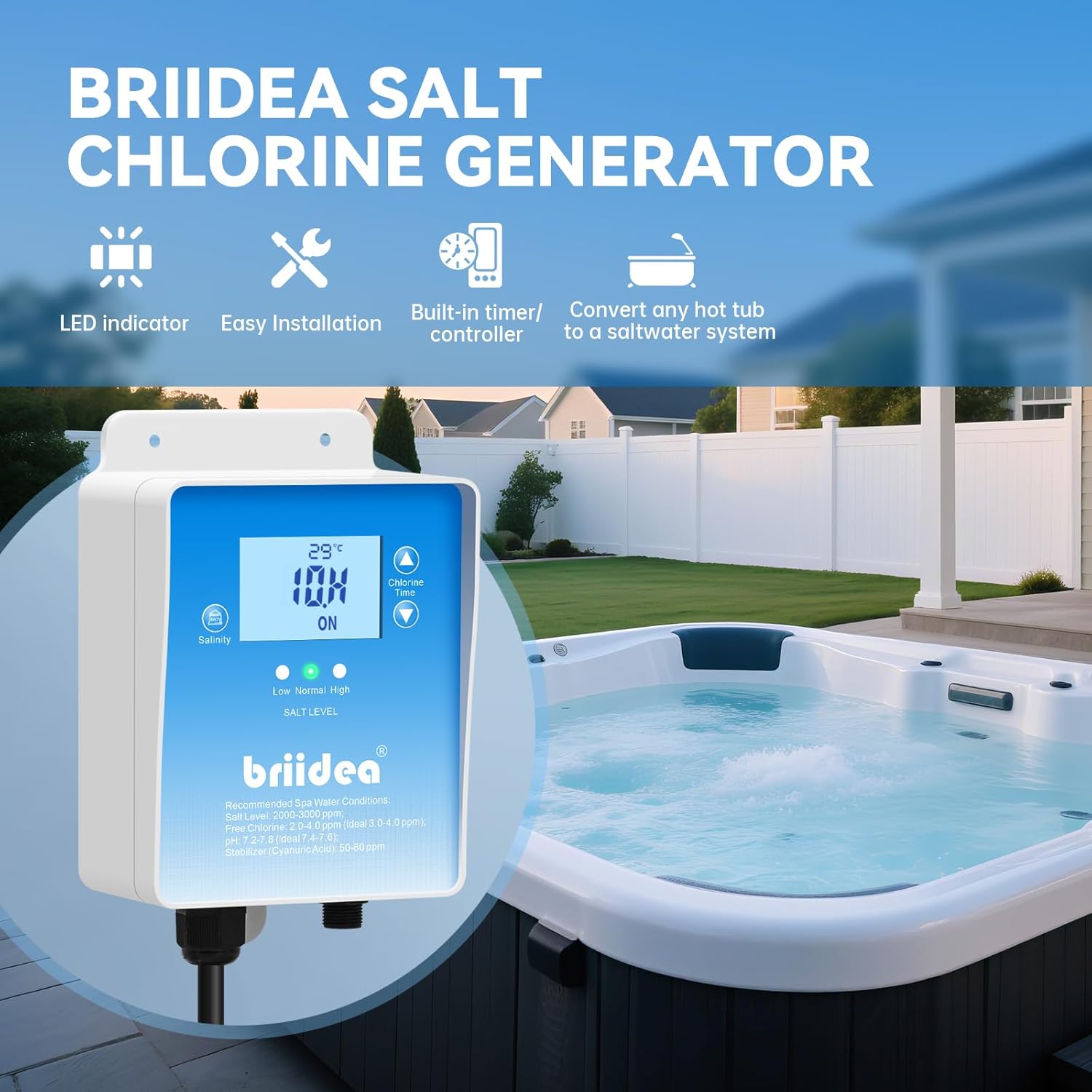

Figure 3: The Briidea BR-159 Salt Chlorine Generator controller mounted above a hot tub, showing its LED display and key features.

7. പരിപാലനം

Regular maintenance ensures the longevity and efficiency of your salt chlorine generator.

• Water Chemistry Monitoring: Regularly test your spa water for chlorine levels, pH, and alkalinity. Adjust the generator's run time or add balancing chemicals as needed to maintain recommended levels. Recommended spa water conditions: Salt Level: 2000-3000 ppm, Free Chlorine: 2.0-4.0 ppm (ideal 3.0-4.0 ppm), pH: 7.2-7.8, Alkalinity: 80-120 ppm, Stabilizer (Cyanuric Acid): 50-80 ppm.
• Cell Cleaning: The titanium electrodes are designed for long-term performance (up to 3,000 hours) and feature polarity reversal to minimize scale buildup. However, periodic inspection and cleaning of the cell may be necessary, especially in hard water areas.
  • യൂണിറ്റിലേക്ക് വൈദ്യുതി വിച്ഛേദിക്കുക.
  • Remove the chlorinator cell from the water.
  • Inspect for scale buildup (white, flaky deposits) on the electrodes.
  • If buildup is present, soak the cell in a mild acid solution (e.g., diluted muriatic acid or a commercial cell cleaning solution) according to the solution's instructions. Do not scrape the electrodes with metal objects.
  • Rinse thoroughly with fresh water before re-installing.
• Salt Level Management: The unit's salt concentration detection helps you monitor salinity. Add salt if the indicator shows "Low" or if water tests confirm low levels. If the indicator shows "High," partially drain and refill the spa with fresh water to dilute the salt concentration.

Figure 4: Illustration highlighting the USA-made titanium electrodes within the chlorinator cell, designed for durability and efficient chlorine production.

8. പ്രശ്‌നപരിഹാരം

പൊതുവായ പ്രശ്നങ്ങളും അവയുടെ പരിഹാരങ്ങളും അറിയാൻ ഈ വിഭാഗം കാണുക.

9. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please contact Briidea customer service. Keep your purchase receipt as proof of purchase for any warranty claims.

Contact information can typically be found on the Briidea official webസൈറ്റ് അല്ലെങ്കിൽ നിങ്ങളുടെ ഉൽപ്പന്ന പാക്കേജിംഗിൽ.
