Toyota Tacoma Swing Out Storage Box Instruction Manual

1. ആമുഖം

This manual provides detailed instructions for the installation, operation, and maintenance of your Toyota Tacoma Swing Out Storage Box (Model PT973-35920-LH). This storage solution is designed to enhance the utility of your 2024 and newer Toyota Tacoma truck bed by providing secure and easily accessible storage on the left side.

2 സുരക്ഷാ വിവരങ്ങൾ

• Always ensure the storage box is securely latched before driving.
• പരമാവധി ഭാര ശേഷി 30 പൗണ്ട് (13.6 കിലോഗ്രാം) കവിയരുത്.
• Keep hands and fingers clear of moving parts during operation of the swing-out mechanism.
• Ensure all mounting hardware is tightened according to specifications to prevent detachment during vehicle operation.
• Do not store flammable or hazardous materials in the box.

3. പാക്കേജ് ഉള്ളടക്കം

ഇൻസ്റ്റാളേഷൻ ആരംഭിക്കുന്നതിന് മുമ്പ് എല്ലാ ഘടകങ്ങളും നിലവിലുണ്ടെന്ന് ഉറപ്പാക്കുക:

• Swing Out Storage Box (Left Side)
• മൗണ്ടിംഗ് ബ്രാക്കറ്റുകൾ
• Sliding Tool Tray
• Installation Hardware (bolts, washers, nuts)
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

The Toyota Tacoma Swing Out Storage Box is designed for quick installation on the left side of your 2024+ Tacoma truck bed, between the wheel well and the bed wall.

1. ട്രക്ക് ബെഡ് തയ്യാറാക്കുക: Ensure the truck bed area where the box will be mounted is clean and free of debris.
2. പൊസിഷൻ മൗണ്ടിംഗ് ബ്രാക്കറ്റുകൾ: Align the provided mounting brackets with the designated attachment points on the left side of your Tacoma's truck bed. These points are typically located near the tailgate and towards the cab, between the wheel well and the bed wall.
3. സുരക്ഷിത ബ്രാക്കറ്റുകൾ: Using the included hardware, securely attach the mounting brackets to the truck bed. Refer to your vehicle's owner's manual for specific torque specifications for bed accessory attachments, if available.
4. Attach Storage Box: Carefully lift the storage box and align its attachment points with the installed mounting brackets. The box should slide or click into place.
5. എൻഗേജ് ലോക്കിംഗ് മെക്കാനിസം: Once the box is seated, engage the side attachment bracket to secure it firmly to the mounting system. This typically involves a lever or latch mechanism.
6. ടെസ്റ്റ് ഓപ്പറേഷൻ: Verify that the box swings out smoothly and locks securely in both the closed and open positions.

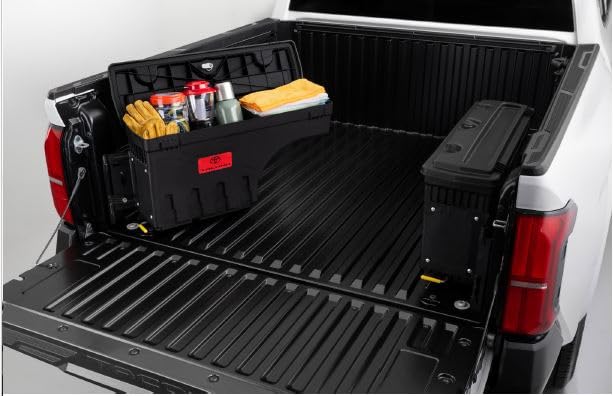

Image: Toyota Tacoma Swing Out Storage Box Installation

This image displays the Toyota Tacoma Swing Out Storage Box mounted on the left side of a truck bed. The box is shown in its open, swung-out position, revealing various items such as work gloves, cleaning supplies, and a towel stored inside. Another closed box is visible on the right side, demonstrating the compact storage when not in use. The truck bed features a ribbed texture.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

• ഉള്ളടക്കങ്ങൾ ആക്‌സസ് ചെയ്യുന്നു: To access the contents, disengage the quick-release latch. The storage box will then swing out nearly 180 degrees, providing full access to its interior.
• Securing the Box: To return the box to its closed position, swing it back towards the truck bed wall until it clicks into place and the quick-release latch is fully engaged.
• Locking the Lid: The box features a lockable lid for added security. Use the provided key to lock and unlock the lid.
• Using the Sliding Tool Tray: The integrated sliding tool tray can be moved along the top edge of the box for convenient organization and access to smaller items.
• Removing the Box: For full bed access, the storage box can be easily removed from its mounting brackets by disengaging the side attachment bracket and lifting the box.

6. പരിപാലനം

• വൃത്തിയാക്കൽ: Clean the storage box with mild soap and water. Avoid abrasive cleaners or solvents that could damage the high-impact material.
• പരിശോധന: Periodically inspect all mounting hardware for tightness and signs of wear. Re-tighten as necessary.
• ലൂബ്രിക്കേഷൻ: If the swing-out mechanism becomes stiff, apply a small amount of silicone-based lubricant to the pivot points.
• കാലാവസ്ഥ പ്രതിരോധം: While weather-resistant, ensure the lid is properly closed and latched to protect contents from moisture and dust.

7. പ്രശ്‌നപരിഹാരം

• Box does not swing out smoothly: Check for obstructions around the pivot points. Ensure the quick-release latch is fully disengaged. Lubricate pivot points if necessary.
• Lid does not close or lock: Ensure no items are obstructing the lid's closing path. Check the lock mechanism for debris.
• Box feels loose: Inspect all mounting hardware and the side attachment bracket. Tighten any loose bolts or re-engage the bracket securely.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information or technical support, please contact your authorized Toyota dealer or visit the official Toyota accessories webസൈറ്റ്. വാറൻ്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
