1. ആമുഖം
This manual provides essential instructions for the safe and efficient operation of your kavey 6.5 Cub Extra Large Home Safe, Model KMT-75D. Please read this manual thoroughly before installation and use, and retain it for future reference. This safe is designed to protect your valuables from theft and offers features such as a digital keypad, drop slot, and robust construction.
2 സുരക്ഷാ വിവരങ്ങൾ
- Always keep emergency keys in a secure location away from the safe and out of reach of unauthorized individuals. Do not store them inside the safe.
- Ensure the safe is securely mounted to a floor or wall to prevent unauthorized removal.
- സേഫ് കടുത്ത താപനിലയിലോ ഈർപ്പത്തിലോ തുറന്നുകാട്ടരുത്.
- Avoid using abrasive cleaners or solvents on the safe's surface.
- Replace batteries promptly when the low battery indicator appears to ensure continuous functionality.
- Do not attempt to force the safe open if you forget the code. Use the emergency key or external power supply as instructed.
3. പാക്കേജ് ഉള്ളടക്കം
പാക്കേജിൽ എല്ലാ ഘടകങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:
- kavey 6.5 Cub Extra Large Home Safe (KMT-75D)
- Emergency keys (4)
- Expansion screws (6) for mounting
- Non-slip foot mats (4)
- USB Type-C cable (1) for external power
- ഉപയോക്തൃ മാനുവൽ (ഈ പ്രമാണം)
Figure 3.1: Product Dimensions and Included Components. This image illustrates the external dimensions of the safe (29.53"H x 13.78"W x 13.78"D) and highlights the included accessories: four emergency keys, four foot mats, one USB Type-C cable, six expansion screws, and a quick start guide.
4. ഉൽപ്പന്നം കഴിഞ്ഞുview
The kavey 6.5 Cub Extra Large Home Safe (Model KMT-75D) is engineered for enhanced security and convenience. It features a robust low-carbon alloy steel construction, a digital backlit keypad, and a unique drop slot for quick deposits.
4.1 പ്രധാന സവിശേഷതകൾ
- 6.5 Cubic Feet Capacity: Spacious interior for various valuables.
- Drop Slot with Anti-Fishing Design: Allows deposits without opening the main door, preventing retrieval from the outside.
- Digital Backlit Keypad: Touch-screen keypad for quick access and visibility in low light.
- ഡ്യുവൽ അലാറം സിസ്റ്റം: Activates upon 3 consecutive incorrect password entries or vibration, emitting a sound exceeding 70 dB for 60 seconds.
- മ്യൂട്ട് മോഡ്: Allows silent operation of the keypad.
- ഹെവി ഡ്യൂട്ടി നിർമ്മാണം: Made from low-carbon alloy steel with 6x20mm solid locking bolts and a 60mm thick reinforced steel door panel.
- തടസ്സമില്ലാത്ത ഡിസൈൻ: Advanced micro-gap cutting design for superior anti-prying protection.
- Full Velvet Lining: Protects stored items from scratches.
- Dual LED Light: Provides interior illumination for better visibility.
Figure 4.1: kavey 6.5 Cub Extra Large Home Safe. This image displays the overall design of the safe, highlighting its dual compartments, digital keypads, and the convenient top drop slot for quick deposits.
Figure 4.2: Product Details and Features. This diagram points out key features such as the drop slot, anti-fishing mechanism, dual LED interior lighting, six robust locking bolts, and the protective full velvet lining within the safe.
Figure 4.3: Sturdy Material Construction. This image details the five protective layers of the safe's construction: high light spray coating, silent anti-corrosion coating, anti-rust phosphating layer, anti-oxidation layer, and the core carbon alloy steel plate, ensuring durability and security.
5. സജ്ജീകരണം
5.1 ബാറ്ററി ഇൻസ്റ്റാളേഷൻ
The safe requires batteries for the digital keypad to function. Open the battery compartment located on the inside of the safe door (usually behind the keypad cover) and insert the required batteries (not included). Ensure correct polarity. Close the compartment securely.
5.2 പ്രാരംഭ കോഡ് ക്രമീകരണം
Upon first use, you will need to set your personal access code. Refer to the 'Operating Instructions' section for detailed steps on setting and changing the password.
5.3 സേഫ് ഘടിപ്പിക്കൽ
For maximum security, it is highly recommended to mount the safe to a floor or wall using the provided expansion screws. This prevents unauthorized removal of the safe.
- Choose a suitable location for mounting, ensuring it is a solid surface.
- Mark the drilling points through the pre-drilled holes at the back or bottom of the safe.
- Drill holes into the wall or floor using an appropriate drill bit.
- Align the safe with the drilled holes and insert the expansion screws.
- Tighten the screws securely to anchor the safe in place.
Figure 5.1: Wall/Floor Mounting Instructions. This image provides a visual guide for securely mounting the safe. Step 1 shows marking the drill points, Step 2 illustrates drilling and inserting the screw, and Step 3 depicts tightening the screw to fix the safe to the surface.
6. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
6.1 Opening Methods
Your kavey safe offers three methods for access:
- എമർജൻസി കീ: Insert the emergency key into the hidden keyhole, turn it, and then turn the knob to open.
- പാസ്വേഡ്: Enter your programmed password on the digital keypad, then press '#' (confirming button), and turn the knob.
- External Power + Password: If batteries are depleted, connect the USB Type-C cable to the external power jack, enter your password, press '#', and turn the knob.

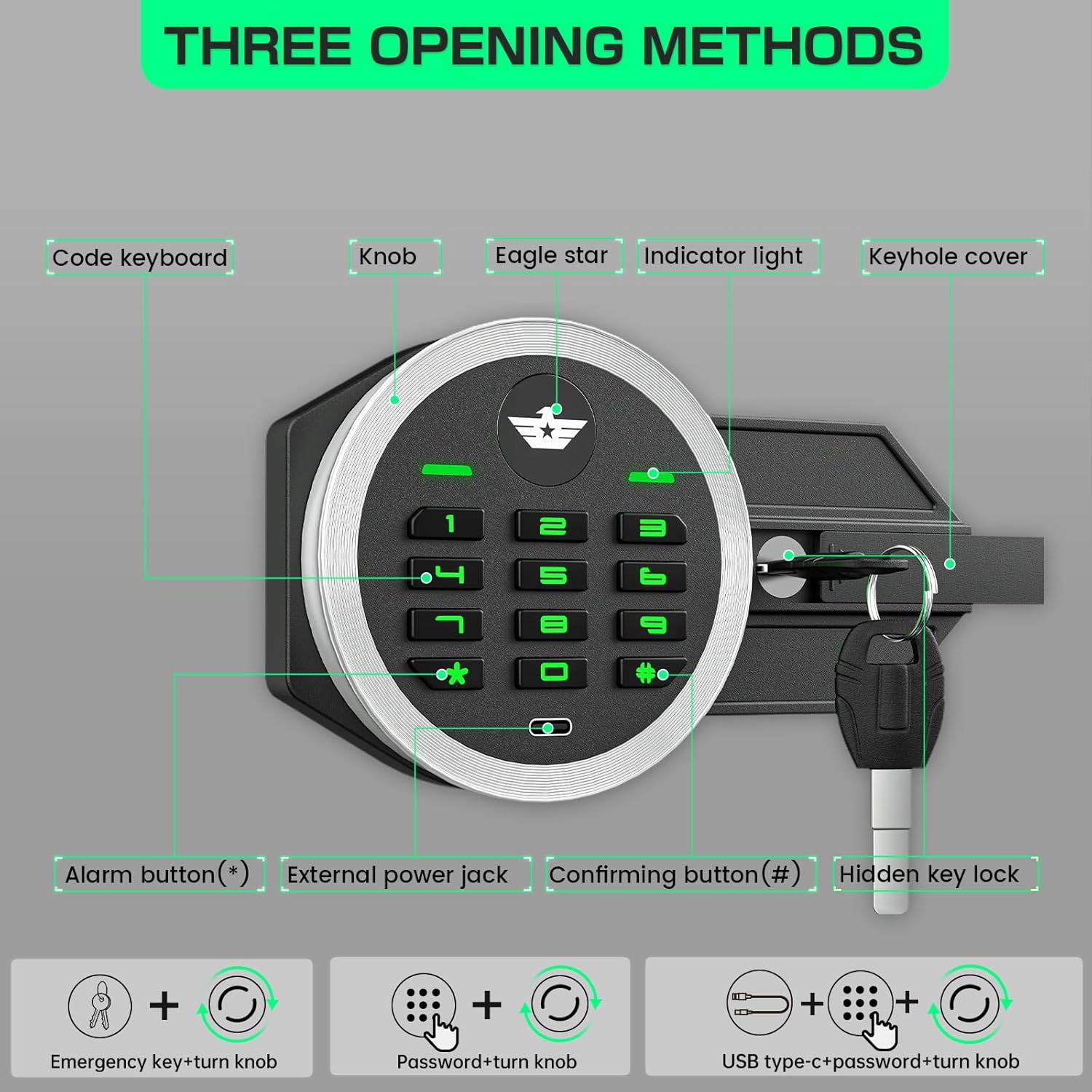

Figure 6.1: Three Opening Methods. This image illustrates the various components of the lock mechanism, including the code keyboard, knob, indicator light, keyhole cover, alarm button, external power jack, and confirming button. It also visually explains the three ways to open the safe: using an emergency key, a digital password, or an external power source combined with the password.
6.2 Setting/Changing Your Password
- With the safe door open, locate the reset button on the inside of the door.
- Press the reset button. The indicator light on the keypad will illuminate.
- കീപാഡിൽ നിങ്ങൾക്ക് ആവശ്യമുള്ള പുതിയ പാസ്വേഡ് (4-8 അക്കങ്ങൾ) നൽകുക.
- Press the '#' button to confirm. The indicator light will flash, confirming the new password is set.
- വാതിൽ തുറക്കുന്നതിനു മുമ്പ് പുതിയ പാസ്വേഡ് പരിശോധിക്കുക.
6.3 Using the Drop Slot
The top drop slot allows for quick and secure deposit of cash, envelopes, or small documents without needing to open the main safe door. Simply insert items into the slot. The anti-fishing design prevents items from being retrieved from the outside.
Figure 6.2: 2-in-1 Quick Access Drop Slot. This image highlights the convenience of the drop slot, allowing users to deposit cash and documents without fully opening the safe. It contrasts this with a standard safe that requires unlocking for every deposit.
6.4 നിശബ്ദ പ്രവർത്തനം
To activate or deactivate the mute mode for silent keypad operation:
- Press the '*' button twice consecutively.
- Then press the '#' button.
This will toggle the keypad sound on or off.
7. പരിപാലനം
- വൃത്തിയാക്കൽ: സേഫിന്റെ പുറംഭാഗം മൃദുവായ, ഡി-ടച്ച് ഉപയോഗിച്ച് തുടയ്ക്കുക.amp തുണി. കഠിനമായ രാസവസ്തുക്കളോ ഉരച്ചിലുകളോ ഉപയോഗിക്കരുത്.
- ബാറ്ററി മാറ്റിസ്ഥാപിക്കൽ: Replace batteries when the low battery indicator light appears on the keypad. Always use new, high-quality batteries.
- കീഹോൾ അറ്റകുറ്റപ്പണി: Keep the emergency keyhole clean and free from obstructions. Do not lubricate the lock mechanism with oil.
- ഇന്റീരിയർ കെയർ: The velvet lining can be gently vacuumed or wiped with a dry cloth to remove dust.
8. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| പാസ്വേഡ് ഉപയോഗിച്ച് സേഫ് തുറക്കില്ല. | തെറ്റായ പാസ്വേഡ് നൽകി; ബാറ്ററികൾ തീർന്നിരിക്കുന്നു അല്ലെങ്കിൽ തീർന്നിരിക്കുന്നു. | Re-enter the correct password carefully. Replace batteries or use the external USB Type-C power supply. Use the emergency key if necessary. |
| കീപാഡ് പ്രതികരിക്കുന്നില്ല. | Dead batteries; loose battery connection. | Replace batteries. Ensure batteries are inserted correctly and connections are secure. Use external power if needed. |
| അപ്രതീക്ഷിതമായി അലാറം മുഴങ്ങുന്നു. | 3 consecutive incorrect password entries; safe has been vibrated or moved. | The alarm will stop after 60 seconds. Ensure correct password entry. Avoid unnecessary movement of the safe. |
| മറന്നുപോയ രഹസ്യവാക്ക്. | Password cannot be recalled. | Use the emergency key to open the safe. Once open, reset the password following the instructions in Section 6.2. |
Figure 8.1: Dual Alarm System and Mute Function. This image visually explains the safe's security features: a dual alarm system that activates upon multiple incorrect password attempts or physical vibration, and the mute function for silent operation of the keypad.
9 സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | കാവി |
| മോഡൽ നമ്പർ | KMT-75D |
| ഉൽപ്പന്ന അളവുകൾ | 13.78"D x 13.78"W x 29.53"H |
| ശേഷി | 6.5 ക്യുബിക് അടി |
| ലോക്ക് തരം | ഇലക്ട്രോണിക് കോമ്പിനേഷൻ ലോക്ക്, താക്കോൽ |
| മെറ്റീരിയൽ | കുറഞ്ഞ കാർബൺ സ്റ്റീൽ |
| പ്രത്യേക സവിശേഷതകൾ | Anti-Theft, Drop Slot |
| മൗണ്ടിംഗ് തരം | ഫ്ലോർ മൗണ്ട്, വാൾ മൗണ്ട് |
| അലാറം | Vibration (70+ dB) |
| ബാറ്ററികൾ ആവശ്യമാണ് | അതെ (ഉൾപ്പെടുത്തിയിട്ടില്ല) |
10. വാറൻ്റിയും പിന്തുണയും
For warranty information or technical support, please contact kavey customer service. Details for contacting support are typically provided with your purchase documentation or on the official kavey website. Please have your model number (KMT-75D) and purchase date available when contacting support.
