ആമുഖം
This manual provides comprehensive instructions for the setup, operation, and maintenance of your MUNBYN P01 Thermal Printer. The P01 is designed to integrate seamlessly with MUNBYN money counters, offering efficient printing of transaction details and serial numbers.
പ്രധാന സവിശേഷതകൾ:
- Designed for use with MUNBYN IMC01, IMC08, IMC21, and IMC09 mixed denomination money counters.
- Capable of printing serial numbers (SN) of counted bills.
- Compact design integrating a receipt printer and external TFT display.
- 58 mm paper width, 90 mm/sec print speed, with paper out detection.
- Features an imported print head for clear and lasting prints, with over-temperature protection.
- Plug-and-play connectivity via RJ-11 plug, no driver software required.
ഉൽപ്പന്നം കഴിഞ്ഞുview
The MUNBYN P01 Thermal Printer is a compact device that combines a thermal printer with an external display, providing real-time information and printed records of money counting operations.

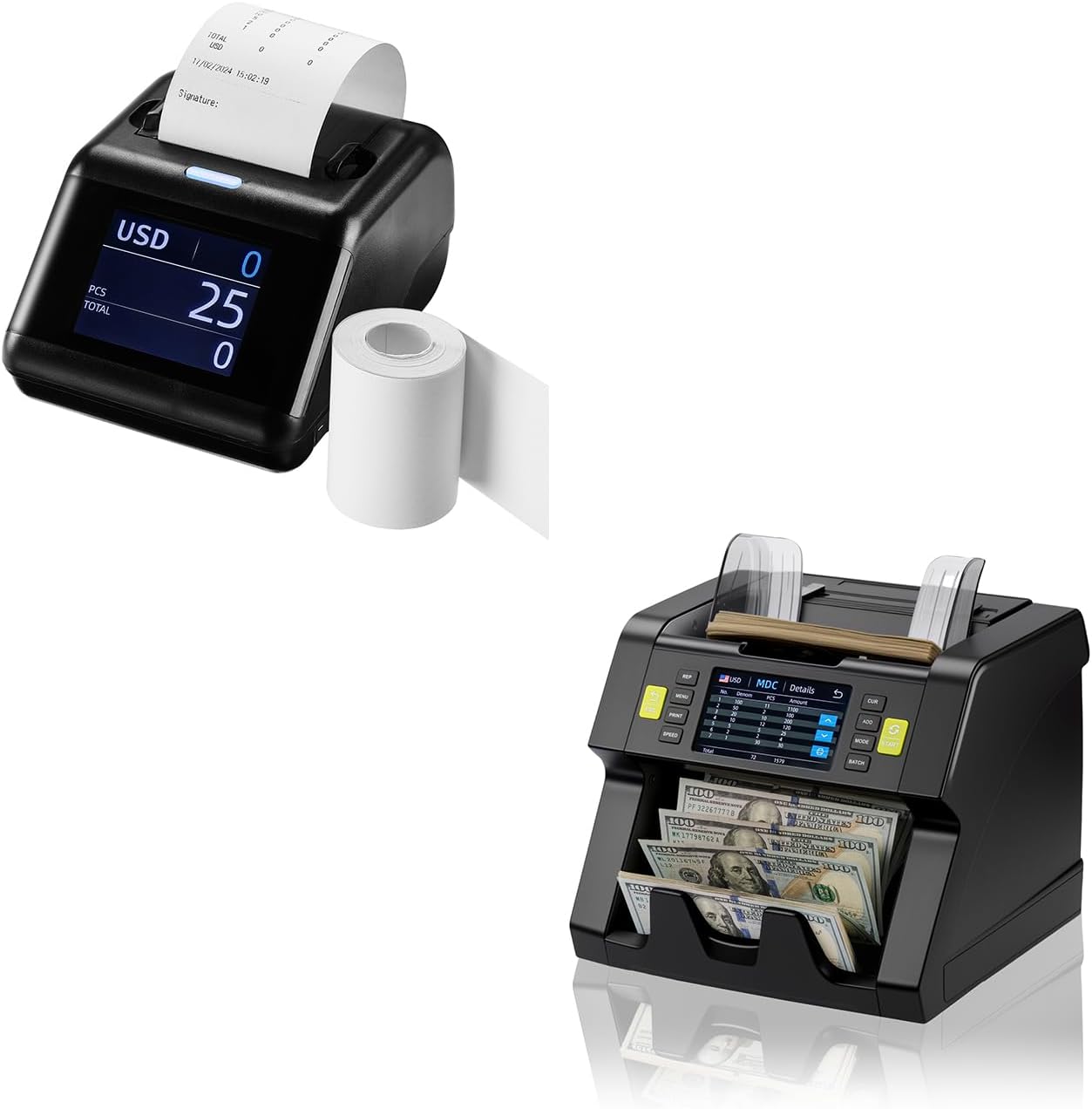

Figure 1: MUNBYN P01 Thermal Printer (left) shown alongside a compatible money counter (right).
ഘടകങ്ങൾ:
- Thermal Printer Unit: Main body with integrated print head.
- TFT ഡിസ്പ്ലേ: Shows counting results, denominations, and serial numbers.
- Paper Roll Compartment: Holds the thermal paper roll.
- RJ-11 പോർട്ട്: For connection to compatible MUNBYN money counters.
- പവർ ഇൻപുട്ട്: പവർ അഡാപ്റ്റർ ബന്ധിപ്പിക്കുന്നതിന്.
Figure 2: The MUNBYN P01 Thermal Printer is suitable for various professional environments, including offices, cashier desks, churches, and banks.
സജ്ജമാക്കുക
1. അൺപാക്ക് ചെയ്യലും പരിശോധനയും:
- പ്രിന്റർ അതിന്റെ പാക്കേജിംഗിൽ നിന്ന് ശ്രദ്ധാപൂർവ്വം നീക്കം ചെയ്യുക.
- Inspect the printer for any signs of damage during transit. If damaged, contact customer support.
- Ensure all components are present: P01 printer, power adapter, and any included cables.
2. Loading Thermal Paper:
- Open the paper roll compartment cover.
- Insert a 58 mm thermal paper roll into the compartment, ensuring the paper feeds from the bottom and the thermal side (usually smoother) faces the print head.
- Pull a small length of paper out past the cutting edge.
- കമ്പാർട്ട്മെന്റ് കവർ അതിന്റെ സ്ഥാനത്ത് ക്ലിക്കു ചെയ്യുന്നത് വരെ ദൃഢമായി അടയ്ക്കുക.
Figure 3: Proper orientation for loading the thermal paper roll.
3. Connecting to a Money Counter:
- Locate the RJ-11 port on the back of the MUNBYN P01 printer.
- Connect one end of the RJ-11 cable (typically supplied with your money counter or printer) to the printer's RJ-11 port.
- Connect the other end of the RJ-11 cable to the designated printer port on your compatible MUNBYN money counter (e.g., IMC01, IMC08, IMC21, IMC09).
- Connect the power adapter to the printer's power input and then to a suitable power outlet.
- Power on both the money counter and the P01 printer. The printer's display should illuminate.
പ്രവർത്തന നിർദ്ദേശങ്ങൾ
അടിസ്ഥാന പ്രവർത്തനം:
Once connected and powered on, the P01 printer will automatically receive data from the money counter. The display will show real-time counting information.
Figure 4: The P01 printer integrates with the money counter for quick printing.
Printing Count Results:
To print the results of a counting session, use the print function on your connected MUNBYN money counter. Refer to your money counter's specific user manual for detailed instructions on initiating a print job. The P01 printer will automatically print the summary, denomination breakdown, and serial numbers (if enabled and detected).
Figure 5: The printer can output detailed reports including serial numbers.
Figure 6: The P01 printer ensures high clarity in printed reports.
മെയിൻ്റനൻസ്
1. Replacing Thermal Paper:
When the paper roll is depleted or a "paper out" error is indicated, replace the roll following the steps outlined in the "Loading Thermal Paper" section under Setup.
2. Cleaning the Printer:
- Ensure the printer is powered off and disconnected from the power source before cleaning.
- Use a soft, dry, lint-free cloth to wipe the exterior of the printer.
- For the print head, use a specialized thermal printer cleaning pen or isopropyl alcohol on a cotton swab. Gently wipe the print head surface. Allow it to dry completely before use.
- ഉരച്ചിലുകളുള്ള ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
ട്രബിൾഷൂട്ടിംഗ്
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Printer not powering on. | No power, faulty adapter, loose connection. | Check power cable connection to printer and outlet. Ensure outlet is functional. Try a different power adapter if available. |
| No print output. | Paper out, paper loaded incorrectly, loose RJ-11 cable, money counter not sending print command. | Check paper roll and ensure it's loaded correctly. Verify RJ-11 cable is securely connected to both printer and money counter. Confirm print command is sent from money counter. |
| Faint or blank prints. | Paper loaded upside down, print head dirty, low quality thermal paper. | Ensure thermal paper is loaded with the thermal side facing the print head. Clean the print head. Use high-quality thermal paper. |
| Printer not recognized by money counter. | Loose RJ-11 cable, incompatible money counter model. | Check RJ-11 cable connection. Ensure your money counter model (IMC01, IMC08, IMC21, IMC09) is compatible with the P01 printer. |
സ്പെസിഫിക്കേഷനുകൾ
| ഫീച്ചർ | വിശദാംശങ്ങൾ |
|---|---|
| ബ്രാൻഡ് | മുൻബിൻ |
| മോഡൽ | P01 |
| പ്രിന്റർ തരം | Thermal Printer with External Display |
| പേപ്പർ വീതി | 58 മി.മീ |
| പ്രിൻ്റ് വേഗത | 90 മിമി/സെക്കൻഡ് |
| കണക്റ്റിവിറ്റി | RJ-11 പ്ലഗ് |
| Baud Rate (Default) | 9600 |
| അനുയോജ്യത | MUNBYN IMC01, IMC08, IMC21, IMC09 Money Counters |
വാറൻ്റിയും പിന്തുണയും
For warranty information and technical support, please contact MUNBYN customer service. Refer to the contact details provided with your product packaging or visit the official MUNBYN webസൈറ്റ്.
ഓൺലൈൻ പിന്തുണ: www.munbyn.com/support (ഉദാampലിങ്ക്, യഥാർത്ഥ ലിങ്ക് വ്യത്യാസപ്പെടാം)
