NEWYES Sync Pen 4 Electronic Notebook User Manual

1. ആമുഖം

Thank you for choosing the NEWYES Sync Pen 4. This smart pen and electronic notebook system allows you to instantly digitize your handwritten notes, drawings, and memos. This manual provides detailed instructions on how to set up, operate, and maintain your device to ensure optimal performance and a seamless digital note-taking experience.

2. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ ഇനിപ്പറയുന്ന ഇനങ്ങൾ ഉണ്ടോ എന്ന് പരിശോധിക്കുക:

• NEWYES Sync Pen 4 (x1)
• Smart Notebook (x1)
• Dedicated Pad (included only with digital pad set)
• Notebook Refills (x5)
• Electronic Pen Refills (x2)
• USB കേബിൾ (x1)
• ക്ലീനിംഗ് ക്ലോത്ത് (x1)
• ഇൻസ്ട്രക്ഷൻ മാനുവൽ (x1)

ചിത്രം: കഴിഞ്ഞുview of the NEWYES Sync Pen 4 package contents.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

3.1 പ്രധാന സവിശേഷതകൾ

• Real-time Digitalization: Instantly converts handwritten notes to digital text via the NEWYES app.
• Erasable Ink & Reusable Notebook: Use erasable ink with the dedicated notebook. Notes can be erased with a damp cloth or heat, allowing for over 500 uses per page.
• Offline Data Synchronization: The pen stores notes offline (up to 1000 A4 pages) and syncs when connected to your smart device.
• Multi-language OCR: Recognizes handwriting in over 73 languages, including mathematical elements and musical notation.
• Replay & Voice Recording: Replay the writing process and record audio simultaneously. This feature is useful for reviewing meetings or lectures.
• High Performance & Accuracy: Features OCR technology for 360-degree free writing recognition with 99% accuracy.
• നീണ്ട ബാറ്ററി ലൈഫ്: Approximately 9 hours of continuous use on a single charge.
• Convenient Note Search & Management: Search notes by keywords or tags ആപ്പിനുള്ളിൽ.
• One-Click Save & Share: Easily save and share notes in various formats (PDF, image, GIF, MP4 with audio) via social media or email.

3.2 ഘടകങ്ങൾ

ചിത്രം: വിശദമായത് view of the Sync Pen 4, highlighting its dimensions and charging port.

• പേനയുടെ അളവുകൾ: 158mm length.
• USB ചാർജിംഗ്: Charges in less than 1.5 hours, provides 9 hours of working time, and up to 300 days standby.
• Ergonomic Pen Holder: Designed for comfort, weighing only 20g with a 1cm diameter.
• Erasable Ink: SyncPen uses erasable ink; notes can be erased with a damp തുണി.
• OCR പ്രവർത്തനം: Built-in motion tracking sensor converts handwriting to digital text.

4. സജ്ജീകരണം

4.1 Charging the Sync Pen 4

Before first use, fully charge the Sync Pen 4 using the provided USB cable. Connect the USB cable to the pen's charging port and a power source. The indicator light will show charging status.

4.2 Installing the NEWYES App

1. Download the "NEWYES" app from your device's app store (iOS or Android).
2. ഒരു അക്കൗണ്ട് സൃഷ്ടിക്കുന്നതിനോ ലോഗിൻ ചെയ്യുന്നതിനോ ആപ്പ് തുറന്ന് ഓൺ-സ്‌ക്രീൻ നിർദ്ദേശങ്ങൾ പാലിക്കുക.

4.3 Pairing the Sync Pen 4 with the App

1. നിങ്ങളുടെ സ്മാർട്ട് ഉപകരണത്തിൽ ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
2. Open the NEWYES app.
3. Turn on the Sync Pen 4 by pressing the power button (or it may automatically turn on when you start writing).
4. Within the app, navigate to the device pairing section (usually found in settings or by tapping a pen icon).
5. Select your Sync Pen 4 from the list of available devices to pair.
6. Once paired, the pen's indicator light will confirm connection, and the app will display a connected status.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 Real-time Digitalization

With the Sync Pen 4 paired and the app open, any notes or drawings you make on the dedicated smart notebook will be instantly digitized and displayed on your smart device screen.

Image: The Sync Pen 4's core features, including real-time digitalization.

Image: Real-time synchronization of handwritten notes to a smartphone.

5.2 Using the Erasable Notebook

The special paper in the NEWYES smart notebook allows for repeated use. To erase notes:

• Damp തുണി: Gently wipe the page with a damp cloth to remove ink.
• ചൂട്: Apply heat (e.g., from a hairdryer) to the page, and the ink will disappear.

Image: Methods for erasing notes from the reusable smart notebook.

Image: Erasing notes with a wet cloth.

5.3 Offline Mode and Synchronization

The Sync Pen 4 can store notes internally when not connected to your device. To synchronize these offline notes:

1. Ensure your Sync Pen 4 is charged and powered on.
2. Open the NEWYES app on your paired smart device.
3. The app will automatically detect and transfer any stored offline data from the pen. A progress indicator will show the synchronization status.

5.4 OCR (Optical Character Recognition)

The app's OCR function converts your handwritten notes into editable digital text. It supports over 73 languages and can recognize complex elements like mathematical formulas and musical notation.

1. After writing, open the note in the NEWYES app.
2. Tap the OCR icon (often represented by a text or scan symbol).
3. The app will process your handwriting and display the converted text. You can then copy, edit, or share this text.

Image: Handwriting and formula recognition features of the NEWYES app.

ചിത്രം: ഉദാample of OCR converting handwritten text and math to digital format.

5.5 Voice Recording and Playback

The Sync Pen 4 allows you to record audio while taking notes. This creates a synchronized record of your writing and spoken words.

1. In the NEWYES app, start a new note or open an existing one.
2. Tap the microphone icon to begin voice recording.
3. As you write, the audio will be recorded and linked to your strokes.
4. To play back, open the note and tap the playback icon. You can adjust the playback speed.

5.6 Note Management and Sharing

The NEWYES app provides tools for organizing and sharing your digital notes.

• തിരയുക: Use keywords or tags to quickly find specific notes.
• സംഘടന: Categorize notes using custom tags.
• പങ്കിടൽ: Export notes in PDF, image, GIF, or MP4 (with audio) formats. Share directly to social media platforms (Facebook, WhatsApp, Instagram, Twitter) or via email.

Image: Note management interface with search and organization options.

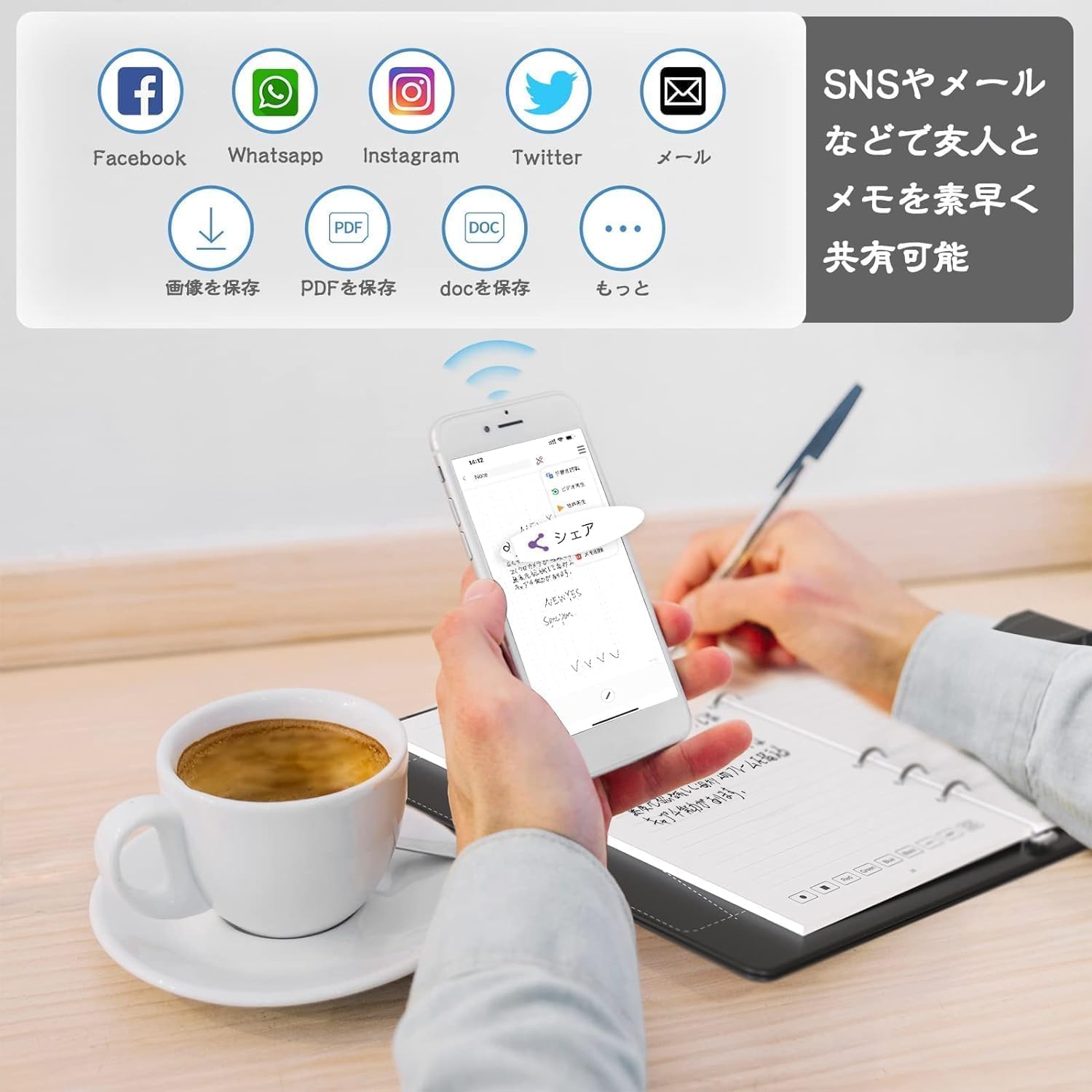

Image: Sharing options for digital notes.

6. പരിപാലനം

6.1 നോട്ട്ബുക്ക് വൃത്തിയാക്കൽ

To maintain the reusability of your smart notebook, regularly clean the pages after use. Use the provided cleaning cloth or a damp cloth to wipe away ink. Ensure the page is dry before writing again.

6.2 Replacing Pen Refills

When the ink runs out, replace the pen refill with a NEWYES erasable ink refill. Gently pull out the old refill and insert a new one until it clicks into place.

6.3 സോഫ്റ്റ്‌വെയർ അപ്‌ഡേറ്റുകൾ

Periodically check the NEWYES app for software updates. Updates often include new features, performance improvements, and bug fixes. Ensure your device is connected to the internet to download and install updates.

7. പ്രശ്‌നപരിഹാരം

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the NEWYES official webഉൽപ്പന്നത്തിന്റെ സൈറ്റ് അല്ലെങ്കിൽ പാക്കേജിംഗ്. വാറന്റി ക്ലെയിമുകൾക്കായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
