Waveshare ESP32-S3-POE-ETH-8DI-8RO

വേവ്ഷെയർ ഇൻഡസ്ട്രിയൽ 8-ചാനൽ ESP32-S3 വൈഫൈ റിലേ മൊഡ്യൂൾ യൂസർ മാനുവൽ

Model: ESP32-S3-POE-ETH-8DI-8RO

1. ഉൽപ്പന്നം കഴിഞ്ഞുview

The Waveshare Industrial 8-Channel ESP32-S3 WiFi Relay Module is a high-performance control unit designed for industrial automation and IoT applications. It integrates an ESP32-S3 microcontroller, offering robust wireless communication capabilities (Wi-Fi and Bluetooth LE), multiple isolation protection circuits, and versatile connectivity options including isolated RS485 and an Ethernet port with optional Power over Ethernet (PoE).

This module features 8 high-quality relays and 8 digital inputs, making it suitable for controlling various devices and monitoring industrial signals. Its design emphasizes reliability and safety in demanding environments.

2 പ്രധാന സവിശേഷതകൾ

  • ESP32-S3 Microcontroller: Equipped with an Xtensa 32-bit LX7 dual-core processor, operating at up to 240 MHz for efficient processing.
  • വയർലെസ് കണക്റ്റിവിറ്റി: Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode communication for flexible network integration.
  • 8-Channel Relays: High-quality relays with a contact rating of ≤10A 250V AC / 30V DC, suitable for various loads.
  • 8-Channel Digital Inputs: Supports both passive (dry contact) and active (wet contact) digital inputs with bi-directional optocoupler isolation.
  • Isolated RS485 Interface: For reliable connection to Modbus industrial modules or sensors, featuring hardware automatic control and protection circuits (TVS diode, surge protection, ESD protection).
  • ഇഥർനെറ്റ് പോർട്ട്: Onboard W5500 Ethernet chip for 10/100Mbps network communication.
  • പവർ ഓവർ ഇഥർനെറ്റ് (PoE): Optional version supports IEEE 802.3af standard for combined power and data over a single Ethernet cable.
  • ഫ്ലെക്സിബിൾ പവർ ഇൻപുട്ട്: Supports USB Type-C (5V) for power, debugging, and firmware, and a wide 7-36V DC screw terminal input for industrial applications.
  • RTC Chip: Onboard Real-Time Clock for scheduled tasks and time-sensitive operations.
  • Multiple Isolation Protection: Includes optocoupler isolation, power isolation, and digital isolation to prevent interference and ensure stable operation.
  • നില സൂചകങ്ങൾ: Built-in RGB LED, PWR, TXD, and RXD indicators for monitoring device status.
  • എൻക്ലോസർ: Rail-mounted ABS protective case for easy installation and enhanced safety.

3. പാക്കേജ് ഉള്ളടക്കം

പാക്കേജ് തുറക്കുമ്പോൾ എല്ലാ ഇനങ്ങളും നിലവിലുണ്ടെന്നും നല്ല നിലയിലാണെന്നും ഉറപ്പാക്കുക.

  • ESP32-S3-POE-ETH-8DI-8RO Module x 1
  • 2.4G 4dBi SMA Antenna x 1
  • സ്ക്രൂഡ്രൈവർ x 1
Package contents of the Waveshare ESP32-S3-POE-ETH-8DI-8RO module
Image 3.1: Contents of the product package, including the main module, antenna, and screwdriver.

4. സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും

4.1 പവർ സപ്ലൈ കണക്ഷൻ

The module supports multiple power input methods:

  • യുഎസ്ബി ടൈപ്പ്-സി: Connect a 5V USB power source to the USB Type-C port for power, debugging, and firmware uploading.
  • സ്ക്രൂ ടെർമിനൽ: Connect a 7-36V DC power supply to the designated screw terminals. Ensure correct polarity.
  • പവർ ഓവർ ഇഥർനെറ്റ് (PoE): For the PoE version, connect an 802.3af compliant PoE switch or router to the Ethernet port. This provides both power and network connectivity through a single cable.

4.2 നെറ്റ്‌വർക്ക് കണക്റ്റിവിറ്റി

  • വൈഫൈ: Attach the provided 2.4G SMA antenna to the external antenna connector. Configure Wi-Fi settings via firmware.
  • ബ്ലൂടൂത്ത് LE: The module supports Bluetooth LE for short-range wireless communication.
  • ഇഥർനെറ്റ്: Connect a standard Ethernet cable to the RJ45 port for wired network access.

4.3 റിലേ കണക്ഷനുകൾ

The module provides 8 relay channels. Each relay has Normally Open (NO) and Common (COM) contacts. Refer to the diagram for wiring exampലെസ്.

Wiring diagrams for AC 220V and DC 30V devices connected to the relay module
ചിത്രം 4.1: ഉദാample wiring for connecting AC 220V and DC 30V devices to the relay outputs.

4.4 Digital Input Connections

The 8 digital inputs support both passive (dry contact) and active (wet contact) signals. Ensure proper wiring based on the sensor type.

Wiring diagrams for passive (dry contact) and active (wet contact) digital inputs
Image 4.2: Wiring examples for passive digital inputs (e.g., button switches) and active digital inputs (e.g., NPN proximity sensors).

4.5 RS485 ഇന്റർഫേസ്

Connect RS485 devices (e.g., Modbus modules, sensors) to the isolated RS485 screw terminals. The interface features hardware automatic control for data direction and includes protection circuits.

4.6 Enclosure and Mounting

The module is housed in a rail-mounted ABS protective case, designed for easy installation in industrial control cabinets using a 35mm DIN rail.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

5.1 പ്രാരംഭ പവർ-അപ്പും കോൺഫിഗറേഷനും

After connecting the power supply, the PWR LED should illuminate. The module can be configured via its Wi-Fi interface (AP mode), Ethernet, or through a serial connection via the USB Type-C port. Refer to the Waveshare Wiki for detailed programming and configuration guides.

5.2 റിലേ നിയന്ത്രണം

The 8 relays can be controlled programmatically via the ESP32-S3 microcontroller. This allows for switching AC or DC loads based on logic defined in the firmware.

5.3 Digital Input Monitoring

Monitor the status of the 8 digital inputs to detect external events from sensors, switches, or other industrial signals. The bi-directional optocoupler isolation ensures signal integrity and protection.

5.4 RS485 ആശയവിനിമയം

Utilize the isolated RS485 interface for communication with other industrial devices, typically using the Modbus protocol. This enables data exchange and control within an industrial network.

5.5 Firmware Upload and Debugging

Connect the module to a computer via the USB Type-C port. Use the appropriate development environment (e.g., Arduino IDE, ESP-IDF) to upload custom firmware and debug applications.

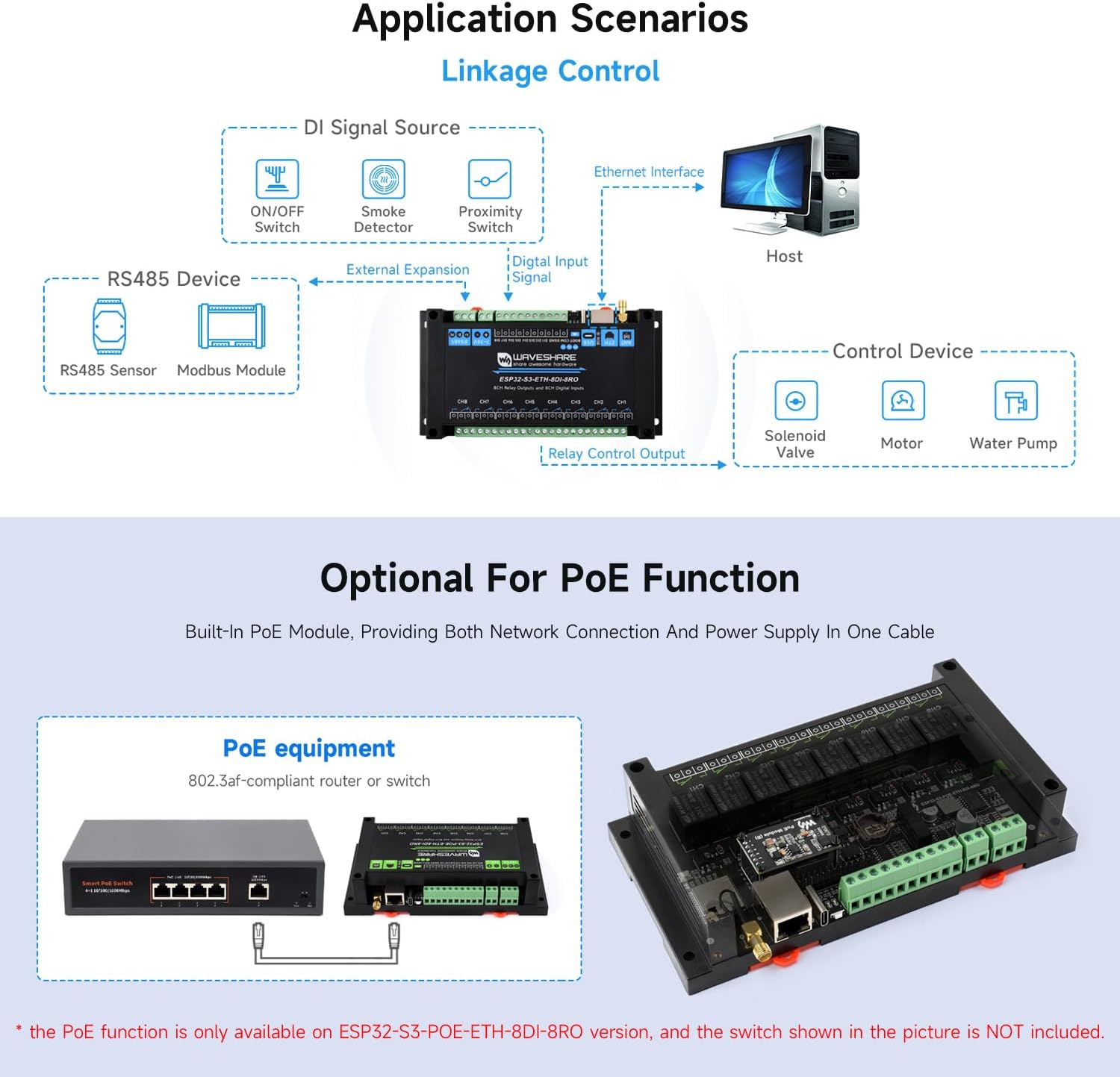

Diagram showing application scenarios and examples, including cloud server integration, Modbus devices, and Arduino IDE support
Image 5.1: Application scenarios demonstrating linkage control, cloud integration, and development with Arduino IDE.

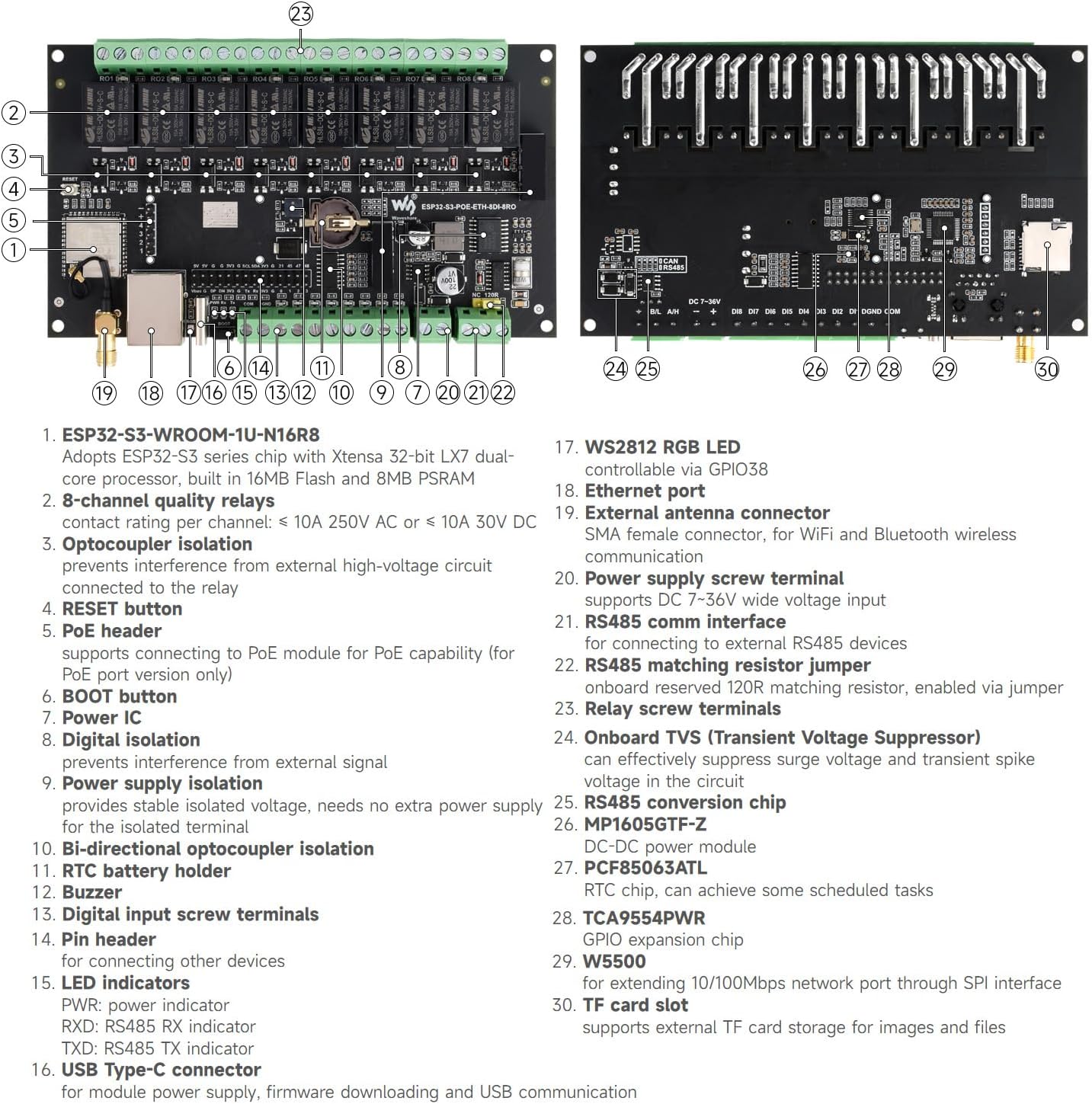

6. Board Layout and Components

Understanding the board layout is crucial for proper connection and operation. The following diagrams highlight key components and their functions.

6.1 ടോപ്പ് View

മുകളിൽ view of the Waveshare ESP32-S3-POE-ETH-8DI-8RO board with numbered components
ചിത്രം 6.1: മുകളിൽ view of the module, indicating the location of the ESP32-S3 chip, relays, connectors, and LEDs.
  1. ESP32-S3-WROOM-1U-N16R8 (ESP32-S3 module)
  2. 8-channel quality relays
  3. Optocoupler isolation for relays
  4. റീസെറ്റ് ബട്ടൺ
  5. PoE header (for PoE module)
  6. ബൂട്ട് ബട്ടൺ
  7. പവർ ഐസി
  8. Digital isolation
  9. Power supply isolation
  10. Bi-directional optocoupler isolation
  11. RTC ബാറ്ററി ഹോൾഡർ
  12. ബസർ
  13. Digital input screw terminals
  14. Pin header (for other devices)
  15. LED indicators (PWR, RXD, TXD)
  16. യുഎസ്ബി ടൈപ്പ്-സി കണക്ടർ
  17. WS2812 RGB LED
  18. ഇഥർനെറ്റ് പോർട്ട്
  19. ബാഹ്യ ആന്റിന കണക്റ്റർ
  20. Power supply screw terminal
  21. RS485 ആശയവിനിമയ ഇന്റർഫേസ്
  22. RS485 matching resistor jumper
  23. Relay screw terminals

6.2 താഴെ View

താഴെ view of the Waveshare ESP32-S3-POE-ETH-8DI-8RO board with numbered components
ചിത്രം 6.2: താഴെ view of the module, showing additional components like the RS485 conversion chip and TF card slot.
  1. ഓൺബോർഡ് ടിവിഎസ് (ക്ഷണികമായ വോളിയംtage Suppressor)
  2. RS485 conversion chip
  3. MP1605GTF-Z (DC-DC power module)
  4. PCF85063ATL (RTC chip)
  5. TCA9554PWR (GPIO expansion chip)
  6. W5500 (Ethernet chip)
  7. TF കാർഡ് സ്ലോട്ട്

7 സ്പെസിഫിക്കേഷനുകൾ

വിഭാഗംപരാമീറ്റർമൂല്യം
മൈക്രോകൺട്രോളർമൊഡ്യൂൾESP32-S3-WROOM-1U-N16R8 (ESP32-S3)
പ്രോസസ്സർഎക്സ്റ്റെൻസ 32-ബിറ്റ് എൽഎക്സ്7 ഡ്യുവൽ കോർ, 240 മെഗാഹെട്സ് വരെ
വയർലെസ് കമ്മ്യൂണിക്കേഷൻവൈഫൈ2.4GHz (802.11 b/g/n)
ബ്ലൂടൂത്ത്ബ്ലൂടൂത്ത് 5, BLE
USBകണക്റ്റർയുഎസ്ബി ടൈപ്പ്-സി
വൈദ്യുതി വിതരണം5V
Isolated Communication Interfaceഇൻ്റർഫേസ്RS485
സംരക്ഷണംTVS diode, surge protection & ESD protection
ഇഥർനെറ്റ് ഇൻ്റർഫേസ്തുറമുഖംPoE Ethernet port (IEEE 802.3af standard for PoE version)
ഡിജിറ്റൽ ഇൻപുട്ട്ഇൻപുട്ട് ചാനലുകൾ8
ഇൻപുട്ട് വോളിയംtage5V-36V
ഇൻപുട്ട് തരംPassive input / active input (NPN or PNP type)
ഐസൊലേഷൻ തരംBi-directional optocoupler isolation
റിലേറിലേ ചാനലുകൾ8
കോൺടാക്റ്റ് റേറ്റിംഗ്≤10A 250V AC / 30V DC
ബന്ധപ്പെടാനുള്ള ഫോം1NO 1NC
ഐസൊലേഷൻഒപ്‌റ്റോകപ്ലർ ഐസൊലേഷൻ
LED സൂചകങ്ങൾRGBProgrammable color LED
Pwrറെഡ് പവർ ഇൻഡിക്കേറ്റർ
TXDGreen TX indicator
RXDBlue RX indicator
Power Supply Screw Terminalവാല്യംtagഇ റേഞ്ച്7-36V
രൂപഭാവംഎൻക്ലോഷർRail-mount ABS protective case
അളവുകൾ175 × 90 × 40 (മില്ലീമീറ്റർ)
Detailed specifications table for the Waveshare ESP32-S3-POE-ETH-8DI-8RO module
Image 7.1: Comprehensive specifications of the module, including microcontroller, communication, and I/O details.

8. പരിപാലനം

The Waveshare Industrial 8-Channel ESP32-S3 WiFi Relay Module is designed for robust industrial use. To ensure its longevity and reliable operation:

  • പരിസ്ഥിതി വ്യവസ്ഥകൾ: Operate the module within specified temperature and humidity ranges. Avoid exposure to excessive dust, moisture, or corrosive substances.
  • വൃത്തിയാക്കൽ: ആവശ്യമെങ്കിൽ, മൃദുവായതും ഉണങ്ങിയതുമായ തുണി ഉപയോഗിച്ച് മൊഡ്യൂളിന്റെ പുറംഭാഗം സൌമ്യമായി വൃത്തിയാക്കുക. ലിക്വിഡ് ക്ലീനറുകളോ ലായകങ്ങളോ ഉപയോഗിക്കരുത്.
  • ഫേംവെയർ അപ്‌ഡേറ്റുകൾ: Regularly check the Waveshare Wiki for firmware updates to ensure optimal performance and access to new features.
  • കണക്ഷനുകൾ: Periodically inspect all screw terminal connections to ensure they are secure and free from corrosion.

9. പ്രശ്‌നപരിഹാരം

If you encounter issues with your Waveshare Industrial 8-Channel ESP32-S3 WiFi Relay Module, consider the following troubleshooting steps:

  • ശക്തിയില്ല:
    • Check if the power supply (USB-C or 7-36V terminal) is correctly connected and providing the specified voltage.
    • Ensure the PWR LED is illuminated. If not, verify the power source.
    • For PoE versions, confirm the Ethernet cable is connected to an active PoE switch/injector.
  • No Network Connectivity (Wi-Fi/Ethernet):
    • വൈഫൈ: Ensure the antenna is securely attached. Verify Wi-Fi credentials and network availability. Try resetting the module.
    • ഇഥർനെറ്റ്: Check the Ethernet cable connection. Confirm the network switch/router is operational.
  • Relays Not Actuating:
    • Verify the control logic in your firmware.
    • Check the power supply to the module and the load connected to the relay.
    • Ensure the load current and voltage do not exceed the relay's contact rating.
  • Digital Inputs Not Responding:
    • Confirm correct wiring for passive (dry contact) or active (wet contact) sensors.
    • Check the sensor's functionality independently.
    • ഇൻപുട്ട് വോളിയം പരിശോധിക്കുകtage range for active inputs (5V-36V).
  • RS485 Communication Issues:
    • Check wiring polarity (A/B).
    • Ensure the RS485 matching resistor jumper is correctly set if needed.
    • Verify baud rate and communication parameters in your software.

For further assistance, consult the official Waveshare Wiki resources or contact Waveshare technical support.

10 പിന്തുണയും വിഭവങ്ങളും

Waveshare provides comprehensive resources to assist users with their products:

  • ഔദ്യോഗിക വിക്കി: The Waveshare Wiki is the primary source for detailed documentation, programming guides, sample code, and technical specifications. Visit the Waveshare store page and look for the Wiki link.
  • സാങ്കേതിക സഹായം: For specific technical inquiries or issues not covered in the documentation, please contact Waveshare customer support through their official channels.

10.1 വാറൻ്റി വിവരങ്ങൾ

Warranty terms and conditions for this product are provided by Waveshare. Please refer to the product packaging or the official Waveshare webവിശദമായ വാറന്റി വിവരങ്ങൾക്ക് സൈറ്റ്.
