ആമുഖം
The CYCLAMI M6 Out Front Bike Mount is designed to securely hold your bike computer, action camera, and bicycle light in an optimal viewing position. This mount offers universal compatibility with various devices, enhancing your cycling experience by keeping essential information and recording capabilities easily accessible. Its robust yet lightweight design ensures stability on diverse terrains.
പാക്കേജ് ഉള്ളടക്കം
- Frontട്ട് ഫ്രണ്ട് ബൈക്ക് മൗണ്ട്
- Handlebar shims (for 25.4mm and 31.8mm handlebars)
- GoPro അഡാപ്റ്റർ
- Light mount adapter
- മൌണ്ടിംഗ് ഹാർഡ്വെയറും ടൂളുകളും
സജ്ജമാക്കുക
Follow these steps to install the CYCLAMI M6 Out Front Bike Mount and attach your devices.
1. Attaching the Mount to the Handlebar
- Identify your handlebar diameter (25.4mm or 31.8mm). Select the appropriate shim if your handlebar is 25.4mm. For 31.8mm handlebars, no shim is typically required.
- Open the split clamp of the mount. Position the mount on your handlebar, ensuring it is centered and oriented correctly for optimal viewing.
- Insert the shim (if applicable) between the mount and the handlebar. Secure the clamp using the provided screws and tools. Tighten firmly but do not overtighten to avoid damage.
Image: The CYCLAMI M6 Out Front Bike Mount securely attached to a bicycle handlebar, ready for device installation.
2. Attaching a Bike Computer
- Align your Garmin-compatible bike computer with the quarter-turn mount on the top of the CYCLAMI M6.
- Gently press down and twist the computer clockwise until it locks into place.
Image: A bike computer mounted on the CYCLAMI M6, providing an easy-to-view display directly in front of the handlebars.
3. Attaching a GoPro Camera or Light
- For a GoPro camera, attach the provided GoPro adapter to the lower accessory mount using the supplied screws. Then, secure your GoPro camera to the adapter.
- For a bike light, attach the provided light mount adapter to the lower accessory mount. Then, secure your bike light to the adapter.

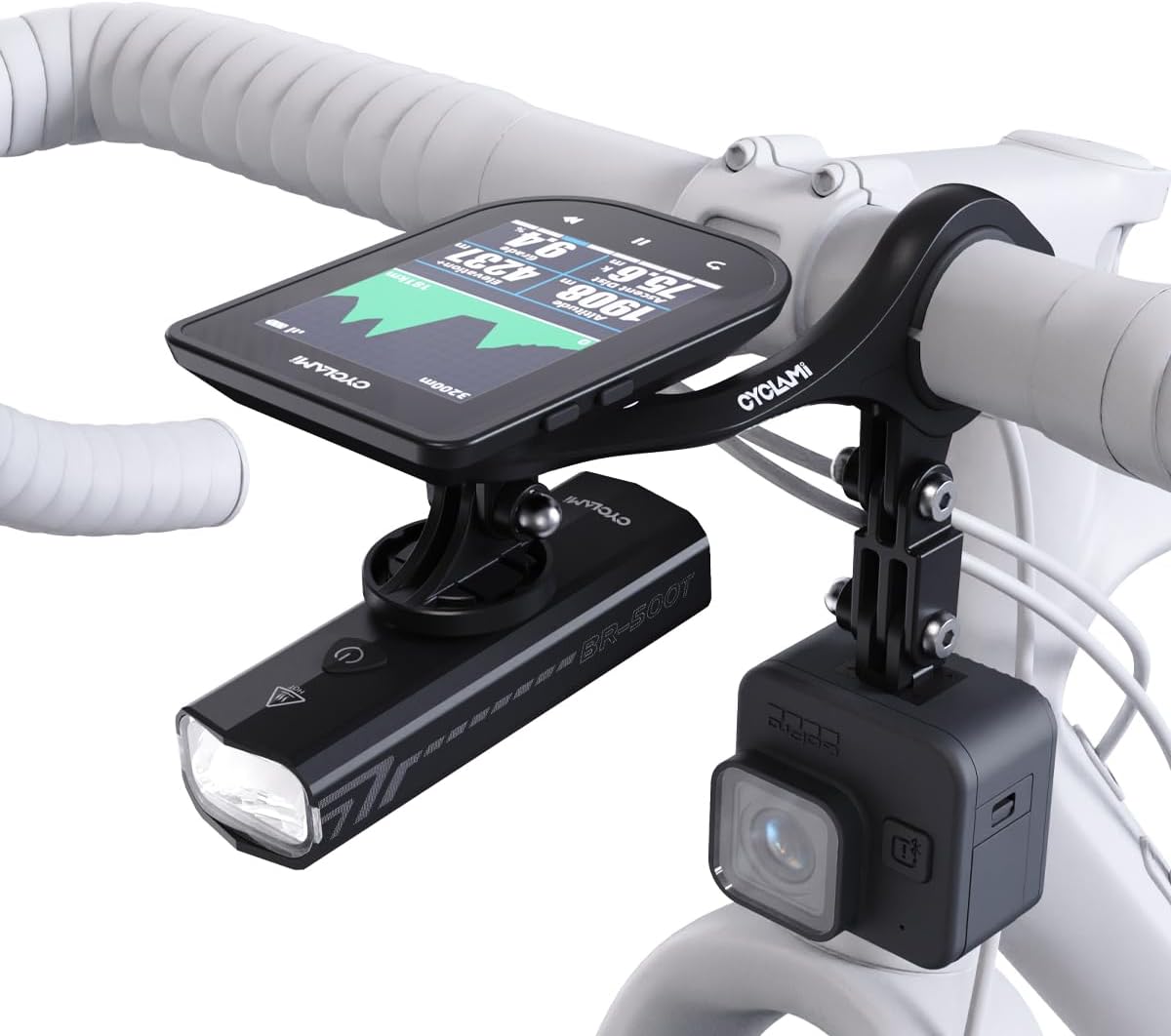

Image: The CYCLAMI M6 mount configured with a bike computer, a bike light, and a GoPro camera, demonstrating its multi-device capability.
പ്രവർത്തിക്കുന്നു
Once installed, the CYCLAMI M6 mount positions your devices for optimal use.
- Viewസ്ഥാനം: The mount extends devices approximately 3.5 inches forward, reducing the need to look down significantly and minimizing neck strain.
- Device Access: All attached devices remain easily accessible for operation, such as starting/stopping recordings, adjusting light modes, or interacting with your bike computer.
- ദ്രുത പ്രകാശനം: To remove your bike computer, twist it counter-clockwise until it detaches from the mount.
മെയിൻ്റനൻസ്
Proper maintenance ensures the longevity and performance of your CYCLAMI M6 mount.
- വൃത്തിയാക്കൽ: പരസ്യം ഉപയോഗിച്ച് മൗണ്ട് മായ്ക്കുകamp cloth to remove dirt and grime. Avoid harsh chemicals that may damage the material.
- പരിശോധന: Periodically check all screws and connections to ensure they are secure. Retighten if necessary.
- നാശ പ്രതിരോധം: The mount is constructed from corrosion-resistant materials, suitable for all-weather use. However, regular cleaning after exposure to rain or mud is recommended.
ട്രബിൾഷൂട്ടിംഗ്
If you encounter issues with your CYCLAMI M6 mount, refer to the following common solutions:
- Mount feels loose on handlebar: Ensure the correct shim is used for your handlebar diameter (25.4mm or 31.8mm) and that the clamp സ്ക്രൂകൾ സുരക്ഷിതമായി മുറുക്കിയിരിക്കുന്നു.
- Device not fitting correctly: Verify that your device is compatible with Garmin-style quarter-turn mounts for bike computers, or standard GoPro/light mounts for accessories. Ensure adapters are correctly installed.
- Vibration during ride: Check all mounting points for tightness. Ensure the mount is firmly secured to the handlebar and that devices are properly locked into their respective adapters.
സ്പെസിഫിക്കേഷനുകൾ
| ഉൽപ്പന്ന അളവുകൾ | 0.79 x 3.15 x 6.69 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 3.21 ഔൺസ് (72 ഗ്രാം) |
| മോഡൽ നമ്പർ | എം6-യുഎസ് |
| നിറം | കറുപ്പ് |
| അനുയോജ്യമായ ഉപകരണങ്ങൾ | Garmin, iGPSPORT, XOSS, CooSpo, Magene, CYCPLUS computers, GoPro cameras, Bicycle Lights |
| മൗണ്ടിംഗ് തരം | Handlebar (25.4mm / 31.8mm) |
| മെറ്റീരിയൽ | High-quality Vinyl-Composite |
വാറൻ്റി വിവരങ്ങൾ
For information regarding product warranty, please refer to the purchase documentation or contact the retailer where the product was acquired. Specific warranty terms may vary.
പിന്തുണ
Should you require further assistance or have questions not covered in this manual, please contact CYCLAMI customer support through the official brand website or the retailer's support channels.
